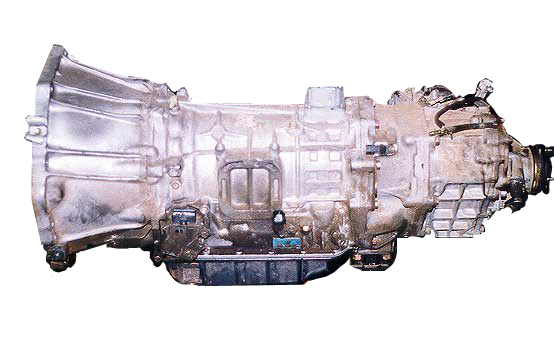

Toyota A440F Transmission

Automatic transmissions A440 and A442 are very reliable units. Repair services for these transmissions resemble the repair of manual transmissions.These 4-speed automatic transmissions were installed on "invincible" and powerful Land Cruiser with the engine 4 liters since 1985 up till 1995 (440F), and then from 1993 the A442F modification made this transmission family of Aisin Warner very popular as well as A340 (AW30-40LE).In 1998 electrical components and the valve body of the A442F. It is a low-maintenance transmission in regard to ATF status, but the fluid cleanness should be taken into…

Speeds 4
Type AT
Drive RWD/4WD
Max torque 420
ATF capacity (L) 15
ATF change (L) 6
ATF type Dexron III, VI
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page

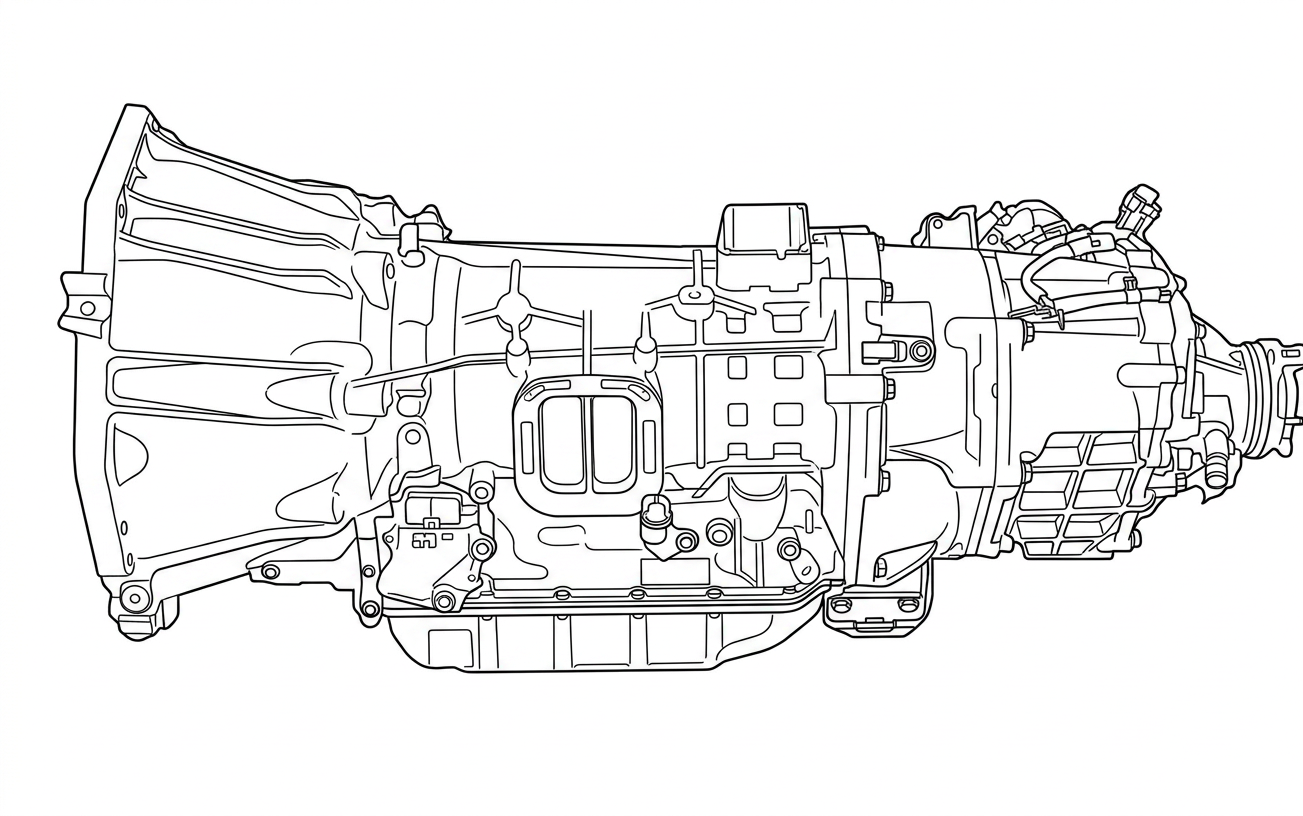

A440F
4.4/10
Support & Market Presence Index
Limited presence

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence0.6
Documentation depth10.0
Knowledge & support4.0

Exploded diagram & parts

Full A442F parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

777 777 · No. 1 217/750 217, 750 · No. 2 070 070 · No. 3 034 034 · No. 4 5 5 · No. 5 530 530 · No. 6 530 530 · No. 7 036 036 · No. 8 520 520 · No. 9 185 185 · No. 10 037 037 · No. 11 310 310 · No. 12 210 210 · No. 13 211 211 · No. 14 551 551 · No. 15 16 16 · No. 16 038 038 · No. 17 341 341 · No. 18 961 961 · No. 19 865 865 · No. 20 21 21 · No. 21 122/102 122, 102 · No. 22 142 142 · No. 23 864 864 · No. 24 867220 867220 · No. 25 867220 867220 · No. 26 27 27 · No. 27 650 650 · No. 28 661 661 · No. 29 221 221 · No. 30 580 580 · No. 31 042 042 · No. 32 778 778 · No. 33 217 217 · No. 34 590 590 · No. 35 185 185 · No. 36 600 600 · No. 37 868 868 · No. 38 223 223 · No. 39 224 224 · No. 40 860 860 · No. 41 861 861 · No. 42 140 140 · No. 43 120/100 120, 100 · No. 44 45 45 · No. 45 46 46 · No. 46 47 47 · No. 47 330 330 · No. 48 331 331 · No. 49 630 630 · No. 50 181 181 · No. 51 219 219 · No. 52 225 225 · No. 53 226 226 · No. 54 227 227 · No. 55 228 228 · No. 56 554 554 · No. 57 334 334 · No. 58 335 335 · No. 59 964 964 · No. 60 974 974 · No. 61 877 877 · No. 62 231 231 · No. 63 232 232 · No. 64 128/108 128, 108 · No. 65 148 148 · No. 66 574 574 · No. 67 575 575 · No. 68 876 876 · No. 69 878 878 · No. 70 146* 146* · No. 71 126/106 126, 106 · No. 72 234 234 · No. 73 235 235 · No. 74 879 879 · No. 75 975 975 · No. 76 965 965 · No. 77 336 336 · No. 78 337 337 · No. 79 555 555 · No. 80 873 873 · No. 81 144 144 · No. 82 124/104 124, 104 · No. 83 84 84 · No. 84 85 85 · No. 85 86 86 · No. 86 332 332 · No. 87 333 333 · No. 88 884 884 · No. 89 179 179 · No. 90 632 632 · No. 91 260 260 · No. 92 052 052 · No. 93 612 612 · No. 94 052 052 · No. 95 237 237 · No. 96 694 694 · No. 97 652 652 · No. 98 652 652 · No. 99 652 652 · No. 100 663 663 · No. 101 694 694 · No. 102 239 239 · No. 103 582 582 · No. 104 592 592 · No. 105 882 882 · No. 106 239 239 · No. 107 245 245 · No. 108 584 584 · No. 109 594 594 · No. 110 614 614 · No. 111 246 246 · No. 112 184 184 · No. 113 672 672 · No. 114 888 888 · No. 115 604 604 · No. 116 889 889 · No. 117 890 890 · No. 118 255 255 · No. 119 062 062 · No. 120 678 678 · No. 121 437 437 · No. 122 996 996 · No. 123 180 180 · No. 124 781 781 · No. 125 886 886 · No. 126 887 887 · No. 127 154 154 · No. 128 134/114 134, 114 · No. 129 135 135 · No. 130 131 131 · No. 131 132 132 · No. 132 133 133 · No. 133 134 134 · No. 134 135 135 · No. 135 136 136 · No. 136 137 137 · No. 137 760 760 · No. 138 690 690 · No. 139 680 680 · No. 140 265 265 · No. 141 266 266 · No. 142 894 894 · No. 143 691 691 · No. 144 272 272 · No. 145 895 895 · No. 146 305/770 305, 770 · No. 147 074 074 · No. 148 951 951 · No. 149 936 936 · No. 150 151 151 · No. 151 152 152 · No. 152 153 153 · No. 153 746 746 · No. 154 939 939 · No. 155 493 493 · No. 156 991-3 991-3 · No. 157 991-4 991-4 · No. 158 991-6 991-6 · No. 159 995-2 995-2 · No. 160 995-1 995-1 · No. 161 995-3 995-3 · No. 162 927 927 · No. 163 926 926 · No. 164 165 165 · No. 165 166 166 · No. 166 931 931 · No. 167 932 932 · No. 168 169 169 · No. 169 952 952 · No. 170 171 171 · No. 171 172 172 · No. 172 173 173 · No. 173 765 765 · No. 174 994 994 · No. 175 176 176 · No. 176 177 177 · No. 177 951B 951B · No. 178 179 179 · No. 179 180 180 · No. 180 010 010 · No. 181

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to A440F in the Go4Trans marketplace.
Sell A440F parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

2 applications · 1 make · 1985–1992 Toyota 2

Make Model Year Drive Engine
Toyota Land Cruiser 1988-1992 4 Spd 4X4 L6 4.0/4.2L
Toyota Land Cruiser 1985-1992 4.0

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

A440F
A440 F
A440-F
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Torque Converter Lockup Clutch Wear
Lockup clutch wears out frequently, often linked to overheating or slipping; requires torque converter repair or replace
!
Forward Package Friction Wear
Forward clutch package frictions are among the first components to wear out in A440/A442 transmissions.
!
Direct Package Friction Wear
Direct clutch package frictions wear out early alongside Forward package frictions.
!
Teflon Rings Degradation
Teflon sealing rings are among the first components to fail, causing internal leakage and pressure loss.
?
ATF Overheating Above 150C
Slipping under load can heat ATF to 150°C, accelerating wear on frictions, seals, and valve body components.
!
Pump Cover Bushing Failure
Pump cover bushing commonly wears out; caused by worn torque converter, overheating, or clogged valve body.
!
Forward Planetary Gear Failure
Forward planetary gear is the first major gear component to fail in aged Land Cruiser units.
!
Gaskets Seals Rings Ageing
All gaskets, seals, and rings become worn and brittle after extended service, requiring full kit replacement.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

Automatic transmissions A440 and A442 are very reliable units. Repair services for these transmissions resemble the repair of manual transmissions.These 4-speed automatic transmissions were installed on "invincible" and powerful Land Cruiser with the engine 4 liters since 1985 up till 1995 (440F), and then from 1993 the A442F modification made this transmission family of Aisin Warner very popular as well as A340 (AW30-40LE).In 1998 electrical components and the valve body of the A442F. It is a low-maintenance transmission in regard to ATF status, but the fluid cleanness should be taken into consideration.

Technical issues and repair guidelines

The A440 - 442 units are notable for their reliability and even 20-year old transmissions basically require only replacement of friction filters and repair kits.The torque converter with worn-out lockup clutch is frequently repaired in this transmission. After 10-12 years of service all gaskets, seals and rings get worn and fragile, therefore they should be replaced. The replacement of spare parts of the repair kit gives this transmission additional 3-5 years of service life. The Precision overhaul kit is used more often than Transtec overhaul kit.The first spare parts that get worn-out are teflon rings and frictions of Forward and Direct packages.

The pump cover bushing is a common component to be replaced in these “invincible” transmissions. This problem may be caused by the worn-out torque converter, overheating, clogged valve body or ageing of the transmission itself.The planetary gear Forward is the first to get out of order in old Land Cruisers. It’s a rare case when in this gearbox you get burnt drums, pump gears, valve body, torque converter, but when it happens the structure of this transmission is not to blame, except for the fact that it is allowed to heat the oil with slipping up to 150 C. It is said that after the overhaul this simple and resourceful transmission starts a new service life. This family of transmissions has a long service resource, that allows us to call this transmission “invincible” under conditions of sufficient cooling and timely fluid change.
