Home / Transmissions / Toyota / A340F
Toyota Source-verified model

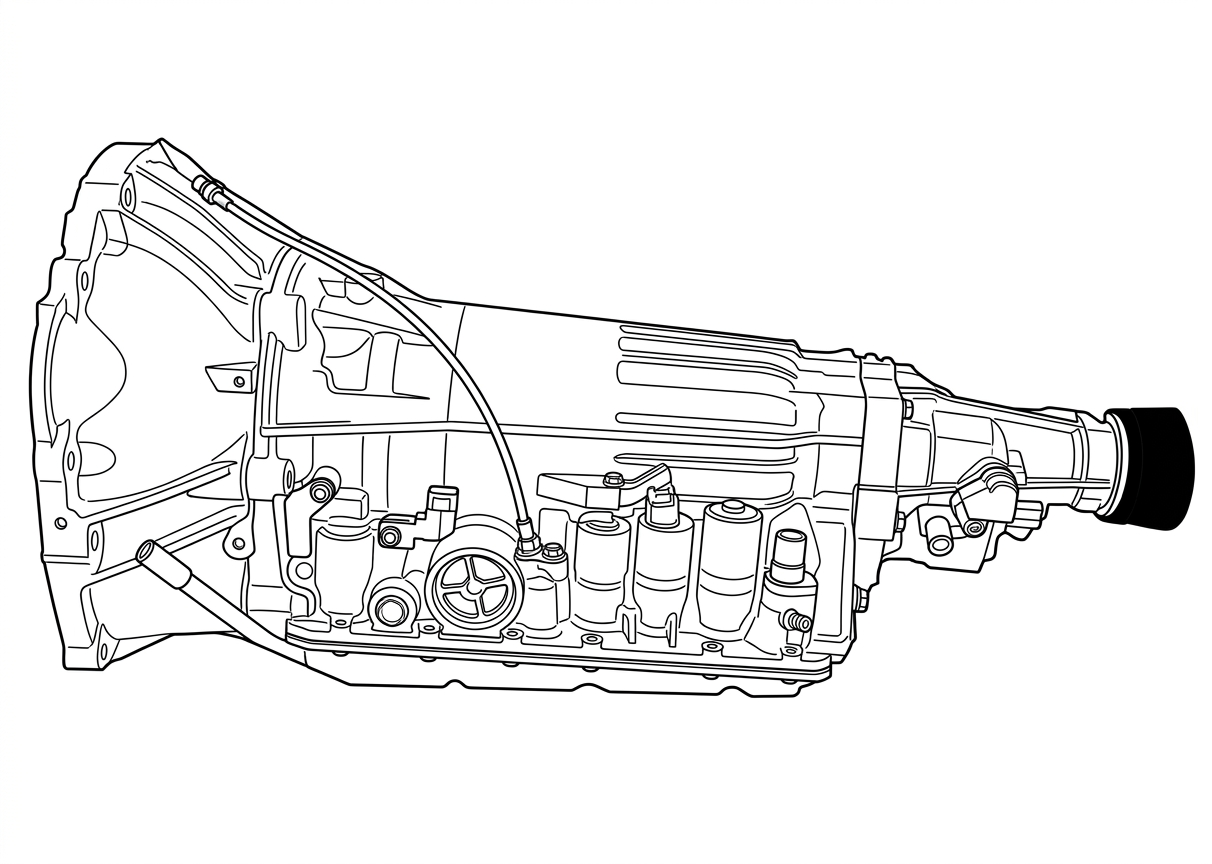

Toyota A340F Transmission

Speeds 4
Drive 4WD
Type Automatic
ATF type Dexron II
ATF capacity (L) 7.6
ATF change (L) 2.0
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

A340F
0.0/10
Support & Market Presence Index

How widely this transmission is used, documented and supported across the Go4Trans graph.

2resources
Diagram Parts Fitment Aliases Symptoms Related Sources Contribute

Exploded diagram & parts

Full 30-40LE parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

179 179 · No. 1 750 750 · No. 2 070 070 · No. 3 034 034 · No. 4 530 530 · No. 5 530 530 · No. 6 036 036 · No. 7 520 520 · No. 8 778 778 · No. 9 037 037 · No. 10 311 311 · No. 11 210 210 · No. 12 211 211 · No. 13 038 038 · No. 14 551 551 · No. 15 038B 038B · No. 16 340 340 · No. 17 341 341 · No. 18 961 961 · No. 19 971 971 · No. 20 865 865 · No. 21 122/102 122, 102 · No. 22 142 142 · No. 23 864 864 · No. 24 867 867 · No. 25 213 213 · No. 26 650 650 · No. 27 650 650 · No. 28 650 650 · No. 29 661 661 · No. 30 214 214 · No. 31 580 580 · No. 32 042/216 042, 216 · No. 33 216 216 · No. 34 217 217 · No. 35 218 218 · No. 36 590 590 · No. 37 600 600 · No. 38 868 868 · No. 39 777 777 · No. 40 861 861 · No. 41 140 140 · No. 42 120/100 120, 100 · No. 43 140 140 · No. 44 860 860 · No. 45 862 862 · No. 46 970 970 · No. 47 960 960 · No. 48 331 331 · No. 49 330 330 · No. 50 222 222 · No. 51 223 223 · No. 52 224 224 · No. 53 630 630 · No. 54 179 179 · No. 55 225 225 · No. 56 227 227 · No. 57 226 226 · No. 58 022 022 · No. 59 046 046 · No. 60 555 555 · No. 61 337 337 · No. 62 336 336 · No. 63 965 965 · No. 64 975 975 · No. 65 879 879 · No. 66 229 229 · No. 67 126/106 126, 106 · No. 68 146 146 · No. 69 878 878 · No. 70 181 181 · No. 71 554 554 · No. 72 048335 048335 · No. 73 048335 048335 · No. 74 334 334 · No. 75 964 964 · No. 76 974 974 · No. 77 877 877 · No. 78 853 853 · No. 79 128/108 128, 108 · No. 80 148 148 · No. 81 876 876 · No. 82 231 231 · No. 83 232 232 · No. 84 232/233 232, 233 · No. 85 050 050 · No. 86 592 592 · No. 87 894 894 · No. 88 234 234 · No. 89 235 235 · No. 90 236 236 · No. 91 582 582 · No. 92 237 237 · No. 93 238 238 · No. 94 887 887 · No. 95 052 052 · No. 96 612 612 · No. 97 182 182 · No. 98 182 182 · No. 99 052 052 · No. 100 622 622 · No. 101 886 886 · No. 102 244 244 · No. 103 285 285 · No. 104 652 652 · No. 105 652 652 · No. 106 652 652 · No. 107 663 663 · No. 108 285 285 · No. 109 247 247 · No. 110 873 873 · No. 111 144 144 · No. 112 124/104 124, 104 · No. 113 872 872 · No. 114 874 874 · No. 115 982 982 · No. 116 972 972 · No. 117 549 549 · No. 118 962 962 · No. 119 332 332 · No. 120 333 333 · No. 121 632 632 · No. 122 134/114 134, 114 · No. 123 859 859 · No. 124 155 155 · No. 125 996 996 · No. 126 437 437 · No. 127 664 664 · No. 128 888 888 · No. 129 654 654 · No. 130 131 131 · No. 131 654 654 · No. 132 654 654 · No. 133 248 248 · No. 134 584 584 · No. 135 251 251 · No. 136 240 240 · No. 137 241 241 · No. 138 242 242 · No. 139 594 594 · No. 140 604 604 · No. 141 889 889 · No. 142 180 180 · No. 143 678 678 · No. 144 254 254 · No. 145 885 885 · No. 146 977 977 · No. 147 967 967 · No. 148 339 339 · No. 149 967 967 · No. 150 338 338 · No. 151 967 967 · No. 152 338 338 · No. 153 339 339 · No. 154 760 760 · No. 155 064 064 · No. 156 895 895 · No. 157 680 680 · No. 158 847 847 · No. 159 895 895 · No. 160 446 446 · No. 161 992 992 · No. 162 326 326 · No. 163 010 010 · No. 164 908 908 · No. 165 166 166 · No. 166 761C 761C · No. 167 770/305 770, 305 · No. 168 066 066 · No. 169 074 074 · No. 170 410 410 · No. 171 072 072 · No. 172 195 +5 195, 909, 907, 362, 906, 896 · No. 173 174 174 · No. 174 175 175 · No. 175 176 176 · No. 176 177 177 · No. 177 178 178 · No. 178 179 179 · No. 179 180 180 · No. 180 774 774 · No. 181 848 848 · No. 182 183 183 · No. 183 184 184 · No. 184 185 185 · No. 185 186 186 · No. 186 187 187 · No. 187 188 188 · No. 188 189 189 · No. 189 190 190 · No. 190 191 191 · No. 191 765/300 765, 300 · No. 192 193 193 · No. 193 194 194 · No. 194 195 195 · No. 195 196 196 · No. 196 197 197 · No. 197 198 198 · No. 198 199 199 · No. 199 200 200 · No. 200 740 740 · No. 201 420 420 · No. 202 203 203 · No. 203 204 204 · No. 204 205 205 · No. 205 779 779 · No. 206 425 425 · No. 207 431 431 · No. 208

Parts categories

View all parts →
Kits
Kits
90 parts
Valve body & solenoids
Valve body & solenoids
25 parts
Electrical
Electrical
15 parts
Filters & pans
Filters & pans
21 parts
Seals & gaskets
Seals & gaskets
25 parts
Bushings, bearings & thrust
Bushings, bearings & thrust
58 parts
Bands & servos
Bands & servos
3 parts
Pump
Pump
7 parts
Friction & steel
Friction & steel
82 parts
Planetary & hard parts
Planetary & hard parts
121 parts
Hardware & other
Hardware & other
59 parts
Sell A340F parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

26 applications · 5 makes · 1992–2007 Toyota 19 · Mitsubishi 4 · Chevrolet 1 · GMC 1 · Geo 1

Make Model Year Drive Engine
Chevrolet TAVERA 2002-2005 4 Spd RWD L4 2.2L
Geo TAVERA 2002-2005 4 Spd RWD L4 2.2L
GMC TAVERA 2002-2005 4 Spd RWD L4 2.2L
Mitsubishi Montero 4 Spd 4X4 V6 3.0/3.5L
Mitsubishi MONTERO SPORT 1997-1998 4 Spd 4X4 V6 3.0
Mitsubishi Shogun / Pajero/ Montero 4 Spd RWD/4x4 V6 3.0L 3.5L
Mitsubishi Shogun / Pajero/ Montero Sport 1997-1998 4 Spd 4x4 V6 3.0
Toyota 4 Runner 2001-2004 3.4
Toyota 4 Runner 1995-2004 4 Spd 4x4 V6 3.0L 3.4L 4.0L
Toyota 4 Runner 1995-2004 4 Spd 4x4 V8 4.7L
Toyota Pickup 1992-1995 4 Spd 4x4 L4 2.4L
Toyota Pickup (T100) 1993-1998 4 Spd 4x4 V6 3.0L 3.4L
Toyota Pickup (T100) 1993-1998 4 Spd 4X4 L4 2.7L V6 3.0/3.4L
Toyota PICKUP/TACOMA 1995-2004 4 Spd 4X4 L4 2.7L V6 3.4L
Toyota Previa 1995-1997 4 Spd 4x4 L4 2.4L Supercharged
Toyota Previa 1993-1997 4 Spd 4X4 L4 2.4L
Toyota Sequoia 2001-2006 4.7
Toyota Sequoia 2001-2004 4 Spd 4x4 V8 4.7L
Toyota T100 - Pickup 1997-1998 3.4
Toyota T100 - Pickup 1995-1996 3.4
Toyota Tacoma 2001-2004 2.7, 3.4
Toyota Tacoma 1995-2000 2.7, 3.4
Toyota Tacoma / Pickup 1995-2007 4 Spd 4x4 L4 2.7L; V6 3.4L
Toyota Tundra 2000-2004 4 Spd 4x4 V6 3.4L; V8 4.7L
Toyota Tundra 2000-2004 4 Spd 4X4 V6 3.4L V8 4.7L
Toyota Tundra 2000-2004 3.4, 4.7

Other and alternative codes of this transmission

＋ Contribute

This feature is in progress and will be available soon.

No aliases recorded yet — be the first to contribute one. Contribute →

verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Torque converter clutch failure
A faulty torque converter clutch can cause burnt/discolored fluid and, in severe cases, prevent the vehicle from moving in any forward or reverse position.
!
Shift solenoid No.1/No.2 failure
Open or shorted wiring/solenoid for the No.1 or No.2 shift solenoid sets DTC 62 or 63 and can put the transmission into a fail-safe gear pattern.
!
Lock-up solenoid failure
A severed or short-circuited lock-up solenoid sets DTC 64, resulting in loss of torque converter lock-up in 2nd, 3rd or O/D with no driver warning light.
