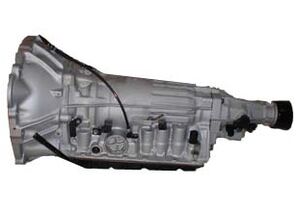

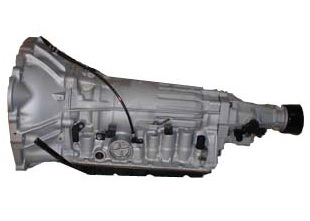

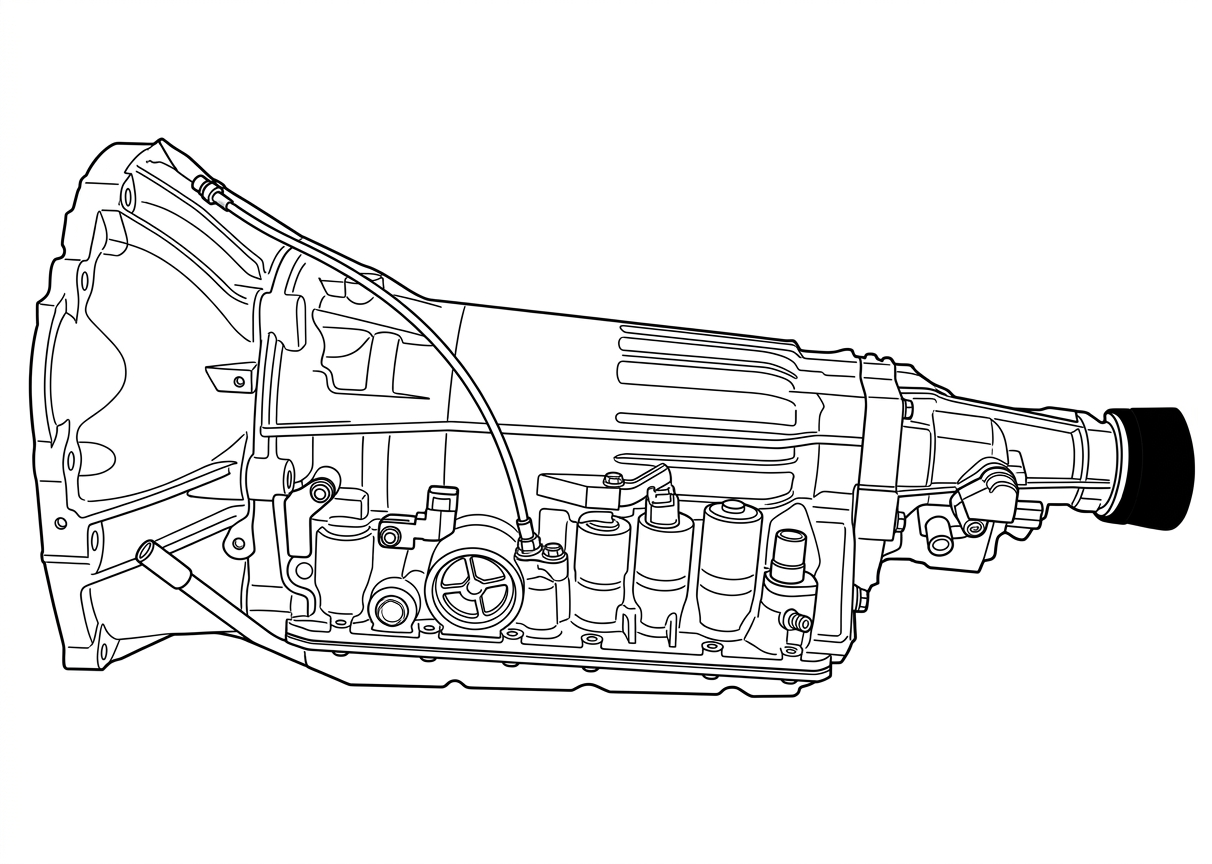

Aisin Warner / Chrysler / Toyota 30-40LE (A340) Transmission

The range of 4-speed of automatic transmissions A340 (also known as AW30-40LE /-70LE according to Aisin classification) has been on the market since 1985 on RWD and 4WD Toyota Land Cruiser with the engine capacity from 2.5 up to 4 liters. The A340 unit is a middle class transmission which stands next to the range A40 of the class "mini".Toyota used the A340 series for all other powerful cars: Pickup, 4-Runner, Mark II, Hilux, Hiace, Previa, etc.There is a large number of modifications of A340 Series for engines with 2.5-3.2 liters capacity.The AW30-41 modification and 30-43 is still in…

Speeds 4
Type AT
Drive RWD
Max torque 300
ATF capacity (L) 11
ATF change (L) 4
ATF type Toyota T-IV
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
30-40LE
7.9/10
Support & Market Presence Index
Well covered

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence7.1
Documentation depth10.0
Knowledge & support7.9

Exploded diagram & parts

Full 30-40LE parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

179 179 · No. 1 750 750 · No. 2 070 070 · No. 3 034 034 · No. 4 530 530 · No. 5 530 530 · No. 6 036 036 · No. 7 520 520 · No. 8 778 778 · No. 9 037 037 · No. 10 311 311 · No. 11 210 210 · No. 12 211 211 · No. 13 038 038 · No. 14 551 551 · No. 15 038B 038B · No. 16 340 340 · No. 17 341 341 · No. 18 961 961 · No. 19 971 971 · No. 20 865 865 · No. 21 122/102 122, 102 · No. 22 142 142 · No. 23 864 864 · No. 24 867 867 · No. 25 213 213 · No. 26 650 650 · No. 27 650 650 · No. 28 650 650 · No. 29 661 661 · No. 30 214 214 · No. 31 580 580 · No. 32 042/216 042, 216 · No. 33 216 216 · No. 34 217 217 · No. 35 218 218 · No. 36 590 590 · No. 37 600 600 · No. 38 868 868 · No. 39 777 777 · No. 40 861 861 · No. 41 140 140 · No. 42 120/100 120, 100 · No. 43 140 140 · No. 44 860 860 · No. 45 862 862 · No. 46 970 970 · No. 47 960 960 · No. 48 331 331 · No. 49 330 330 · No. 50 222 222 · No. 51 223 223 · No. 52 224 224 · No. 53 630 630 · No. 54 179 179 · No. 55 225 225 · No. 56 227 227 · No. 57 226 226 · No. 58 022 022 · No. 59 046 046 · No. 60 555 555 · No. 61 337 337 · No. 62 336 336 · No. 63 965 965 · No. 64 975 975 · No. 65 879 879 · No. 66 229 229 · No. 67 126/106 126, 106 · No. 68 146 146 · No. 69 878 878 · No. 70 181 181 · No. 71 554 554 · No. 72 048335 048335 · No. 73 048335 048335 · No. 74 334 334 · No. 75 964 964 · No. 76 974 974 · No. 77 877 877 · No. 78 853 853 · No. 79 128/108 128, 108 · No. 80 148 148 · No. 81 876 876 · No. 82 231 231 · No. 83 232 232 · No. 84 232/233 232, 233 · No. 85 050 050 · No. 86 592 592 · No. 87 894 894 · No. 88 234 234 · No. 89 235 235 · No. 90 236 236 · No. 91 582 582 · No. 92 237 237 · No. 93 238 238 · No. 94 887 887 · No. 95 052 052 · No. 96 612 612 · No. 97 182 182 · No. 98 182 182 · No. 99 052 052 · No. 100 622 622 · No. 101 886 886 · No. 102 244 244 · No. 103 285 285 · No. 104 652 652 · No. 105 652 652 · No. 106 652 652 · No. 107 663 663 · No. 108 285 285 · No. 109 247 247 · No. 110 873 873 · No. 111 144 144 · No. 112 124/104 124, 104 · No. 113 872 872 · No. 114 874 874 · No. 115 982 982 · No. 116 972 972 · No. 117 549 549 · No. 118 962 962 · No. 119 332 332 · No. 120 333 333 · No. 121 632 632 · No. 122 134/114 134, 114 · No. 123 859 859 · No. 124 155 155 · No. 125 996 996 · No. 126 437 437 · No. 127 664 664 · No. 128 888 888 · No. 129 654 654 · No. 130 131 131 · No. 131 654 654 · No. 132 654 654 · No. 133 248 248 · No. 134 584 584 · No. 135 251 251 · No. 136 240 240 · No. 137 241 241 · No. 138 242 242 · No. 139 594 594 · No. 140 604 604 · No. 141 889 889 · No. 142 180 180 · No. 143 678 678 · No. 144 254 254 · No. 145 885 885 · No. 146 977 977 · No. 147 967 967 · No. 148 339 339 · No. 149 967 967 · No. 150 338 338 · No. 151 967 967 · No. 152 338 338 · No. 153 339 339 · No. 154 760 760 · No. 155 064 064 · No. 156 895 895 · No. 157 680 680 · No. 158 847 847 · No. 159 895 895 · No. 160 446 446 · No. 161 992 992 · No. 162 326 326 · No. 163 010 010 · No. 164 908 908 · No. 165 166 166 · No. 166 761C 761C · No. 167 770/305 770, 305 · No. 168 066 066 · No. 169 074 074 · No. 170 410 410 · No. 171 072 072 · No. 172 195 +5 195, 909, 907, 362, 906, 896 · No. 173 174 174 · No. 174 175 175 · No. 175 176 176 · No. 176 177 177 · No. 177 178 178 · No. 178 179 179 · No. 179 180 180 · No. 180 774 774 · No. 181 848 848 · No. 182 183 183 · No. 183 184 184 · No. 184 185 185 · No. 185 186 186 · No. 186 187 187 · No. 187 188 188 · No. 188 189 189 · No. 189 190 190 · No. 190 191 191 · No. 191 765/300 765, 300 · No. 192 193 193 · No. 193 194 194 · No. 194 195 195 · No. 195 196 196 · No. 196 197 197 · No. 197 198 198 · No. 198 199 199 · No. 199 200 200 · No. 200 740 740 · No. 201 420 420 · No. 202 203 203 · No. 203 204 204 · No. 204 205 205 · No. 205 779 779 · No. 206 425 425 · No. 207 431 431 · No. 208

Parts categories

View all parts →
Sell 30-40LE parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

40 applications · 8 makes · 1985–2016 Jeep 11 · Toyota 9 · Lexus 7 · Volvo 7 · Isuzu 3

Make Model Year Drive Engine
Daihatsu RUGGER 2000-2001 4 Spd R/AWD L4 1.6L
Isuzu D-Max 2009-2011 4 Spd RWD L4 3.0L
Isuzu FUEGO 2000-2002 4 Spd RWD L4 2.8L/2.9L L5 3.5L/3.7
Isuzu Rodeo 2003-2004 4 Spd RWD/4X4 V6 3.2L/3.5L
Jeep Cherokee 1987-2001 4 Spd RWD/4X4 L4 2.5L; L6 4.0L
Jeep Cherokee 1987-2001 4 Spd RWD/4X4 L6 4.0L/(L4 2.5L TO 93)
Jeep Cherokee 1987-1998 4 Spd RWD L6 4.0/(L4 2.5L TO 93)
Jeep Comanche 1990-1993 4 Spd RWD/4X4 L6 4.0L
Jeep Comanche 1990-1992 4 Spd RWD/4X4 L4 2.5L; L6 4.0L
Jeep Comanche 1987-1993 4 Spd RWD L6 4.0
Jeep Comanche - Pickup 1986-1992 2.1, 2.5, 2.8, 4.0
Jeep Grand Cherokee 1991-1993 4 Spd RWD/4X4 L6 4.0L
Jeep Grand Cherokee 1991-1993 4 Spd RWD L6 4.0
Jeep Wagoneer 1987-1993 4 Spd RWD/4X4 L6 4.0L
Jeep Wagoneer 1987-1993 4 Spd RWD L6 4.0
Kia Sorento 2003-2004 3.5
Lexus GS 1993-1995 4 Spd RWD V6 3.0L
Lexus GS 4 Spd RWD V8 4.0/4.3L
Lexus GS300 1993-1995 4 Spd RWD V6 3.0L
Lexus LS400 1990-1997 4 Spd RWD V8 4.0L
Lexus LS400 1990-1997 4.0
Lexus SC300 1998-2000 4 Spd RWD L6 3.0L
Lexus SC400 1992-1997 4 Spd RWD V8 4.0L
Mitsubishi ZINGER 2005-2016 4 Spd RWD L4 2.4L
Toyota ARISTO 2000-2004 4 Spd RWD V6 3.0L V8 4.0L
Toyota CELSIOR 4 Spd RWD V8 4.0L
Toyota CROWN MAJESTA 2001-2003 4 Spd R/AWD V8 4.0L
Toyota INNOVA 2004-2016 4 Spd R/AWD L4 2.5L/2.7L
Toyota Land Cruiser 1998-2016 4 Spd AWD L4 2.7/3.0L V6 4.0L
Toyota Pickup 1985-1988 3.0
Toyota Supra 1993-1998 4 Spd RWD L6 3.0L W/ Turbo)
Toyota Supra 1993-1998 4 Spd RWD L6 3.0L
Toyota Tacoma / Pickup 1989-2014 4 Spd R/AWD L4 2.4/2.7L V6 3.0/3.4L
Volvo 90 SERIES 1997-1998 4 Spd RWD L6 3.0L
Volvo 960 1993-1997 4 Spd RWD L6 2.9L
Volvo 960 1992-1997 4 Spd RWD L6 2.9L
Volvo S90 1997-1998 4 Spd RWD L6 2.9L
Volvo V90 1997-1998 4 Spd RWD L6 2.9L
Volvo XC90 2003-2005 4 Spd AWD L6 2.9L
Volvo XC90 1997-1998 4 Spd RWD L6 3.0L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

45000-4A150
45000 4A155
45000-4A155
3040 LE
3040LE
30-40 LE
45000 4A150
450004A155
450004A150
45000 4A600
45000-4A600
30-40LE
450004A600
A341E
A341-E
A341 E
AW 40
DGS
AW30-40LS
AW4
A340
31-81LE
A341
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Torque Converter Lockup Wear
Worn lockup causes output shaft beating and excessive side load on pump, seal, and bushing.
?
Output Shaft Beating
Vibration and beating at output shaft resulting from worn torque converter lockup operation.
!
Bushing Wear From Contaminated Fluid
Contaminated ATF causes bushing wear leading to oil leaks and main line pressure loss.
!
Pump Bushing Failure
Pump bushing is first to fail; causes pump efficiency loss and insufficient pressure to clutch packs.
?
Low Oil Pressure In Packs
Insufficient hydraulic pressure in clutch packages due to pump inefficiency from bushing damage.
!
Forward Clutch Pack Burnt
Forward package frictions and steel discs burn due to slipping caused by low oil pressure.
!
Brake Band Replacement
Brake band replaced when vehicle arrives with burnt/contaminated fluid; standard across all modifications.
!
Solenoid Failure Old Units
Solenoid replacement commonly required on units produced before 1998 due to electrical part aging.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The range of 4-speed of automatic transmissions A340 (also known as AW30-40LE /-70LE according to Aisin classification) has been on the market since 1985 on RWD and 4WD Toyota Land Cruiser with the engine capacity from 2.5 up to 4 liters. The A340 unit is a middle class transmission which stands next to the range A40 of the class "mini".Toyota used the A340 series for all other powerful cars: Pickup, 4-Runner, Mark II, Hilux, Hiace, Previa, etc.There is a large number of modifications of A340 Series for engines with 2.5-3.2 liters capacity.The AW30-41 modification and 30-43 is still in demand as not expensive, low-maintenance, robust gearbox for "work horse" cars.

Technical issues and repair guidelines

Each modification in this transmission family had some updates in the electrical part (linear solenoids) of the valve body and torque converter.This transmission is quite simple, balanced and has a huge resource reserve. The repair of this gearbox usually takes place in cars with high mileage and includes replacement of worn-out spare parts. It is almost always the case that the torque converter of this transmission is handed in for repair. Operating with the worn-out lockup leads to the output shaft beating and excessive side load on the pump, seal, and bushing.

Operation of the A340-equipped car with contaminated fluid results in wear-out of bushings through which the oil leaks out leading to main pressure losses. Almost all bushings are replaced together with rings and gaskets included in the repair kit. Firstly, the pump bushing gets out of service. Because of damaged bushings the pump may have performance efficiency problems leading to the oil pressure shortage in packages, therefore friction components of packages primarily involved in operation start slipping and get burnt.Commonly, frictions (with steel discs) of Forward package get burnt. The brake band is standard for all modifications. It is replaced when the car comes to repair with burnt fluid. The replacement of solenoids is common for old cars (produced before 1998).
