Home / Transmissions / General Motors / 6L80
General Motors Source-verified model

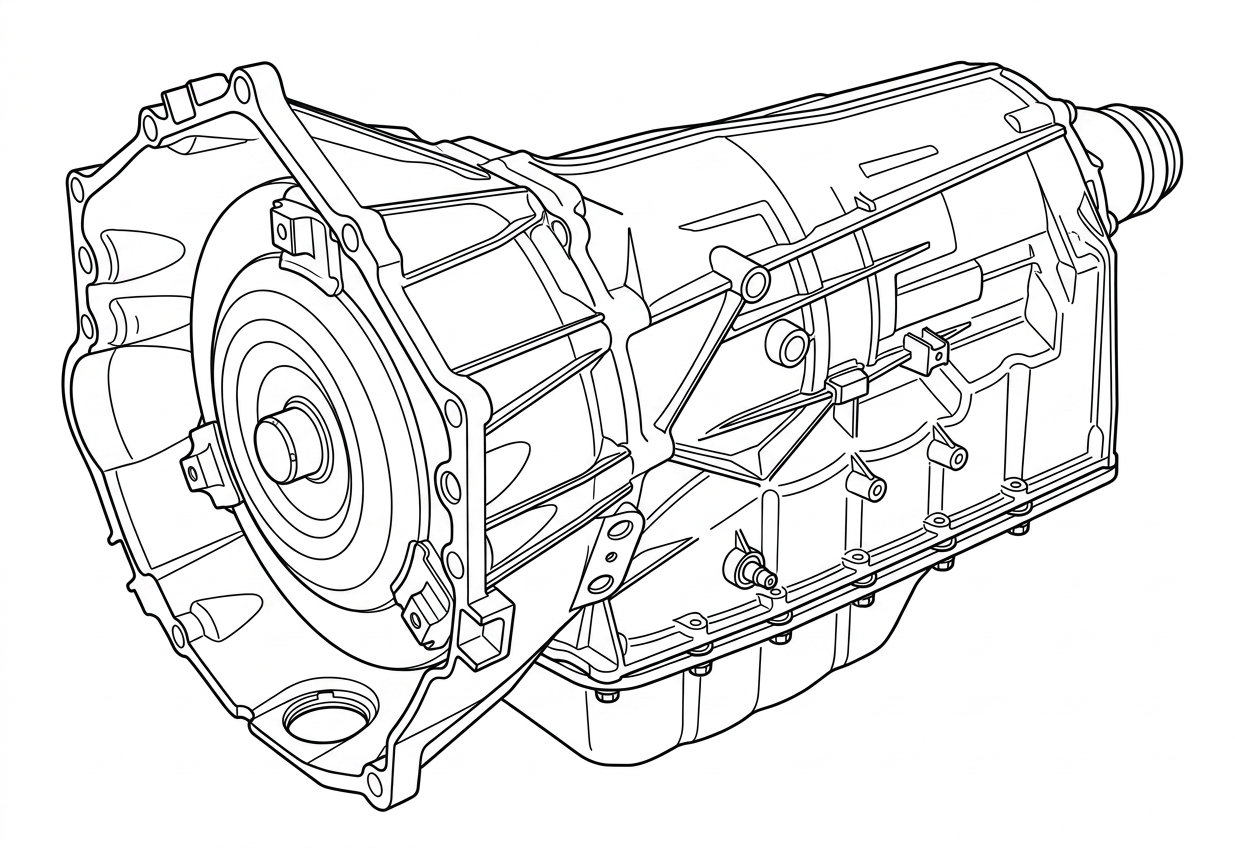

General Motors 6L80 Transmission

ATF type Dexron VI
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

6L80
0.0/10
Support & Market Presence Index

How widely this transmission is used, documented and supported across the Go4Trans graph.

5resources
Diagram Parts Fitment Aliases Symptoms Related Sources Contribute

Exploded diagram & parts

Full 6L80 parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

898 898 · No. 1 070 070 · No. 2 034 034 · No. 3 750 750 · No. 4 311 311 · No. 5 313 313 · No. 6 534 534 · No. 7 538 538 · No. 8 539 539 · No. 9 532 532 · No. 10 11 11 · No. 11 533 533 · No. 12 538 538 · No. 13 036 036 · No. 14 528 528 · No. 15 310 310 · No. 16 381 381 · No. 17 529 529 · No. 18 179 179 · No. 19 037 037 · No. 20 211 211 · No. 21 383 383 · No. 22 228 228 · No. 23 555 555 · No. 24 046 046 · No. 25 332-2 332-2 · No. 26 332-1 332-1 · No. 27 332 332 · No. 28 337 337 · No. 29 965 965 · No. 30 975 975 · No. 31 336 336 · No. 32 337-1 337-1 · No. 33 956 956 · No. 34 333 333 · No. 35 872 872 · No. 36 962 962 · No. 37 972 972 · No. 38 982 982 · No. 39 874 874 · No. 40 125 125 · No. 41 777 777 · No. 42 536 536 · No. 43 535/540 535, 540 · No. 44 778 778 · No. 45 124/104 124, 104 · No. 46 144 144 · No. 47 873* 873* · No. 48 548 548 · No. 49 127 127 · No. 50 126/106 126, 106 · No. 51 146 146 · No. 52 878* 878* · No. 53 582 582 · No. 54 612 612 · No. 55 241 241 · No. 56 238 238 · No. 57 380 380 · No. 58 554 554 · No. 59 177 177 · No. 60 048 048 · No. 61 964 964 · No. 62 974 974 · No. 63 984 984 · No. 64 877 877 · No. 65 129 129 · No. 66 128/108 128, 108 · No. 67 148 148 · No. 68 876 876 · No. 69 232 232 · No. 70 574 574 · No. 71 108-1 108-1 · No. 72 148-1 148-1 · No. 73 875 875 · No. 74 235 235 · No. 75 236 236 · No. 76 575 575 · No. 77 243 243 · No. 78 051 051 · No. 79 578 578 · No. 80 051-1 051-1 · No. 81 244 244 · No. 82 883 883 · No. 83 861 861 · No. 84 140 140 · No. 85 120/100 120, 100 · No. 86 121 121 · No. 87 862 862 · No. 88 970 970 · No. 89 960 960 · No. 90 044 044 · No. 91 632 632 · No. 92 044-1 044-1 · No. 93 338 338 · No. 94 967 967 · No. 95 977 977 · No. 96 884 884 · No. 97 694 694 · No. 98 664 664 · No. 99 286 286 · No. 100 654 654 · No. 101 286 286 · No. 102 665 665 · No. 103 884 884 · No. 104 347-1 347-1 · No. 105 444 444 · No. 106 347 347 · No. 107 135 135 · No. 108 134/114 134, 114 · No. 109 154 154 · No. 110 885* 885* · No. 111 250 250 · No. 112 226 226 · No. 113 614 614 · No. 114 246 246 · No. 115 614-1 614-1 · No. 116 584 584 · No. 117 889 889 · No. 118 594 594 · No. 119 889 889 · No. 120 476 476 · No. 121 594-1 594-1 · No. 122 251 251 · No. 123 062 062 · No. 124 678 678 · No. 125 260 260 · No. 126 760 760 · No. 127 064 064 · No. 128 074 074 · No. 129 383 383 · No. 130 382 382 · No. 131 342 342 · No. 132 379 379 · No. 133 348 348 · No. 134 770 770 · No. 135 066 066 · No. 136 074 074 · No. 137 841 841 · No. 138 798 798 · No. 139 991-4 991-4 · No. 140 991-3 991-3 · No. 141 994-6 994-6 · No. 142 394 394 · No. 143 995-1 995-1 · No. 144 995-2 995-2 · No. 145 995-3 995-3 · No. 146 483 483 · No. 147 410 410 · No. 148 740 740 · No. 149 016 016 · No. 150 791 791 · No. 151 010 010 · No. 152 300/765 300, 765 · No. 153 781 781 · No. 154 991-2 991-2 · No. 155 994 994 · No. 156 420 420 · No. 157 438 438 · No. 158 159 159 · No. 159

Parts categories

View all parts →
Kits
Kits
30 parts
Valve body & solenoids
Valve body & solenoids
5 parts
Electrical
Electrical
3 parts
Filters & pans
Filters & pans
9 parts
Seals & gaskets
Seals & gaskets
26 parts
Bushings, bearings & thrust
Bushings, bearings & thrust
43 parts
Pump
Pump
5 parts
Friction & steel
Friction & steel
72 parts
Planetary & hard parts
Planetary & hard parts
58 parts
Hardware & other
Hardware & other
43 parts
Sell 6L80 parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

59 applications · 7 makes · 2005–2017 GMC 16 · Chevrolet 15 · Geo 15 · Cadillac 5 · Hummer 4

Make Model Year Drive Engine
Cadillac CTS 2007-2014 6 Spd R/AWD V8 6.0L
Cadillac Escalade/EXT/ESV 2005-2012 6 Spd RWD/AWD V8 6.2L
Cadillac STS 2005-2011 6 Spd RWD/AWD V8 4.4L
Cadillac STS-V 2006-2007 6 Spd RWD V8 4.4L
Cadillac XLR/XLR-V 2005-2009 6 Spd RWD V8 4.4L/4.6L
Chevrolet AVALANCHE 2008-2012 4 Spd RWD/4X4 V8 5.3L/6.0L
Chevrolet C/K 2013-2015 6 Spd 4WD V8 5.3L
Chevrolet CAMARO SS 2009-2012 6 Spd RWD V8 6.2L
Chevrolet CORVETTE 2007-2016 6 Spd RWD V8 6.2/6.2L
Chevrolet EXPRESS/SAVANA 2012-2014 6 Spd RWD V8 4.8L/5.3L
Chevrolet H2/H2 SUT HUMMER 2006-2010 6 Spd 4X4 V8 6.0/6.2L
Chevrolet H3/H3T/H3 HUMMER 2008-2011 6 Spd 4X4 V8 5.3L
Chevrolet SAVANA 2009-2016 6 Spd R/4WD V8 4.8/5.3L
Chevrolet SIERRA 2009-2016 6 Spd R/4WD V6 4.3L V8 5.3L
Chevrolet SIERRA DENALI 2008 6 Spd RWD/4X4 V8 6.2L
Chevrolet SILVERADO 2008-2016 6 Spd R/4WD V6 4.3L V8 5.3L
Chevrolet SUBURBAN 1500 2009-2014 6 Spd RWD/4X4 V8 5.3/6.0LL
Chevrolet TAHOE 2008-2016 6 Spd RWD/4X4 V8 5.3/6.2L
Chevrolet VAN FULL SIZE 2500 2009-2011 6 Spd RWD V8 4.8L 5.3L
Chevrolet YUKON/YUKON XL 2009-2012 6 Spd RWD/4X4 V8 5.2/6.0/6.2L
Geo AVALANCHE 2008-2012 4 Spd RWD/4X4 V8 5.3L/6.0L
Geo C/K 2013-2015 6 Spd 4WD V8 5.3L
Geo CAMARO SS 2009-2012 6 Spd RWD V8 6.2L
Geo CORVETTE 2007-2016 6 Spd RWD V8 6.2/6.2L
Geo EXPRESS/SAVANA 2012-2014 6 Spd RWD V8 4.8L/5.3L
Geo H2/H2 SUT HUMMER 2006-2010 6 Spd 4X4 V8 6.0/6.2L
Geo H3/H3T/H3 HUMMER 2008-2011 6 Spd 4X4 V8 5.3L
Geo SAVANA 2009-2016 6 Spd R/4WD V8 4.8/5.3L
Geo SIERRA 2009-2016 6 Spd R/4WD V6 4.3L V8 5.3L
Geo SIERRA DENALI 2008 6 Spd RWD/4X4 V8 6.2L
Geo SILVERADO 2008-2016 6 Spd R/4WD V6 4.3L V8 5.3L
Geo SUBURBAN 1500 2009-2014 6 Spd RWD/4X4 V8 5.3/6.0LL
Geo TAHOE 2008-2016 6 Spd RWD/4X4 V8 5.3/6.2L
Geo VAN FULL SIZE 2500 2009-2011 6 Spd RWD V8 4.8L 5.3L
Geo YUKON/YUKON XL 2009-2012 6 Spd RWD/4X4 V8 5.2/6.0/6.2L
GMC AVALANCHE 2008-2012 4 Spd RWD/4X4 V8 5.3L/6.0L
GMC C/K 2013-2015 6 Spd 4WD V8 5.3L
GMC CAMARO SS 2009-2012 6 Spd RWD V8 6.2L
GMC CORVETTE 2007-2016 6 Spd RWD V8 6.2/6.2L
GMC EXPRESS/SAVANA 2012-2014 6 Spd RWD V8 4.8L/5.3L
GMC H2/H2 SUT HUMMER 2006-2010 6 Spd 4X4 V8 6.0/6.2L
GMC H3/H3T/H3 HUMMER 2008-2011 6 Spd 4X4 V8 5.3L
GMC SAVANA 2009-2016 6 Spd R/4WD V8 4.8/5.3L
GMC SIERRA 2009-2016 6 Spd R/4WD V6 4.3L V8 5.3L
GMC SIERRA DENALI 2008 6 Spd RWD/4X4 V8 6.2L
GMC SILVERADO 2008-2016 6 Spd R/4WD V6 4.3L V8 5.3L
GMC SUBURBAN 1500 2009-2014 6 Spd RWD/4X4 V8 5.3/6.0LL
GMC TAHOE 2008-2016 6 Spd RWD/4X4 V8 5.3/6.2L
GMC VAN FULL SIZE 2500 2009-2011 6 Spd RWD V8 4.8L 5.3L
GMC YUKON/YUKON XL 2009-2012 6 Spd RWD/4X4 V8 5.2/6.0/6.2L
GMC Truck Yukon 2008-2017 5.3, 6.2
Holden CAPRICE 2012-2014 6 Spd RWD V6 3.6L V8 6.0L
Holden COMMODORE 2007-2014 6 Spd RWD V6 3.0/3.6L V8 6.0/6.2L
Holden SS PERFORMANCE 2013-2016 6 Spd RWD V8 6.0L
Hummer H2 2007-2011 6.0, 6.2
Hummer H2 SUT 2007-2011 6.0, 6.2
Hummer H3 2008-2009 5.3
Hummer H3T 2009 5.3
Pontiac G8 2007-2010 6 Spd RWD V8 6.0L/6.2L

Other and alternative codes of this transmission

＋ Contribute

This feature is in progress and will be available soon.

No aliases recorded yet — be the first to contribute one. Contribute →

verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Cracked or split fluid filter
The transmission fluid filter assembly can crack or its seam can split, often caused by a damaged fluid pump sending a high-pressure fluid spike down the filter neck on a cold start; this results in no forward, no reverse, or slipping and requires pump inspection.
?
No forward or no reverse movement
Customers report the transmission has no forward or reverse movement, or that it is slipping; this is commonly traced back to a cracked/split fluid filter and associated pump damage.
?
Harsh shift, shudder, surge or stall
Some 6L80/6L90 equipped vehicles exhibit harsh shifting, shudder, surging, stalling, neutral/flare and transmission overheating, in some cases linked to a twisted transmission cooler line restricting fluid flow.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

Sources & Contribution

＋ Contribute

This feature is in progress and will be available soon.

Every claim on this page is backed by a structured source record — including community contributions, each with its own reference.

Type
Title
Author
Link
other
New Product Announcement – Hydra-Matic 6L80 Automatic Transmission (GM Bulletin…
—
View →
other
GM Service Bulletin 22-NA-182: Harsh Shift, Shudder, Surge, Stall, Neutral/Flare on…
—
View →
other
GM PI0488C: Diagnostic Information for Transmission No Forward, No Reverse, Slips,…
—
View →
other
ATRA Technical Bulletin #1392: Service Fast Learn Adapts (6L45/6L50/6L80/6L90)
—
View →
link
Clutch Control/Regulator Valves vs. Shift Valves (Sonnax)
—
View →
