Home / Transmissions / ZF / 6HP28
ZF Source-verified model

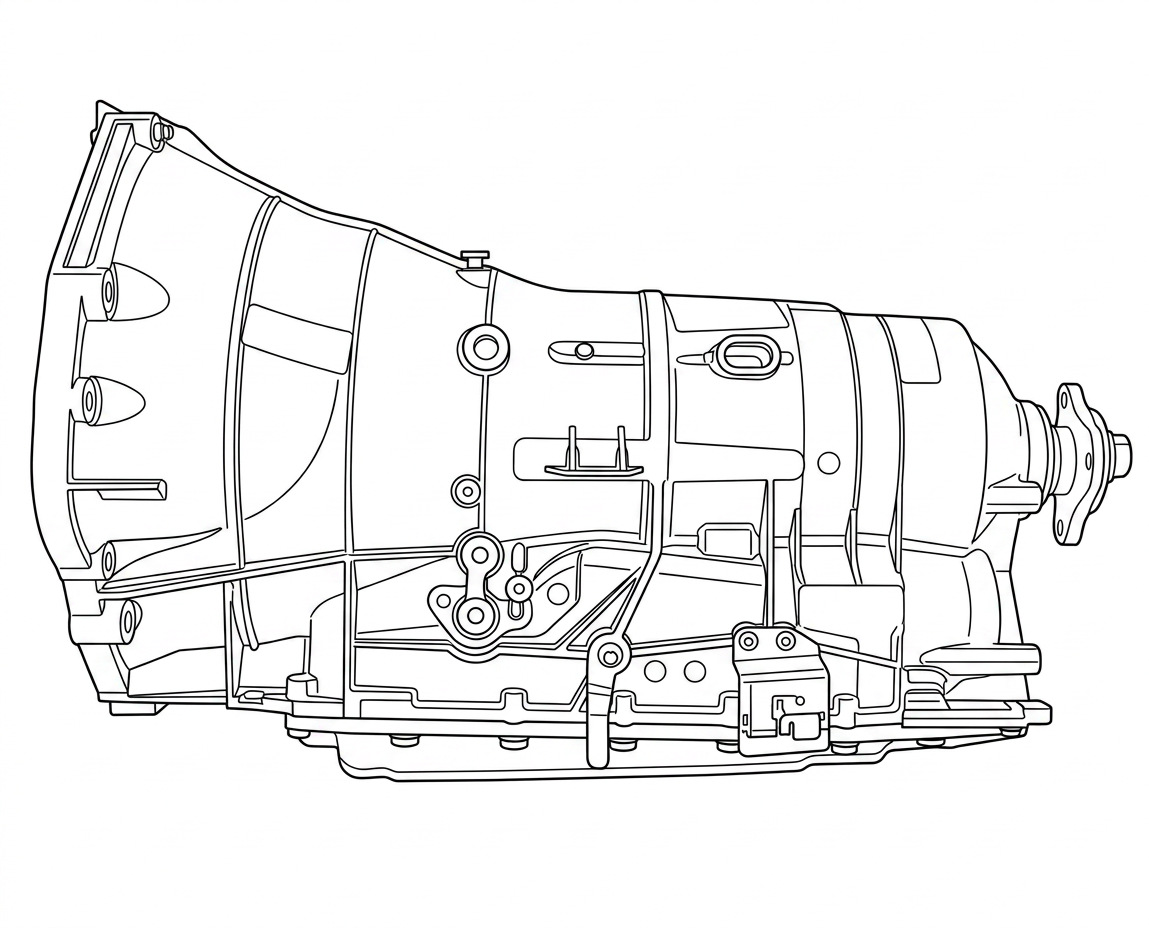

ZF 6HP28 Transmission

Speeds 6
Drive RWD
Type Automatic
ATF type ZF LifeGuardFluid 6
ATF capacity (L) 9.4
Max torque 440-650 Nm
Weight 84-92.5 kg
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

6HP28
0.0/10
Support & Market Presence Index

How widely this transmission is used, documented and supported across the Go4Trans graph.

1resources
Diagram Parts Fitment Aliases Symptoms Related Sources Contribute

Exploded diagram & parts

Full 6HP26 parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

181 181 · No. 1 181B 181B · No. 2 070 070 · No. 3 898 898 · No. 4 5 5 · No. 5 295 295 · No. 6 311 311 · No. 7 530 530 · No. 8 530 530 · No. 9 520 520 · No. 10 381 381 · No. 11 528 528 · No. 12 036 036 · No. 13 529 529 · No. 14 037 037 · No. 15 048 048 · No. 16 554 554 · No. 17 048B 048B · No. 18 335 335 · No. 19 334 334 · No. 20 964 964 · No. 21 974 974 · No. 22 877 877 · No. 23 335B 335B · No. 24 964B 964B · No. 25 129 129 · No. 26 128/108 128, 108 · No. 27 148 148 · No. 28 876* 876* · No. 29 211* 211* · No. 30 612 612 · No. 31 240 240 · No. 32 882 882 · No. 33 582 582 · No. 34 699 699 · No. 35 237 237 · No. 36 238 238 · No. 37 777 777 · No. 38 778 778 · No. 39 550 550 · No. 40 038 038 · No. 41 331 331 · No. 42 330 330 · No. 43 960 960 · No. 44 970/331B 970, 331B · No. 45 960B 960B · No. 46 862 862 · No. 47 862-1 862-1 · No. 48 214 214 · No. 49 121 121 · No. 50 120/100 120, 100 · No. 51 140 140 · No. 52 861* 861* · No. 53 570 570 · No. 54 223 223 · No. 55 049 049 · No. 56 574 574 · No. 57 049 049 · No. 58 235 235 · No. 59 236 236 · No. 60 575 575 · No. 61 875 875 · No. 62 878* 878* · No. 63 146 146 · No. 64 126/106 126, 106 · No. 65 127 127 · No. 66 879 879 · No. 67 985 985 · No. 68 975 975 · No. 69 879B 879B · No. 70 965B 965B · No. 71 337B 337B · No. 72 965 965 · No. 73 336/337 336, 337 · No. 74 046 046 · No. 75 555 555 · No. 76 046 046 · No. 77 229 229 · No. 78 230 230 · No. 79 841 841 · No. 80 084 084 · No. 81 798 798 · No. 82 760 760 · No. 83 263 263 · No. 84 271 271 · No. 85 493 493 · No. 86 272 272 · No. 87 273 273 · No. 88 895 895 · No. 89 074 074 · No. 90 770/305 770, 305 · No. 91 92 92 · No. 92 883 883 · No. 93 873* 873* · No. 94 144 144 · No. 95 124/104 124, 104 · No. 96 125 125 · No. 97 874 874 · No. 98 982 982 · No. 99 972 972 · No. 100 962 962 · No. 101 333 333 · No. 102 332 332 · No. 103 632 632 · No. 104 639 639 · No. 105 639 639 · No. 106 338B 338B · No. 107 382 382 · No. 108 378 378 · No. 109 110 110 · No. 110 385 385 · No. 111 385 385 · No. 112 493B 493B · No. 113 995-3 995-3 · No. 114 371 371 · No. 115 995-1 995-1 · No. 116 995-2 995-2 · No. 117 794 794 · No. 118 347B 347B · No. 119 347 347 · No. 120 444 444 · No. 121 383 383 · No. 122 698 698 · No. 123 383 383 · No. 124 382 382 · No. 125 126 126 · No. 126 385 385 · No. 127 484 484 · No. 128 385 385 · No. 129 484 484 · No. 130 385 385 · No. 131 385 385 · No. 132 484 484 · No. 133 484 484 · No. 134 386 386 · No. 135 446 446 · No. 136 967 967 · No. 137 338 338 · No. 138 339 339 · No. 139 967B 967B · No. 140 977 977 · No. 141 142 142 · No. 142 885 885 · No. 143 225 225 · No. 144 226 226 · No. 145 135 135 · No. 146 134/114 134, 114 · No. 147 154* 154* · No. 148 614 614 · No. 149 247 247 · No. 150 248 248 · No. 151 610 610 · No. 152 220 220 · No. 153 221 221 · No. 154 999 999 · No. 155 999 999 · No. 156 999 999 · No. 157 999 999 · No. 158 741M 741M · No. 159 740 740 · No. 160 459 459 · No. 161 420 420 · No. 162 580 580 · No. 163 217 217 · No. 164 218 218 · No. 165 590 590 · No. 166 062 062 · No. 167 678 678 · No. 168 889 889 · No. 169 270* 270* · No. 170 992 992 · No. 171 991-4 991-4 · No. 172 991-3 991-3 · No. 173 991-2 991-2 · No. 174 994 994 · No. 175 176 176 · No. 176 177 177 · No. 177 178 178 · No. 178 179 179 · No. 179 991-6 991-6 · No. 180 181 181 · No. 181 182 182 · No. 182 010 +2 010, 300, 765 · No. 183 387 387 · No. 184 492 492 · No. 185

Parts categories

View all parts →
Kits
Kits
29 parts
Valve body & solenoids
Valve body & solenoids
22 parts
Electrical
Electrical
4 parts
Filters & pans
Filters & pans
6 parts
Seals & gaskets
Seals & gaskets
24 parts
Bushings, bearings & thrust
Bushings, bearings & thrust
66 parts
Pump
Pump
5 parts
Friction & steel
Friction & steel
49 parts
Planetary & hard parts
Planetary & hard parts
39 parts
Hardware & other
Hardware & other
48 parts
Sell 6HP28 parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

33 applications · 5 makes · 2003–2016 BMW 13 · Jaguar 8 · Land Rover 6 · Audi 5 · Seat 1

Make Model Year Drive Engine
Audi A4 2007-2016 6 Spd F/AWD L4 2.0L V6 3.0/3.2L
Audi A5 2007-2012 6 Spd F/AWD L4 2.0L V6 3.0L V8 4.2L
Audi A6 2008-2011 6 Spd F/AWD V6 3.0L
Audi Q5 2009-2016 6 Spd F/AWD V6 3.2L
Audi S5 2008-2009 6 Spd AWD V8 4.2L
BMW 5 Series 2003-2010 3.0, 4.8
BMW 6 Series 2007-2012 3.0, 4.4, 4.8
BMW 7 Series 2009-2010 3.0, 4.8
BMW SÉRIE 3 2006-2012 6 Spd R/AWD L4 2.0L L6 3.0L
BMW SÉRIE 5 2004-2010 6 Spd R/AWD L4 2.0L L6 3.0L V8 4.8L
BMW SÉRIE 6 2007-2012 6 Spd RWD L6 3.0L V8 4.8L
BMW SÉRIE 7 2008-2015 6 Spd R/AWD L6 3.0L V8 4.4L
BMW X3 2006-2012 6 Spd R/AWD L4 2.0L L6 3.0L
BMW X3 2006-2012 3.0
BMW X5 2009-2011 6 Spd R/AWD L6 3.0L V8 4.4/4.8L
BMW X5 2009-2011 4.4, 4.8
BMW X6 2009-2011 6 Spd R/AWD L6 3.0L V8 4.4L
BMW X6 2009-2011 4.4
Jaguar XF 2007-2016 6 Spd RWD V8 4.2L/5.0L
Jaguar XF, XFR 2009-2010 4.2, 5.0
Jaguar XFR 2010 5.0
Jaguar XJ 2010-2012 5.0
Jaguar XJ 2009-2016 6 Spd RWD V8 5.0L
Jaguar XK 2008-2011 5.0
Jaguar XK SERIES 2008-2011 6 Spd RWD V8 5.0L
Jaguar XKR-S 2009-2014 5.0
Land Rover Discovery 2010-2013 5.0
Land Rover Discovery 2009-2012 5.0
Land Rover DISCOVERY (LR3) 2009-2012 6 Spd RWD/4X4 V8 5.0L
Land Rover LR4 2010-2013 5.0
Land Rover Range Rover / Sport 2009-2013 3.0, 5.0
Land Rover RANGE ROVER SPORT 2009-2012 6 Spd RWD/4X4 L6 3.0L V8 4.4/5.0L
Seat EXEO 2009-2012 6 Spd FWD L4 1.8L/2.0L

Other and alternative codes of this transmission

＋ Contribute

This feature is in progress and will be available soon.

No aliases recorded yet — be the first to contribute one. Contribute →

verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Lead-free bush failure (TSB)
A factory technical bulletin identifies degradation and failure of an internal lead-free bush as the cause of MIL illumination and multiple gear-ratio related trouble codes, requiring full transmission replacement.
