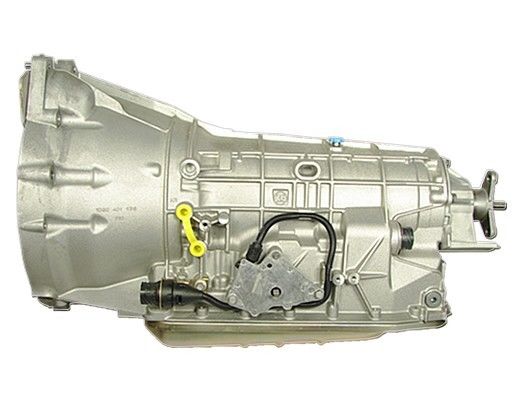

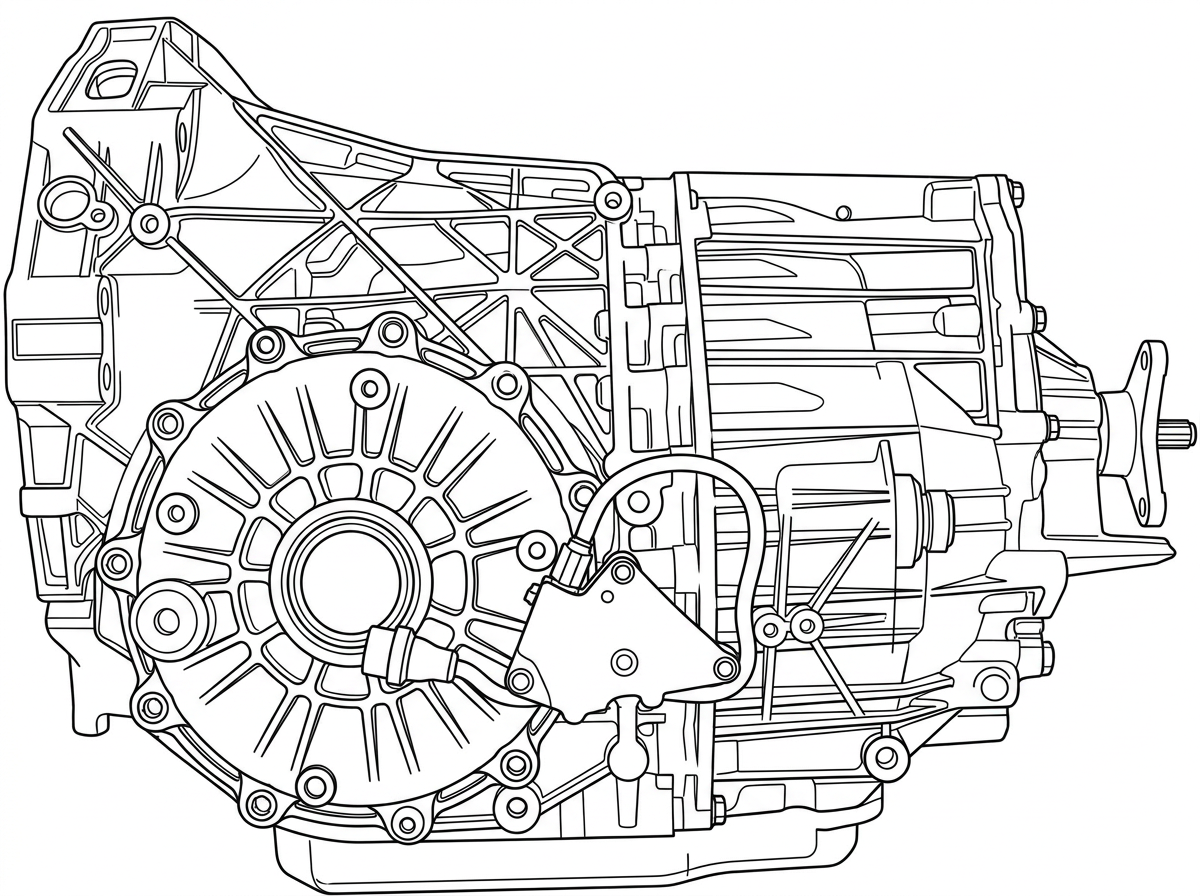

ZF 6HP19 Transmission

The 6-speed automatic gearbox ZF 6HP19 /A (09 ) has been installed on RWD and AWD BMW models, as well as on FWD and AWD Audi models (as 6HP19A). This transmission can be paired with engines with capacity up to 3.5 liters. ZF 6HP19 was constructed jointly with ZF6HP26 as a “light” modification. Aisin’s TR-60S and VW's DSG-6 are considered the main competitors of this ZF unit. VAG is the main user of ZF transmission solutions. In 2006, ZF released 6HP21 and 6HP28 modifications. These two units have the same new Mechatronic unit of the 2nd generation with improved gear shifting mechanism. ZF…

Speeds 6
Type AT
Drive FWD/RWD/AWD
Max torque 420
ATF capacity (L) 9
ATF change (L) 4
ATF type Shell M-1375.4
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
6HP19
8.3/10
Support & Market Presence Index
Widely supported

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence7.7
Documentation depth10.0
Knowledge & support9.0

Exploded diagram & parts

Full 6HP19 parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

181 181 · No. 1 181B 181B · No. 2 070 070 · No. 3 898 898 · No. 4 295 295 · No. 5 311 311 · No. 6 530 530 · No. 7 530 530 · No. 8 520 520 · No. 9 381 381 · No. 10 528 528 · No. 11 529 529 · No. 12 037 037 · No. 13 211 211 · No. 14 048 048 · No. 15 554 554 · No. 16 048B 048B · No. 17 335 335 · No. 18 334 334 · No. 19 964 964 · No. 20 974 974 · No. 21 877 877 · No. 22 335B 335B · No. 23 964B 964B · No. 24 129 129 · No. 25 128/108 128, 108 · No. 26 148 148 · No. 27 876* 876* · No. 28 612 612 · No. 29 240 240 · No. 30 241 241 · No. 31 582 582 · No. 32 237 237 · No. 33 238 238 · No. 34 550 550 · No. 35 038 038 · No. 36 331 331 · No. 37 330 330 · No. 38 960 960 · No. 39 970 970 · No. 40 331B 331B · No. 41 960B 960B · No. 42 862 862 · No. 43 862-1 862-1 · No. 44 121 121 · No. 45 120/100 120, 100 · No. 46 140 140 · No. 47 861* 861* · No. 48 214 214 · No. 49 570 570 · No. 50 223 223 · No. 51 049 049 · No. 52 574 574 · No. 53 049B 049B · No. 54 049B/235 049B, 235 · No. 55 575 575 · No. 56 875 875 · No. 57 878* 878* · No. 58 146 146 · No. 59 126/106 126, 106 · No. 60 127 127 · No. 61 986 986 · No. 62 63 63 · No. 63 975 975 · No. 64 965B 965B · No. 65 337B 337B · No. 66 965 965 · No. 67 337 337 · No. 68 336 336 · No. 69 046 046 · No. 70 555 555 · No. 71 045 045 · No. 72 229 229 · No. 73 230 230 · No. 74 760/493 760, 493 · No. 75 263 263 · No. 76 894 894 · No. 77 272 272 · No. 78 273 273 · No. 79 895 895 · No. 80 074 074 · No. 81 841 841 · No. 82 084 084 · No. 83 798 798 · No. 84 883 883 · No. 85 873* 873* · No. 86 144 144 · No. 87 124/104 124, 104 · No. 88 125 125 · No. 89 90 90 · No. 90 874 874 · No. 91 972 972 · No. 92 962 962 · No. 93 333 333 · No. 94 332 332 · No. 95 632 632 · No. 96 338B 338B · No. 97 072 072 · No. 98 991-4 991-4 · No. 99 991-8 991-8 · No. 100 991-3/991-7 991-3, 991-7 · No. 101 991-2 991-2 · No. 102 999 999 · No. 103 994 994 · No. 104 991-6 991-6 · No. 105 385 385 · No. 106 107 107 · No. 107 108 108 · No. 108 109 109 · No. 109 385 385 · No. 110 347B 347B · No. 111 347 347 · No. 112 995-3 995-3 · No. 113 995-1 995-1 · No. 114 995-2 995-2 · No. 115 794 794 · No. 116 444 444 · No. 117 446 446 · No. 118 967 967 · No. 119 338 338 · No. 120 339 339 · No. 121 339-1 339-1 · No. 122 967B 967B · No. 123 977 977 · No. 124 987 987 · No. 125 893 893 · No. 126 135 135 · No. 127 134/114 134, 114 · No. 128 154* 154* · No. 129 885 885 · No. 130 698 698 · No. 131 225 225 · No. 132 226 226 · No. 133 741-1 741-1 · No. 134 740 740 · No. 135 792 792 · No. 136 459 459 · No. 137 138 138 · No. 138 379 379 · No. 139 782 782 · No. 140 141 141 · No. 141 142 142 · No. 142 143 143 · No. 143 144 144 · No. 144 145 145 · No. 145 146 146 · No. 146 614 614 · No. 147 247 247 · No. 148 248 248 · No. 149 610 610 · No. 150 220 220 · No. 151 580 580 · No. 152 217 217 · No. 153 590 590 · No. 154 062 062 · No. 155 678 678 · No. 156 889 889 · No. 157 270* 270* · No. 158 765 765 · No. 159 181B 181B · No. 1 445 445 · No. 2 3 3 · No. 3 076 076 · No. 4 838CA 838CA · No. 5 070 070 · No. 6 898 898 · No. 7 295 295 · No. 8 311 311 · No. 9 510 510 · No. 10 530 530 · No. 11 520 520 · No. 12 381 381 · No. 13 528 528 · No. 14 529 529 · No. 15 037 037 · No. 16 211 211 · No. 17 048 048 · No. 18 554 554 · No. 19 048B 048B · No. 20 758 +2 758, 343, 290 · No. 21 072 072 · No. 22 991-4 991-4 · No. 23 991-8 991-8 · No. 24 991-2 991-2 · No. 25 994/991-3 994, 991-3 · No. 26 991-6 991-6 · No. 27 28 28 · No. 28 334/335 334, 335 · No. 29 964 964 · No. 30 974 974 · No. 31 877 877 · No. 32 335B 335B · No. 33 964B 964B · No. 34 129 129 · No. 35 128/108 128, 108 · No. 36 148 148 · No. 37 876* 876* · No. 38 612 612 · No. 39 240 240 · No. 40 241 241 · No. 41 582 582 · No. 42 237 237 · No. 43 238 238 · No. 44 550 550 · No. 45 038 038 · No. 46 995-3 995-3 · No. 47 995-1 995-1 · No. 48 995-2 995-2 · No. 49 794 794 · No. 50 288 288 · No. 51 786 786 · No. 52 730 +3 730, 716, 292, 291 · No. 53 331 331 · No. 54 330 330 · No. 55 960 960 · No. 56 970 970 · No. 57 331B 331B · No. 58 960B 960B · No. 59 862 862 · No. 60 862-1 862-1 · No. 61 121 121 · No. 62 100/120 100, 120 · No. 63 861* 861* · No. 64 214 214 · No. 65 570 570 · No. 66 223 223 · No. 67 049 049 · No. 68 574 574 · No. 69 049B 049B · No. 70 303 +2 303, 717, 839 · No. 71 235 235 · No. 72 575 575 · No. 73 875 875 · No. 74 878* 878* · No. 75 146 146 · No. 76 126/106 126, 106 · No. 77 127 127 · No. 78 986 986 · No. 79 80 80 · No. 80 975 975 · No. 81 965B 965B · No. 82 337B 337B · No. 83 965 965 · No. 84 337 337 · No. 85 336 336 · No. 86 046 046 · No. 87 555 555 · No. 88 045 045 · No. 89 229 229 · No. 90 230 230 · No. 91 760 760 · No. 92 720 720 · No. 93 276* 276* · No. 94 274 274 · No. 95 735 735 · No. 96 077 +2 077, 774, 293 · No. 97 493 493 · No. 98 274 274 · No. 99 796 796 · No. 100 894 894 · No. 101 075 075 · No. 102 075 075 · No. 103 736 736 · No. 104 285 285 · No. 105 712 712 · No. 106 798 798 · No. 107 895 895 · No. 108 883 883 · No. 109 873* 873* · No. 110 144 144 · No. 111 124/104 124, 104 · No. 112 125 125 · No. 113 114 114 · No. 114 874 874 · No. 115 972 972 · No. 116 962 962 · No. 117 333 333 · No. 118 632 632 · No. 119 338B 338B · No. 120 967 967 · No. 121 338 338 · No. 122 339-1/339 339-1, 339 · No. 123 967B 967B · No. 124 977 977 · No. 125 987 987 · No. 126 893 893 · No. 127 838 838 · No. 128 999 999 · No. 129 740 740 · No. 130 446 446 · No. 131 132 132 · No. 132 421/280 421, 280 · No. 133 284 284 · No. 134 281/298CB 281, 298CB · No. 135 298CB 298CB · No. 136 282 282 · No. 137 298CB/886 298CB, 886 · No. 138 283 283 · No. 139 298CA 298CA · No. 140 141 141 · No. 141 142 142 · No. 142 714 714 · No. 143 707 707 · No. 144 296 296 · No. 145 297 297 · No. 146 759/305 759, 305 · No. 147 385AK 385AK · No. 148 748-2 748-2 · No. 149 150 150 · No. 150 151 151 · No. 151 152 152 · No. 152 153 153 · No. 153 741-1 741-1 · No. 154 010 010 · No. 155 782 782 · No. 156 157 157 · No. 157 158 158 · No. 158 159 159 · No. 159 160 160 · No. 160 161 161 · No. 161 162 162 · No. 162 163 163 · No. 163 272* 272* · No. 164 278 278 · No. 165 279 279 · No. 166 710 710 · No. 167 279 279 · No. 168 278 278 · No. 169 081 081 · No. 170 135 135 · No. 171 134/114 134, 114 · No. 172 154* 154* · No. 173 885 885 · No. 174 698 698 · No. 175 225 225 · No. 176 226 226 · No. 177 614 614 · No. 178 247 247 · No. 179 248 248 · No. 180 610 610 · No. 181 220 220 · No. 182 580 580 · No. 183 217 217 · No. 184 590 590 · No. 185 062 062 · No. 186 678 678 · No. 187 889 889 · No. 188 270* 270* · No. 189 765 765 · No. 190 820 820 · No. 191 719 719 · No. 192 287 287 · No. 193 896 896 · No. 194 899 899 · No. 195 299 299 · No. 196 345 345 · No. 197 770 770 · No. 198 074 074 · No. 199 733 733 · No. 200 492CB 492CB · No. 201

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to 6HP19 in the Go4Trans marketplace.
Sell 6HP19 parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

45 applications · 5 makes · 2000–2016 BMW 24 · Audi 14 · Jaguar 4 · Hyundai 2 · Volkswagen 1

Make Model Year Drive Engine
Audi A4 2004-2011 F/4WD L4 2.0L V6 3.2L
Audi A6 2005-2011 3.0, 3.2, 4.2
Audi A6 2004-2012 6 Spd F/AWD V6 2.7/2.8/3.0/3.2L
Audi A8 2002-2010 6 Spd F/AWD V6 3.0/3.2L V8 3.7/4.2L
Audi A8 (Non-USA) 2002-2010 3.0, 3.2, 3.7, 4.2
Audi ALL ROAD 2006-2012 6 Spd F/AWD V6 2.7/3.0/3.2 V8 4.2L
Audi Allroad 2006-2010 2.7, 3.0, 3.2, 4.2
Audi Q7 2007-2010 3.0, 3.6
Audi Q7 2006-2015 6 Spd 4WD V6 3.6L
Audi RS4 2007-2008 4.2
Audi RS4 2004-2009 4.2
Audi RS6 2003-2004 4.2
Audi S4 2004-2009 4.2
Audi S4 2003-2009 4.2
BMW 1 Series 2004-2013 1.6, 2.0, 3.0
BMW 3 Series 2003-2012 2.0, 2.5, 3.0
BMW 330i 2006 6 Spd RWD L6 3.0L
BMW 5 Series 2000-2011 2.0, 2.2, 2.5, 3.0
BMW 525i 2004-2010 2.5, 3.0
BMW 528xi 2008-2009 3.0
BMW 530i/xi 2004-2007 3.0
BMW 535i/xi 2008-2010 3.0
BMW 6 Series 2004-2011 3.0
BMW 7 Series 2008-2012 3.0
BMW SÉRIE 1 2004-2007 6 Spd RWD L4 1.6/2.0L
BMW SÉRIE 3 2003-2012 6 Spd R/AWD L4 2.0L L6 2.5/3.0L
BMW SÉRIE 5 2000-2011 6 Spd R/AWD L4 2.0L L6 2.2/2.5/3.0L
BMW SÉRIE 6 2004-2007 6 Spd RWD L6 3.0L
BMW X1 2010-2016 6 Spd RWD L4 2.0L
BMW X1 2010-2013 2.0, 3.0
BMW X3 2006-2011 6 Spd R/AWD L6 3.0L
BMW X3 2006-2011 2.0
BMW X5 2006-2013 3.0
BMW X5 2006-2009 6 Spd R/AWD L6 3.0L
BMW X6 2009-2010 3.0
BMW X6 2008 3.0
BMW Z4 2006-2012 2.5, 3.0, 3.2
BMW Z4 ROADSTER COUPE 2006-2008 6 Spd R/AWD L6 2.5L/3.0/3.2L
Hyundai Genesis 2008-2012 3.8
Hyundai GENESIS COUPE 2008-2011 6 Spd RWD V6 3.8L
Jaguar S Type 2003-2005 6 Spd RWD V6 2.5L
Jaguar S Type 2003-2005 2.5
Jaguar XJ 2003-2011 6 Spd RWD V6 3.0L
Jaguar XJ 2003-2011 3.0
Volkswagen Phaeton 2004-2011 3.2, 3.6, 4.2

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

HZS
HXM
KGW
MCD
JMR
HYJ
GZV
GZW
HZQ
JMN
6HP19 A
MJB
KHC
JAY
HYN
6HP19A
JAE
JNX
HRL
GUL
JMM
HLL
JAX
HHL
GUT
JMP
KZC
HYU
HKN
KUL
JMQ
JML
KGZ
HYL
HKM
1071.040
HST
HZR
LWJ
HXN
HKH
GCX
GUR
HYH
KKU
LCM
LWC
HYY
HYV
HKG
JER
KJC
HYQ
GUH
HKL
KKT
KZE
JTR
HKP
KKS
PMD
KHB
JMK
KZD
HKD
HKF
GZU
JKK
KGX
KJD
HKC
HKK
KGY
JFN
JSK
HFM
PMA
GUK
HKQ
KKZ
JSJ
HHM
HYK
HYM
JJE
HWE
MJC
PMB
HEL
1071040
1071 040
HAV
HKE
KZG
MCC
MJA
PMC
GUJ
HLB
JSH
JNM
KZF
HWD
HYT
HYR
KHA
LWD
HKX
HYS
HHU
HKJ
HYP
HLK
HYW
NFE
GUV
HYX
JNL
KUK
OAT
0AT
1071 020
6HP19X
KHV
MCE
KHE
1071020
KZB
1071.020
LLK
JTU
ZF 6HP19
ZF6HP19
6 HP 19
1071 010
1071.010
6-HP-19
6HP19
1071010
GA6HP19Z
ZF 6HP19A
ZF6HP19A
ZF6HP19X
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Mechatronic Unit Electronic Failure
Electronic components sensitive to temperature extremes and metal chip contamination, causing transmission control issue
!
Torque Converter Locking Mechanism
Locking mechanism regulated and forced from first gear, common on high-power vehicles with 6HP19/21.
!
Valve Body Separator Plate Wear
Main wear item in 6HP valve body is the separator plate, requiring frequent replacement.
!
Bushing Wear Pressure Loss
Vibrations from torque converter and pump stator cause rapid bushing wear, leading to hydraulic pressure losses in clutc
?
Solenoid Overcompensation Oil Shortage
TCU opens solenoid valves increasingly wider to compensate for pressure losses caused by worn bushings.
!
Pump Seal and Bearing Failure
Pump seal commonly replaced; pump bearings frequently worn and replaced by transmission specialists.
!
Solenoid Block Adapter Sleeve
Adapter sleeve to solenoid block prone to failure especially in winter; proactive replacement recommended during schedul
?
Gear Shifting Problems High Mileage
Gear shifting issues at high mileage typically indicate solenoid wear; torque converter rebuild often performed simultan
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 6-speed automatic gearbox ZF 6HP19 /A (09 ) has been installed on RWD and AWD BMW models, as well as on FWD and AWD Audi models (as 6HP19A). This transmission can be paired with engines with capacity up to 3.5 liters. ZF 6HP19 was constructed jointly with ZF6HP26 as a “light” modification. Aisin’s TR-60S and VW's DSG-6 are considered the main competitors of this ZF unit. VAG is the main user of ZF transmission solutions. In 2006, ZF released 6HP21 and 6HP28 modifications. These two units have the same new Mechatronic unit of the 2nd generation with improved gear shifting mechanism. ZF engineers also improved the valve body, replaced solenoids, replaced some friction elements and almost all steel plates

Technical issues and repair guidelines

ZF recommends changing ATF in this transmission no later than after covering 100 thousand kilometers or after 8 years of running under the condition of "careful" driving style. The amount of required ATF for a full change is 9.5 L. This gear shifting unit operates with any good quality fluid such as Dexron VI. It is advisable to make two partial fluid changes in case of contaminated fluid and at the same time to change the filter.

Transmission specialists usually replace solenoids when the car with this transmission reaches high mileages and problems with gear shifting. The torque converter is also rebuilt in the process solenoid replacement.The complete reassembly includes removal of the transmission unit, and order of the repair kit of gaskets and seals. In the process of reassembly, the whole set of friction components is replaced, especially when ATF gets burned. The full kit of bushings is replaced as well.

Typical problems of ZF 6HP19-21

The most common problem for powerful cars equipped with this transmission is the torque converter. Its locking mechanism became regulated and forced from the first gear.The main problem of 6HP19\21 – is the Mechatronic unit. Electronic components are sensitive to temperature drops and falls– too high and too low oil temperatures as well as the presence of metal chips are undesirable factors for this transmission.The main spare part of 6HP valve body became the separator plate of the valve body.

Structural peculiarities of this gear shifting unit (vibrations of torque converter and pump stator, operating with oil shortage...) lead to fast wearing of bushings.The wear of bushings results in pressure losses in corresponding packages and the control unit opens electromagnetic valves of solenoids more and more in order to compensate oil shortages. Common replacement part – the pump seal, and less frequently - output shaft seal. Transmission specialists frequently replace worn pump bearings.

The main problem for the 6HP19 unit in winter time is replacement of the adapter to the block of solenoids (also called as “Sleeve”). It is recommended to replace the “Sleeve" within the framework of the sheduled repair without waiting for its damage. The common spare part in summer time is the adapter to mechatronics. This adapte, included in some repair kits, has a short service life and recommended for change each 2-4 years. With this repair part, it is also advisable to replace sealing tubes of the valve body.
