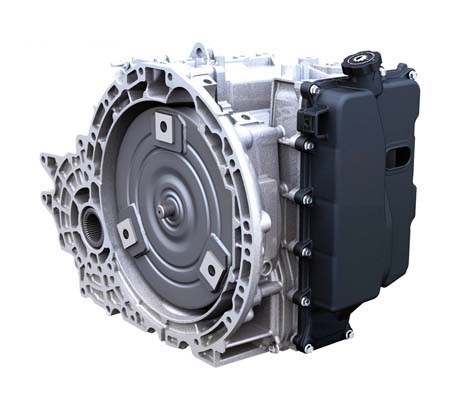

Ford 6F50 Transmission

The family of 6-speed automatic transmissions Ford 6F50 / 6F55 was designed jointly with GM for FWD and AWD vehicles Ford with engines capacity up to 3.5 liters. This transmission is used for powerful Explorer and Taurus with gasoline engines (3.5 liters) and diesel engines (2.5 liters) and intended for a maximum torque equal to 380 Nm. In two years more advanced modification 6F55 was released for the torque equal to 407 Nm and engine V6 (3.5 liters). The list of cars with transmissions of this family is constantly growing. Over the last years these transmissions found application on Mazda…

Speeds 6
Type AT
Drive FWD/AWD
Max torque 380
ATF capacity (L) 9,5
ATF change (L) 5
ATF type Mercon LV
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
6F50
7.0/10
Support & Market Presence Index
Well covered

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence5.3
Documentation depth10.0
Knowledge & support7.9

Exploded diagram & parts

Full 6T70 parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

076 076 · No. 1 2 2 · No. 2 293 293 · No. 3 291 291 · No. 4 786 786 · No. 5 6 6 · No. 6 7 7 · No. 7 8 8 · No. 8 9 9 · No. 9 10 10 · No. 10 077 077 · No. 11 493 493 · No. 12 991-2 991-2 · No. 13 699 699 · No. 14 992 992 · No. 15 072 072 · No. 16 17 17 · No. 17 994 994 · No. 18 994-6 994-6 · No. 19 494 494 · No. 20 410 410 · No. 21 070 070 · No. 22 750 750 · No. 23 689 689 · No. 24 697 697 · No. 25 280 280 · No. 26 281 281 · No. 27 899 899 · No. 28 712 712 · No. 29 730 730 · No. 30 690 690 · No. 31 274 274 · No. 32 273 273 · No. 33 689 689 · No. 34 371 371 · No. 35 740 +3 740, 016, 760, 420 · No. 36 381 381 · No. 37 999 999 · No. 38 383 383 · No. 39 995-6 995-6 · No. 40 995-2 995-2 · No. 41 995-1 995-1 · No. 42 995-3 995-3 · No. 43 436 436 · No. 44 210 210 · No. 45 529 529 · No. 46 032 032 · No. 47 898 898 · No. 48 278 278 · No. 49 279 279 · No. 50 710 710 · No. 51 279B 279B · No. 52 279 279 · No. 53 278 278 · No. 54 795 795 · No. 55 071 071 · No. 56 260 260 · No. 57 062 062 · No. 58 678 678 · No. 59 062 062 · No. 60 251 251 · No. 61 347 347 · No. 62 63 63 · No. 63 205 205 · No. 64 525 525 · No. 65 526 526 · No. 66 783 783 · No. 67 766/301 766, 301 · No. 68 379 379 · No. 69 010 010 · No. 70 211 211 · No. 71 527 527 · No. 72 671 671 · No. 73 520 520 · No. 74 209 209 · No. 75 76 76 · No. 76 485 485 · No. 77 510 510 · No. 78 313 313 · No. 79 80 80 · No. 80 81 81 · No. 81 534 534 · No. 82 538 538 · No. 83 533 533 · No. 84 532/533 532, 533 · No. 85 86 86 · No. 86 535 535 · No. 87 538 538 · No. 88 208 208 · No. 89 544 544 · No. 90 528 528 · No. 91 778 778 · No. 92 311 311 · No. 93 788 788 · No. 94 962 962 · No. 95 972 972 · No. 96 873 873 · No. 97 125 125 · No. 98 124/104 124, 104 · No. 99 644 644 · No. 100 885 885 · No. 101 154 154 · No. 102 134/114 134, 114 · No. 103 155 155 · No. 104 140 140 · No. 105 120/100 120, 100 · No. 106 121 121 · No. 107 626 626 · No. 108 060 060 · No. 109 622 622 · No. 110 584 584 · No. 111 888 888 · No. 112 596 596 · No. 113 889 889 · No. 114 238 238 · No. 115 241 241 · No. 116 612 612 · No. 117 594 594 · No. 118 582 582 · No. 119 882 882 · No. 120 234 234 · No. 121 233 233 · No. 122 592 592 · No. 123 890 890 · No. 124 586 586 · No. 125 624 624 · No. 126 051 051 · No. 127 236 236 · No. 128 867 867 · No. 129 148 148 · No. 130 128/108 128, 108 · No. 131 050 050 · No. 132 574 574 · No. 133 050 050 · No. 134 878 878 · No. 135 146 146 · No. 136 126/106 126, 106 · No. 137 127 127 · No. 138 235 235 · No. 139 877 877 · No. 140 984 984 · No. 141 974 974 · No. 142 964 964 · No. 143 335/335-1 335, 335-1 · No. 144 334 334 · No. 145 550 550 · No. 146 048 048 · No. 147 232 232 · No. 148 337-1 337-1 · No. 149 337 337 · No. 150 336 336 · No. 151 975 975 · No. 152 965 965 · No. 153 845 845 · No. 154 879 879 · No. 155 886 886 · No. 156 977 977 · No. 157 967 967 · No. 158 862 862 · No. 159 970 970 · No. 160 960 960 · No. 161 790 790 · No. 162 179 179 · No. 163 634 634 · No. 164 304/759 304, 759 · No. 165 780 780 · No. 166 438 438 · No. 167

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to 6F50 in the Go4Trans marketplace.
Sell 6F50 parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

30 applications · 3 makes · 2007–2017 Ford 15 · Lincoln 12 · Mercury 3

Make Model Year Drive Engine
Ford Edge 2007-2014 6 Spd F/AWD V6 3.5L 3.7L
Ford Edge 2007-2011 V6 3.5L
Ford Edge 2007 6 Spd FWD/AWD V6 3.5L
Ford Explorer 2011 V6 3.5L
Ford Explorer 2010-2016 6 Spd FWD/4X4 V6 3.5L 3.7L
Ford Flex 2009-2013 V6 3.5, 3.7L
Ford Flex 2008-2014 6 Spd F/AWD V6 3.5L
Ford Fusion 2009-2012 6 Spd F/AWD V6 3.5L
Ford Taurus 2008-2017 3.5, 3.7
Ford Taurus X 2008-2013 V6 3.5L
Ford TAURUS/TAURUS X 2007-2012 6 Spd F/AWD V6 3.5L
Ford Truck Edge 2007-2017 2.0, 3.5, 3.7
Ford Truck Explorer 2011-2017 3.5
Ford Truck Flex 2009-2017 3.5, 3.7
Ford Truck Taurus X 2008-2013 3.5
Lincoln MKS 2009-2012 6 Spd F/AWD V6 3.5/3.7L
Lincoln MKS 2008-2016 3.5, 3.7
Lincoln MKS 2008-2013 V6 3.5, 3.7L
Lincoln MKT 2010-2017 3.5, 3.7
Lincoln MKT 2010-2013 V6 3.5, 3.7L
Lincoln MKT 2009-2012 6 Spd F/AWD V6 3.5L
Lincoln MKX 2007-2017 3.5, 3.7
Lincoln MKX 2007-2013 V6 3.5, 3.7L
Lincoln MKX 2007-2012 6 Spd F/AWD L4 2.0L V6 3.5L
Lincoln MKX 2007 6 Spd FWD/AWD V6 3.5L
Lincoln MKZ 2013-2016 2.0, 3.7
Lincoln MKZ / Zephyr 2012-2014 6 Spd F/AWD V6 3.5L 3.7L
Mercury Sable 2008-2009 V6 3.5L
Mercury Sable 2008-2009 6 Spd F/AWD V6 3.5L
Mercury Sable 2008-2009 3.5

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

6F 50
6F50
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Torque Converter Quick Failure
Contaminated ATF causes rapid torque converter failure leading to oil starvation, increased pressure, and bushing damage
!
Valve Body Worn Valves
Valve body valves wear out causing shifting problems; repair requires replacement with enlarged Sonnax valves.
!
Rings and Bushings Wear
Transmission problems frequently begin with wear-out of internal rings and bushings, accelerated by contaminated fluid.
?
Shifting Problems Valve Body
Erratic or poor shifting linked to valve body and solenoid malfunction; valve body cleaning and repair recommended.
!
ATF Contamination Seal Damage
Contaminated ATF from torque converter accelerates seal wear and damages solenoids throughout the transmission.
!
Solenoid Plate Degradation
Solenoids damaged by contaminated fluid from torque converter; 2012 updates improved solenoid plate performance.
?
Transmission Overheating Issue
6F50 overheating reported as a known issue; ATF temperature monitoring is critical for this transmission family.
!
Filter and Pan Gasket
Filter and pan gasket require replacement along with ATF fluid change at recommended service intervals.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The family of 6-speed automatic transmissions Ford 6F50 / 6F55 was designed jointly with GM for FWD and AWD vehicles Ford with engines capacity up to 3.5 liters. This transmission is used for powerful Explorer and Taurus with gasoline engines (3.5 liters) and diesel engines (2.5 liters) and intended for a maximum torque equal to 380 Nm. In two years more advanced modification 6F55 was released for the torque equal to 407 Nm and engine V6 (3.5 liters). The list of cars with transmissions of this family is constantly growing. Over the last years these transmissions found application on Mazda Tribute and CX-9, Mercury Mariner, Milan etc. 6F50 is also classified as 6T70 by GM.

Technical issues and repair guidelines

The 6T70 unit is considered to be more problematic in comparison with Ford modification. 6T70 had many problems related to electrics and transmission components. In 2012 several significant updates were introduced with addition of wavelike rings in packs and performance optimization of solenoids plate and the valve body.

The 6F50 / 6F55 (GM 6T70 / 6T75) transmissions found application on rare American vehicles. For rare overhauls specialists usually order the filter with the pan gasket, which should be replaced with ATF after 50-80 thousand kilometers.It should be taken into account that for this class of automatic transmissions it is crucial to monitor the ATF state (DEXRON-VI - GM or Mercon 5 - Ford) and its temperature. The quantity of fluid required for full change is approx. equal to 9.5 liters. It is advisable to repair the torque converter and clean the valve body when having problems with shifting and operation of the valve body with solenoids.

A quick failure of the torque converter caused by contaminated fluid may be considered as a soft spot of this transmission. This problem leads to oil starvation or increased pressure and cranking of bushings. The valve body is repaired by replacement of worn valves with enlarged valves from Sonnax. Problems of this transmission often start with the wear-out of rings and bushings. Contaminated fluid from the torque converter speeds up the wear-out of these seals and damages solenoids.This transmission rarely gets in repair services as well as cars with this good automatic transmission produced by Ford.
