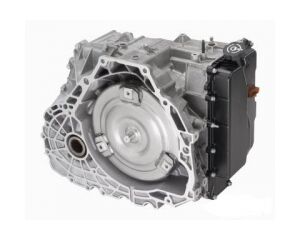

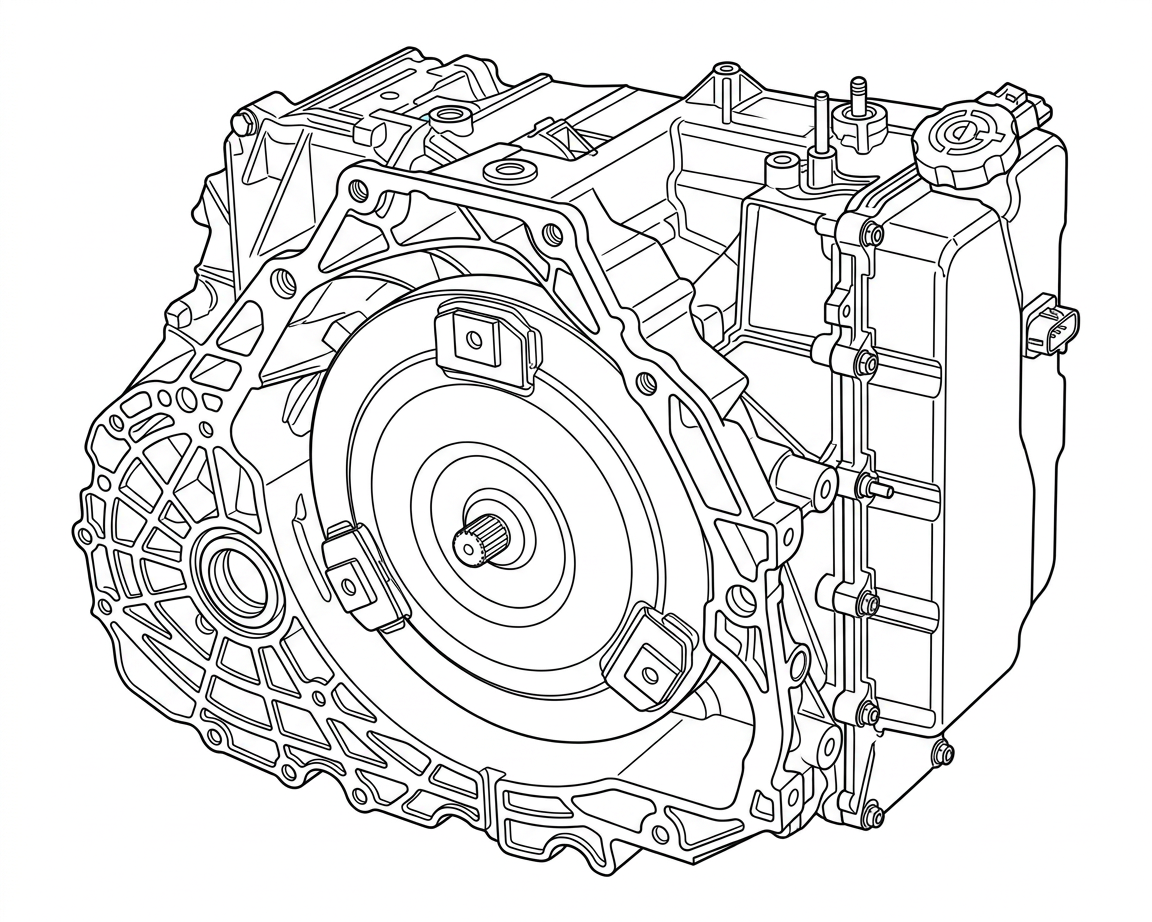

Ford 6F 35 Transmission

The 6-speed automatic transmission 6F35 (6F30) is a collaborative investment project of Ford with GM released in 2002. With regard to transmission components 6F35 is practically a complete analog of the GM 6T40- 6T45 transmission, details for manufacturing of these transmissions are unified to the fullest extent and differ only in electrical elements, filters, and pans. This transmission has been installed since 2008 on popular American FWD and AWD vehicles of Ford (Kuga, Focus, Escape, Fusion...) and Mazda (Tribute) with the engine from 1.6 up to 3 liters. There are two different…

Speeds 6
Type AT
Drive FWD/AWD
Max torque 350
ATF capacity (L) 8,5
ATF change (L) 4,8
ATF type Valvoline MaxLife Multi-Vehicle ATF / Mercon LV/ Motorcraft XT-10-QLVC
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
6F 35
7.9/10
Support & Market Presence Index
Well covered

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence6.5
Documentation depth10.0
Knowledge & support9.8

Exploded diagram & parts

Full 6T40 Gen 3 parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

698 698 · No. 1 064 064 · No. 2 293 293 · No. 3 715 715 · No. 4 598 598 · No. 5 618 618 · No. 6 706 706 · No. 7 281 281 · No. 8 263 263 · No. 9 063 063 · No. 10 077 077 · No. 11 076 076 · No. 12 318/750 318, 750 · No. 13 382 382 · No. 14 702 702 · No. 15 777 777 · No. 16 700 700 · No. 17 698-1 698-1 · No. 18 897 897 · No. 19 070 070 · No. 20 311 311 · No. 21 034 034 · No. 22 530 530 · No. 23 520 520 · No. 24 778 778 · No. 25 037 037 · No. 26 071 071 · No. 27 211 211 · No. 28 894 894 · No. 29 705 705 · No. 30 690 690 · No. 31 260 260 · No. 32 298 298 · No. 33 062 062 · No. 34 678 678 · No. 35 062 062 · No. 36 898 898 · No. 37 251 251 · No. 38 626 626 · No. 39 060 060 · No. 40 885 885 · No. 41 144 144 · No. 42 124/104 124, 104 · No. 43 125 125 · No. 44 010 010 · No. 45 379 379 · No. 46 873 873 · No. 47 972 972 · No. 48 962 962 · No. 49 558 558 · No. 50 967 967 · No. 51 977 977 · No. 52 893 893 · No. 53 134/114 134, 114 · No. 54 154 154 · No. 55 644 644 · No. 56 120/100 120, 100 · No. 57 850 850 · No. 58 584 584 · No. 59 888 888 · No. 60 596 596 · No. 61 241 241 · No. 62 238 238 · No. 63 594 594 · No. 64 582 582 · No. 65 882 882 · No. 66 612 612 · No. 67 234 234 · No. 68 233 233 · No. 69 592 592 · No. 70 890 890 · No. 71 586 586 · No. 72 051 051 · No. 73 624 624 · No. 74 126 +4 126, 106, 146, 878, 236 · No. 75 050 050 · No. 76 574 574 · No. 77 050 050 · No. 78 050/235 050, 235 · No. 79 128 +5 128, 149, 108, 148, 129, 867 · No. 80 984 984 · No. 81 974 974 · No. 82 964 964 · No. 83 84 84 · No. 84 85 85 · No. 85 86 86 · No. 86 87 87 · No. 87 88 88 · No. 88 994 994 · No. 89 991-2 991-2 · No. 90 410 410 · No. 91 992 992 · No. 92 797 797 · No. 93 072 072 · No. 94 991-4 991-4 · No. 95 96 96 · No. 96 97 97 · No. 97 436 436 · No. 98 494 494 · No. 99 760 760 · No. 100 179 179 · No. 101 788 788 · No. 102 746 +2 746, 740, 747 · No. 103 479 479 · No. 104 334 +5 334, 550, 335, 048, 048-1, 335-1 · No. 105 048-1 048-1 · No. 106 880 880 · No. 107 336/975 336, 975 · No. 108 965 965 · No. 109 845 845 · No. 110 879 879 · No. 111 862 862 · No. 112 970 970 · No. 113 960 960 · No. 114 790 790 · No. 115 634 634 · No. 116 381 381 · No. 117 301/766 301, 766 · No. 118 791 791 · No. 119 438 438 · No. 120

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to 6F 35 in the Go4Trans marketplace.
Sell 6F 35 parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

45 applications · 4 makes · 2007–2020 Ford 33 · Mercury 6 · Lincoln 4 · Mazda 2

Make Model Year Drive Engine
Ford Ecosport 2017-2020 L
Ford Ecosport 2017-2018 6 Spd FWD L4 1.5L
Ford Edge 2013-2020 L4 2L
Ford Edge 2011-2014 6 Spd F/AWD L4 2.0L
Ford Edge 2011 L4 2L
Ford Escape 2013-2020 L4 1.6, 2.0L
Ford Escape 2009-2011 L4,V6 2.5,3L
Ford Escape 2008-2016 6 Spd F/AWD L4 1.6/2.0/2.3L V6 3.0L
Ford Explorer 2013-2014 L4 2L
Ford Explorer 2011-2016 6 Spd FWD/4X4 L4 2.0L
Ford Flex 2011 L4 2L
Ford Focus 2014 6 Spd FWD L4 1.5L
Ford Focus 2011-2017 1.5
Ford Focus 2011-2013 L4 2L
Ford Fusion 2013-2020 L4 1.6L
Ford Fusion 2013-2017 1.5, 1.6, 2.0
Ford Fusion 2010-2013 L4, V6 1.6, 2.5, 3.0, 3.5L
Ford Fusion 2010-2013 1.6, 2.5, 3.0, 3.5
Ford Fusion 2009-2012 6 Spd F/AWD L4 2.0L/2.5 V6 3.0L
Ford Galaxy 2015-2016 6 Spd FWD L4 1.5L
Ford Kuga 6 Spd FWD L4 1.6/2.0L
Ford Mondeo 2013-2014 6 Spd FWD L4 1.5L 2.0L
Ford S-MAX 2013-2016 6 Spd FWD L4 1.5/2.0L
Ford Taurus 2013-2017 2.0
Ford Taurus 2013-2014 L4 2L
Ford Taurus 2013-2014 6 Spd FWD L4 2.0L
Ford TRANSIT CONNECT 2013-2014 6 Spd FWD L4 1.6L 2.5L
Ford Truck Edge 2013-2017 2.0
Ford Truck Edge 2007-2012 2.0
Ford Truck Escape 2013-2017 1.6, 2.0
Ford Truck Escape 2009-2012 2.5, 3.0
Ford Truck Explorer 2012-2015 2.0
Ford Truck Flex 2011 2.0
Lincoln MKC 2012-2014 6 Spd FWD L4 2.0L
Lincoln MKX 6 Spd F/AWD L4.2.0L
Lincoln MKZ 2013-2020 L
Lincoln MKZ / Zephyr 2012-2014 6 Spd F/AWD L4 2.0L
Mazda Tribute 2009-2011 2.5, 3.0
Mazda Tribute 2008-2012 6 Spd F/AWD L4 2.3/2.5L V6 3.0L
Mercury Mariner 2009-2011 L4, V6 2.0, 3.0L
Mercury Mariner 2009-2011 2.5, 3.0
Mercury Mariner 2009-2010 6 Spd FWD L4 1.6/2.0/2.5L V6 3.0L
Mercury Milan 2010-2011 L4, V6 2.5, 3.0, 3.5L
Mercury Milan 2010-2011 2.5, 3.0, 3.5
Mercury Milan 2009-2010 6 Spd F/AWD L4 2.5L V6 3.0L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

6F 35
6F35 Gen 2
6F35
6F35 Gen 3
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

?
Erratic Harsh Gear Shifting
Erratic gear shifting with harsh engagement reported, transmission sensitive to cold ATF and load conditions.
?
Slipping Out Of Gear
Transmission slips out of reverse or forward gear, most pronounced during on-road driving stuck in one gear.
!
Transmission Overheating Issue
6F35 in Ford Fusion prone to overheating due to inadequate cooling system capacity affecting ATF performance.
!
ATF Level Sensitivity
No dipstick fitted; incorrect ATF level causes shifting complaints. Level checked via overflow stopper method.
!
Internal Friction Component Wear
Moving internal components generate excessive friction over time, leading to shifting faults requiring repair.
?
Engine RPM Drag On Shift
Transmission drags engine RPM during gear shifts, particularly noticeable when towing heavy loads.
?
Reluctance From Complete Stop
Hesitation or reluctance when pulling away from a stop, worsened on inclines and stop-and-go traffic.
!
Cold ATF Load Sensitivity
Transmission highly sensitive to load inputs when ATF is cold, triggering shift quality complaints until warm.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 6-speed automatic transmission 6F35 (6F30) is a collaborative investment project of Ford with GM released in 2002. With regard to transmission components 6F35 is practically a complete analog of the GM 6T40- 6T45 transmission, details for manufacturing of these transmissions are unified to the fullest extent and differ only in electrical elements, filters, and pans. This transmission has been installed since 2008 on popular American FWD and AWD vehicles of Ford (Kuga, Focus, Escape, Fusion...) and Mazda (Tribute) with the engine from 1.6 up to 3 liters. There are two different modifications of the 6F35 – with engines less than 2.5 liters and 3 liters engine. The design of the 6F35 is based on the flagship model 6F50 /6F55= 6T70 /6T75, constructed on modular principle of maximum standardization and interchangeability of blocks.

Technical issues and repair guidelines

In most cases repair procedures f6F35 transmission consist of oil (DEXRON®VI or original XT-10-QLV) change and filter replacement. This transmission is very sensitive to the ATF level. It has no ATF level gauge and its levellevel is tested in compliance with the overflow stopper. As all 6-speed transmissions, the 6F35 (6F30) is sensitive to loads when the ATF is cold.

Many complaints have surfaced about erratic gear shifting, with gears harsh engagement and sometimes even slipping out of reverse or forward gear. The problem is most pronounced when the car is on the road, and happens when the transmission is stuck in one gear. It has been found that moving components within the transmission can create more friction, leading to issues requiring repair.

The 6F35 Transmission in Ford Fusion and Ford Perform cars is particularly prone to overheating issues. It is important to ensure that the control unit settings are adjusted appropriately, and also that the driver’s driving style is suitable for the vehicle. A dogged cooling system with less than optimal capacity has been found to depend on overall performance, so it may be worth removing Automatic Transmission Fluid (ATF) from the car.

This is one of the most common problems with 6F35 conventional 5-speeds transmission issues, and can be easily rectified by a keen driver. The 6F35 transmission offers better fuel economy than its conventional 5-speeds counterparts and covers their 6f35 cars in Ford, covering over 50,000 miles in some cases. It is also good for long run drivers as it provides a greater gear span and optimal speed load combinations with much better optimal combinations.

The 6F35 Transmission has a number of design flaws which can cause problems for drivers. One of the most common issues is that the transmission tends to drag engine rpm when shifting gears, especially when towing heavy loads. Another started problem is reluctance or little reluctance when starting off from a complete stop, especially on mountain roads or when driving in stop and go traffic on a Saturday afternoon. Towing is usually the most common cause of transmission problems as it runs the engine harder than normal and can cause significant wear on components over time. The 6F35 Transmission has been known to be reliable but certain design flaws can cause problems if not addressed properly.

One common issue is that the computer commanded 1st gear and 5th gear command will switch when read drive is commanded by the computer. This can be easily fixed by changing the range switch to read range switch and ensuring that the input speed sensor is operating properly. Another issue is when the shifter is moved, the rpm figure drops about 200 rpm from its original figure of around 2. This happens for a short time and can cause a few issues if it happens multiple times.

One of the most common 6F35 transmission problems is a failed one way clutch. This clutch can cause the wheel speed signal to be lost which will limit engine power and prevent the vehicle from moving. If this happens, it may be necessary to replace the converter. Additionally, if equipped with a problem vehicle, there may also be an issue with floor shift selector lever and display shifts. In some cases, it can even cause a push button start to not work correctly or no throttle response when starting the vehicle.

6F35 Transmission Problems And Possible Solutions can include malfunction valves, control valve, and the valve body separator plate. The malfunction can cause a compromise cooling in the heat exchanger. As a solution on transmissions, it is important to install a fluid heater in order to properly lubricate the transmission. Additionally, removing check ball is necessary to allow for proper flow of transmission fluid. It is also recommended to install a fluid cooler before any additional modifications are done. When using Mercon LV transmission fluid, it is important to note that the deleted hole must be drilled back into the valve body separator plate in order for it to pass proper flow of coolant from one side of the transmission dipstick tube over to the other side.

This external cooler bypass valve is necessary for the proper flow of coolant in order to prevent overheating and eventual transmission failure. If an experienced fluid leak is present, it can lead to a deteriorating fluid which compromises lubrication, leading to deterioration of internal components and eventually catastrophic failure of the transmission. Ford Fusion cars that are experiencing 6F35 transmission issues may be left with a failing left half shaft seal or other related issues if not addressed properly.

If you are having transmission problems, post your car in our cars section to see if others are having the same issues. Certain problems may be resolved with a simple transmission fluid flush or replacing the left half shaft seal. On our 2015 Ford Explorer, we had to completely rebuild the transmission and it was a costly endeavor. To keep track of any potential issues with your car, it is best to keep a log of when you drive your car and the mileage each time.

This can help you detect any problems with your 6F35 transmission early on. I recently had to repair my 6F35 transmission, and Ford sent me a rebuild kit to fix the inherent 6f35 problems. I took my car to the repair shop and they were able to use the kit from Ford to fix the problem. If you are not comfortable with fixing the issue yourself, I would advise you to take your vehicle into a dealership for them to look at it. They may be able to provide you with a powertrain warranty for any potential issues that may arise in the future. If this does not work, then Ford may even send your mechanic out a kit so they can use it in order to fix it up for you. However, this does not always guarantee that the problem will be fixed as some of their kits use faulty factory parts which could just postpone any inherent 6f35 problems until later down the line when they appear again.

In order to make sure that this doesn’t happen, it is a good idea to bring the car to a repair shop and have an experienced technician install the unit. The technician will also be able to use engine and transmission data as well as perform line pressure checks, hook pressure transducers, and hook cases to the mainline pressure port.
