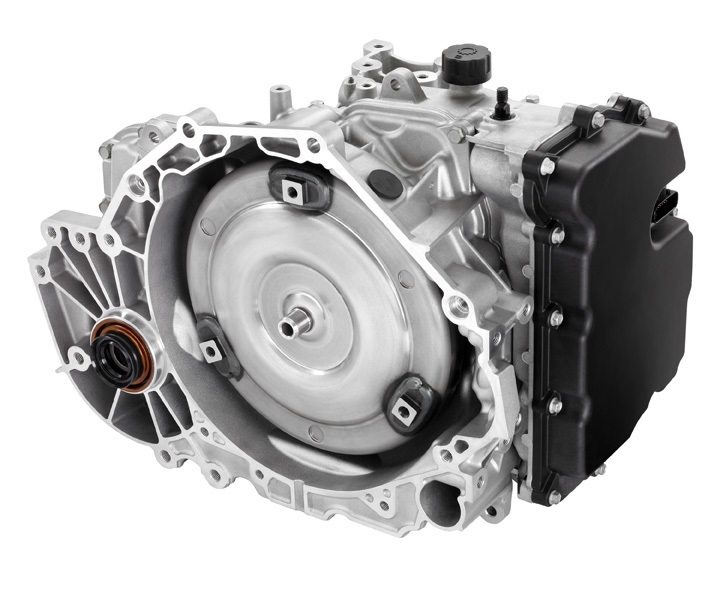

General Motors 6T40 Gen 3 (6T40E) Transmission

The family of 6-speed automatic gearboxes of GM 6T30E, 6T40E, 6T45E "Hydra-Matic" is a state-of-the-art range of FWD gearboxes used on Buick and Chevrolet vehicles from 1.4 to 3.2 lit. The 6T45E found application on FWD and AWD vehicles.

Speeds 6
Type AT
Drive FWD
Max torque 250
ATF capacity (L) 8,2
ATF change (L) 4
ATF type Dexron VI
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page

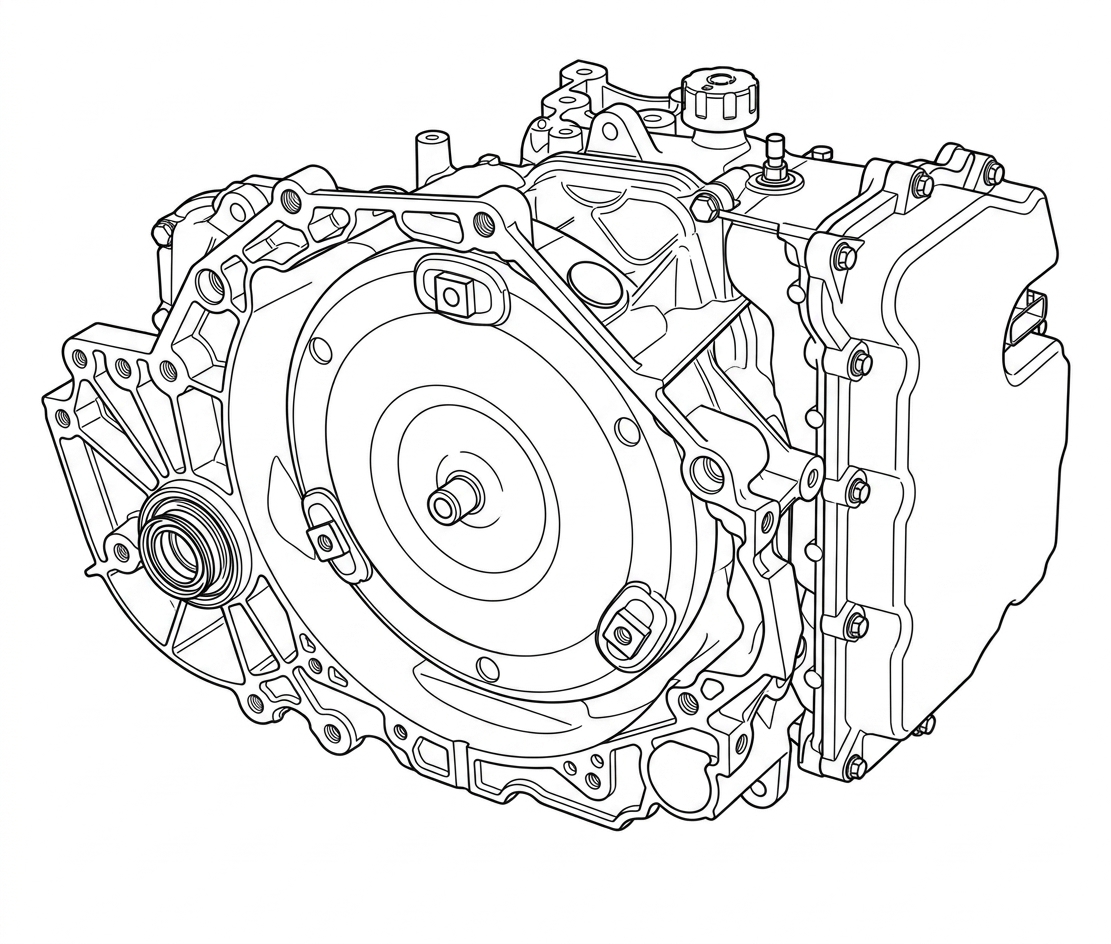

6T40 Gen 3
9.2/10
Support & Market Presence Index
Widely supported

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence9.6
Documentation depth10.0
Knowledge & support9.3

Exploded diagram & parts

Full 6T40 Gen 3 parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

698 698 · No. 1 064 064 · No. 2 293 293 · No. 3 715 715 · No. 4 598 598 · No. 5 618 618 · No. 6 706 706 · No. 7 281 281 · No. 8 263 263 · No. 9 063 063 · No. 10 077 077 · No. 11 076 076 · No. 12 318/750 318, 750 · No. 13 382 382 · No. 14 702 702 · No. 15 777 777 · No. 16 700 700 · No. 17 698-1 698-1 · No. 18 897 897 · No. 19 070 070 · No. 20 311 311 · No. 21 034 034 · No. 22 530 530 · No. 23 520 520 · No. 24 778 778 · No. 25 037 037 · No. 26 071 071 · No. 27 211 211 · No. 28 894 894 · No. 29 705 705 · No. 30 690 690 · No. 31 260 260 · No. 32 298 298 · No. 33 062 062 · No. 34 678 678 · No. 35 062 062 · No. 36 898 898 · No. 37 251 251 · No. 38 626 626 · No. 39 060 060 · No. 40 885 885 · No. 41 144 144 · No. 42 124/104 124, 104 · No. 43 125 125 · No. 44 010 010 · No. 45 379 379 · No. 46 873 873 · No. 47 972 972 · No. 48 962 962 · No. 49 558 558 · No. 50 967 967 · No. 51 977 977 · No. 52 893 893 · No. 53 134/114 134, 114 · No. 54 154 154 · No. 55 644 644 · No. 56 120/100 120, 100 · No. 57 850 850 · No. 58 584 584 · No. 59 888 888 · No. 60 596 596 · No. 61 241 241 · No. 62 238 238 · No. 63 594 594 · No. 64 582 582 · No. 65 882 882 · No. 66 612 612 · No. 67 234 234 · No. 68 233 233 · No. 69 592 592 · No. 70 890 890 · No. 71 586 586 · No. 72 051 051 · No. 73 624 624 · No. 74 126 +4 126, 106, 146, 878, 236 · No. 75 050 050 · No. 76 574 574 · No. 77 050 050 · No. 78 050/235 050, 235 · No. 79 128 +5 128, 149, 108, 148, 129, 867 · No. 80 984 984 · No. 81 974 974 · No. 82 964 964 · No. 83 84 84 · No. 84 85 85 · No. 85 86 86 · No. 86 87 87 · No. 87 88 88 · No. 88 994 994 · No. 89 991-2 991-2 · No. 90 410 410 · No. 91 992 992 · No. 92 797 797 · No. 93 072 072 · No. 94 991-4 991-4 · No. 95 96 96 · No. 96 97 97 · No. 97 436 436 · No. 98 494 494 · No. 99 760 760 · No. 100 179 179 · No. 101 788 788 · No. 102 746 +2 746, 740, 747 · No. 103 479 479 · No. 104 334 +5 334, 550, 335, 048, 048-1, 335-1 · No. 105 048-1 048-1 · No. 106 880 880 · No. 107 336/975 336, 975 · No. 108 965 965 · No. 109 845 845 · No. 110 879 879 · No. 111 862 862 · No. 112 970 970 · No. 113 960 960 · No. 114 790 790 · No. 115 634 634 · No. 116 381 381 · No. 117 301/766 301, 766 · No. 118 791 791 · No. 119 438 438 · No. 120

Parts categories

View all parts →
Sell 6T40 Gen 3 parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

141 applications · 13 makes · 2006–2020 Chevrolet 44 · Buick 31 · GMC 17 · Geo 14 · Daewoo 13

Make Model Year Drive Engine
Buick Alpheon 2010-2014 L4, V6 2.0,2.5,3.0L
Buick ANTHEM 2014 6 Spd FWD L4 1.4L/2.5L
Buick Cascada 2015-2016 6 Spd FWD 1.4/1.6L
Buick Encore 2016-2019 1.4, 1.6, 1.8
Buick Encore 2013 1.4
Buick Encore 2012-2018 6 Spd FWD L4 1.4L
Buick Encore 2012-2014 L4 1.4L
Buick Envision 2016-2019 2.0, 2.5
Buick Excelle 2012 1.6, 1.8
Buick Excelle 2010-2014 L4 1.6, 1.8L
Buick Excelle 2010-2011 1.6, 1.8
Buick EXCELLE GT/XT 2010-2012 6 Spd FWD L4 1.6/1.8L
Buick GL8 2012 2.4
Buick GL8 2011-2014 L4 2.4,2.5L
Buick GL8 2011 2.4
Buick GL8 2010-2016 6 Spd FWD L4 2.4L
Buick LaCrosse 2018-2019 2.5
Buick LaCrosse 2012-2013 2.4, 3.0
Buick LaCrosse 2008-2014 L4, V6 2.4,2.5,3.0L
Buick LaCrosse 2006-2016 6 Spd FWD L4 2.4L V6 3.0L
Buick LaCrosse 2006-2011 2.4, 3.0
Buick Regal 2012-2013 L4 1.4L
Buick Regal 2012-2013 1.4
Buick Regal 2011-2017 2.4
Buick Regal 2008-2016 6 Spd FWD L4 2.0/2.4/2.5L
Buick Regal 2008-2014 L4 1.6,2.0,2.4,2.5L
Buick Regal 2008-2011 L4 1.4L
Buick Regal 2008-2011 1.4
Buick Verano 2012-2017 2.4
Buick Verano 2012-2014 L4 1.4,2.4,2.5L
Buick Verano 6 Spd FWD L4 1.4L/2.5L
Chevrolet anthem 2014 L4 1.4L
Chevrolet AVEO 2013-2016 6 Spd FWD L4 1.4L 1.6L
Chevrolet Captiva Sport 2012-2013 2.4
Chevrolet CAPTIVA SPORT 2007-2016 6 Spd F/AWD L4 2.0L V6 3.0L/3.2L
Chevrolet Captiva Sport 2007-2014 L4, V6 2.0,2.2,2.4,3.0,3.2L
Chevrolet Captiva Sport 2006-2011 2.4
Chevrolet Cobalt 2012-2014 L4 1.2,1.4,1.8L
Chevrolet COBALT 2012-2014 6 Spd FWD L4 1.2/1.4/1.8L
Chevrolet Cruze 2012-2013 1.4, 2.5
Chevrolet Cruze 2009-2014 L4 1.4,1.6,1.8,2.0,2.5L
Chevrolet CRUZE 2009-2014 6 Spd FWD L4 1.4/1.6/1.8/2.0/2.5L
Chevrolet Cruze 2009-2011 1.4, 2.5
Chevrolet EPICA 2009-2015 6 Spd FWD L4 1.8/2.0L L6 2.0/2.5L
Chevrolet Epica 2009-2014 L4/L6 1.8,2.0,2.5,2.0,2.5L
Chevrolet Epica 2009-2011 2.0, 2.5
Chevrolet EQUINOX 2009-2018 6 Spd F/AWD L4 2.4L
Chevrolet Equinox 2009-2014 L4 2.4L
Chevrolet Impala 2015-2019 2.4
Chevrolet IMPALA 2013-2016 6 Spd FWD L4 2.4L
Chevrolet Impala 2013-2014 L4 2.4,2.5L
Chevrolet Malibu 2014-2020 L4 1.5,2.0,2.4,2.5L
Chevrolet Malibu 2014-2018 1.5, 2.0, 2.4, 2.5
Chevrolet Malibu 2012-2013 2.4, 2.5
Chevrolet Malibu 2008-2014 L4/V6 1.6,2.0,2.4,2.5,3.0L
Chevrolet MALIBU 2008-2012 6 Spd FWD L4 2.4/2.5L
Chevrolet Malibu 2008-2011 2.4, 2.5
Chevrolet Malibu Classic 2008 2.2
Chevrolet ONIX 2013-2016 6 Spd FWD L4 1.4L
Chevrolet Optra 2010-2011 L4 1.8L
Chevrolet OPTRA 2010-2011 6 Spd FWD L4 1.8L
Chevrolet Optra 2010-2011 1.8
Chevrolet Orlando 2012-2014 L4 1.8,2.0,2.4L
Chevrolet ORLANDO 2010-2016 6 Spd FWD L4 1.8L
Chevrolet Sonic 2012-2013 L4 1.4L
Chevrolet Sonic 2012-2013 1.4
Chevrolet SPIN 2012-2016 6 Spd FWD L4 1.8L
Chevrolet SPIN 2012-2014 L4 1.8L
Chevrolet TERRAIN 2009-2014 6 Spd FWD L4 2.4L
Chevrolet Trax 2016-2019 1.4, 1.6, 1.7, 1.8
Chevrolet Trax 2012-2014 L4 1.4,1.7L
Chevrolet TRAX 2012-2014 6 Spd FWD L4 1.4/1.7L
Chevrolet Truck Equinox 2018-2019 1.5, 1.6, 2.0
Chevrolet Truck Equinox 2012-2013 2.4
Chevrolet Truck Equinox 2009-2011 2.4
Daewoo EPICA 2012-2013 2.0, 2.4, 2.5, 3.0
Daewoo EPICA 2008-2011 2.0, 2.4, 2.5, 3.0
Daewoo Lacetti 2012-2013 1.6, 1.8, 2.0, 2.2, 2.4
Daewoo Lacetti 2008-2012 6 Spd FWD L4 1.6/1.8/2.0/2.2/2.4L
Daewoo Lacetti 2008-2011 1.6, 1.8, 2.0, 2.2, 2.4
Daewoo MPV7 2012 1.8, 2.0, 2.4
Daewoo MPV7 2011-2012 6 Spd FWD L4 1.8/2.0/2.4L
Daewoo MPV7 2011 1.8, 2.0, 2.4
Daewoo Tosca 2012-2013 2.0, 2.4, 2.5, 3.0
Daewoo Tosca 2007-2012 6 Spd FWD L4 1.8/2.0L V6 2.0/2.5L
Daewoo Tosca 2007-2011 2.0, 2.4, 2.5, 3.0
Daewoo Winstorm 2012-2013 2.0, 2.4
Daewoo Winstorm 2009-2011 2.0, 2.4
Geo AVEO 2013-2016 6 Spd FWD L4 1.4L 1.6L
Geo CAPTIVA SPORT 2007-2016 6 Spd F/AWD L4 2.0L V6 3.0L/3.2L
Geo COBALT 2012-2014 6 Spd FWD L4 1.2/1.4/1.8L
Geo CRUZE 2009-2014 6 Spd FWD L4 1.4/1.6/1.8/2.0/2.5L
Geo EPICA 2009-2015 6 Spd FWD L4 1.8/2.0L L6 2.0/2.5L
Geo EQUINOX 2009-2018 6 Spd F/AWD L4 2.4L
Geo IMPALA 2013-2016 6 Spd FWD L4 2.4L
Geo MALIBU 2008-2012 6 Spd FWD L4 2.4/2.5L
Geo ONIX 2013-2016 6 Spd FWD L4 1.4L
Geo OPTRA 2010-2011 6 Spd FWD L4 1.8L
Geo ORLANDO 2010-2016 6 Spd FWD L4 1.8L
Geo SPIN 2012-2016 6 Spd FWD L4 1.8L
Geo TERRAIN 2009-2014 6 Spd FWD L4 2.4L
Geo TRAX 2012-2014 6 Spd FWD L4 1.4/1.7L
GM Brasil CAPTIVA SPORT 2007-2012 6 Spd F/AWD L4 2.0L V6 3.0L/3.2L
GM Brasil CRUZE 2009-2012 6 Spd FWD L4 1.4/1.6/1.8/2.5L
GM Brasil MALIBU 2008-2012 6 Spd FWD L4 2.4/2.5L
GMC AVEO 2013-2016 6 Spd FWD L4 1.4L 1.6L
GMC CAPTIVA SPORT 2007-2016 6 Spd F/AWD L4 2.0L V6 3.0L/3.2L
GMC COBALT 2012-2014 6 Spd FWD L4 1.2/1.4/1.8L
GMC CRUZE 2009-2014 6 Spd FWD L4 1.4/1.6/1.8/2.0/2.5L
GMC EPICA 2009-2015 6 Spd FWD L4 1.8/2.0L L6 2.0/2.5L
GMC EQUINOX 2009-2018 6 Spd F/AWD L4 2.4L
GMC IMPALA 2013-2016 6 Spd FWD L4 2.4L
GMC MALIBU 2008-2012 6 Spd FWD L4 2.4/2.5L
GMC ONIX 2013-2016 6 Spd FWD L4 1.4L
GMC OPTRA 2010-2011 6 Spd FWD L4 1.8L
GMC ORLANDO 2010-2016 6 Spd FWD L4 1.8L
GMC SPIN 2012-2016 6 Spd FWD L4 1.8L
GMC Terrain 2009-2014 L4 2.4L
GMC TERRAIN 2009-2014 6 Spd FWD L4 2.4L
GMC TRAX 2012-2014 6 Spd FWD L4 1.4/1.7L
GMC Truck Acadia 2017-2019 2.5, 3.6
GMC Truck Terrain 2018-2019 1.6
Holden CRUZE 2011-2016 6 Spd FWD L4 1.4/1/8/2.0L
Holden CRUZE 2011-2016 6 Spd FWD L4 1.4/1.6/1.8L
MG 7 2013-2014 6 Spd FWD L4 2.0L 2.4L
Opel Astra 2012 1.4, 1.6, 2.0
Opel Astra 2009-2016 6 Spd FWD L4 1.4/1.6/2.0L
Opel Astra 2009-2014 6 Spd FWD L4 1.4/1.6/1.8/2.0L
Opel CASCADA 2013-2014 6 Spd FWD L4 1.4L 1.6L
Opel Meriva 2010-2016 6 Spd F/AWD L4 1.3L/1.7L
Opel MOKKA 2012-2014 6 Spd FWD L4 1.4L 1.8L
Opel Zafira 2012 2.2
Opel ZAFIRA TOURER 2015-2016 6 Spd FWD L4 1.4L
Pontiac G6 2008-2010 L4 2.4L
Pontiac G6 2008-2010 2.4
Pontiac G6 2008-2009 6 Spd FWD L4 2.4L V6 3.5L
Roewe 750 2012 2.0, 2.4, V6
Saab 9-4X 2010-2011 2.4, 2.5
Saturn Aura 2009-2011 6 Spd FWD L4 2.4L
Saturn Aura 2009-2010 2.4
Saturn Vue 2009 2.4

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

6T41
MH8
MHB
MNK
6T40 Gen 3
MHH
6T40
MNH
6T40 Series
Gen 3
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
ATF Overheating Piston Rubber Hardening
High ATF temps cause rubber pistons to harden; full set of 5 pistons replacement required.
!
Torque Converter Lock-Up Wear
TC lock-up clutch wear reduces solenoid lifespan; friction disc replacement needed at high mileage.
!
Pump Bushing Vibration Damage
TC lock-up wear and vibrations damage pump bushing, indicated by leaking TC unit seal.
!
Solenoid Premature Failure
Short solenoid service life accelerated by TC slippage and contaminated ATF; valve body affected.
?
Rapid ATF Pollution
Fast ATF contamination signals TC friction disc wear and valve body issues requiring overhaul.
!
Valve Body Contamination Damage
Contaminated ATF degrades valve body function; cleaning and solenoid inspection required periodically.
?
ATF Leaking Through Bushings
Worn bushings caused by vibrations allow ATF to leak externally; inspect all bushings during overhaul.
?
Line Pressure Loss Long-Term
Pressure loss in hydraulic line observed after extended operation; check and clean valve body.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The family of 6-speed automatic gearboxes of GM 6T30E, 6T40E, 6T45E "Hydra-Matic" is a state-of-the-art range of FWD gearboxes used on Buick and Chevrolet vehicles from 1.4 to 3.2 lit. The 6T45E found application on FWD and AWD vehicles.

Technical issues and repair guidelines

These gearboxes can operate properly with spare parts of different quality. Standard repair kits of gaskets and seals produced by ATOC often ordered for repair of these gearboxes.In case of ATF overheating it is often required to change all pistons because the rubber gets hard under the influence of the temperature. The set of pistons consists of 5 pieces.

The transmission fluid for these gearboxes should be changed every 40-80 thousand kilometers and checked for opacity every visit to repair services taking into account short service life of solenoids and torque converters (TC) with slippages. In the course of each overhaul, TC is reassembled and the lock-up clutch is replaced, because its wear-out reduces the resource of solenoids.Leaking seal of the TC unit is a sign of possible issues with the pump bushing, which gets damaged by vibrations and wear-out of the TC lock-up.

The construction of this gearbox is conceptually the same with ZF of 6HP series and problems in these gearboxes are caused by the same factors:vibrations which damage bushings. Vibrations lead to situations when ATF leaks through worn-out bushings.This is one more present-day gearbox in which it is important to examine the quality and temperature of ATF. In situation of any apprehensions related to contaminated ATF – change the fluid for protecting the valve body. It is also recommended to keep a wary eye on symptoms of the pressure loss in the line after a long-term operation as well as check and clean the valve body with solenoids. The TC unit repair with replacement of friction discs is required in the situation of rapid ATF pollution and issues with the valve body (especially with the mileage higher than 130-150 thousand kilometers). Overloading with high torques and aggressive accelerations also may have a bad impact on this gearbox.

On the top of everything else, experts recommend to install additional transmission radiator for the whole 6T range of transmissions. Cars with this transmission manufactured over the last years are adjusted in more cautious way and stop drivers from using the car with neglect to this good 6-speed gearbox, which is capable to compete with Jatco CVTs in terms of comfort.

Sources & Contribution

+ Contribute

This feature is in progress and will be available soon.

Every claim on this page is backed by a structured source record — including community contributions, each with its own reference.

Type
Title
Author
Link
video
6T45
Gary Ferraro
video
6T40 Teardown
Gary Ferraro
video
6T40 Series, no reverse.
Automatic Transmission
video
6T40 Valvebody
Gary Ferraro
video
6T75-E Transmission - No Reverse - 1-2 only - No 3-4-5-6 - Transmission Repair
Automatic Transmission
video
6T70 Teardown
Gary Ferraro
video
6T70 Valvebody
Gary Ferraro
video
6T75 TCM REPAIR.
Robert Rushton
manual
Sonnax — (Gen. 2), (Gen. 2),
—
manual
Sonnax — (Gen. 1), (Gen. 1),
—
manual
Sonnax — Critical Wear Areas & Vacuum Test Locations (6T40 Gen 3)
—
