Seal, 4L30E (BMW) Extension Housing Seal (2.292”OD) 1989-02

Seal, 4L30E (BMW) Extension Housing Seal (2.292”OD) 1989-02 — Part # 69074
Part # 69074
Type:
Housing, seal
Transmissions:
3HP22, 4HP22, 4HP24, 4L30E, BW 35TA, BW35TB, BW37TB, TH180C
Years:
1989-02
Size:
2.292”OD
Data as of:
2026-10-17

Offers

No offers for this part yet.

Request this part Sell this part

Cross-reference numbers

NumberSystemStatus
69074WIT✓ catalog
046-504-4002HRef✓ catalog

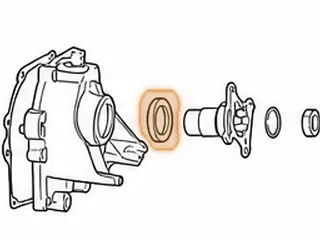

Where it fits

DiagramPositionTransmission page
4HP220744HP22
4HP24074—
4L30E0744L30E
BW 35TA074BW 35TA
TH180C074—
Other parts in 4HP22 position 074:
  • 69074AA Seal, ZF4HP22 Extension Housing (Land Rover) 1988-97
  • 69074AB Seal, ZF4HP22 Extension Housing (Land Rover) 1998-02
  • 56074B Seal, C-3/A4LD/4R44E/4R55E/5R55E Rear (With Boot) 1974-Up
Other parts in 4HP24 position 074:
  • 69074AA Seal, ZF4HP22 Extension Housing (Land Rover) 1988-97
  • 69074AB Seal, ZF4HP22 Extension Housing (Land Rover) 1998-02
  • 56074B Seal, C-3/A4LD/4R44E/4R55E/5R55E Rear (With Boot) 1974-Up
Other parts in 4L30E position 074:
  • 24074 Seal, 180 Rear (Fiat)
  • 24074A Seal, 180/180C/4L30E Rear (Sidekick, Tracker 2wd) 1990-Up
  • 44074 Seal, 180/180C/4L30E Rear 1969-Up
  • 44074C Seal, 180/180C/4L30E Rear (With Flange) With Short Boot
Other parts in BW 35TA position 074:
  • 29074 Seal, AW55/BW55/AW70/AW71 Rear (Volvo) (36mm X 49.5mm X 11mm)
  • 119074 Seal, T-35 Rear (2”OD) 1963-Up
  • 119074A Seal, T-35 Rear (1 3/4”OD) 1963-Up
Other parts in TH180C position 074:
  • 24074 Seal, 180 Rear (Fiat)
  • 24074A Seal, 180/180C/4L30E Rear (Sidekick, Tracker 2wd) 1990-Up
  • 44074 Seal, 180/180C/4L30E Rear 1969-Up
  • 44074C Seal, 180/180C/4L30E Rear (With Flange) With Short Boot
Before you order

Verify the number before ordering: compare it with the part you have and the transmission model.
