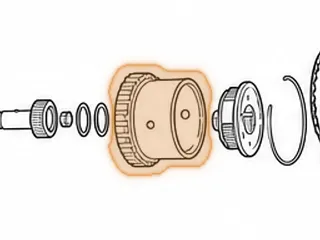

Ring Gear, F4A51/W4A51(W4A5A)/F5A51/A5HF1 Output Planet (Sprag Type)(70 Teeth) (3.660”Long) 1996-Up
Part # 41594BA
Type:
Gear, planet, ring, sprag
Years:
1996-Up
Size:
70 Teeth; 3.660”Long
Data as of:
2026-10-17
Offers
No offers for this part yet.
Cross-reference numbers
| Number | System | Status |
|---|---|---|
| 41594BA | WIT | ✓ catalog |
| 45796-39510 | OEM | ✓ catalog |
Where it fits
| Diagram | Position | Transmission page |
|---|---|---|
| A4CF1 | 594 | A4CF1 |
| F4A42 | 594 | — |
Other parts in A4CF1 position 594:
- 41594A Ring Gear, F4A41 Output Planet (Non Sprag Type)(70 Teeth)(2.980” Long) 1996-Up
- 41594AA Ring Gear, F4A41/F4A42/W4A42 Output Planet (Sprag Type)(70 Teeth)(3.395” Long) 1996-Up
- 41594B Ring Gear, F4A51/W4A51(W4A5A) Output Planet (Non Sprag Type)(70 Teeth)(3.215”Long) 1996-Up
- 41594E Ring Gear, A4CF1/A4CF2 Output Planet (Sprag Type)(71 Teeth)(3.420”Long)(30 Outer Lugs) 2006-Up
Other parts in F4A42 position 594:
Before you order
Verify the number before ordering: compare it with the part you have and the transmission model.
