6F24 Bearing W/Race 211247C (.145”Thick)
Catalog name:

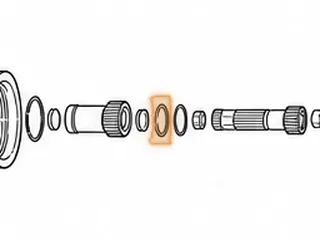

Bearing W/Race, A6GF1 Output Sun Gear To Overdrive Sun Gear (.145”Thick)(1.815”OD) (1.210”ID) 2012-Up
Part # 211247C
Type:
Bearing, gear
Transmissions:
6F24, A6MF1, A6MF2H
Years:
2012-Up
Size:
.145”Thick; 1.815”OD; 1.210”ID
Data as of:
2026-10-17
Offers
No offers for this part yet.
Cross-reference numbers
| Number | System | Status |
|---|---|---|
| 211247C | WIT | ✓ catalog |
| 45761-3B600 | OEM | ✓ catalog |
Where it fits
| Diagram | Position | Transmission page |
|---|---|---|
| 6F24 | 247 | 6F24 |
| A6MF2H | 247 | — |
Other parts in 6F24 position 247:
- 211247A Bearing W/Race, A6MF2/6F24 Output Sun Gear To Overdrive Sun Gear (.118”Thick) (1.860”OD)(1.300”ID) 2010-Up
Other parts in A6MF2H position 247:
- 211247A Bearing W/Race, A6MF2/6F24 Output Sun Gear To Overdrive Sun Gear (.118”Thick) (1.860”OD)(1.300”ID) 2010-Up
Before you order
Verify the number before ordering: compare it with the part you have and the transmission model.
