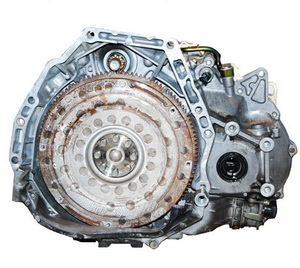

Honda B7XA (BAXA) Transmission

The 4- speed automatic transmissions BAXA had been installed in Honda Accord since 1998 until 2002 and in Acura with the engine capacity 2.3 liters since 1998 until 1999. The list of construction peculiarities of BAXA transmission includes: 6 solenoids, 2 pressure sensors, and lack of overrun clutches. The design concept of solenoids helps to manage the shift overlap for upshifts and downshifts.

Speeds 4
Type AT
Drive FWD
ATF capacity (L) 6,1
ATF change (L) 2,7
ATF type Honda Z-1
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
B7XA
4.7/10
Support & Market Presence Index
Limited presence

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence0.6
Documentation depth10.0
Knowledge & support6.5

Exploded diagram & parts

Full B7XA parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

070 070 · No. 1 209 209 · No. 2 529 529 · No. 3 214 214 · No. 4 672 672 · No. 5 217 217 · No. 6 220 220 · No. 7 806 806 · No. 8 217 217 · No. 9 224 224 · No. 10 861 861 · No. 11 140* 140* · No. 12 120/100 120, 100 · No. 13 850 850 · No. 14 862 862 · No. 15 980 980 · No. 16 970 970 · No. 17 960 960 · No. 18 331 331 · No. 19 550 550 · No. 20 331 331 · No. 21 960 960 · No. 22 970 970 · No. 23 980 980 · No. 24 862 862 · No. 25 850 850 · No. 26 120/100 120, 100 · No. 27 140* 140* · No. 28 861 861 · No. 29 225 225 · No. 30 226 226 · No. 31 229 229 · No. 32 229 229 · No. 33 809 809 · No. 34 232 232 · No. 35 233 233 · No. 36 880 880 · No. 37 235 235 · No. 38 710 710 · No. 39 699 699 · No. 40 207 207 · No. 41 795 795 · No. 42 689A 689A · No. 43 238 238 · No. 44 888 888 · No. 45 239 239 · No. 46 47 47 · No. 47 887 887 · No. 48 240 240 · No. 49 242 242 · No. 50 241 241 · No. 51 802 802 · No. 52 242 242 · No. 53 675 675 · No. 54 861 861 · No. 55 148* 148* · No. 56 128/108 128, 108 · No. 57 857 857 · No. 58 877 877 · No. 59 987 987 · No. 60 977 977 · No. 61 967 967 · No. 62 335 335 · No. 63 552 552 · No. 64 333 333 · No. 65 962 962 · No. 66 972 972 · No. 67 982 982 · No. 68 862 862 · No. 69 124/104 124, 104 · No. 70 144* 144* · No. 71 873 873 · No. 72 252 252 · No. 73 253 253 · No. 74 251 251 · No. 75 803 803 · No. 76 253 253 · No. 77 255 255 · No. 78 889 889 · No. 79 710 710 · No. 80 286 286 · No. 81 206 206 · No. 82 796 796 · No. 83 689B 689B · No. 84 254 254 · No. 85 676 676 · No. 86 801 801 · No. 87 807 807 · No. 88 887 887 · No. 89 90 90 · No. 90 267 267 · No. 91 886 886 · No. 92 271 271 · No. 93 810 810 · No. 94 835 835 · No. 95 830 830 · No. 96 816 816 · No. 97 273 273 · No. 98 804 804 · No. 99 274 274 · No. 100 890 890 · No. 101 690 690 · No. 102 281 281 · No. 103 285 285 · No. 104 710 710 · No. 105 281 281 · No. 106 282 282 · No. 107 287 287 · No. 108 208 208 · No. 109 796 796 · No. 110 284 284 · No. 111 818 818 · No. 112 283 283 · No. 113 283 283 · No. 114 819 819 · No. 115 204 204 · No. 116 820 820 · No. 117 422 422 · No. 118 421 421 · No. 119 425 425 · No. 120 121 121 · No. 121 122 122 · No. 122 411 411 · No. 123 124 124 · No. 124 125 125 · No. 125 126 126 · No. 126 127 127 · No. 127 128 128 · No. 128 129 129 · No. 129 130 130 · No. 130 840 840 · No. 131 328B 328B · No. 132 756 756 · No. 133 423 423 · No. 134 423 423 · No. 135 436 436 · No. 136 493 493 · No. 137 494 494 · No. 138 438 438 · No. 139 077 077 · No. 140 328/750 328, 750 · No. 141 747 747 · No. 142 530 530 · No. 143 530 530 · No. 144 535 535 · No. 145 740 740 · No. 146 924-3 924-3 · No. 147 924 924 · No. 148 149 149 · No. 149 150 150 · No. 150 151 151 · No. 151 152 152 · No. 152 153 153 · No. 153 290 290 · No. 154 291 291 · No. 155 292 292 · No. 156 716 716 · No. 157 720 720 · No. 158 289 289 · No. 159 786 786 · No. 160 288 288 · No. 161 290 290 · No. 162 899* 899* · No. 163 760/318 760, 318 · No. 164 165 165 · No. 165 166 166 · No. 166 439 439 · No. 167 168 168 · No. 168 759/305 759, 305 · No. 169 170 170 · No. 170 171 171 · No. 171 172 172 · No. 172 173 173 · No. 173 174 174 · No. 174 175 175 · No. 175 176 176 · No. 176 177 177 · No. 177 178 178 · No. 178 179 179 · No. 179 180 180 · No. 180 900-2 900-2 · No. 181 182 182 · No. 182 183 183 · No. 183 184 184 · No. 184 999 999 · No. 185 186 186 · No. 186 187 187 · No. 187 010 010 · No. 188 991-2 991-2 · No. 189 991-4 991-4 · No. 190 298 298 · No. 191 192 192 · No. 192 193 193 · No. 193 194 194 · No. 194 195 195 · No. 195 410 410 · No. 196 492 492 · No. 197 198 198 · No. 198 999 999 · No. 199

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to B7XA in the Go4Trans marketplace.
Sell B7XA parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

4 applications · 1 make · 1998–2002 Honda 4

Make Model Year Drive Engine
Honda Accord 1998-2002 4 Spd FWD V6 3.0L
Honda Accord 1998-2002 4 Spd FWD L4 2.3L
Honda Accord 1998-2002 3.0
Honda Accord 1998-2002 2.3

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

B7XA
BAXA
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Differential Bearing Damage
Differential bearing failure is most common; bearing chips bypass filters and destroy aluminum and plastic components.
!
Needle Bearing Shaft Failure
Needle bearings on shafts wear out; identified by transmission noise disappearing in Park or Neutral.
?
Noise Disappears in Park
Transmission noise ceases when shifted to Park or Neutral; indicates needle bearing damage on shafts.
?
Slap Noise and Oil Leaks
Slap noise over road bumps, large driven shaft clearance, and oil leaks from driving gear seals indicate bearing wear.
!
2nd Gear Clutch Wear
Clutch pack wear in 2nd gear; vehicle may operate long-term but causes slipping and jolts.
?
Slipping in 2nd Gear
Transmission slips during engagement of 2nd gear, indicating worn 2nd gear clutch pack.
?
Jolt When Car Stops
Noticeable jolt felt when vehicle comes to a stop, associated with 2nd gear clutch wear.
?
Jolt Shifting D to 2
Harsh jolt when shifting from D to 2 with engine running, brake depressed, and vehicle stationary.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 4- speed automatic transmissions BAXA had been installed in Honda Accord since 1998 until 2002 and in Acura with the engine capacity 2.3 liters since 1998 until 1999. The list of construction peculiarities of BAXA transmission includes: 6 solenoids, 2 pressure sensors, and lack of overrun clutches. The design concept of solenoids helps to manage the shift overlap for upshifts and downshifts.

  • Honda Accord; 98-00; L4 2.3L; Honda BAXA; ATF Capacity/Change: 6.4/6.1 2.9/2.7

Technical issues and repair guidelines

The list of commonly replaced spare parts in this transmission includes two typical problems: wear-out of clutches of the 2-nd gear and damage of bearings. With worn-out clutches the car can operate for quite a long time, but the damage of bearings leads to non-operability of all transmission units. Bearing chips easily get through filters and penetrate aluminum transmission parts, plastic ring gaskets, and literally “eat” transmission components. The differential bearing is damaged in most cases, and sometimes needle bearings on shafts.

Wear-out of the 2-nd gear has the following symptoms:

1. Slipping when switching on the 2-nd gear

2. Jolt when stopping the car

3. Experiencing a jolt when shifting from mode D to 2 (when the car is stopped with started engine and depressed brake pedal).

The wear-out of bearings is identified with the help of following signs:

1. The sound of transmission disappears when shifting gear in “Park” or “N” mode. This symptom indicates damage of needle bearings in shafts.

2. Slap noise in chassis when running over high spots on the road, a large clearance of the transmission driven shaft, oil leakages from seals of driving gears.

Transmission specialists recommend the following measures to prevent abovementioned problems:

1. Regular change of ATF and installation of additional radiator cooling system can really help in extending the service life of BAXA transmission.

2. When first signs of the transmission malfunction are detected, it is required to dissemble transmission and replace clutches, ring gaskets, and bearings.
