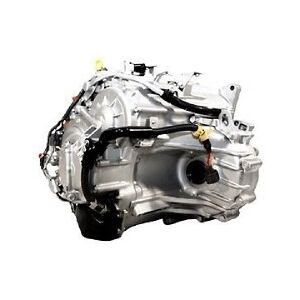

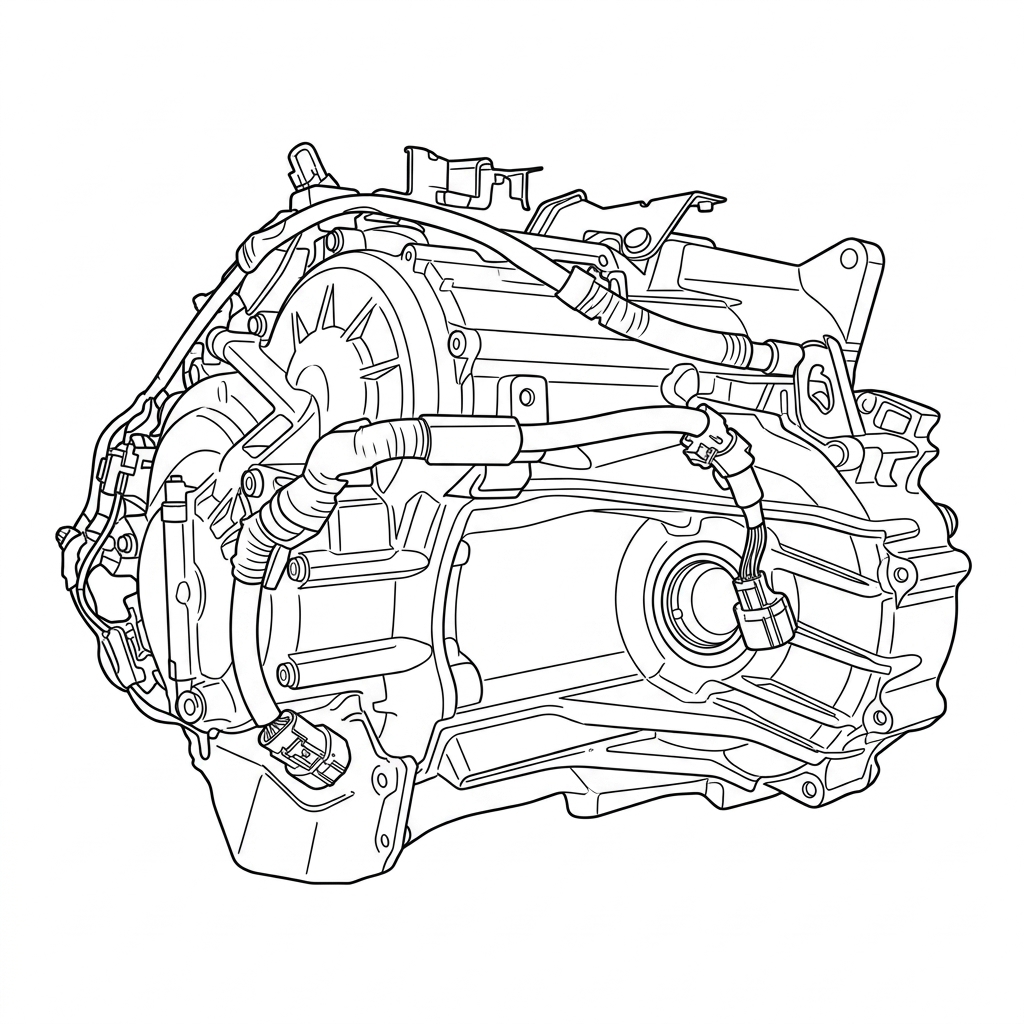

Honda B7TA Transmission

The automatic 4-speed transmission B7TA was designed by Honda specialists in 1996. It is intended for front-wheel drive Honda and Acura vehicles.

Speeds 4
Type AT
Drive FWD
ATF capacity (L) 7,1
ATF change (L) 2,9
ATF type Honda Z-1
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
B7TA
4.2/10
Support & Market Presence Index
Limited presence

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence0.9
Documentation depth8.9
Knowledge & support4.0

Exploded diagram & parts

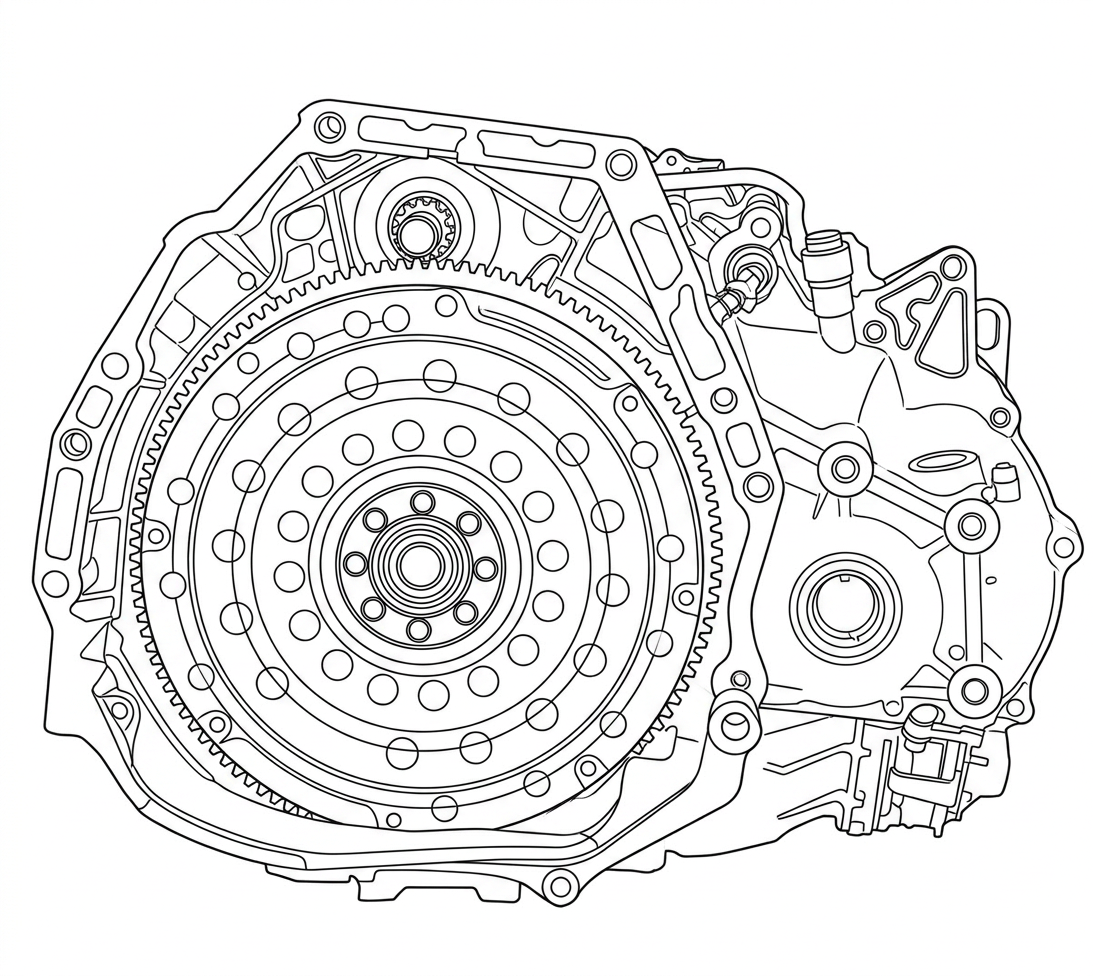

Full B7XA parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

070 070 · No. 1 209 209 · No. 2 529 529 · No. 3 214 214 · No. 4 672 672 · No. 5 217 217 · No. 6 220 220 · No. 7 806 806 · No. 8 217 217 · No. 9 224 224 · No. 10 861 861 · No. 11 140* 140* · No. 12 120/100 120, 100 · No. 13 850 850 · No. 14 862 862 · No. 15 980 980 · No. 16 970 970 · No. 17 960 960 · No. 18 331 331 · No. 19 550 550 · No. 20 331 331 · No. 21 960 960 · No. 22 970 970 · No. 23 980 980 · No. 24 862 862 · No. 25 850 850 · No. 26 120/100 120, 100 · No. 27 140* 140* · No. 28 861 861 · No. 29 225 225 · No. 30 226 226 · No. 31 229 229 · No. 32 229 229 · No. 33 809 809 · No. 34 232 232 · No. 35 233 233 · No. 36 880 880 · No. 37 235 235 · No. 38 710 710 · No. 39 699 699 · No. 40 207 207 · No. 41 795 795 · No. 42 689A 689A · No. 43 238 238 · No. 44 888 888 · No. 45 239 239 · No. 46 47 47 · No. 47 887 887 · No. 48 240 240 · No. 49 242 242 · No. 50 241 241 · No. 51 802 802 · No. 52 242 242 · No. 53 675 675 · No. 54 861 861 · No. 55 148* 148* · No. 56 128/108 128, 108 · No. 57 857 857 · No. 58 877 877 · No. 59 987 987 · No. 60 977 977 · No. 61 967 967 · No. 62 335 335 · No. 63 552 552 · No. 64 333 333 · No. 65 962 962 · No. 66 972 972 · No. 67 982 982 · No. 68 862 862 · No. 69 124/104 124, 104 · No. 70 144* 144* · No. 71 873 873 · No. 72 252 252 · No. 73 253 253 · No. 74 251 251 · No. 75 803 803 · No. 76 253 253 · No. 77 255 255 · No. 78 889 889 · No. 79 710 710 · No. 80 286 286 · No. 81 206 206 · No. 82 796 796 · No. 83 689B 689B · No. 84 254 254 · No. 85 676 676 · No. 86 801 801 · No. 87 807 807 · No. 88 887 887 · No. 89 90 90 · No. 90 267 267 · No. 91 886 886 · No. 92 271 271 · No. 93 810 810 · No. 94 835 835 · No. 95 830 830 · No. 96 816 816 · No. 97 273 273 · No. 98 804 804 · No. 99 274 274 · No. 100 890 890 · No. 101 690 690 · No. 102 281 281 · No. 103 285 285 · No. 104 710 710 · No. 105 281 281 · No. 106 282 282 · No. 107 287 287 · No. 108 208 208 · No. 109 796 796 · No. 110 284 284 · No. 111 818 818 · No. 112 283 283 · No. 113 283 283 · No. 114 819 819 · No. 115 204 204 · No. 116 820 820 · No. 117 422 422 · No. 118 421 421 · No. 119 425 425 · No. 120 121 121 · No. 121 122 122 · No. 122 411 411 · No. 123 124 124 · No. 124 125 125 · No. 125 126 126 · No. 126 127 127 · No. 127 128 128 · No. 128 129 129 · No. 129 130 130 · No. 130 840 840 · No. 131 328B 328B · No. 132 756 756 · No. 133 423 423 · No. 134 423 423 · No. 135 436 436 · No. 136 493 493 · No. 137 494 494 · No. 138 438 438 · No. 139 077 077 · No. 140 328/750 328, 750 · No. 141 747 747 · No. 142 530 530 · No. 143 530 530 · No. 144 535 535 · No. 145 740 740 · No. 146 924-3 924-3 · No. 147 924 924 · No. 148 149 149 · No. 149 150 150 · No. 150 151 151 · No. 151 152 152 · No. 152 153 153 · No. 153 290 290 · No. 154 291 291 · No. 155 292 292 · No. 156 716 716 · No. 157 720 720 · No. 158 289 289 · No. 159 786 786 · No. 160 288 288 · No. 161 290 290 · No. 162 899* 899* · No. 163 760/318 760, 318 · No. 164 165 165 · No. 165 166 166 · No. 166 439 439 · No. 167 168 168 · No. 168 759/305 759, 305 · No. 169 170 170 · No. 170 171 171 · No. 171 172 172 · No. 172 173 173 · No. 173 174 174 · No. 174 175 175 · No. 175 176 176 · No. 176 177 177 · No. 177 178 178 · No. 178 179 179 · No. 179 180 180 · No. 180 900-2 900-2 · No. 181 182 182 · No. 182 183 183 · No. 183 184 184 · No. 184 999 999 · No. 185 186 186 · No. 186 187 187 · No. 187 010 010 · No. 188 991-2 991-2 · No. 189 991-4 991-4 · No. 190 298 298 · No. 191 192 192 · No. 192 193 193 · No. 193 194 194 · No. 194 195 195 · No. 195 410 410 · No. 196 492 492 · No. 197 198 198 · No. 198 999 999 · No. 199

Parts categories

View all parts →
Sell B7TA parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

3 applications · 2 makes · 1999–2001 Honda 2 · Isuzu 1

Make Model Year Drive Engine
Honda Odyssey 1999-2001 4 Spd FWD V6 3.5L
Honda Odyssey 1999-2001 3.5
Isuzu Oasis 1999-2001 4 Spd FWD L4 2.2L 2.3L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

B7TA
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Rubber Gasket Elasticity Loss
Rubber gaskets lose elasticity leading to oil leakages; replacement of gaskets required to resolve.
?
Transmission Oil Leakage
Oil leakages occur due to degraded rubber gaskets losing their sealing properties over time.
!
Aggressive Acceleration Damage
Immediate hard accelerations after cold start can cause premature internal transmission wear.
!
Manual Mode Gear Shift Stress
Frequent manual mode gear-shifting can cause harmful stress on transmission components over time.
!
Oil and Filter Degradation
Transmission oil and filtering element require replacement to maintain proper lubrication and performance.
?
Cold Start Oil Viscosity
Insufficient oil warm-up in winter can cause transmission stress; warm-up procedure recommended before driving.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The automatic 4-speed transmission B7TA was designed by Honda specialists in 1996. It is intended for front-wheel drive Honda and Acura vehicles.

This modification of automatic transmissions can be installed on 6-cylinder engines with the capacity not higher than 3.5 liters. In the process of operation this transmission made a good impression. Due to its simple design, this transmission is distinguished by its reliability and durability. The maintenance service for this transmission is not complicated.

  • HONDA ODYSSEY 2.3L; V6 3.5L; Honda B7TA

Technical issues and repair guidelines

After running 50 thousand kilometers it is required to change the oil with a filtering element. The car owner can perform this procedure by himself even with a limited experience in this field. B7TA has no planetary gears that allowed engineers to simplify the design of this transmission. It had a positive impact on the level of durability and reliability of this automatic transmission. It is not unusual, when well-timed maintenance and proper usage helps this transmission to cover 400 thousand kilometers without major repairs. Transmission specialists recommend warming up of the oil in this transmission in winter. It can be done the following way: shift the selector lever to the Drive position and hold the brake pedal depressed for about 30 seconds. This measure will help to warm up the transmission oil and prolong the trouble-free operation of the transmission. It should be also kept in mind that immediate accelerations after the start of the movement and gear-shifting in the manual mode may be harmful for the transmission.

The list of common problems with B7TA includes issues with rubber gaskets which lose their elasticity after running 100-150 thousand kilometers that leads to oil leakages. In this case the repair procedure lies in replacement of these gaskets.
