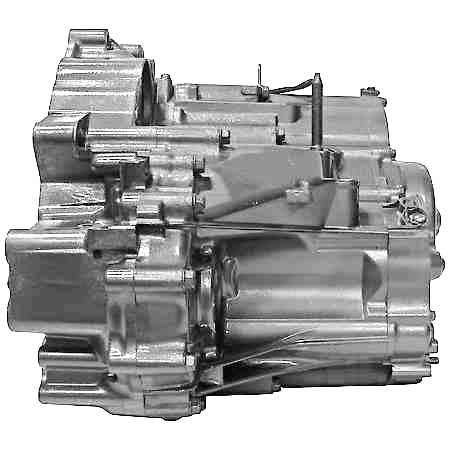

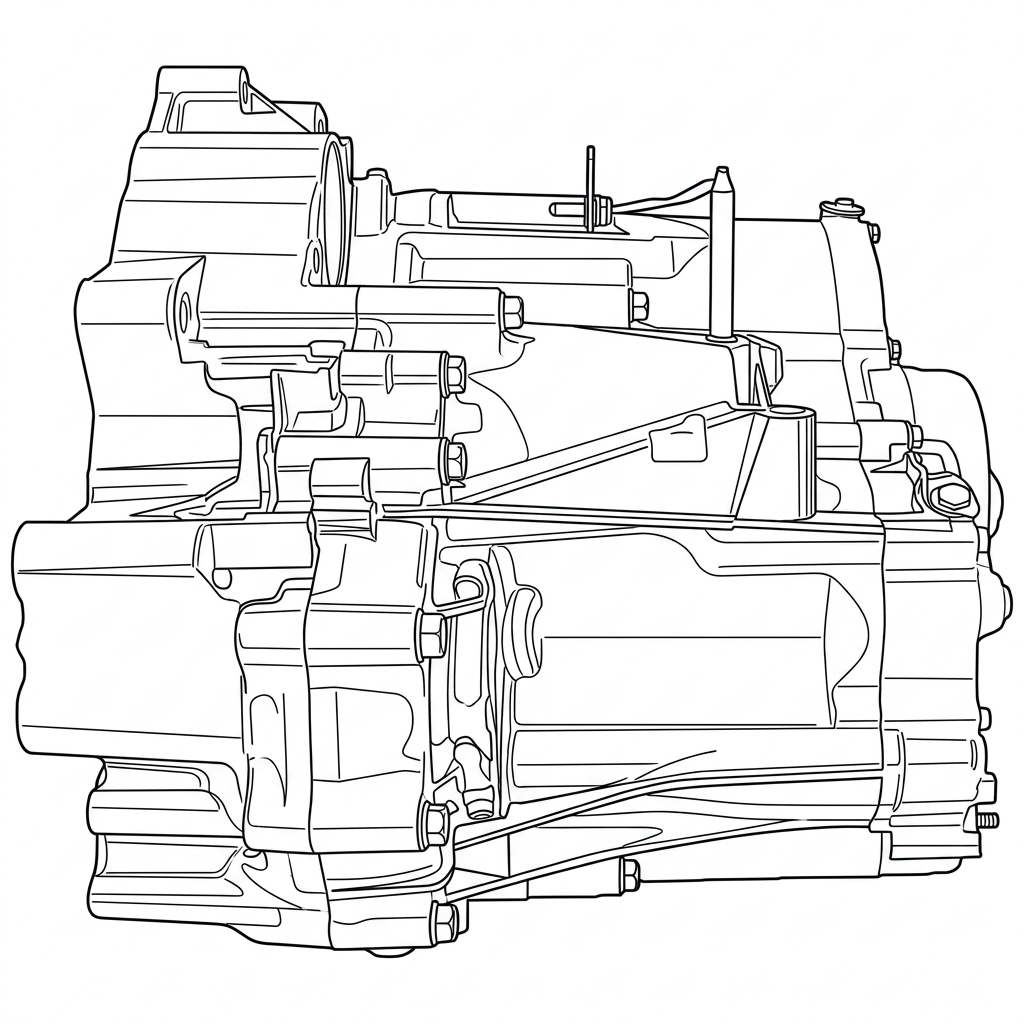

Honda BMXA Transmission

Honda transmissions differ completely from the rest of automatic transmissions, because Honda does not use planetary gears. Honda transmissions are not complex in terms of design, have larger dimensions and as a result considered to be more robust. But automatic transmissions produced by Honda also have some vulnerabilities related to electronic gear shifting control: friction discs, solenoids, and the valve body.

Speeds 4
Type AT
Drive FWD
ATF capacity (L) 6
ATF change (L) 2,7
ATF type Honda Z-1
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
BMXA
5.2/10
Support & Market Presence Index
Limited presence

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence2.2
Documentation depth10.0
Knowledge & support5.0

Exploded diagram & parts

Full BMXA parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

1 1 · No. 1 2 2 · No. 2 3 3 · No. 3 4 4 · No. 4 5 5 · No. 5 6 6 · No. 6 7 7 · No. 7 8 8 · No. 8 9 9 · No. 9 10 10 · No. 10 11 11 · No. 11 12 12 · No. 12 13 13 · No. 13 14 14 · No. 14 15 15 · No. 15 16 16 · No. 16 17 17 · No. 17 18 18 · No. 18 120 120 · No. 19 20 20 · No. 20 21 21 · No. 21 970 970 · No. 22 23 23 · No. 23 24 24 · No. 24 25 25 · No. 25 26 26 · No. 26 27 27 · No. 27 28 28 · No. 28 960 960 · No. 29 970 970 · No. 30 980 980 · No. 31 862 862 · No. 32 33 33 · No. 33 850 850 · No. 34 120/100 120, 100 · No. 35 140* 140* · No. 36 861 861 · No. 37 232 232 · No. 38 234 234 · No. 39 236 236 · No. 40 41 41 · No. 41 809 809 · No. 42 238 238 · No. 43 239 239 · No. 44 881 881 · No. 45 241 241 · No. 46 883 883 · No. 47 243 243 · No. 48 800 800 · No. 49 247 247 · No. 50 251 251 · No. 51 252 252 · No. 52 861 861 · No. 53 140* 140* · No. 54 120/100 120, 100 · No. 55 850 850 · No. 56 862 862 · No. 57 980 980 · No. 58 970 970 · No. 59 960 960 · No. 60 557 557 · No. 61 795 795 · No. 62 818 818 · No. 63 283 283 · No. 64 819 819 · No. 65 820 820 · No. 66 67 67 · No. 67 68 68 · No. 68 357 357 · No. 69 357 357 · No. 70 676/555 676, 555 · No. 71 331 331 · No. 72 960 960 · No. 73 970 970 · No. 74 980 980 · No. 75 862 862 · No. 76 850 850 · No. 77 120/100 120, 100 · No. 78 140* 140* · No. 79 861 861 · No. 80 257 257 · No. 81 260 260 · No. 82 263/807 263, 807 · No. 83 804 804 · No. 84 267* 267* · No. 85 268 268 · No. 86 810 810 · No. 87 835 835 · No. 88 830 830 · No. 89 816 816 · No. 90 271 271 · No. 91 272 272 · No. 92 884 884 · No. 93 274 274 · No. 94 278 278 · No. 95 801 801 · No. 96 658 658 · No. 97 690 690 · No. 98 796 796 · No. 99 840 840 · No. 100 774 774 · No. 101 368 368 · No. 102 328 328 · No. 103 425 425 · No. 104 436 436 · No. 105 756/423 756, 423 · No. 106 493 493 · No. 107 108 108 · No. 108 109 109 · No. 109 110 110 · No. 110 111 111 · No. 111 112 112 · No. 112 113 113 · No. 113 438 438 · No. 114 077 077 · No. 115 750 750 · No. 116 747 747 · No. 117 530 530 · No. 118 530 530 · No. 119 535 535 · No. 120 740 740 · No. 121 122 122 · No. 122 123 123 · No. 123 124 124 · No. 124 999 999 · No. 125 126 126 · No. 126 127 127 · No. 127 292 292 · No. 128 716 716 · No. 129 289 289 · No. 130 720 720 · No. 131 899* 899* · No. 132 760 +2 760, 076, 318 · No. 133 999 999 · No. 134 135 135 · No. 135 136 136 · No. 136 137 137 · No. 137 138 138 · No. 138 139 139 · No. 139 305/759 305, 759 · No. 140 991-2 991-2 · No. 141 741-1 741-1 · No. 142 143 143 · No. 143 144 144 · No. 144 145 145 · No. 145 146 146 · No. 146 147 147 · No. 147 148 148 · No. 148 149 149 · No. 149 150 150 · No. 150 151 151 · No. 151 152 152 · No. 152 153 153 · No. 153 154 154 · No. 154 155 155 · No. 155 156 156 · No. 156 157 157 · No. 157 158 158 · No. 158 159 159 · No. 159 160 160 · No. 160 161 161 · No. 161 162 162 · No. 162 163 163 · No. 163 164 164 · No. 164 165 165 · No. 165 166 166 · No. 166 786 786 · No. 167 168 168 · No. 168 169 169 · No. 169 170 170 · No. 170 171 171 · No. 171 172 172 · No. 172 173 173 · No. 173 174 174 · No. 174 996 996 · No. 175 991-4 991-4 · No. 176 072 072 · No. 177 010 010 · No. 178 179 179 · No. 179

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to BMXA in the Go4Trans marketplace.
Sell BMXA parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

9 applications · 2 makes · 2000–2012 Honda 8 · Acura 1

Make Model Year Drive Engine
Acura EL 2000-2002 4 Spd FWD L4 1.6L 1.7 L
Honda City 2007-2011 4 Spd FWD L4 1.3L, 1.5L
Honda City 2007-2010 4 Spd FWD L4 1.3/1.5L
Honda Civic 2001-2005 4 Spd FWD L4 1.7L
Honda Civic 2001-2005 1.3, 1.7, 2.0
Honda Jazz 2008-2012 4 Spd FWD L4 1.5L
Honda Jazz 2008-2011 4 Spd FWD L4 1.5L
Honda Stream 2002-2006 4 Spd FWD L4 1.7L
Honda Stream 2002-2006 4 Spd F/4WD L4 1.7L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

BMXA
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Valve Body Clogging
Neglected ATF maintenance causes valve clogging in valve body, leading to shifting issues.
!
Solenoid Clogging and Wear
Dirty ATF clogs solenoids; anodized plate element inside solenoids wears out over time.
!
Friction Disc Wear
Friction elements wear out or become soaked with burnt oil after high mileage use.
!
Torque Converter Failure
Torque converter is the first component requiring repair during major Honda AT overhaul.
?
Oil Starvation Condition
Clogged filter and degraded ATF result in oil starvation, accelerating internal component wear.
!
Sealing Ring Wear
Oil starvation from dirty ATF causes rapid wear-out of sealing rings.
!
Bushing Wear Degradation
Neglected ATF quality and filter replacement leads to accelerated bushing wear.
!
Metal Filter Clogging
Internal metal filter becomes clogged over time; replacement required at major overhaul.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

Honda transmissions differ completely from the rest of automatic transmissions, because Honda does not use planetary gears. Honda transmissions are not complex in terms of design, have larger dimensions and as a result considered to be more robust. But automatic transmissions produced by Honda also have some vulnerabilities related to electronic gear shifting control: friction discs, solenoids, and the valve body.

Technical issues and repair guidelines

The most well-known range of 4-speed 3-shaft transmissions M4TA - Honda (CR-V) with engines from 2 to 2.4 liters. Automatic transmissions Honda are notable for their simplicity and reliability. Because of this, many car owners neglect basic maintenance services such as ATF quality control and timely replacement of the filter. Subsequently it results in clogging of valves in the valve body and solenoids, oil starvation and rapid wear-out of sealing rings, frictions and bushings. 300-400 thousand kilometers is considered to be a standard mileage before the first overhaul for these Honda transmissions.

Repair procedures

The torque converter (TC) is the first component to be repaired in Honda automatic transmissions. A major repair with reassembly starts with change of transmission fluid and replacement of a metal filter. The main external filter is usually installed by specialists on old transmissions.The repair of this family of transmissions with the filter is performed with the help of ordered repair kit of gaskets and seals with friction elements and steel discs. Friction elements are frequently replaced separately and steel discs as a full kit. Masterkit is the fullest repair kit of friction elements and steel discs with kit of gaskets.

Honda friction components usually operate for a long time, but after exhausting an enormous resource of frictions (above 300 thousand kilometers) or when these elements are soaked with burnt oil, then the change of all frictions would be the best option.Worn-out switching solenoids of linear pressure and the clutch lock-up solenoid are commonly replaced during repair procedures. The design of solenoids includes anodized plate element, which is likely to wear. This component is changed after running over 200 thousand kilometers.
