Toyota A750E Transmission

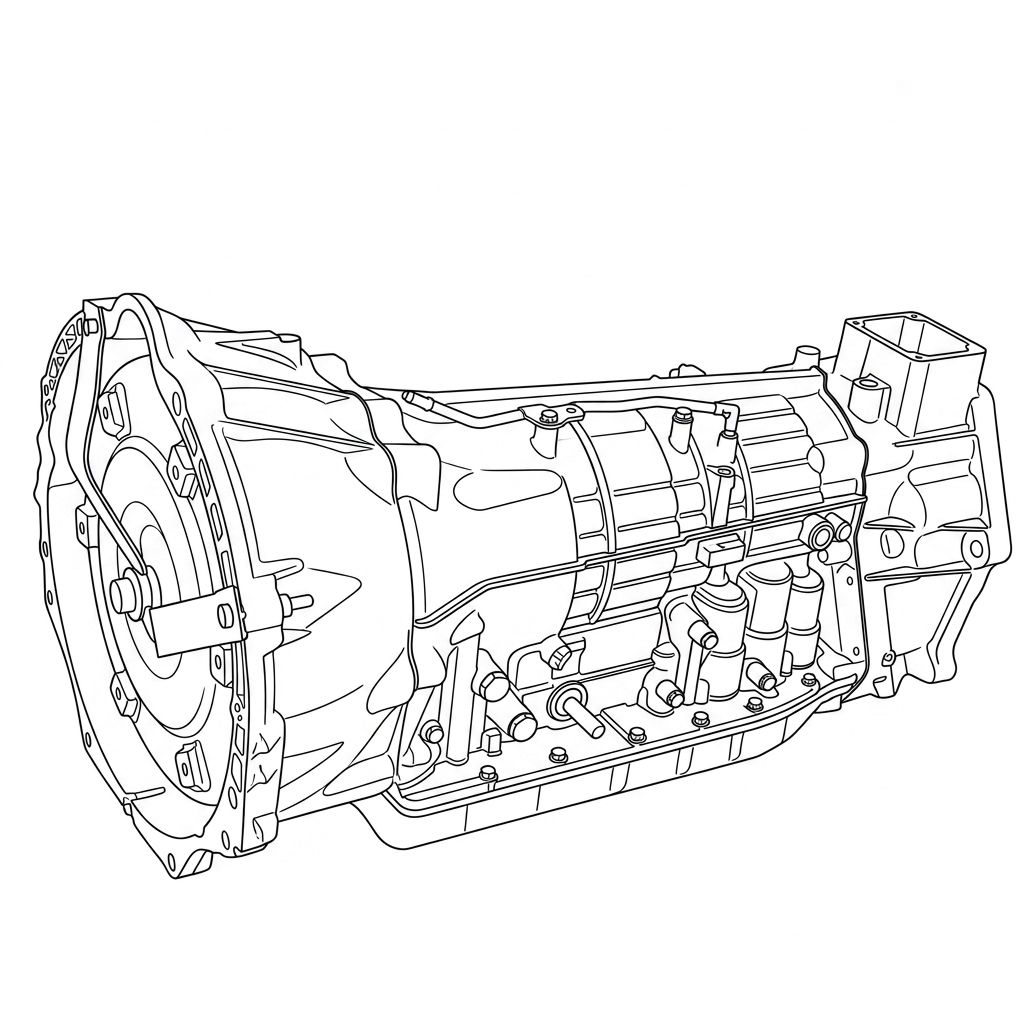

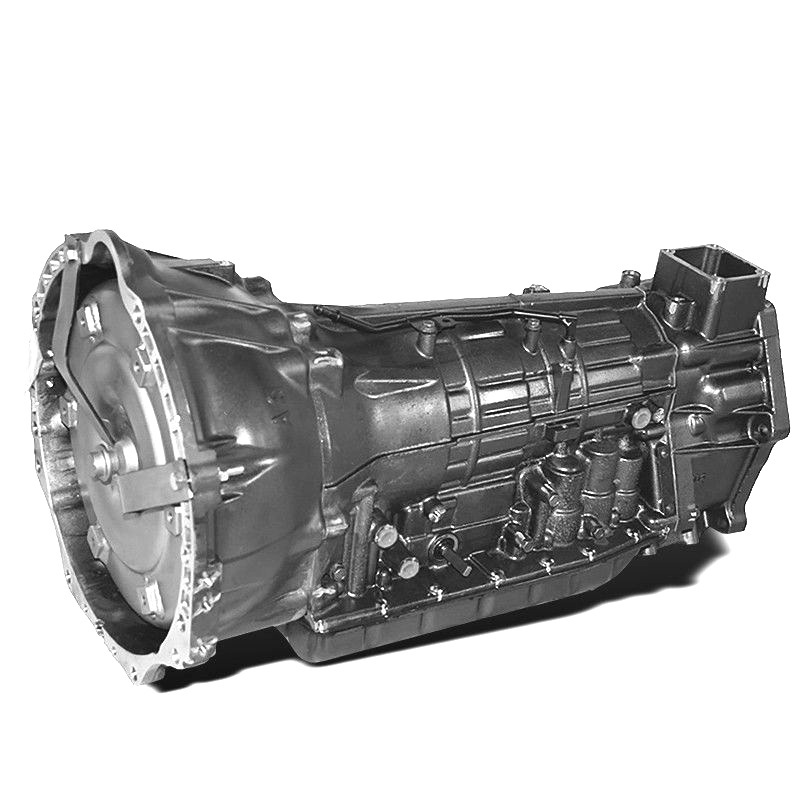

This 5-speed automatic transmission A750E\ F produced by Aisin Warner has been used since 2002 for powerful rear- and full-drive SUVs Land Cruiser, 4Runner and Lexus. The A750F (4WD) is the most frequently repaired transmission mated to engines with capacity equal to 4.7 liters. The A750 transmission replaced the 5-speed A650E from the previous generation and “invincible” A340 series. In terms of design, this transmission is similar to 6-speed A761 and A960 units. The A750 modification can be paired with 1GR-FE (for lower torque) and 2UZ-FE engines in 4WD cars.

Speeds 5
Type AT
Drive RWD/4WD
Max torque 485
ATF capacity (L) 12
ATF change (L) 4
ATF type Toyota T-IV
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
A750E
7.0/10
Support & Market Presence Index
Well covered

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence5.1
Documentation depth10.0
Knowledge & support8.3

Exploded diagram & parts

Full TB-50LS parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

776 776 · No. 1 2 2 · No. 2 750 750 · No. 3 070 070 · No. 4 034 034 · No. 5 311 311 · No. 6 530 530 · No. 7 530 530 · No. 8 036 +2 036, 520, 310 · No. 9 210 210 · No. 10 211 211 · No. 11 893 893 · No. 12 957 957 · No. 13 339-1 +2 339-1, 966, 976 · No. 14 219/339 219, 339 · No. 15 336 +5 336, 337, 965, 555, 975, 338 · No. 16 985 985 · No. 17 879 879 · No. 18 126/106 126, 106 · No. 19 878/146 878, 146 · No. 20 228 228 · No. 21 229 229 · No. 22 554 554 · No. 23 24 24 · No. 24 777 777 · No. 25 334/335 334, 335 · No. 26 964 964 · No. 27 974 974 · No. 28 984 984 · No. 29 877 877 · No. 30 149 149 · No. 31 128/108 128, 108 · No. 32 148/876 148, 876 · No. 33 232 232 · No. 34 233 233 · No. 35 574 574 · No. 36 234 234 · No. 37 235 235 · No. 38 575/051 575, 051 · No. 39 051-1 051-1 · No. 40 244 244 · No. 41 576/052 576, 052 · No. 42 052-1 052-1 · No. 43 150 150 · No. 44 130/110 130, 110 · No. 45 151 151 · No. 46 549 549 · No. 47 891 891 · No. 48 245 245 · No. 49 285 285 · No. 50 663 663 · No. 51 652-1 652-1 · No. 52 53 53 · No. 53 247/872 247, 872 · No. 54 144 144 · No. 55 124/104 124, 104 · No. 56 145 145 · No. 57 874 +2 874, 883, 972 · No. 58 333 +3 333, 962, 332, 632 · No. 59 665/286 665, 286 · No. 60 654/654-1 654, 654-1 · No. 61 887 887 · No. 62 249 249 · No. 63 579 579 · No. 64 053 053 · No. 65 582 582 · No. 66 238 238 · No. 67 240 240 · No. 68 241 241 · No. 69 996 996 · No. 70 378 378 · No. 71 996 996 · No. 72 378 378 · No. 73 490 490 · No. 74 493 493 · No. 75 370 370 · No. 76 436 436 · No. 77 262 262 · No. 78 760 760 · No. 79 263 263 · No. 80 264 264 · No. 81 265 265 · No. 82 897 897 · No. 83 898 898 · No. 84 698 698 · No. 85 271 271 · No. 86 770 770 · No. 87 066 066 · No. 88 074 074 · No. 89 602/592 602, 592 · No. 90 868 +2 868, 590, 215 · No. 91 216 216 · No. 92 580 580 · No. 93 610 610 · No. 94 132/112 132, 112 · No. 95 340 +4 340, 979, 969, 871, 341 · No. 96 547 547 · No. 97 861 861 · No. 98 100 +2 100, 120, 140 · No. 99 438 438 · No. 100 370 370 · No. 101 945 945 · No. 102 446 446 · No. 103 781 781 · No. 104 797-1 797-1 · No. 105 761C 761C · No. 106 925 925 · No. 107 108 108 · No. 108 109 109 · No. 109 110 110 · No. 110 950 950 · No. 111 112 112 · No. 112 113 113 · No. 113 935 935 · No. 114 115 115 · No. 115 116 116 · No. 116 347 347 · No. 117 991-4 991-4 · No. 118 072 072 · No. 119 410 410 · No. 120 207 207 · No. 121 995-1 995-1 · No. 122 995-6 995-6 · No. 123 995-3 995-3 · No. 124 995-4 995-4 · No. 125 960 +4 960, 331, 330, 545, 970 · No. 126 284/890 284, 890 · No. 127 669 669 · No. 128 658-1 658-1 · No. 129 658 658 · No. 130 658-1/284-1 658-1, 284-1 · No. 131 668/889 668, 889 · No. 132 060 060 · No. 133 604 604 · No. 134 060 060 · No. 135 594 594 · No. 136 154 154 · No. 137 114 114 · No. 138 428 428 · No. 139 140 140 · No. 140 453 453 · No. 141 142 142 · No. 142 421 421 · No. 143 422 422 · No. 144 145 145 · No. 145 072 072 · No. 146 991-3 991-3 · No. 147 991-8 991-8 · No. 148 379 379 · No. 149 994 994 · No. 150 991-2 991-2 · No. 151 638 638 · No. 152 740 740 · No. 153 010 010 · No. 154 991-2 991-2 · No. 155 799 799 · No. 156 155 155 · No. 157 253 253 · No. 158 254 254 · No. 159 255 255 · No. 160 674 674 · No. 161 248 248 · No. 162 058 058 · No. 163 584 584 · No. 164 250 250 · No. 165 251 251 · No. 166 884 884 · No. 167 977 977 · No. 168 967 967 · No. 169 329 329 · No. 170 328-1 328-1 · No. 171 329-1 329-1 · No. 172 329-2/967-1 329-2, 967-1 · No. 173 328-2 328-2 · No. 174 967-2 967-2 · No. 175 782 782 · No. 176 741M 741M · No. 177 450 450 · No. 178 425 425 · No. 179 426 426 · No. 180 300/765 300, 765 · No. 181 991-7 991-7 · No. 182 492 492 · No. 183

Parts categories

View all parts →
Sell A750E parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

24 applications · 3 makes · 1999–2016 Toyota 19 · Suzuki 3 · Lexus 2

Make Model Year Drive Engine
Lexus GX 470 2003-2009 4.7
Lexus LX470 2003-2007 4.7
Suzuki Grand Vitara 2006-2012 2.7, 3.2
Suzuki Vitara 2006-2008 2.7
Suzuki XL-7 2004-2007 2.7
Toyota 4 Runner 2005-2007 5 Spd RWD V6 4.0L V8 4.7L
Toyota 4 Runner 2003-2015 4.0, 4.7
Toyota 4 Runner 2003-2004 5 Spd RWD V8 4.7L
Toyota FJ Cruiser 2007-2014 4.0
Toyota FJ Cruiser 2007-2012 5 Spd RWD V6 4.0L
Toyota FJ Cruiser 2007 5 Spd RWD V6 4.0L
Toyota FORTUNER 2007-2014 5 Spd R/AWD L4 3.0L V6 4.0L V8 4.7L
Toyota HILUX/SW4 2002-2012 5 Spd R/AWD L4 3.0L V6 4.0L V8 4.7L
Toyota Land Cruiser 2003-2007 4.7
Toyota MARK X 2004-2009 5 Spd R/AWD V6 2.5L
Toyota PICKUP/TACOMA 2005-2007 5 Spd RWD V6 4.0L
Toyota Sequoia 2005-2007 5 Spd RWD V8 4.7L
Toyota Sequoia 2004-2008 4.6, 4.7
Toyota Tacoma 2005-2015 4.0
Toyota Tacoma / Pickup 2005-2014 5 Spd R/AWD V6 4.0L
Toyota Tacoma / Pickup 2005-2007 5 Spd RWD V6 4.0L
Toyota Tundra 2005-2014 4.0, 4.6, 4.7
Toyota Tundra 2005-2006 5 Spd RWD V6 3.0L; V8 4.7L
Toyota Tundra 1999-2016 5 Spd RWD V6 4.0L V8 4.7L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

A750-E
A750 E
A750E
V5AWF
A750E/F
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Forward C1 Friction Package
First friction package to burn, including cover plates. Common in neglected transmissions requiring full overhaul.
!
B1 Braking Package Failure
Second friction package to fail after C1 forward frictions burn out in neglected units.
!
Torque Converter Clutch Wear
Worn TCC leads to vibrations, fluid leakage through pump seal, pump bushing damage and eventual pump failure.
!
Pump Seal and Bushing Failure
Pump bushing wear follows TCC wear, progressing to full pump failure if not addressed promptly.
?
Vibration and ATF Leakage
Vibrations and fluid leakage through pump seal caused by operating transmission with worn torque converter clutch.
!
Direct C3 and 2nd Brake Frictions
Frequently burning friction components in Direct, C3 and 2nd brake packages during overhaul.
!
Solenoid Premature Exhaustion
Solenoids deplete resource early, especially in units from first two years of production. Sensitive to ATF level.
!
Valve Body and Solenoid Degradation
Valve body and solenoid problems from overheating or aggressive off-road/snow driving. VIN-specific replacement required
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

This 5-speed automatic transmission A750E\ F produced by Aisin Warner has been used since 2002 for powerful rear- and full-drive SUVs Land Cruiser, 4Runner and Lexus. The A750F (4WD) is the most frequently repaired transmission mated to engines with capacity equal to 4.7 liters. The A750 transmission replaced the 5-speed A650E from the previous generation and “invincible” A340 series. In terms of design, this transmission is similar to 6-speed A761 and A960 units. The A750 modification can be paired with 1GR-FE (for lower torque) and 2UZ-FE engines in 4WD cars.

Technical issues and repair guidelines

This transmission has almost flawlessly matched gear ratio, tested cooling and ATF heating systems. The acceleration in the sport mode turns on slipping torque converter lockup starting at the 3-rd gear. It doubles the time before the torque converter repair in comparison with competing 6HP26 units.

The fluid change (Toyota WS) and filter replacement in A750 is performed with the help of partial and full replacement methods. The transmission electrics has delicate settings and sensitive to the oil level. Solenoids of this transmission can exhaust its resource prematurely and often get replaced, especially in gearboxes during first two years of series production. But in general, this transmission as well as majority of rear-drive Aisin automatic transmissions was produced to be "invincible".

Typical problems in A750E

The most common ordered repair kits for the first overhaul of the A750F unit, includes the following:

- Kit of gaskets and seals, Overhaul Kit

- Kit of all friction components

Overhauls of long-time neglected transmissions are notable for the fact that friction components should be replaced with all solenoids. The first package that gets burnt with cover plates: Forward C1 frictions. Then comes the turn of the B1 braking package.Other frequently burning frictions are located in Direct, C3 and 2nd brake packages.

Different problems with the torque converter, valve body and solenoids may occur as a result of long-time overheating or aggressive driving style on the off-road territory or on snow after 70 - 80 thousand kilometers.Transmission operation with worn-out torque converter clutch may lead to vibrations and fluid leakages through the pump seal. At the same time, the problem with the pump bushing occurs, and later you will have to deal with the pump failure. Valve bodies of A750, A761 and A960 have been constantly modified, improving their design, therefore selection of valve bodies and solenoids for replacement is performed specifically for each car according to its VIN-code. In general, the A750F unit is adjusted quite accurately for the torque converter and the valve body. Afterwards, you can drive for 150-200 thousand kilometers without serious problems for car owners, if ATF condition is controlled.
