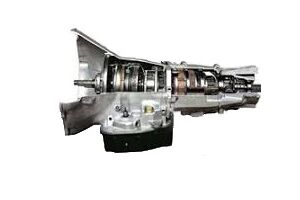

Chrysler A618 Transmission

The family of 4-speed automatic transmissions "TorqueFlite" - A518 / A618, has been mainly installed on the rear-wheel drive trucks and vans produced by Dodge and Jeep since 1990. The A518 was modified to 46RH (retainer hydraulic) and later to 46RE (retainer electronic), while A618 was updated to 47RE and 48RE. The A618 transmission is considered to be a heavier-duty modification of A518. The driving torque of the A618 transmission is equal to 610 Nm.

Speeds 4
Type AT
Drive RWD
Max torque 610
ATF capacity (L) 13,4
ATF change (L) 4,8
ATF type Mopar ATF+4
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
A618
7.7/10
Support & Market Presence Index
Well covered

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence6.9
Documentation depth10.0
Knowledge & support7.5

Exploded diagram & parts

Full 46RE parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

070 070 · No. 1 034 034 · No. 2 3 3 · No. 3 530 530 · No. 4 178 178 · No. 5 520 520 · No. 6 179 179 · No. 7 310 310 · No. 8 037 037 · No. 9 211* 211* · No. 10 022 022 · No. 11 555 555 · No. 12 046 046 · No. 13 336/337 336, 337 · No. 14 965 965 · No. 15 975 975 · No. 16 17 17 · No. 17 18 18 · No. 18 985 985 · No. 19 879 879 · No. 20 126/106 126, 106 · No. 21 146 146 · No. 22 878* 878* · No. 23 211* 211* · No. 24 670 670 · No. 25 047 047 · No. 26 880 880 · No. 27 181 181 · No. 28 575 575 · No. 29 554 554 · No. 30 777 777 · No. 31 309 309 · No. 32 778 778 · No. 33 335 335 · No. 34 334 334 · No. 35 964 964 · No. 36 974 974 · No. 37 853 853 · No. 38 877 877 · No. 39 149 149 · No. 40 126/108 126, 108 · No. 41 146 146 · No. 42 878* 878* · No. 43 232 232 · No. 44 233 233 · No. 45 894 894 · No. 46 582 582 · No. 47 050 050 · No. 48 238 238 · No. 49 592 592 · No. 50 238 238 · No. 51 884 884 · No. 52 622 622 · No. 53 052 052 · No. 54 612 612 · No. 55 052 052 · No. 56 243 243 · No. 57 884 884 · No. 58 238 238 · No. 59 584 584 · No. 60 252 252 · No. 61 594 594 · No. 62 024 024 · No. 63 890 890 · No. 64 254 254 · No. 65 556 556 · No. 66 664 664 · No. 67 654 654 · No. 68 665 665 · No. 69 989 989 · No. 70 760 760 · No. 71 305 305 · No. 72 674 674 · No. 73 305D 305D · No. 74 634 634 · No. 75 960 960 · No. 76 214 214 · No. 77 215* 215* · No. 78 861 861 · No. 79 140 140 · No. 80 120/100 120, 100 · No. 81 141 141 · No. 82 860 860 · No. 83 862 862 · No. 84 142 142 · No. 85 122/102 122, 102 · No. 86 194 194 · No. 87 195 195 · No. 88 907 907 · No. 89 996 996 · No. 90 996 996 · No. 91 191 191 · No. 92 927 927 · No. 93 377 377 · No. 94 410 410 · No. 95 912 912 · No. 96 363 363 · No. 97 494 494 · No. 98 997 997 · No. 99 415 415 · No. 100 420 420 · No. 101 432 432 · No. 102 866 866 · No. 103 570 570 · No. 104 970 970 · No. 105 867 867 · No. 106 219 219 · No. 107 220 220 · No. 108 040 040 · No. 109 610 610 · No. 110 040 040 · No. 111 580 580 · No. 112 660 660 · No. 113 222 222 · No. 114 863 863 · No. 115 590 590 · No. 116 863 863 · No. 117 551 551 · No. 118 650 650 · No. 119 062 062 · No. 120 062B 062B · No. 121 906-5 906-5 · No. 122 906B 906B · No. 123 908 908 · No. 124 926 926 · No. 125 192 192 · No. 126 913 913 · No. 127 911B 911B · No. 128 371 371 · No. 129 992 992 · No. 130 740 740 · No. 131 994 994 · No. 132 771/305J 771, 305J · No. 133 906 906 · No. 134 909 909 · No. 135 195 195 · No. 136 896 896 · No. 137 914 914 · No. 138 911 911 · No. 139 885 885 · No. 140 995-1 995-1 · No. 141 995-3 995-3 · No. 142 995-2 995-2 · No. 143 782 782 · No. 144 010 010 · No. 145 326 326 · No. 146 678 678 · No. 147 868 868 · No. 148 271/897 271, 897 · No. 149 891 891 · No. 150 680 680 · No. 151 685 685 · No. 152 189 189 · No. 153 898/892 898, 892 · No. 154 844 844 · No. 155 697 697 · No. 156 272 272 · No. 157 770 770 · No. 158 159 159 · No. 159 160 160 · No. 160 916-5 916-5 · No. 161 919 919 · No. 162 916-4 916-4 · No. 163 916-3 916-3 · No. 164 916-2 916-2 · No. 165 916-1 916-1 · No. 166 917-3 917-3 · No. 167 917-1 917-1 · No. 168 917-5 917-5 · No. 169 920 920 · No. 170 917-4 917-4 · No. 171 765/300 765, 300 · No. 172 999 999 · No. 173 999 999 · No. 174 991-5 991-5 · No. 175 991-6 991-6 · No. 176 842 842 · No. 177 774 774 · No. 178 368 368 · No. 179 848 848 · No. 180 436 436 · No. 181 066 066 · No. 182 074 074 · No. 183 923 923 · No. 184

Parts categories

View all parts →
Sell A618 parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

37 applications · 2 makes · 1989–2009 Dodge 36 · Jeep 1

Make Model Year Drive Engine
Dodge B150 1990-1993 V6, V8 3.9, 5.2(1/2 Ton - Van)L
Dodge B250 1990-1993 V8 5.2, 5.9(3/4 Ton - Van)L
Dodge B350 1994 V8 5.9(1 Ton - Van)L
Dodge B350 1990-1993 V8 5.2, 5.9(1 Ton - Van)L
Dodge D150 1990-1993 V6, V8 3.9, 5.2, 5.9L
Dodge D250 1990-1993 V8 5.2, 5.9L
Dodge D350 1990-1993 V6, V8 3.9, 5.9L
Dodge Dakota 1998-2002 V8 5.9L
Dodge Dakota 1990-1993 V8 5.2, 5.9L
Dodge Durango 1998-2002 V8 5.9L
Dodge Ram 1500 2004-2006 V10 8.3L
Dodge Ram 1500 1998-2002 V8 5.2, 5.9L
Dodge Ram 1500 1994-1997 V8 5.2 , 5.9L
Dodge Ram 1500 Van 2003-2007 V8 5.2, 5.7, 5.9L
Dodge Ram 1500 Van 1998-2002 V8 5.2, 5.7, 5.9L
Dodge Ram 1500 Van 1994-1997 V8 5.2, 5.7, 5.9L
Dodge Ram 1500 Wagon Van 1998-2002 V8 5.2, 5.9L
Dodge Ram 1500 Wagon Van 1994-1997 V8 5.9L
Dodge Ram 2500 1998-2002 L6, V8, V10 5.9, 8.0L
Dodge Ram 2500 1994-1997 L6, V8, V10 5.2. 5.9, 8.0L
Dodge Ram 2500 - Van 1998-2003 V6, V8 3.9, 5.2, 5.9 (4 speed)L
Dodge Ram 2500 - Wagon Van 1998-2002 L6, V8 5.2 5.9 (4 speed)L
Dodge Ram 2500 Mega Cab - Pickup 2006-2007 L6 5.9, 6.7L
Dodge Ram 2500HD - Pickup 2004-2007 L6, V10 5.9, 6.7, 8.0L
Dodge Ram 3500 - Pickup 1998-2002 L6, V8, V10 5.9, 8.0L
Dodge Ram 3500 - Pickup 1994-1997 L6, V8, V10 5.9, 8.0L
Dodge Ram 3500 - Van 1998-2003 V8 5.2, 5.9 (4 speed)L
Dodge Ram 3500 Mega Cab - Pickup 2006-2009 L6 5.9, 6.7L
Dodge Ram 3500- Wagon Van 1994-2003 L6, V8 5.2, 5.9 (4 speed)L
Dodge Ram 3500HD - Pickup 2003-2009 L6 5.9, 6.7L
Dodge Ram 4500HD Pickup 2005-2007 L6 6.7L
Dodge Ramcharger 1990-1993 V8 5.2, 5.9 (AD150)L
Dodge Ramcharger 1990-1993 V8 5.2, 5.9 (AW150 4WD)L
Dodge W150 4WD 1990-1993 V6, V8 3.9, 5.2, 5.9L
Dodge W250 4WD 1989-1993 L6, V8 5.2, 5.9 (4 speed)L
Dodge W350 4WD 1989-1993 L6, V8 5.2, 5.9 (4 speed)L
Jeep Grand Cherokee 1993-1998 V8 5.2, 5.9L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

A618
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Solenoid Block Failure
Solenoid pack and valve body components fail requiring full replacement, common in electronically controlled variants.
!
Valve Body Wear
Valve body deteriorates alongside solenoids in RE/RH variants, resulting in expensive repair or replacement.
!
Direct Drum Burnout
Direct drum burns out due to prolonged operation under insufficient line pressure, accelerating friction material wear.
?
Insufficient Linear Pressure
Low line pressure during extended operation causes direct drum overheating and burnout, indicating hydraulic circuit iss
!
Central Support Rebuild
Central support (governor retainer) typically requires rebuilding; a known recurring maintenance point in this family.
!
Reverse Drum Failure
Reverse drum is a noted problematic area subject to wear and damage within A518/A618 transmission family.
!
Direct Clutch Hub Wear
Frictional wheel-hub on the direct clutch assembly exhausts its service life, contributing to shift quality issues.
!
Seals Bushings Springs Failure
Seals, bushings, springs, and bearings fail intermittently depending on driving style and operational conditions.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The family of 4-speed automatic transmissions "TorqueFlite" - A518 / A618, has been mainly installed on the rear-wheel drive trucks and vans produced by Dodge and Jeep since 1990. The A518 was modified to 46RH (retainer hydraulic) and later to 46RE (retainer electronic), while A618 was updated to 47RE and 48RE. The A618 transmission is considered to be a heavier-duty modification of A518. The driving torque of the A618 transmission is equal to 610 Nm.

The design of the A518/A618 and 46RH / 46RE / 47RH / 47RE / 48RE transmissions is based on the same principle. All differences and modifications consist in the increased number of gears and addition of the torque converter and the block of solenoids.

Typical problems

Transmissions of this family were used by car manufacturers for three decades thanks to their easy maintenance and resistance to wear. Not complicated assembly of these transmissions simplifies their repair process. Early transmissions of this family rarely require any repair. The problem of spare parts replacement occurs in cars equipped with transmissions, which have solenoids and the valve body. These transmission components get out of order when the car mileage reaches 100 thousand kilometers. Such breakdowns result in expansive repair services, because damaged components should be replaced.

The most problematic areas in A518/A618:

- Central Support

- Retained (Governor) is usually rebuilt

- Direct Drum – exhausts its resource, but more often this component burns out because of a long-time operation with insufficient linear pressure

- Reverse Drum

- Frictional wheel-hub. Direct.

- The set of solenoids and sensors

Other seals, bushings, springs and bearings fail to function occasionally, due to peculiarities of the driving style and operation.
