Home / Transmissions / Chrysler / 47RH
Chrysler Source-verified model

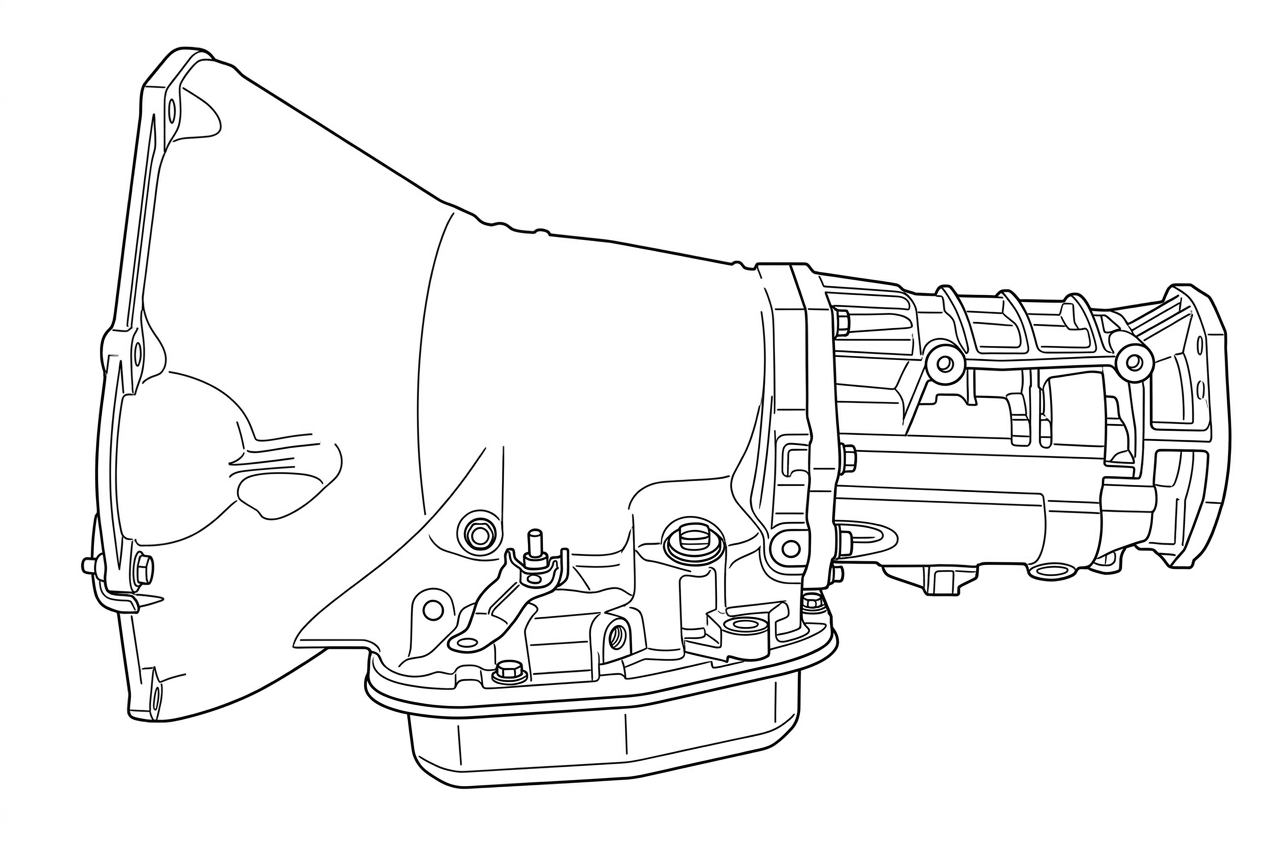

Chrysler 47RH Transmission

Speeds 4
Type Automatic
ATF type ATF+4
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

47RH
0.0/10
Support & Market Presence Index

How widely this transmission is used, documented and supported across the Go4Trans graph.

4resources
Diagram Parts Fitment Aliases Symptoms Related Sources Contribute

Exploded diagram & parts

Full 46RE parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

070 070 · No. 1 034 034 · No. 2 3 3 · No. 3 530 530 · No. 4 178 178 · No. 5 520 520 · No. 6 179 179 · No. 7 310 310 · No. 8 037 037 · No. 9 211* 211* · No. 10 022 022 · No. 11 555 555 · No. 12 046 046 · No. 13 336/337 336, 337 · No. 14 965 965 · No. 15 975 975 · No. 16 17 17 · No. 17 18 18 · No. 18 985 985 · No. 19 879 879 · No. 20 126/106 126, 106 · No. 21 146 146 · No. 22 878* 878* · No. 23 211* 211* · No. 24 670 670 · No. 25 047 047 · No. 26 880 880 · No. 27 181 181 · No. 28 575 575 · No. 29 554 554 · No. 30 777 777 · No. 31 309 309 · No. 32 778 778 · No. 33 335 335 · No. 34 334 334 · No. 35 964 964 · No. 36 974 974 · No. 37 853 853 · No. 38 877 877 · No. 39 149 149 · No. 40 126/108 126, 108 · No. 41 146 146 · No. 42 878* 878* · No. 43 232 232 · No. 44 233 233 · No. 45 894 894 · No. 46 582 582 · No. 47 050 050 · No. 48 238 238 · No. 49 592 592 · No. 50 238 238 · No. 51 884 884 · No. 52 622 622 · No. 53 052 052 · No. 54 612 612 · No. 55 052 052 · No. 56 243 243 · No. 57 884 884 · No. 58 238 238 · No. 59 584 584 · No. 60 252 252 · No. 61 594 594 · No. 62 024 024 · No. 63 890 890 · No. 64 254 254 · No. 65 556 556 · No. 66 664 664 · No. 67 654 654 · No. 68 665 665 · No. 69 989 989 · No. 70 760 760 · No. 71 305 305 · No. 72 674 674 · No. 73 305D 305D · No. 74 634 634 · No. 75 960 960 · No. 76 214 214 · No. 77 215* 215* · No. 78 861 861 · No. 79 140 140 · No. 80 120/100 120, 100 · No. 81 141 141 · No. 82 860 860 · No. 83 862 862 · No. 84 142 142 · No. 85 122/102 122, 102 · No. 86 194 194 · No. 87 195 195 · No. 88 907 907 · No. 89 996 996 · No. 90 996 996 · No. 91 191 191 · No. 92 927 927 · No. 93 377 377 · No. 94 410 410 · No. 95 912 912 · No. 96 363 363 · No. 97 494 494 · No. 98 997 997 · No. 99 415 415 · No. 100 420 420 · No. 101 432 432 · No. 102 866 866 · No. 103 570 570 · No. 104 970 970 · No. 105 867 867 · No. 106 219 219 · No. 107 220 220 · No. 108 040 040 · No. 109 610 610 · No. 110 040 040 · No. 111 580 580 · No. 112 660 660 · No. 113 222 222 · No. 114 863 863 · No. 115 590 590 · No. 116 863 863 · No. 117 551 551 · No. 118 650 650 · No. 119 062 062 · No. 120 062B 062B · No. 121 906-5 906-5 · No. 122 906B 906B · No. 123 908 908 · No. 124 926 926 · No. 125 192 192 · No. 126 913 913 · No. 127 911B 911B · No. 128 371 371 · No. 129 992 992 · No. 130 740 740 · No. 131 994 994 · No. 132 771/305J 771, 305J · No. 133 906 906 · No. 134 909 909 · No. 135 195 195 · No. 136 896 896 · No. 137 914 914 · No. 138 911 911 · No. 139 885 885 · No. 140 995-1 995-1 · No. 141 995-3 995-3 · No. 142 995-2 995-2 · No. 143 782 782 · No. 144 010 010 · No. 145 326 326 · No. 146 678 678 · No. 147 868 868 · No. 148 271/897 271, 897 · No. 149 891 891 · No. 150 680 680 · No. 151 685 685 · No. 152 189 189 · No. 153 898/892 898, 892 · No. 154 844 844 · No. 155 697 697 · No. 156 272 272 · No. 157 770 770 · No. 158 159 159 · No. 159 160 160 · No. 160 916-5 916-5 · No. 161 919 919 · No. 162 916-4 916-4 · No. 163 916-3 916-3 · No. 164 916-2 916-2 · No. 165 916-1 916-1 · No. 166 917-3 917-3 · No. 167 917-1 917-1 · No. 168 917-5 917-5 · No. 169 920 920 · No. 170 917-4 917-4 · No. 171 765/300 765, 300 · No. 172 999 999 · No. 173 999 999 · No. 174 991-5 991-5 · No. 175 991-6 991-6 · No. 176 842 842 · No. 177 774 774 · No. 178 368 368 · No. 179 848 848 · No. 180 436 436 · No. 181 066 066 · No. 182 074 074 · No. 183 923 923 · No. 184

Parts categories

View all parts →
Kits
Kits
102 parts
Valve body & solenoids
Valve body & solenoids
51 parts
Electrical
Electrical
10 parts
Filters & pans
Filters & pans
12 parts
Seals & gaskets
Seals & gaskets
71 parts
Bushings, bearings & thrust
Bushings, bearings & thrust
75 parts
Bands & servos
Bands & servos
25 parts
Pump
Pump
26 parts
Friction & steel
Friction & steel
70 parts
Planetary & hard parts
Planetary & hard parts
209 parts
Hardware & other
Hardware & other
74 parts
Sell 47RH parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

42 applications · 5 makes · 1989–2009 Dodge 38 · Chrysler 1 · Eagle 1 · Jeep 1 · Plymouth 1

Make Model Year Drive Engine
Chrysler PICKUP/RAM 2500-3500 1995-2002 4 Spd RWD/4X4 V10 8.0L L6 5.9L DIESEL
Dodge B150 1990-1993 V6, V8 3.9, 5.2(1/2 Ton - Van)L
Dodge B250 1990-1993 V8 5.2, 5.9(3/4 Ton - Van)L
Dodge B350 1994 V8 5.9(1 Ton - Van)L
Dodge B350 1990-1993 V8 5.2, 5.9(1 Ton - Van)L
Dodge D150 1990-1993 V6, V8 3.9, 5.2, 5.9L
Dodge D250 1990-1993 V8 5.2, 5.9L
Dodge D350 1990-1993 V6, V8 3.9, 5.9L
Dodge Dakota 1998-2002 V8 5.9L
Dodge Dakota 1990-1993 V8 5.2, 5.9L
Dodge Durango 1998-2002 V8 5.9L
Dodge Pickup/Ram 2500-3500 1995-2002 4 Spd RWD/4X4 DIESEL
Dodge PICKUP/RAM 2500-3500 1995-2002 4 Spd RWD/4X4 V10 8.0L L6 5.9L DIESEL
Dodge Ram 1500 2004-2006 V10 8.3L
Dodge Ram 1500 1998-2002 V8 5.2, 5.9L
Dodge Ram 1500 1994-1997 V8 5.2 , 5.9L
Dodge Ram 1500 Van 2003-2007 V8 5.2, 5.7, 5.9L
Dodge Ram 1500 Van 1998-2002 V8 5.2, 5.7, 5.9L
Dodge Ram 1500 Van 1994-1997 V8 5.2, 5.7, 5.9L
Dodge Ram 1500 Wagon Van 1998-2002 V8 5.2, 5.9L
Dodge Ram 1500 Wagon Van 1994-1997 V8 5.9L
Dodge Ram 2500 1998-2002 L6, V8, V10 5.9, 8.0L
Dodge Ram 2500 1994-1997 L6, V8, V10 5.2. 5.9, 8.0L
Dodge Ram 2500 - Van 1998-2003 V6, V8 3.9, 5.2, 5.9 (4 speed)L
Dodge Ram 2500 - Wagon Van 1998-2002 L6, V8 5.2 5.9 (4 speed)L
Dodge Ram 2500 Mega Cab - Pickup 2006-2007 L6 5.9, 6.7L
Dodge Ram 2500HD - Pickup 2004-2007 L6, V10 5.9, 6.7, 8.0L
Dodge Ram 3500 - Pickup 1998-2002 L6, V8, V10 5.9, 8.0L
Dodge Ram 3500 - Pickup 1994-1997 L6, V8, V10 5.9, 8.0L
Dodge Ram 3500 - Van 1998-2003 V8 5.2, 5.9 (4 speed)L
Dodge Ram 3500 Mega Cab - Pickup 2006-2009 L6 5.9, 6.7L
Dodge Ram 3500- Wagon Van 1994-2003 L6, V8 5.2, 5.9 (4 speed)L
Dodge Ram 3500HD - Pickup 2003-2009 L6 5.9, 6.7L
Dodge Ram 4500HD Pickup 2005-2007 L6 6.7L
Dodge Ramcharger 1990-1993 V8 5.2, 5.9 (AD150)L
Dodge Ramcharger 1990-1993 V8 5.2, 5.9 (AW150 4WD)L
Dodge W150 4WD 1990-1993 V6, V8 3.9, 5.2, 5.9L
Dodge W250 4WD 1989-1993 L6, V8 5.2, 5.9 (4 speed)L
Dodge W350 4WD 1989-1993 L6, V8 5.2, 5.9 (4 speed)L
Eagle PICKUP/RAM 2500-3500 1995-2002 4 Spd RWD/4X4 V10 8.0L L6 5.9L DIESEL
Jeep Grand Cherokee 1993-1998 V8 5.2, 5.9L
Plymouth PICKUP/RAM 2500-3500 1995-2002 4 Spd RWD/4X4 V10 8.0L L6 5.9L DIESEL

Other and alternative codes of this transmission

＋ Contribute

This feature is in progress and will be available soon.

No aliases recorded yet — be the first to contribute one. Contribute →

verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

?
Reverse slip / poor engagement
Worn line pressure components can cause reverse slip, poor line pressure control, poor forward and reverse engagement, soft reverse and poor cooler charge at idle.
?
TCC slip & delayed engagement
Cooler or converter restrictions can cause torque converter clutch slip at high torque, delayed engagements, slow converter fill, excessive stall speed and hydraulic noise.
!
Converter bushing/turbine shaft seal wear
Wear of the converter cover bushing or crankshaft pilot lets the turbine shaft sealing rings cross-leak, upsetting TCC apply and release oil control.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

Sources & Contribution

＋ Contribute

This feature is in progress and will be available soon.

Every claim on this page is backed by a structured source record — including community contributions, each with its own reference.

Type
Title
Author
Link
link
Guide to Chrysler's Late Model Automatic Transmissions
—
View →
link
Chrysler 46RE, 46RH, 47RE, 47RH Vacuum Test Guide
—
View →
manual
Chrysler 46RE/46RH/47RE/47RH Sure Cure Kit Installation Guide
—
View →
link
46-47RH/RE Cooler and Converter Flow
—
View →
