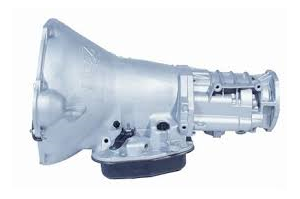

Chrysler 46RH (A518) Transmission

The A518 was updated to 46RH (retainer hydraulic) and later to 46RE (retainer electronic). A618 was modified to 47RE and 48RE.

Speeds 4
Type AT
Drive RWD
Max torque 610
ATF capacity (L) 13,4
ATF change (L) 4,8
ATF type Mopar ATF+4
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
46RH
8.9/10
Support & Market Presence Index
Widely supported

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence8.7
Documentation depth10.0
Knowledge & support9.8

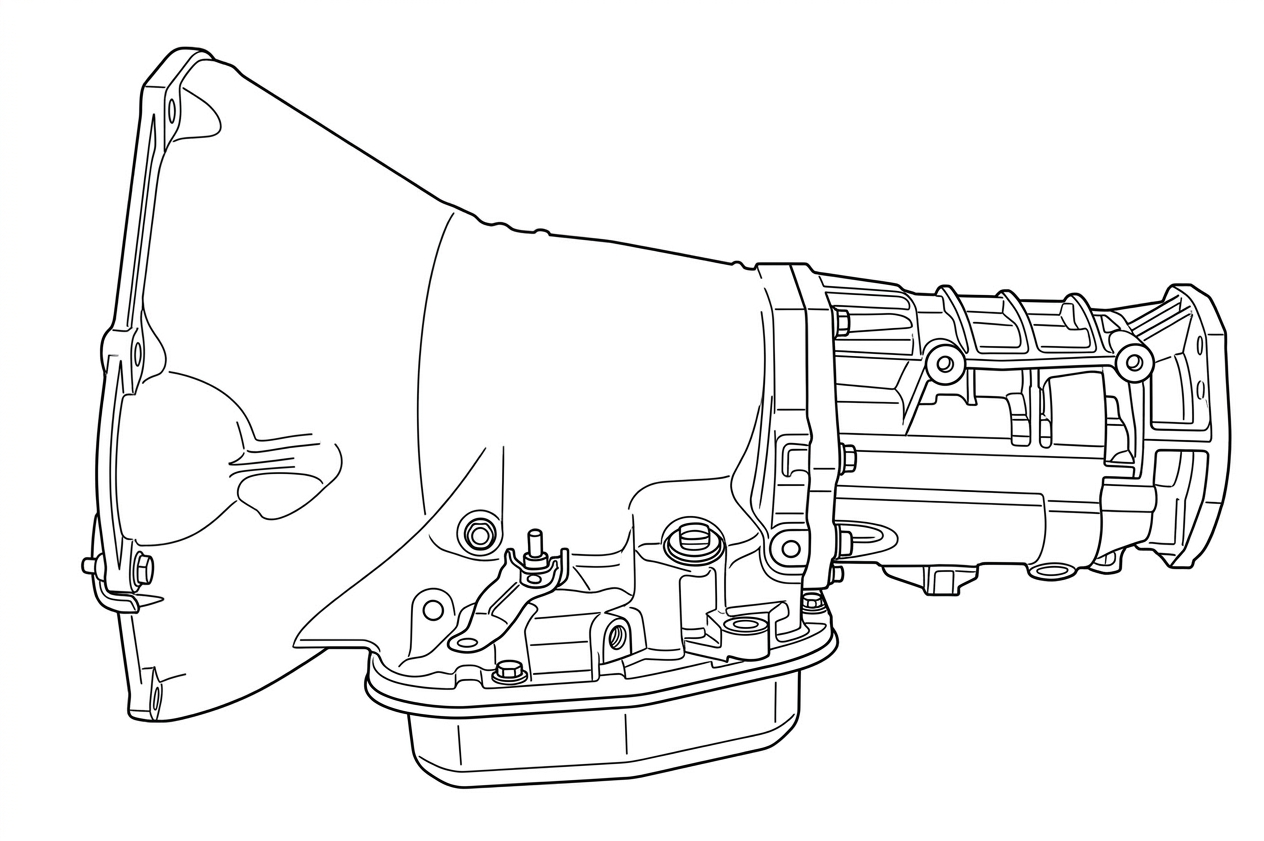

Exploded diagram & parts

Full 46RE parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

070 070 · No. 1 034 034 · No. 2 3 3 · No. 3 530 530 · No. 4 178 178 · No. 5 520 520 · No. 6 179 179 · No. 7 310 310 · No. 8 037 037 · No. 9 211* 211* · No. 10 022 022 · No. 11 555 555 · No. 12 046 046 · No. 13 336/337 336, 337 · No. 14 965 965 · No. 15 975 975 · No. 16 17 17 · No. 17 18 18 · No. 18 985 985 · No. 19 879 879 · No. 20 126/106 126, 106 · No. 21 146 146 · No. 22 878* 878* · No. 23 211* 211* · No. 24 670 670 · No. 25 047 047 · No. 26 880 880 · No. 27 181 181 · No. 28 575 575 · No. 29 554 554 · No. 30 777 777 · No. 31 309 309 · No. 32 778 778 · No. 33 335 335 · No. 34 334 334 · No. 35 964 964 · No. 36 974 974 · No. 37 853 853 · No. 38 877 877 · No. 39 149 149 · No. 40 126/108 126, 108 · No. 41 146 146 · No. 42 878* 878* · No. 43 232 232 · No. 44 233 233 · No. 45 894 894 · No. 46 582 582 · No. 47 050 050 · No. 48 238 238 · No. 49 592 592 · No. 50 238 238 · No. 51 884 884 · No. 52 622 622 · No. 53 052 052 · No. 54 612 612 · No. 55 052 052 · No. 56 243 243 · No. 57 884 884 · No. 58 238 238 · No. 59 584 584 · No. 60 252 252 · No. 61 594 594 · No. 62 024 024 · No. 63 890 890 · No. 64 254 254 · No. 65 556 556 · No. 66 664 664 · No. 67 654 654 · No. 68 665 665 · No. 69 989 989 · No. 70 760 760 · No. 71 305 305 · No. 72 674 674 · No. 73 305D 305D · No. 74 634 634 · No. 75 960 960 · No. 76 214 214 · No. 77 215* 215* · No. 78 861 861 · No. 79 140 140 · No. 80 120/100 120, 100 · No. 81 141 141 · No. 82 860 860 · No. 83 862 862 · No. 84 142 142 · No. 85 122/102 122, 102 · No. 86 194 194 · No. 87 195 195 · No. 88 907 907 · No. 89 996 996 · No. 90 996 996 · No. 91 191 191 · No. 92 927 927 · No. 93 377 377 · No. 94 410 410 · No. 95 912 912 · No. 96 363 363 · No. 97 494 494 · No. 98 997 997 · No. 99 415 415 · No. 100 420 420 · No. 101 432 432 · No. 102 866 866 · No. 103 570 570 · No. 104 970 970 · No. 105 867 867 · No. 106 219 219 · No. 107 220 220 · No. 108 040 040 · No. 109 610 610 · No. 110 040 040 · No. 111 580 580 · No. 112 660 660 · No. 113 222 222 · No. 114 863 863 · No. 115 590 590 · No. 116 863 863 · No. 117 551 551 · No. 118 650 650 · No. 119 062 062 · No. 120 062B 062B · No. 121 906-5 906-5 · No. 122 906B 906B · No. 123 908 908 · No. 124 926 926 · No. 125 192 192 · No. 126 913 913 · No. 127 911B 911B · No. 128 371 371 · No. 129 992 992 · No. 130 740 740 · No. 131 994 994 · No. 132 771/305J 771, 305J · No. 133 906 906 · No. 134 909 909 · No. 135 195 195 · No. 136 896 896 · No. 137 914 914 · No. 138 911 911 · No. 139 885 885 · No. 140 995-1 995-1 · No. 141 995-3 995-3 · No. 142 995-2 995-2 · No. 143 782 782 · No. 144 010 010 · No. 145 326 326 · No. 146 678 678 · No. 147 868 868 · No. 148 271/897 271, 897 · No. 149 891 891 · No. 150 680 680 · No. 151 685 685 · No. 152 189 189 · No. 153 898/892 898, 892 · No. 154 844 844 · No. 155 697 697 · No. 156 272 272 · No. 157 770 770 · No. 158 159 159 · No. 159 160 160 · No. 160 916-5 916-5 · No. 161 919 919 · No. 162 916-4 916-4 · No. 163 916-3 916-3 · No. 164 916-2 916-2 · No. 165 916-1 916-1 · No. 166 917-3 917-3 · No. 167 917-1 917-1 · No. 168 917-5 917-5 · No. 169 920 920 · No. 170 917-4 917-4 · No. 171 765/300 765, 300 · No. 172 999 999 · No. 173 999 999 · No. 174 991-5 991-5 · No. 175 991-6 991-6 · No. 176 842 842 · No. 177 774 774 · No. 178 368 368 · No. 179 848 848 · No. 180 436 436 · No. 181 066 066 · No. 182 074 074 · No. 183 923 923 · No. 184

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to 46RH in the Go4Trans marketplace.
Sell 46RH parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

64 applications · 5 makes · 1989–2009 Dodge 51 · Jeep 4 · Chrysler 3 · Eagle 3 · Plymouth 3

Make Model Year Drive Engine
Chrysler PICKUP/DAKOTA 1995 4 Spd RWD/4X4 V8 5.2L
Chrysler PICKUP/RAM 1500-3500 1995-2002 4 Spd RWD/4X4 V8 5.2L/5.9L
Chrysler VAN/WAGON 1500-3500 1995-2003 4 Spd RWD V8 5.2L/5.9L
Dodge B150 1990-1993 V6, V8 3.9, 5.2(1/2 Ton - Van)L
Dodge B250 1990-1993 V8 5.2, 5.9(3/4 Ton - Van)L
Dodge B350 1994 V8 5.9(1 Ton - Van)L
Dodge B350 1990-1993 V8 5.2, 5.9(1 Ton - Van)L
Dodge D150 1990-1993 V6, V8 3.9, 5.2, 5.9L
Dodge D250 1990-1993 V8 5.2, 5.9L
Dodge D350 1990-1993 V6, V8 3.9, 5.9L
Dodge Dakota 1998-2002 V8 5.9L
Dodge Dakota 1990-1993 V8 5.2, 5.9L
Dodge Durango 1998-2002 V8 5.9L
Dodge Pickup/Dakota 1995 4 Spd RWD/4X4 V8 5.2L
Dodge Pickup/Ram 1500-3500 1995-2002 4 Spd RWD/4X4 V8 5.2L/5.9L
Dodge Ram 1500 2004-2006 V10 8.3L
Dodge Ram 1500 1998-2002 V8 5.2, 5.9L
Dodge Ram 1500 1994-1997 V8 5.2 , 5.9L
Dodge Ram 1500 Van 2003-2007 V8 5.2, 5.7, 5.9L
Dodge Ram 1500 Van 1998-2002 V8 5.2, 5.7, 5.9L
Dodge Ram 1500 Van 1994-1997 V8 5.2, 5.7, 5.9L
Dodge Ram 1500 Wagon Van 1998-2002 V8 5.2, 5.9L
Dodge Ram 1500 Wagon Van 1994-1997 V8 5.9L
Dodge Ram 2500 1998-2002 L6, V8, V10 5.9, 8.0L
Dodge Ram 2500 1994-1997 L6, V8, V10 5.2. 5.9, 8.0L
Dodge Ram 2500 - Van 1998-2003 V6, V8 3.9, 5.2, 5.9 (4 speed)L
Dodge Ram 2500 - Wagon Van 1998-2002 L6, V8 5.2 5.9 (4 speed)L
Dodge Ram 2500 Mega Cab - Pickup 2006-2007 L6 5.9, 6.7L
Dodge Ram 2500HD - Pickup 2004-2007 L6, V10 5.9, 6.7, 8.0L
Dodge Ram 3500 - Pickup 1998-2002 L6, V8, V10 5.9, 8.0L
Dodge Ram 3500 - Pickup 1994-1997 L6, V8, V10 5.9, 8.0L
Dodge Ram 3500 - Van 1998-2003 V8 5.2, 5.9 (4 speed)L
Dodge Ram 3500 Mega Cab - Pickup 2006-2009 L6 5.9, 6.7L
Dodge Ram 3500- Wagon Van 1994-2003 L6, V8 5.2, 5.9 (4 speed)L
Dodge Ram 3500HD - Pickup 2003-2009 L6 5.9, 6.7L
Dodge Ram 4500HD Pickup 2005-2007 L6 6.7L
Dodge Ramcharger 1990-1993 V8 5.2, 5.9 (AD150)L
Dodge Ramcharger 1990-1993 V8 5.2, 5.9 (AW150 4WD)L
Dodge Van/Wagon 1500-3500 1995-2003 4 Spd RWD V8 5.2L/5.9L
Dodge W150 4WD 1990-1993 V6, V8 3.9, 5.2, 5.9L
Dodge W250 4WD 1989-1993 L6, V8 5.2, 5.9 (4 speed)L
Dodge W350 4WD 1989-1993 L6, V8 5.2, 5.9 (4 speed)L
Dodge Truck B150 1/2 Ton - Van 1990-1993 3.9, 5.2
Dodge Truck B250 3/4 Ton - Van 1990-1993 5.2, 5.9
Dodge Truck B350 1 Ton - Van 1990-1993 5.2, 5.9
Dodge Truck D150 1/2 Ton - Pickup 1990-1993 3.9, 5.2, 5.9
Dodge Truck D250 3/4 Ton - Pickup 1990-1993 5.2, 5.9
Dodge Truck D350 1 Ton - Pickup 1990-1993 3.9, 5.9
Dodge Truck Dakota 1990-1993 5.2, 5.9
Dodge Truck RamCharger-AD150 1/2 Ton 1990-1993 5.2, 5.9
Dodge Truck RamCharger-AW150 1/2 Ton 4WD 1990-1993 5.2, 5.9
Dodge Truck W150 1/2 Ton 4WD - Pickup 1990-1993 3.9, 5.2, 5.9
Dodge Truck W250 3/4 Ton 4WD - Pickup 1989-1993 5.2, 5.9
Dodge Truck W350 1 Ton 4WD - Pickup 1989-1993 5.2, 5.9
Eagle PICKUP/DAKOTA 1995 4 Spd RWD/4X4 V8 5.2L
Eagle PICKUP/RAM 1500-3500 1995-2002 4 Spd RWD/4X4 V8 5.2L/5.9L
Eagle VAN/WAGON 1500-3500 1995-2003 4 Spd RWD V8 5.2L/5.9L
Jeep Grand Cherokee 1997-1998 4 Spd RWD/4X4 V8 5.2L 5.9L
Jeep Grand Cherokee 1994-1995 4 Spd RWD/4X4 V8 5.2L
Jeep Grand Cherokee 1993-1998 V8 5.2, 5.9L
Jeep Grand Cherokee 1993-1998 5.2, 5.9
Plymouth PICKUP/DAKOTA 1995 4 Spd RWD/4X4 V8 5.2L
Plymouth PICKUP/RAM 1500-3500 1995-2002 4 Spd RWD/4X4 V8 5.2L/5.9L
Plymouth VAN/WAGON 1500-3500 1995-2003 4 Spd RWD V8 5.2L/5.9L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

A518
46RH
46 RH
46RH/RE (A518)
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Clogged Transmission Filter
Felt membrane filter becomes clogged with age; replacement required with ATF change at high mileage.
!
Direct Clutch Burnt Frictions
Direct clutch operates more intensively than others, leading to burnt friction discs requiring full kit replacement.
!
Forward Clutch Burnt Frictions
Forward clutch experiences heavy use causing burnt frictions; oil contamination accelerates wear.
?
Burning Smell in ATF
Burnt oil smell indicates friction components penetrated with burnt oil; full friction and steel disc kit replacement ne
!
Torque Converter Lockup Solenoid
Lockup solenoid fails due to operation in overheated and contaminated ATF; primary electrical failure point.
!
Reverse Brake Band Wear
Reverse brake band wears at similar rate to friction kit and requires replacement during overhaul.
?
Electrical Control System Failure
Electrical components exhaust service life prematurely when operating in overheated or contaminated ATF.
!
Plastic Thrust Washers Wear
Plastic disc-washers degrade over time and are included in standard overhaul parts list.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The A518 was updated to 46RH (retainer hydraulic) and later to 46RE (retainer electronic). A618 was modified to 47RE and 48RE.

The family of 4-speed automatic transmissions "TorqueFlite" - A518/ A618 has been installed on rear-driven Dodge and Jeep with engines capacity about 6 liters (for A618 up to 8 liters) since 1990. This transmission is based on design of its predecessor A500.

Technical issues and repair guidelines

Filters for these automatic gearboxes are one-time-use with a felt membrane. With the mileage higher than 100 thousand kilometers, it is recommended to change filters with ATF. These transmissions are not very sensitive to oil type and its level, but with age oil cleanness has a greater significance for this transmission.In addition to the filter, specialists order the repair kit of gaskets and seals for the overhaul. In most cases, friction components are not ordered separately (if the oil has burning smell), but as a whole kit of frictions, which vary in years of manufacture. The kit of steel discs is ordered as well.The complete kit of spare parts Masterkit is ordered in roughly half the cases.

Popular parts to be repaired in A518/ A618:
  • Friction clutches and steel discs Direct and Forward operate more intensively than others and as a result get burnt. Frictions penetrated with burnt oil from the discs should be replaced.
  • The brake band (Reverse) is a spare part and should be replaced as often as the kit of friction componens. The list of spare parts also includes plastic discs-washers.

The electric part of the transmission exhausts its resource because of operation in overheated and contaminated ATF. Basically, controlling problems occur in the torque converter lock-up solenoid because of hot and contaminated ATF.
