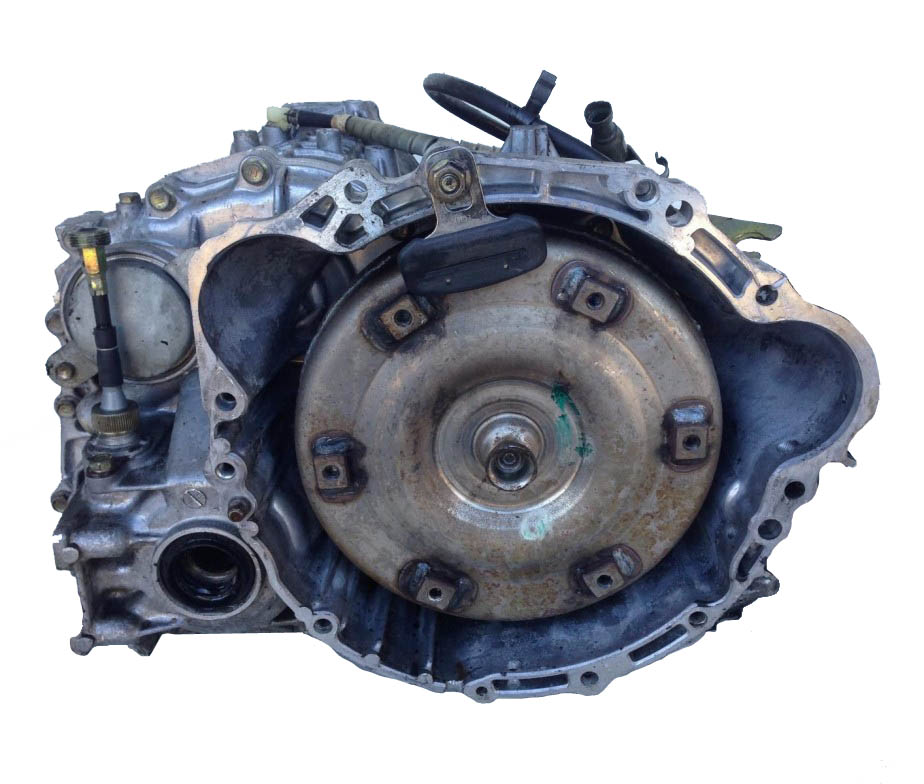

Toyota A240 Transmission

This family of 4-speed automatic gearboxes 240 (A240 - 245, A246E etc.) has been used since 1985 on famous and reliable Corolla as well as on Corona, RAV4 models with engine capacity up to 2 liters. The A246 unit without any significant updates is still used on Corolla and RAV4.This line of gearboxes also includes A140-series intended for higher torque. The A140E unit had been used since 1983 up to 2004 on more powerful Camry (with the engine capacity from 2 liters) assembled in the USA and Japan.

Speeds 4
Type AT
Drive FWD
Max torque 186
ATF capacity (L) 7,2
ATF change (L) 3,1
ATF type Toyota Type T-IV
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page

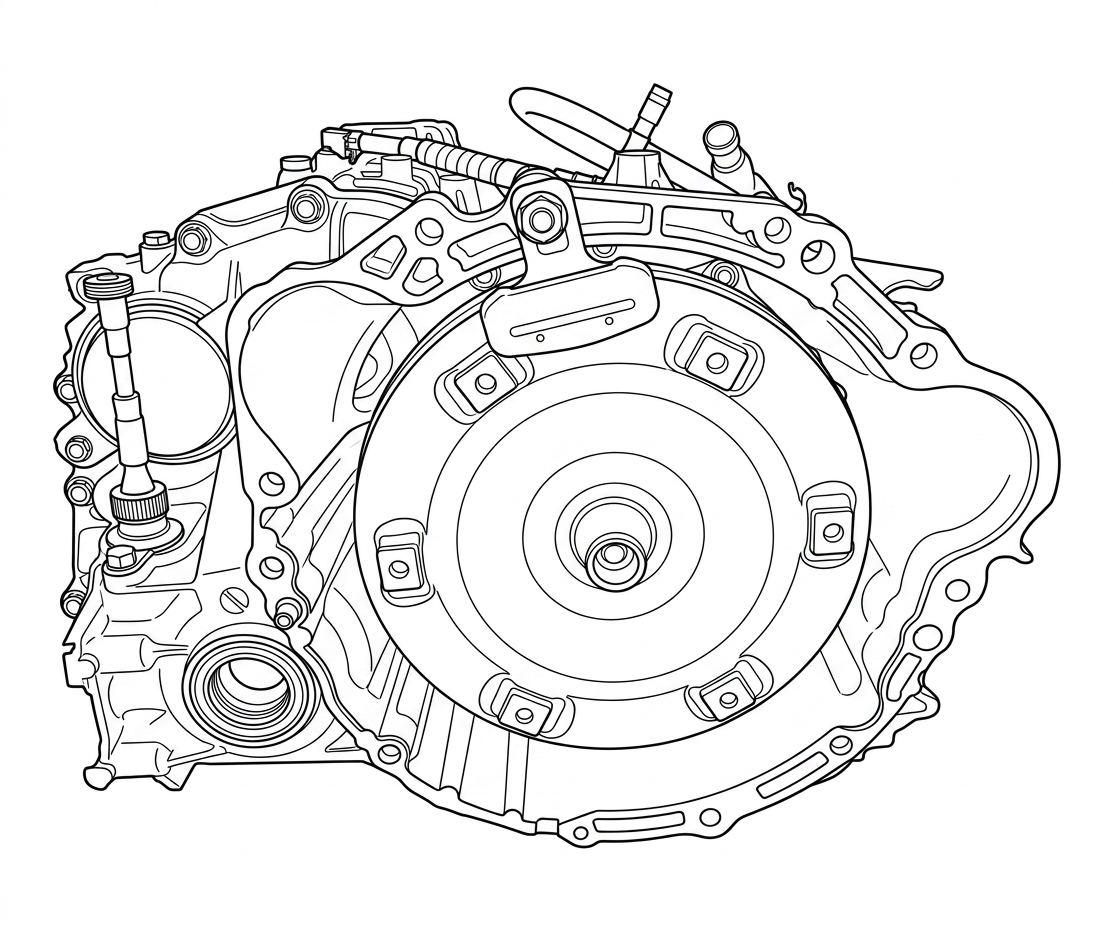

A240
5.2/10
Support & Market Presence Index
Limited presence

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence1.8
Documentation depth10.0
Knowledge & support6.5

Exploded diagram & parts

Full A240E parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

750 750 · No. 1 070 070 · No. 2 034 034 · No. 3 530 530 · No. 4 530 530 · No. 5 036 036 · No. 6 520 520 · No. 7 179 179 · No. 8 778 778 · No. 9 179 179 · No. 10 037 037 · No. 11 311 311 · No. 12 211 211 · No. 13 022 022 · No. 14 046 046 · No. 15 555 555 · No. 16 336 336 · No. 17 337 337 · No. 18 965 965 · No. 19 975 975 · No. 20 879 879 · No. 21 122/106 122, 106 · No. 22 146 146 · No. 23 878 878 · No. 24 229 229 · No. 25 225 225 · No. 26 226 226 · No. 27 227 227 · No. 28 554 554 · No. 29 335 335 · No. 30 964 964 · No. 31 974 974 · No. 32 877 877 · No. 33 122/106 122, 106 · No. 34 146 146 · No. 35 777 777 · No. 36 37 37 · No. 37 876 876 · No. 38 231 231 · No. 39 232 232 · No. 40 050/233 050, 233 · No. 41 050 050 · No. 42 882 882 · No. 43 602 602 · No. 44 592 592 · No. 45 234 234 · No. 46 235 235 · No. 47 236 236 · No. 48 582 582 · No. 49 237 237 · No. 50 238 238 · No. 51 052/238 052, 238 · No. 52 612 612 · No. 53 052 052 · No. 54 622 622 · No. 55 884 884 · No. 56 244 244 · No. 57 245 245 · No. 58 652 652 · No. 59 652 652 · No. 60 652 652 · No. 61 662 662 · No. 62 241 241 · No. 63 883 883 · No. 64 956 956 · No. 65 962 962 · No. 66 972 972 · No. 67 333 333 · No. 68 120/100 120, 100 · No. 69 144 144 · No. 70 873 873 · No. 71 665 665 · No. 72 888 888 · No. 73 654 654 · No. 74 75 75 · No. 75 654 654 · No. 76 654 654 · No. 77 584 584 · No. 78 241 241 · No. 79 246 246 · No. 80 247 247 · No. 81 248 248 · No. 82 594 594 · No. 83 604 604 · No. 84 889 889 · No. 85 892 892 · No. 86 150 150 · No. 87 130/100 130, 100 · No. 88 150 150 · No. 89 893 893 · No. 90 976 976 · No. 91 966 966 · No. 92 338 338 · No. 93 339 339 · No. 94 185 185 · No. 95 185 185 · No. 96 660 660 · No. 97 280 +2 280, 281, 712 · No. 98 796 796 · No. 99 780 780 · No. 100 686 686 · No. 101 345 345 · No. 102 265 265 · No. 103 680 680 · No. 104 685 685 · No. 105 684 684 · No. 106 266 266 · No. 107 760 760 · No. 108 262 262 · No. 109 894 894 · No. 110 263 263 · No. 111 710 710 · No. 112 271 271 · No. 113 759 759 · No. 114 115 115 · No. 115 116 116 · No. 116 117 117 · No. 117 118 118 · No. 118 119 119 · No. 119 120 120 · No. 120 121 121 · No. 121 122 122 · No. 122 123 123 · No. 123 124 124 · No. 124 125 125 · No. 125 126 126 · No. 126 906B 906B · No. 127 908-1 908-1 · No. 128 906 906 · No. 129 410 410 · No. 130 072 072 · No. 131 996 996 · No. 132 862 862 · No. 133 970 970 · No. 134 960 960 · No. 135 330 330 · No. 136 331 331 · No. 137 550 550 · No. 138 214 214 · No. 139 218 218 · No. 140 650 650 · No. 141 650 650 · No. 142 650 650 · No. 143 144 144 · No. 144 694 694 · No. 145 864 864 · No. 146 142 142 · No. 147 122/102 122, 102 · No. 148 971 971 · No. 149 961 961 · No. 150 340 340 · No. 151 341 341 · No. 152 153 153 · No. 153 154 154 · No. 154 155 155 · No. 155 896 896 · No. 156 362 362 · No. 157 909 909 · No. 158 159 159 · No. 159 362/487 362, 487 · No. 160 195 195 · No. 161 907 907 · No. 162 992 992 · No. 163 164 164 · No. 164 165 165 · No. 165 166 166 · No. 166 167 167 · No. 167 168 168 · No. 168 169 169 · No. 169 170 170 · No. 170 171 171 · No. 171 172 172 · No. 172 173 173 · No. 173 276 276 · No. 174 795 795 · No. 175 277 277 · No. 176 274 274 · No. 177 273 273 · No. 178 179 179 · No. 179 273 273 · No. 180 274 274 · No. 181 868 868 · No. 182 676 676 · No. 183 596 596 · No. 184 216 216 · No. 185 217 217 · No. 186 586 586 · No. 187 867 867 · No. 188 616 616 · No. 189 260 260 · No. 190 861 861 · No. 191 140 140 · No. 192 121/103 121, 103 · No. 193 010 010 · No. 194 195 195 · No. 195 196 196 · No. 196 197 197 · No. 197 198 198 · No. 198 199 199 · No. 199 765/300 765, 300 · No. 200 740 740 · No. 201 076 076 · No. 202 293 293 · No. 203 291 291 · No. 204 847 847 · No. 205 716 716 · No. 206 207 207 · No. 207 289 289 · No. 208 288 288 · No. 209 293 293 · No. 210 076 076 · No. 211 423 423 · No. 212 421 421 · No. 213 425 425 · No. 214

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to A240 in the Go4Trans marketplace.
Sell A240 parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

4 applications · 1 make · 1993–2009 Toyota 4

Make Model Year Drive Engine
Toyota Avensis 2000-2009 4 Spd F/AWD L4 1.8L/2.0L
Toyota Corolla 1993-2008 4 Spd FWD L4 1.3/1.5/1.6/1.8/2.0L
Toyota Corona 2000-2002 4 Spd FWD L4 1.6/1.8/2.0L
Toyota NADIA 2000-2003 4 Spd F/AWD L4 2.0L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

A240
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Torque Converter Lockup Friction Wear
Lockup friction wears down to glue layer, contaminating other friction discs and solenoids with debris.
?
Solenoid and Valve Body Contamination
Worn TC lockup friction deposits debris into solenoids and valve body, causing shift quality issues.
!
Burnt Friction Components
Friction discs burn out, often linked to fluid degradation or neglected fluid change intervals.
!
Pump Seal Leakage
Pump seal leaks after extended service life or due to vibrations caused by worn TC lockup friction.
!
Axle Shaft Seal Leakage
Axle shaft seals and cuffs begin leaking due to age or vibrations from TC lockup wear.
!
Rotating Pump Bushing Wear
Delayed seal replacement can lead to wear of the rotating pump bushing, requiring additional repair.
!
Clogged Transmission Filter
Filter becomes blocked after use with burnt fluid or worn TC friction, restricting fluid flow.
?
Vibration from TC Wear
Worn TC lockup mechanism generates vibrations that accelerate seal degradation throughout the transmission.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

This family of 4-speed automatic gearboxes 240 (A240 - 245, A246E etc.) has been used since 1985 on famous and reliable Corolla as well as on Corona, RAV4 models with engine capacity up to 2 liters. The A246 unit without any significant updates is still used on Corolla and RAV4.This line of gearboxes also includes A140-series intended for higher torque. The A140E unit had been used since 1983 up to 2004 on more powerful Camry (with the engine capacity from 2 liters) assembled in the USA and Japan.

At the same time, a bit more sophisticated and highly-priced version named A540 was produced for even more powerful engines of Camry and Lexus. The modern line generation of this transmission family ( A245E/ A246E /247E) hit the market in 2003. The A247E model has a bit more improved hard parts aimed to endure higher torque from 2-liter engines. In 2003, the valve body was modified one more time: the unit received a linear solenoid of main pressure, the filter with a pan, as well as a significant improvement of the software part.

Despite the fact that this gearbox is not complicated and has a low price, the family of these 4-speed gearboxes is not so popular as more "sophisticated" Aisin analogs of "U" series. The market rivals of this gearbox are not German ZF4HP16 - 4HP18, competing with U240, but Jatco's 4-speed RE4F03 - RE4F04 units.

Technical issues and repair guidelines

Overhauls in repair services commonly consist of repair of the torque converter, valve body, gearbox reassembly and replacement of spare parts and burnt friction components. Usually during the overhaul specialists have to deal with old gearboxes having the lockup mechanism worn to the glue layer, which reaches other frictions. Therefore, it is advisable to replace the whole set of friction discs during reassembly procedure. For problem-free exploitation of this gearbox, it is required to change fluid and (after 8-10 years) replace the filter on a timely basis. It is also recommended to replace the filter, if the gearbox has been used with burnt fluid or worn friction in the torque converter.

The most sensitive issue for the A240 unit is the wear-out of the lockup friction in the torque converter (TC) clutch which makes solenoids and valve body dirty.These gearboxes can cover substantial distances without any repair, but after 200 thousand kilometers it is advisable to monitor possible leakages of the pump seal and timely perform repair of the TC unit. Seals (of pump, axle shaft, cuffs etc.) start leaking because of a long exploitation period or due to wear-out of the TC lockup and resulting vibrations. The transmission shaft seal is replaced together with other seals. When delaying with replacement of seals, then it may be needed to change the rotating pump bushing.Solenoids are quite durable as well as, the brake band. The design of these elements hasn’t been changed since 1985.
