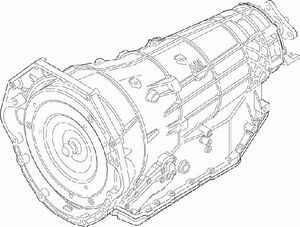

ZF 5HP30 Transmission

The 5-speed automatic transmission ZF5HP30 is one of the first 5-speed transmissions with a maximum torque. This transmission was developed for special vehicles with RWD and powerful engines with the capacity from 4.5 liters.

Speeds 5
Type AT
Drive RWD
ATF capacity (L) 13
ATF change (L) 5,5
ATF type LT -71141
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
5HP30
6.4/10
Support & Market Presence Index
Well covered

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence5.1
Documentation depth9.5
Knowledge & support5.0

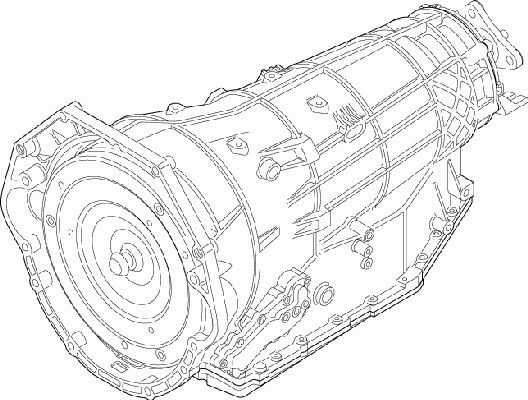

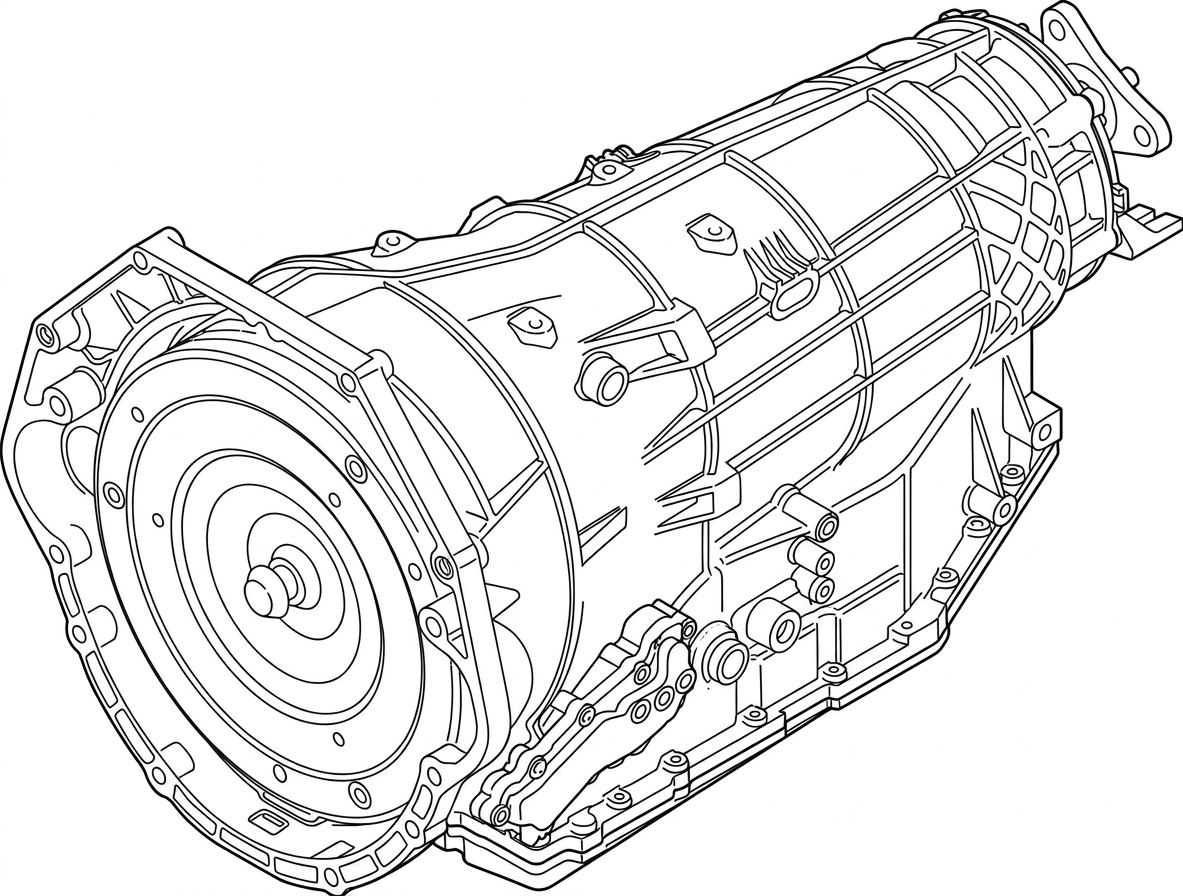

Exploded diagram & parts

Full 5HP30 parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

778 778 · No. 1 181 181 · No. 2 898 898 · No. 3 070 070 · No. 4 699 699 · No. 5 295 295 · No. 6 699B 699B · No. 7 311 311 · No. 8 530 530 · No. 9 530 530 · No. 10 381 381 · No. 11 520 520 · No. 12 528 528 · No. 13 529 529 · No. 14 778B 778B · No. 15 037 037 · No. 16 210* 210* · No. 17 211 211 · No. 18 212 212 · No. 19 881 881 · No. 20 697 697 · No. 21 359 359 · No. 22 360 360 · No. 23 556 556 · No. 24 338/339 338, 339 · No. 25 966 966 · No. 26 976 976 · No. 27 986 986 · No. 28 893 893 · No. 29 131 131 · No. 30 130/110 130, 110 · No. 31 150 150 · No. 32 892* 892* · No. 33 335 335 · No. 34 964 964 · No. 35 974 974 · No. 36 984 984 · No. 37 877 877 · No. 38 335B 335B · No. 39 777 777 · No. 40 41 41 · No. 41 129 129 · No. 42 128/108 128, 108 · No. 43 148 148 · No. 44 876* 876* · No. 45 670 670 · No. 46 576 576 · No. 47 038 038 · No. 48 570 570 · No. 49 231/232 231, 232 · No. 50 232 232 · No. 51 674 674 · No. 52 236 236 · No. 53 235 235 · No. 54 861* 861* · No. 55 100/120 100, 120 · No. 56 862 862 · No. 57 980 980 · No. 58 970 970 · No. 59 331B 331B · No. 60 960 960 · No. 61 331330 331330 · No. 62 550 550 · No. 63 214 214 · No. 64 046/214 046, 214 · No. 65 575 575 · No. 66 046 046 · No. 67 226 226 · No. 68 878* 878* · No. 69 126/106 126, 106 · No. 70 127 127 · No. 71 985 985 · No. 72 975 975 · No. 73 965 965 · No. 74 337 337 · No. 75 883 883 · No. 76 697B 697B · No. 77 336 336 · No. 78 558 558 · No. 79 044 044 · No. 80 332/333 332, 333 · No. 81 962 962 · No. 82 972 972 · No. 83 982 982 · No. 84 874 874 · No. 85 125 125 · No. 86 124/104 124, 104 · No. 87 873* 873* · No. 88 968 968 · No. 89 978 978 · No. 90 988 988 · No. 91 92 92 · No. 92 136B 136B · No. 93 136/116 136, 116 · No. 94 156 156 · No. 95 783 783 · No. 96 97 97 · No. 97 98 98 · No. 98 870* 870* · No. 99 243 243 · No. 100 244 244 · No. 101 880 880 · No. 102 695 695 · No. 103 245 245 · No. 104 662 662 · No. 105 652 652 · No. 106 652 652 · No. 107 652 652 · No. 108 572 572 · No. 109 592 592 · No. 110 882 882 · No. 111 388 388 · No. 112 053 053 · No. 113 053 053 · No. 114 582 582 · No. 115 590 590 · No. 116 760/072 760, 072 · No. 117 790 790 · No. 118 690 690 · No. 119 267* 267* · No. 120 897 897 · No. 121 798 798 · No. 122 269 269 · No. 123 268 268 · No. 124 270 270 · No. 125 271 271 · No. 126 272 272 · No. 127 612 612 · No. 128 237 237 · No. 129 238 238 · No. 130 239 239 · No. 131 889 889 · No. 132 042 042 · No. 133 580 580 · No. 134 042 042 · No. 135 594 594 · No. 136 868 868 · No. 137 614 614 · No. 138 584 584 · No. 139 865 865 · No. 140 389 389 · No. 141 571 571 · No. 142 757 757 · No. 143 382 382 · No. 144 495 495 · No. 145 382 382 · No. 146 382 382 · No. 147 495 495 · No. 148 382 382 · No. 149 740 740 · No. 150 446 446 · No. 151 843 843 · No. 152 347 347 · No. 153 770/348 770, 348 · No. 154 074 074 · No. 155 841 841 · No. 156 420 420 · No. 157 459 459 · No. 158 999 999 · No. 159 160 160 · No. 160 650 650 · No. 161 650 650 · No. 162 650 650 · No. 163 660 660 · No. 164 694 694 · No. 165 866 866 · No. 166 864* 864* · No. 167 142 142 · No. 168 122/102 122, 102 · No. 169 123 123 · No. 170 981 981 · No. 171 971 971 · No. 172 961 961 · No. 173 863 863 · No. 174 219 219 · No. 175 551 551 · No. 176 391 391 · No. 177 010 010 · No. 178 300/765 300, 765 · No. 179 995-2 995-2 · No. 180 995-3 995-3 · No. 181 995-1 995-1 · No. 182 991-2 991-2 · No. 183 991-1 991-1 · No. 184 991-3 991-3 · No. 185 999 999 · No. 186 991-4 991-4 · No. 187 994 994 · No. 188

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to 5HP30 in the Go4Trans marketplace.
Sell 5HP30 parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

18 applications · 4 makes · 1991–2004 BMW 11 · Aston Martin 4 · Rolls Royce 2 · Bentley 1

Make Model Year Drive Engine
Aston Martin DB7 2000-2004 5 Spd RWD V12 5.9L
Aston Martin DB7 2000-2004 5.9
Aston Martin DB7 Vantage 1999-2003 5 Spd RWD V12 6.0L
Aston Martin DB7 Vantage Volante 1999-2003 5 Spd RWD V12 6.0L
Bentley Arnage 1999-2000 5 Spd RWD V8 6.8L
BMW 540i 1994-1995 4.0
BMW 540i 1991-1995 5 Spd RWD V8 4.0L 4.4L
BMW 740i 1992-1995 5 Spd RWD V8 4.0L 4.4L
BMW 740i/il 1993-1996 4.0, 4.4
BMW 750Li 1995-2001 5 Spd RWD V12 5.4L
BMW 840ci 1994-1997 4.0, 4.4
BMW 840ci, 840cia 1992-1999 5 Spd RWD V8 4.0L 4.4L
BMW 850 1995-1997 5 Spd RWD V12 5.5L
BMW 850i/ci 1995-1997 5.0, 5.4
BMW SÉRIE 5 1991-2003 5 Spd RWD V8 3.5/4.4L
BMW SÉRIE 7 1995-2001 5 Spd RWD V8 3.5/3.9/4.4L V12 5.4
Rolls Royce ARNAGE/SILVER SERAPH 2000-2003 5 Spd R/AWD V8 4.4L V12 5.4L
Rolls Royce Silver Seraph 1998-2002 5 Spd RWD V12 5.4L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

5-HP-30
1055 000
5 HP 30
5HP30
1055.000
1055000
A5S560Z
ZF 5HP 30
A5S-560Z
A5S 560Z
ZF 5HP30
ZF5HP30
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Forw/Rev Clutch Drum Aluminum Teeth
Drum A+C aluminum teeth wear out; considered the primary soft spot of ZF5HP30 transmission.
!
Torque Converter Clutch Wear
Worn torque converter clutch is main source of premature solenoid ageing and pressure problems in clutch packs.
?
Pressure Problems in Clutch Packs
Degraded solenoids caused by worn torque converter clutch lead to abnormal hydraulic pressure in clutch packages.
?
Premature Solenoid Ageing
Solenoids age prematurely as a direct consequence of torque converter clutch wear contaminating transmission fluid.
!
Solenoid End of Life
All solenoids typically reach end of service life after 7-10 years of operation, requiring full replacement.
!
Rubber and Paper Gasket Degradation
Rubber and paper gaskets require replacement during overhaul; degrade over extended mileage intervals.
!
Transmission Filter Clogging
Filter replacement is mandatory during planned overhaul to maintain proper fluid flow and hydraulic function.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 5-speed automatic transmission ZF5HP30 is one of the first 5-speed transmissions with a maximum torque. This transmission was developed for special vehicles with RWD and powerful engines with the capacity from 4.5 liters.

In terms of design, this transmission is related to 5HP24 (intended for a bit lower torque) and has some common spare parts (such as seals and solenoids) with a legendary 5HP19. Compared to 2 abovementioned transmissions, ZF5HP30 has the reserve of structural integrity. This transmission was designed to become an "invincible" unit without obvious soft spots and a high safety degree in all components.

Technical issues and repair guidelines

The transmission requires a planned overhaul after running well beyond 300 thousand kilometers (under the condition of normal operation and timely fluid change). The transmission reassembly is performed together with filter replacement, torque converter repair and replacement of rubber and paper gaskets. The drum (Forw/Rev. Clutch A+C) is considered to be a soft spot of this transmission (aluminum teeth get cu

All solenoids are replaced with the purpose of ensuring reliability, because their resource usually comes to an end after 7-10 years of exploitation together with wear-out of the torque converter. The worn-out torque converter clutch is the main source of premature ageing of solenoids and as a consequence – problems with pressure in packages. In general, this transmission is quite reliable with a high safety reserve on transmission elements.
