ZF 5HP18 Transmission

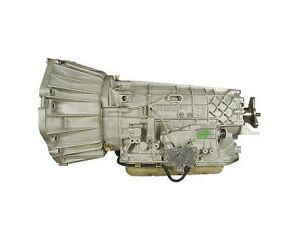

The 5-speed ZF5HP18 transmission is related to 4-speed 4HP14 and 4HP22 units. It had been installed on RWD BMW of 3-rd,5-th and 7-th series with 2-3 liter engines since 1991 up to 1999. The ZF5HP18 unit is a predecessor of famous ZF 5HP19 for a bit less powerful engines (310 Nm in comparison with 325 Nm in 5HP19). This well-designed gear shifting solution with high reserve on transmission components, which served as a prototype of the ZF 5HP19 solution.

Speeds 5
Type AT
Drive RWD
ATF capacity (L) 10,5
ATF change (L) 5-5,5
ATF type LT -71141
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
5HP18
5.4/10
Support & Market Presence Index
Limited presence

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence2.4
Documentation depth10.0
Knowledge & support5.8

Exploded diagram & parts

Full 5HP18 parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

070 070 · No. 1 699 699 · No. 2 311 311 · No. 3 034 034 · No. 4 510 510 · No. 5 530 530 · No. 6 520 520 · No. 7 179 179 · No. 8 181 181 · No. 9 037 037 · No. 10 211 211 · No. 11 329 329 · No. 12 328 328 · No. 13 966 966 · No. 14 976 976 · No. 15 131 131 · No. 16 151 151 · No. 17 130/110 130, 110 · No. 18 150 150 · No. 19 892 892 · No. 20 662 662 · No. 21 652 652 · No. 22 23 23 · No. 23 652 652 · No. 24 663 663 · No. 25 020 020 · No. 26 555 555 · No. 27 336/337 336, 337 · No. 28 965 965 · No. 29 965-1 965-1 · No. 30 332 332 · No. 31 972 972 · No. 32 33 33 · No. 33 877 877 · No. 34 134/114 134, 114 · No. 35 154 154 · No. 36 885 885 · No. 37 229/228 229, 228 · No. 38 554 554 · No. 39 334/335 334, 335 · No. 40 964 964 · No. 41 974 974 · No. 42 43 43 · No. 43 44 44 · No. 44 875 875 · No. 45 129 129 · No. 46 128/108 128, 108 · No. 47 148 148 · No. 48 876 876 · No. 49 380 380 · No. 50 550 550 · No. 51 331 331 · No. 52 330 330 · No. 53 960 960 · No. 54 970 970 · No. 55 862 862 · No. 56 120/100 120, 100 · No. 57 140 140 · No. 58 861 861 · No. 59 213 213 · No. 60 214 214 · No. 61 215 215 · No. 62 570 570 · No. 63 216 216 · No. 64 217 217 · No. 65 218 218 · No. 66 050 050 · No. 67 574 574 · No. 68 050 050 · No. 69 234 234 · No. 70 235 235 · No. 71 236 236 · No. 72 624 624 · No. 73 614 614 · No. 74 051 051 · No. 75 584 584 · No. 76 250 250 · No. 77 251 251 · No. 78 252 252 · No. 79 594 594 · No. 80 062 062 · No. 81 674 674 · No. 82 889 889 · No. 83 626 626 · No. 84 253 253 · No. 85 254 254 · No. 86 255 255 · No. 87 044 044 · No. 88 664 664 · No. 89 173 173 · No. 90 185 185 · No. 91 044 044 · No. 92 644K 644K · No. 93 885 885 · No. 94 760 760 · No. 95 795 795 · No. 96 897 897 · No. 97 272-1 272-1 · No. 98 271 271 · No. 99 272 272 · No. 100 348 348 · No. 101 271/770 271, 770 · No. 102 272-1 272-1 · No. 103 074 074 · No. 104 841 841 · No. 105 781 781 · No. 106 154 154 · No. 107 128/108 128, 108 · No. 108 135 135 · No. 109 987 987 · No. 110 977 977 · No. 111 967 967 · No. 112 339/338 339, 338 · No. 113 558 558 · No. 114 968 968 · No. 115 978 978 · No. 116 988 988 · No. 117 871 871 · No. 118 136 136 · No. 119 124/104 124, 104 · No. 120 156 156 · No. 121 870 870 · No. 122 901/906 901, 906 · No. 123 366 366 · No. 124 902 902 · No. 125 126 126 · No. 126 127 127 · No. 127 438 438 · No. 128 427/421 427, 421 · No. 129 843 843 · No. 130 418 418 · No. 131 422 422 · No. 132 133 133 · No. 133 426 426 · No. 134 794 794 · No. 135 995-3 995-3 · No. 136 995-6 995-6 · No. 137 995-1 995-1 · No. 138 995-4 995-4 · No. 139 365 365 · No. 140 908 908 · No. 141 904 904 · No. 142 143 143 · No. 143 698 698 · No. 144 431/849 431, 849 · No. 145 425 425 · No. 146 436 436 · No. 147 863 863 · No. 148 230 230 · No. 149 551 551 · No. 150 043 043 · No. 151 961 961 · No. 152 971 971 · No. 153 981 981 · No. 154 136 136 · No. 155 122/104 122, 104 · No. 156 864 864 · No. 157 219 219 · No. 158 220 220 · No. 159 221 221 · No. 160 868 868 · No. 161 600 600 · No. 162 039 039 · No. 163 590 590 · No. 164 222 222 · No. 165 223 223 · No. 166 224 224 · No. 167 580 580 · No. 168 896 896 · No. 169 379 379 · No. 170 010 010 · No. 171 446 446 · No. 172 227 227 · No. 173 226 226 · No. 174 225 225 · No. 175 610 610 · No. 176 265 265 · No. 177 264 264 · No. 178 263 263 · No. 179 685 685 · No. 180 779 779 · No. 181 765/300 765, 300 · No. 182 765-6 765-6 · No. 183 991-3 991-3 · No. 184 994 994 · No. 185 991-4 991-4 · No. 186 072 072 · No. 187 991-2 991-2 · No. 188

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to 5HP18 in the Go4Trans marketplace.
Sell 5HP18 parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

7 applications · 1 make · 1993–1998 BMW 7

Make Model Year Drive Engine
BMW 530i 1993-1995 5 Spd RWD V8 3.0L
BMW 530it 1994-1995 3.0
BMW M3 1995-1998 5 Spd RWD L6 3.0L 3.2L
BMW M3 1995-1998 5 Spd RWD L6 3.0/3.2L
BMW SÉRIE 3 5 Spd RWD L6 2.5L/2.8L
BMW SÉRIE 5 1993-1995 5 Spd RWD V8 3.0L
BMW SÉRIE 7 5 Spd RWD L6 2.8L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

1056 000
5-HP-18
1056.000
1056000
5HP18
5 HP 18
A5S 300J
A5S310Z
ZF5HP18
A5S300J
A5S-300J
A5S-310Z
A5S 310Z
ZF 5HP18
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Clutch Package F Failure
First component to fail due to ATF shortage; burnt frictions and drum F with piston if neglected.
!
Drum F Bushing Seal Leak
Drum F bushing with sealing causes ATF leakage leading to oil starvation and bushing cranking.
!
EPC Solenoid Failure
Pressure solenoid (EPC) is the primary electrical component to fail; first among solenoids to wear out.
?
Rapid ATF Contamination
Excessively fast ATF contamination signals gasket wear and risk of oil starvation on friction components.
!
Oil Pump Wear
Worn oil pump in hard parts caused by long-term use with worn torque converter and pump bushing.
!
TCC Solenoid Failure
Torque converter clutch solenoid fails after EPC solenoid; secondary electrical failure point.
!
Gaskets and Sealing Rings Wear
Worn gaskets and rings cause ATF leaks and contamination; require full overhaul kit replacement.
!
Metal-Plastic Filter Clogging
Felt membrane filter requires timely replacement; neglect leads to fluid degradation and component damage.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 5-speed ZF5HP18 transmission is related to 4-speed 4HP14 and 4HP22 units. It had been installed on RWD BMW of 3-rd,5-th and 7-th series with 2-3 liter engines since 1991 up to 1999. The ZF5HP18 unit is a predecessor of famous ZF 5HP19 for a bit less powerful engines (310 Nm in comparison with 325 Nm in 5HP19). This well-designed gear shifting solution with high reserve on transmission components, which served as a prototype of the ZF 5HP19 solution.

Technical issues and repair guidelines

This transmission endures exploitation with contaminated fluid, fluid shortage, and operation without a warm-up. This transmission will fully serve the service life, if you monitor the ATF quality and timely replace the metal-plastic filter with a felt membrane. This transmission can operate with different types of oil (works well with oils like Dexron III).Too rapid ATF contamination is a signal of gaskets wear-out and trigged by it risk of oil starvation on fiction components.

To perform a typical overhaul with reassembly of worn-out gaskets and rings repair specialists usually order the Overhaul kit for this transmission.The most vivid soft spot of the 5HP18 unit is the clutch package F – the first one to get out of order because of ATF shortage and burnt frictions.The cause of this problem is related to design of the drum F bushing with a sealing, which become the source of leakages leading to oil starvation and bushing cranking.If the abovementioned problem stays neglected, then the clutch drum F with a piston gets burnt together with frictions. This problem is solved by the bushing replacement with the bearing.

The oil pump is one more typical part to be worn-out in “old” transmission hard parts under the condition of long-term exploitation with worn-out torque converter and pump bushing.The valve body is a long-running and maintainable unit.

The pressure solenoid (EPC) is a main part to be replaced or repaired among electrical components.Shifting solenoids are similar to solenoids used in the 4HP18 unit and they serve for a long period of time. EPC solenoids are the first to get out of order, then comes the turn of the TCC solenoid. In all other respects, the resource of this transmission is compatible with the resource of the whole car.
