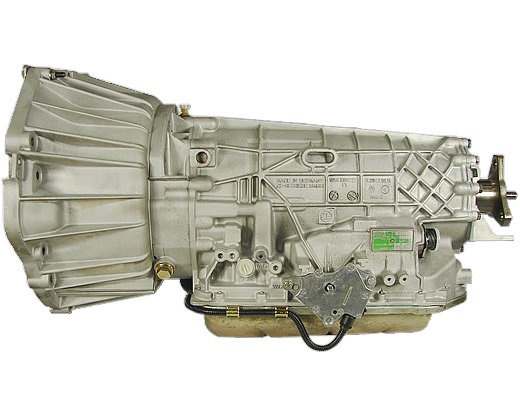

ZF 5HP24 Transmission

The 5-speed automatic transmission ZF 5HP24 was designed for powerful 6 and 8-cylinder engines (diesel and 2.4 - 4.5 liter IC-engines) in AWD and RWD high-priced Audi and BMW models (5-th and 7-th series X5...). It is an intermediate transmission unit between famous 5HP19 and powerful 5HP30. It had been used since 1995 up to 2005.

Speeds 5
Type AT
Drive RWD/AWD/FWD
Max torque 440
ATF capacity (L) 9,7
ATF change (L) 4-5
ATF type LT -71141
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
5HP24
7.8/10
Support & Market Presence Index
Well covered

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence7.0
Documentation depth10.0
Knowledge & support7.9

Exploded diagram & parts

Full 5HP24 parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

490-4 490-4 · No. 1 398 398 · No. 2 490 490 · No. 3 750 750 · No. 4 898 898 · No. 5 070 070 · No. 6 699 699 · No. 7 295 295 · No. 8 699B 699B · No. 9 530 530 · No. 10 530 530 · No. 11 311 311 · No. 12 544 544 · No. 13 520 520 · No. 14 529 529 · No. 15 037/181 037, 181 · No. 16 778B 778B · No. 17 037 037 · No. 18 310 310 · No. 19 210 210 · No. 20 211 211 · No. 21 556 556 · No. 22 338 338 · No. 23 338B 338B · No. 24 966 966 · No. 25 339 339 · No. 26 976 976 · No. 27 986 986 · No. 28 893 893 · No. 29 131 131 · No. 30 130/110 130, 110 · No. 31 150 150 · No. 32 892* 892* · No. 33 380 380 · No. 34 177 177 · No. 35 554 554 · No. 36 038 038 · No. 37 776 776 · No. 38 776 776 · No. 39 438 438 · No. 40 778 778 · No. 41 334 334 · No. 42 335 335 · No. 43 964 964 · No. 44 974 974 · No. 45 335B 335B · No. 46 984 984 · No. 47 877 877 · No. 48 129 129 · No. 49 128/108 128, 108 · No. 50 148 148 · No. 51 876* 876* · No. 52 232 232 · No. 53 674 674 · No. 54 234 234 · No. 55 576 576 · No. 56 235 235 · No. 57 236 236 · No. 58 570 570 · No. 59 046 046 · No. 60 885 885 · No. 61 861* 861* · No. 62 140 140 · No. 63 120/100 120, 100 · No. 64 121 121 · No. 65 980 980 · No. 66 67 67 · No. 67 970 970 · No. 68 960 960 · No. 69 330 330 · No. 70 331 331 · No. 71 550 550 · No. 72 358 358 · No. 73 047 047 · No. 74 179 179 · No. 75 672 672 · No. 76 047 047 · No. 77 214 214 · No. 78 883 883 · No. 79 878* 878* · No. 80 146 146 · No. 81 126/106 126, 106 · No. 82 127 127 · No. 83 639 639 · No. 84 985 985 · No. 85 975 975 · No. 86 337 337 · No. 87 965 965 · No. 88 337B 337B · No. 89 336B 336B · No. 90 336 336 · No. 91 697B 697B · No. 92 558 558 · No. 93 044 044 · No. 94 333 333 · No. 95 962 962 · No. 96 332 332 · No. 97 972 972 · No. 98 982 982 · No. 99 243 243 · No. 100 244 244 · No. 101 125 125 · No. 102 124/104 124, 104 · No. 103 760 760 · No. 104 690 690 · No. 105 267* 267* · No. 106 267*/798 267*, 798 · No. 107 897 897 · No. 108 269 269 · No. 109 268 268 · No. 110 270 270 · No. 111 271 271 · No. 112 272 272 · No. 113 348 348 · No. 114 770 770 · No. 115 074 074 · No. 116 841 841 · No. 117 639 639 · No. 118 072 072 · No. 119 790 790 · No. 120 748/386 748, 386 · No. 121 748/386 748, 386 · No. 122 446 446 · No. 123 347 347 · No. 124 410 410 · No. 125 144 144 · No. 126 873* 873* · No. 127 642 642 · No. 128 592 592 · No. 129 882 882 · No. 130 388 388 · No. 131 582 582 · No. 132 612 612 · No. 133 590 590 · No. 134 889 889 · No. 135 238 238 · No. 136 042 042 · No. 137 580 580 · No. 138 042 042 · No. 139 594 594 · No. 140 868 868 · No. 141 614 614 · No. 142 058 058 · No. 143 740 740 · No. 144 843 843 · No. 145 379 379 · No. 146 420 420 · No. 147 459 459 · No. 148 149 149 · No. 149 584 584 · No. 150 865 865 · No. 151 571 571 · No. 152 650 650 · No. 153 650 650 · No. 154 650 650 · No. 155 660 660 · No. 156 694 694 · No. 157 866 866 · No. 158 864* 864* · No. 159 142 142 · No. 160 122/102 122, 102 · No. 161 123 123 · No. 162 981 981 · No. 163 971 971 · No. 164 961 961 · No. 165 863 863 · No. 166 219 219 · No. 167 551 551 · No. 168 391 391 · No. 169 765/300 765, 300 · No. 170 010 010 · No. 171 995-1 +2 995-1, 995-2, 995-3 · No. 172 991-4/991-5 991-4, 991-5 · No. 173 991-3 991-3 · No. 174 994 994 · No. 175 991-2 991-2 · No. 176 779 779 · No. 177

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to 5HP24 in the Go4Trans marketplace.
Sell 5HP24 parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

36 applications · 5 makes · 1995–2006 BMW 13 · Jaguar 12 · Audi 7 · Land Rover 2 · Volkswagen 2

Make Model Year Drive Engine
Audi A6 1998-2004 2.7, 2.8, 4.2
Audi A6 Quattro 1998-2004 5 Spd AWD V8 4.2L
Audi A6/A6 ALL ROAD 2000-2005 5 Spd F/AWD V6 2.5/2.7 V8 4.2L
Audi A8 2000-2003 5 Spd F/AWD V8 3.3/4.2L V12 6.0L
Audi A8 1997-2006 3.7, 4.2, 6.0
Audi A8 Quattro 1999-2003 5 Spd AWD V8 4.2L
Audi S6 1999-2005 4.2
BMW 5 Series (E39) 1995-1996 5 Spd RWD L6 2.5L
BMW 540i 1996-2002 5 Spd RWD V8 4.4L
BMW 540i/it 1996-2003 4.4
BMW 7 Series (E38) 1997-2000 5 Spd RWD V8 4.4L
BMW 740i 1996-2001 5 Spd RWD V8 4.4L
BMW 740i/il 1997-2001 4.4
BMW 8 Series (E31) 1995-2000 5 Spd RWD V8 4.4L
BMW 840ci 1996-1997 5 Spd RWD V8 4.4L
BMW SÉRIE 5 1996-2004 5 Spd RWD L4 2.0L L6 2.2L/2.5L
BMW SÉRIE 7 2001-2002 5 Spd RWD L6 3.0L
BMW X5 2000-2003 5 Spd RWD/AWD V8 4.4L 4.6L
BMW X5 2000-2003 5 Spd R/AWD V8 4.4L/4.6L
BMW Z8 Alpina 2002-2003 5 Spd RWD/AWD V8 4.8L
Jaguar VANDEN PLAS 1998-2002 5 Spd RWD V8 4.0L
Jaguar XJ Sport 2002-2003 5 Spd RWD V8 4.0L
Jaguar XJ Vanden Plas 1998-2003 5 Spd RWD V8 4.0L
Jaguar XJ8 1998-2003 5 Spd RWD V8 3.2/4.0L
Jaguar XJ8 1998-2003 4.0
Jaguar XJ8, XJ8L, XJ Sport 1998-2003 5 Spd RWD V8 4.0L
Jaguar XJR 1998-2003 4.0
Jaguar XJR 1995-1997 4 Spd RWD L6 4.0L
Jaguar XK SERIES XJ SERIES 1997-2002 5 Spd RWD V8 4.0L
Jaguar XK8 1997-2002 5 Spd RWD V8 4.0L
Jaguar XK8 1997-2000 5 Spd RWD V8 4.2L
Jaguar XK8 1997-2000 4.0
Land Rover Range Rover 2003-2005 4.4
Land Rover Range Rover 2003-2004 5 Spd 4x4 V8 4.4L
Volkswagen Phaeton 2004-2006 5 Spd AWD W12 6.0L
Volkswagen Phaeton 2000-2006 6.0

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

FGE
FBG
ESX
FBD
1058 020
FBH
FUU
FBE
GAG
ECF
DSL
DTD
FUL
DTE
FBC
FGS
ECX
1058020
1058.020
FUM
ECZ
5HP24A
5HP24 A
DYM
CUE
EFN
ECY
GXX
5HP24
5-HP-24
1058 000
1058.000
1058000
5 HP 24
ZF 5HP24
ZF5HP24
A5S440Z
A5S 440Z
A5S-440Z
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Clutch Package A Input Drum
Input drum of clutch package A has circlip problems; considered primary weak spot, first to burn under max torque.
?
Clutch Package A Burnt
Entire friction kit of package A burns when transmitted torque reaches maximum; requires full friction replacement.
!
Hub Bearing B Failure
Overload-induced vibrations damage hub bearing B and subsequently the hub itself; linked to fluid shortages.
!
Torque Converter Failure
Torque converter is a critical soft spot on this high-torque transmission; especially prevalent vs other ZF units.
?
ATF Shortage Accelerates Wear
Fluid shortages identified as main cause of hub bearing B damage and accelerated overall transmission wear.
!
One-Way Clutch F Wear
One-way clutch F is a typical failure point on older 5HP24 units requiring replacement during overhaul.
!
Solenoid Wiring Degradation
Wiring in solenoids deteriorates on overheated vehicles older than 10 years; solenoids are primary electrical failure pa
!
Seal Degradation Throughout
Seals require replacement in almost every overhaul; standard wear item across the transmission assembly.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 5-speed automatic transmission ZF 5HP24 was designed for powerful 6 and 8-cylinder engines (diesel and 2.4 - 4.5 liter IC-engines) in AWD and RWD high-priced Audi and BMW models (5-th and 7-th series X5...). It is an intermediate transmission unit between famous 5HP19 and powerful 5HP30. It had been used since 1995 up to 2005.

Technical issues and repair guidelines

If this transmission is handed in for repair, transmission specialists have to change ATF, replace not only filter and numerous spare parts, but also the input drum of the clutch package A, which has problems with a circlip. In most cases, the input drum of the clutch package A is rebuilt rather than replaced with a new one. The whole kit of frictions is replaced in case of burnt oil.

In terms of design, the whole package A is considered to be a weak spot. The number of friction components and their diameters were increased several times in the process of manufacture, but still this package is the first to get burnt when transmitted torque reaches the maximum.

The second typical problem of this transmission (in addition to the drum A replacement) is the hub bearing (B). Vibrations caused by overloads damage the bearing and then the hub. One of the main causes for this problem is related to fluid shortages. Almost each overhaul (if the overhaul kit is not ordered) involves replacement of seals. Another typical problem for “old” 5HP24 is the one-way clutch F.

Old and overheated cars (older than 10 years) often require replacement of wiring in solenoids.Solenoids are the main spare parts among electrical components of this transmission. The torque converter is a separate issue of automatic transmission.The torque converter is considered to be the soft spot for transmissions of powerful vehicles, but in case with this transmission this problem is especially vivid. The 5HP24 unit is the second transmission among the most frequently repaired ZF transmissions. This transmission is also included in the world top 5 transmissions for overhaul coming after 5L40 and Audi 01P/N/M family.
