RE4F03A/RL4F03A Washer 83254A (3 Tab)
Catalog name:

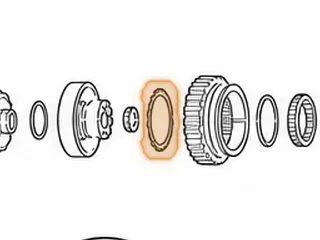

Washer, RL4F03A Rear Ring Gear To Sprag (3 Tab) (2.335”ID)
Part # 83254A
Type:
Gear, ring, sprag, washer
Size:
2.335”ID
Data as of:
2026-10-17
Offers
No offers for this part yet.
Cross-reference numbers
| Number | System | Status |
|---|---|---|
| 83254A | WIT | ✓ catalog |
| 31508-31X07 | OEM | ✓ catalog |
| 99404A | DACCO | ? unverified |
Where it fits
| Diagram | Position | Transmission page |
|---|---|---|
| RE4F03A | 254 | RE4F03A |
| RE4F03V | 254 | — |
| RE4F04A | 254 | RE4F04A |
Other parts in RE4F03A position 254:
- 83254B Washer, RE4F04A/4F20E/JF403E Rear Ring Gear To Sprag (3 Tab) (2.530”ID)
Other parts in RE4F03V position 254:
- 83254B Washer, RE4F04A/4F20E/JF403E Rear Ring Gear To Sprag (3 Tab) (2.530”ID)
Other parts in RE4F04A position 254:
- 83254B Washer, RE4F04A/4F20E/JF403E Rear Ring Gear To Sprag (3 Tab) (2.530”ID)
Before you order
Verify the number before ordering: compare it with the part you have and the transmission model.
