RE4F04A Bearing W/Race 83251BB (.110”Thick)

Catalog name:
Bearing W/Race, RE4F04A/4F20E Rear Planet To Rear Ring Gear (.110”Thick)(2.035”OD) (1.460”ID)(Fits A 5 Gear Rear…
Bearing W/Race, RE4F04A/4F20E Rear Planet To Rear Ring Gear (.110”Thick)(2.035”OD) (1.460”ID)(Fits A 5 Gear Rear… — Part # 83251BB
Part # 83251BB
Type:
Bearing, gear, planet, ring
Transmissions:
LJ4A-EL, RE4F03A, RE4F03B, RE4F03V, RE4F04A, RL4F03V
Size:
.110”Thick; 2.035”OD; 1.460”ID
Data as of:
2026-10-17

Offers

No offers for this part yet.

Request this part Sell this part

Cross-reference numbers

NumberSystemStatus
83251BBWIT✓ catalog

Where it fits

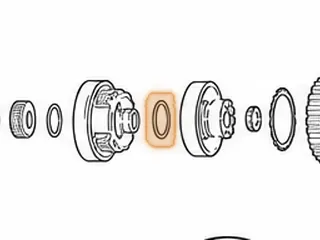

DiagramPositionTransmission page
RE4F03A251RE4F03A
RE4F03V251—
RE4F04A251RE4F04A
Other parts in RE4F03A position 251:
  • 83251A Bearing W/Race, RL4F03A Rear Planet To Rear Ring Gear (1.877”OD)
  • 83251AA Bearing W/Race, RL4F03V Rear Planet To Rear Ring Gear (1.955”OD)
  • 83251BA Bearing W/Race, RE4F04A/4F20E Rear Planet To Rear Ring Gear (.110” Thick)(1.960”OD) (1.380”ID)…
Other parts in RE4F03V position 251:
  • 83251A Bearing W/Race, RL4F03A Rear Planet To Rear Ring Gear (1.877”OD)
  • 83251AA Bearing W/Race, RL4F03V Rear Planet To Rear Ring Gear (1.955”OD)
  • 83251BA Bearing W/Race, RE4F04A/4F20E Rear Planet To Rear Ring Gear (.110” Thick)(1.960”OD) (1.380”ID)…
Other parts in RE4F04A position 251:
  • 83251A Bearing W/Race, RL4F03A Rear Planet To Rear Ring Gear (1.877”OD)
  • 83251AA Bearing W/Race, RL4F03V Rear Planet To Rear Ring Gear (1.955”OD)
  • 83251BA Bearing W/Race, RE4F04A/4F20E Rear Planet To Rear Ring Gear (.110” Thick)(1.960”OD) (1.380”ID)…
Before you order

Verify the number before ordering: compare it with the part you have and the transmission model.
