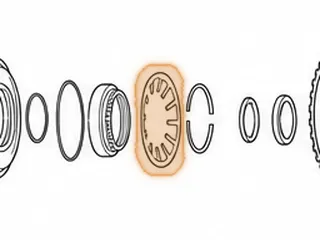

Spring, 6R60 Low/Reverse Clutch Piston Return (.078” Thick) 5.630”OD (12 Fingers) 2006-Up
Part # 49977C
Type:
Clutch, piston, spring
Transmissions:
09E, 6HP26, 6HP28, 6R60, 6R75, 6R80 (2011 - Up)
Years:
2006-Up
Size:
.078” Thick
Data as of:
2026-10-17
Offers
No offers for this part yet.
Cross-reference numbers
| Number | System | Status |
|---|---|---|
| 49977C | WIT | ✓ catalog |
| 6L2Z-7B070-BA | OEM | ✓ catalog |
| 116876A | DACCO | ? unverified |
Where it fits
| Diagram | Position | Transmission page |
|---|---|---|
| 09E | 977 | — |
| 6HP26 | 977 | 6HP26 |
Other parts in 09E position 977:
- 49977A Spring, ZF6HP26 (Ford) Low/Reverse Clutch Piston Return (.062” Thick) 5.700”OD (12 Fingers) 2005-Up
Other parts in 6HP26 position 977:
- 49977A Spring, ZF6HP26 (Ford) Low/Reverse Clutch Piston Return (.062” Thick) 5.700”OD (12 Fingers) 2005-Up
Before you order
Verify the number before ordering: compare it with the part you have and the transmission model.
