Spring, ZF6HP26 (Ford)/6R60 Overdrive Clutch Piston Return (.079” Thick) (4.480”OD) (19 Fingers) 2005-Up
Part # 49970A
Type:
Clutch, piston, spring
Transmissions:
09E, 6HP26, 6HP28, 6R60, 6R75, 6R80 (2011 - Up)
Years:
2005-Up
Size:
.079” Thick; 4.480”OD
Data as of:
2026-10-17
Offers
No offers for this part yet.
Cross-reference numbers
| Number | System | Status |
|---|---|---|
| 6L2Z-7B070-AA | OEM | ✓✓ confirmed by 2 sources |
| 49970A | WIT | ✓ catalog |
| 116872A | DACCO | ? unverified |
| 95970E | Transtar | ? unverified |

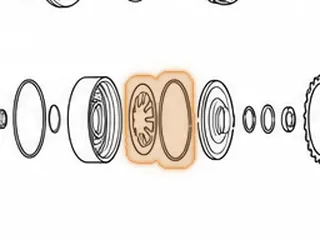

Where it fits
| Diagram | Position | Transmission page |
|---|---|---|
| 09E | 970 | — |
| 6HP26 | 970 | 6HP26 |
Other parts in 09E position 970:
- 49970F Spring, 6R80 Overdrive Clutch Piston Return (.079” Thick)(4.475”OD)(10 Fingers) 2008-Up
Before you order
Verify the number before ordering: compare it with the part you have and the transmission model.
