RE0F08A Primary Pulley Ball Bearing 243235B (Sealed)
Catalog name:
Ball Bearing, RE0F08A(JF009E) Primary Pulley (Sealed) (2.040”OD)(.980”ID)(.545”Thk) (Cast # KOYO 6205-3617B) 2007-Up
Part # 243235B
Type:
Bearing
Transmissions:
JF009E, RE0F08A, RE0F08B
Years:
2007-Up
Size:
2.040”OD; .980”ID; .545”Thk
Data as of:
2026-10-17
Offers
No offers for this part yet.
Cross-reference numbers
| Number | System | Status |
|---|---|---|
| 243235B | WIT | ✓ catalog |
| 6205-3617B | Casting # | ✓ catalog |

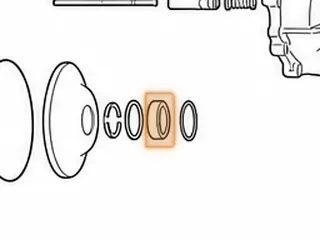

Where it fits
| Diagram | Position | Transmission page |
|---|---|---|
| JF009E | 235 | JF009E |
Other parts in JF009E position 235:
- 243235A Ball Bearing, RE0F08B (JF009E) Primary Pulley (8 Balls)(2.045”OD)(.985”ID)(.547’Thick) (Cast KOYO 6205R-4/185H) 2009-Up
Before you order
Verify the number before ordering: compare it with the part you have and the transmission model.
