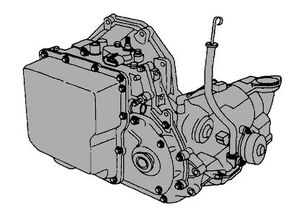

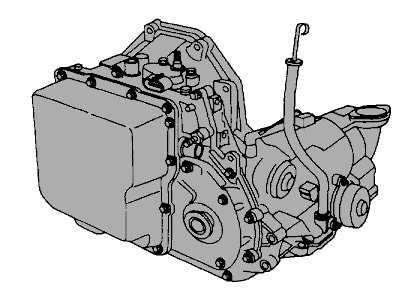

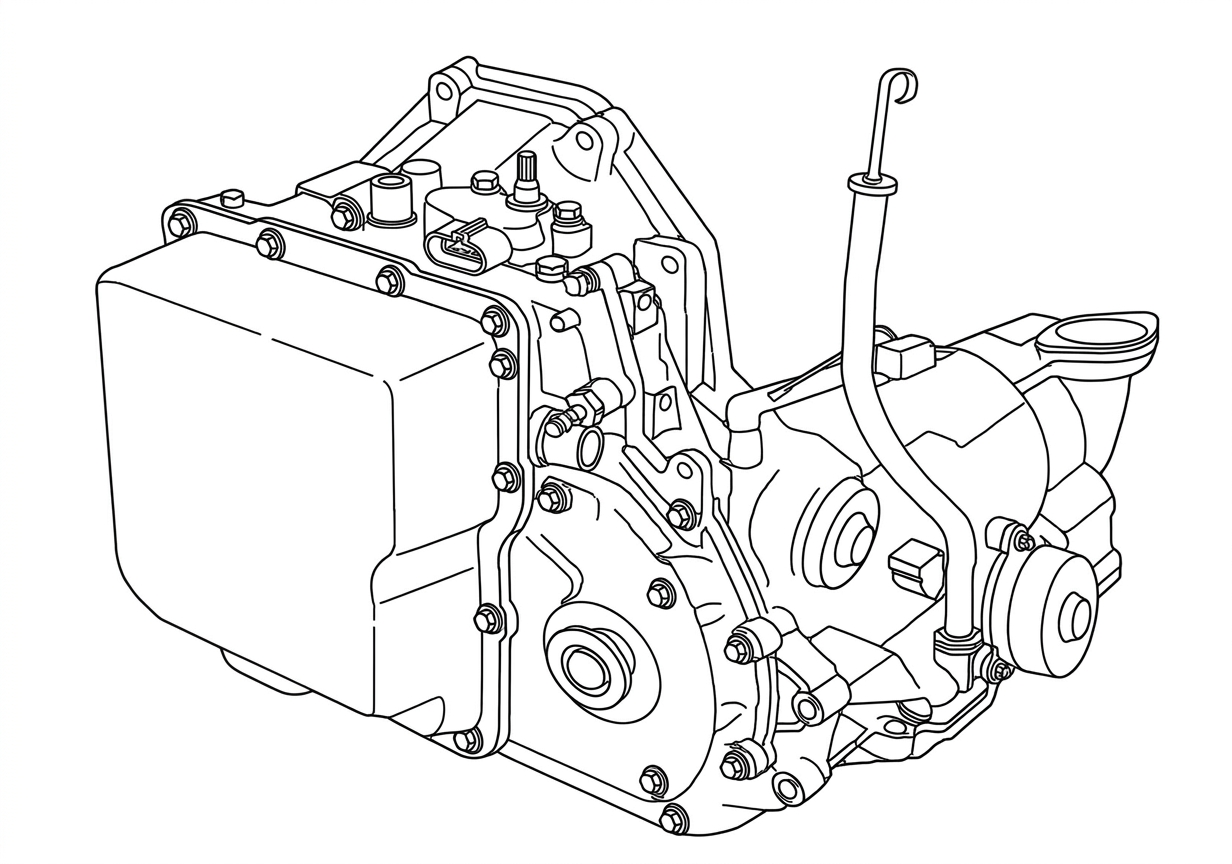

Ford AXOD Transmission

The history of 4-speed FWD AXOD / AXOD-E / AX4S transmission started in 1986 when Crown Victoria was very popular with the engine 4.6 liters and Ford came up with the idea to produce a new bestseller for vehicles of lower class – Ford Taurus with the engine capacity equal to 3.0 liters.

Speeds 4
Type AT
Drive FWD
Max torque 250
ATF capacity (L) 12,2
ATF change (L) 6,6
ATF type Mercon V
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
AXOD
5.3/10
Support & Market Presence Index
Limited presence

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence2.2
Documentation depth10.0
Knowledge & support5.8

Exploded diagram & parts

Full AX4S parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

425 425 · No. 1 431 431 · No. 2 997 997 · No. 3 671 671 · No. 4 279 279 · No. 5 880 880 · No. 6 705 705 · No. 7 673 673 · No. 8 278 278 · No. 9 529/295 529, 295 · No. 10 032 032 · No. 11 301 301 · No. 12 520 520 · No. 13 539 539 · No. 14 538 538 · No. 15 536 536 · No. 16 176 176 · No. 17 313 313 · No. 18 534 534 · No. 19 315 315 · No. 20 535 535 · No. 21 22 22 · No. 22 532/533 532, 533 · No. 23 538 538 · No. 24 420 420 · No. 25 510 510 · No. 26 209 209 · No. 27 544 +2 544, 310A, 310B · No. 28 740 740 · No. 29 741V 741V · No. 30 320 +2 320, 747, 321 · No. 31 895 895 · No. 32 076 076 · No. 33 755/324 755, 324 · No. 34 35 35 · No. 35 996 996 · No. 36 700 700 · No. 37 437 437 · No. 38 420 420 · No. 39 420 420 · No. 40 446 446 · No. 41 347 347 · No. 42 438 438 · No. 43 845 845 · No. 44 706 706 · No. 45 281 281 · No. 46 298 298 · No. 47 713 713 · No. 48 915 915 · No. 49 446 446 · No. 50 214* 214* · No. 51 045 045 · No. 52 219 219 · No. 53 220 220 · No. 54 020 020 · No. 55 038 038 · No. 56 550 550 · No. 57 658 658 · No. 58 658 658 · No. 59 658 658 · No. 60 669 669 · No. 61 229 229 · No. 62 878* 878* · No. 63 148* 148* · No. 64 126/108 126, 108 · No. 65 129 129 · No. 66 877 877 · No. 67 974 974 · No. 68 964 964 · No. 69 333 333 · No. 70 336 336 · No. 71 554 554 · No. 72 044 044 · No. 73 666 666 · No. 74 656 656 · No. 75 575 575 · No. 76 232 232 · No. 77 878* 878* · No. 78 146 146 · No. 79 126/106 126, 106 · No. 80 852 852 · No. 81 879 879 · No. 82 975 975 · No. 83 965 965 · No. 84 332 332 · No. 85 337 337 · No. 86 334 334 · No. 87 334 334 · No. 88 046 046 · No. 89 552 552 · No. 90 332 332 · No. 91 333 333 · No. 92 962 962 · No. 93 972 972 · No. 94 874 874 · No. 95 125 125 · No. 96 126/106 126, 106 · No. 97 144* 144* · No. 98 878* 878* · No. 99 235 235 · No. 100 572 572 · No. 101 235 235 · No. 102 620 620 · No. 103 051 051 · No. 104 556 556 · No. 105 339 339 · No. 106 338 338 · No. 107 966 966 · No. 108 976 976 · No. 109 893 893 · No. 110 854 854 · No. 111 130/110 130, 110 · No. 112 150 150 · No. 113 892* 892* · No. 114 882 882 · No. 115 053 053 · No. 116 237 237 · No. 117 582 582 · No. 118 238 238 · No. 119 058 058 · No. 120 584 584 · No. 121 410 410 · No. 122 927 927 · No. 123 352 352 · No. 124 072 072 · No. 125 774 774 · No. 126 594 594 · No. 127 026 026 · No. 128 061 061 · No. 129 559 559 · No. 130 257 257 · No. 131 890 890 · No. 132 133 133 · No. 133 134 134 · No. 134 724 724 · No. 135 260 260 · No. 136 690 690 · No. 137 678 678 · No. 138 139 139 · No. 139 140 140 · No. 140 141 141 · No. 141 937 937 · No. 142 379 379 · No. 143 144 144 · No. 144 493 493 · No. 145 494 494 · No. 146 952 952 · No. 147 760/906 760, 906 · No. 148 064 064 · No. 149 076 076 · No. 150 056 056 · No. 151 618 618 · No. 152 598 598 · No. 153 715 715 · No. 154 683 683 · No. 155 293* 293* · No. 156 292 292 · No. 157 010 010 · No. 158 159 159 · No. 159 901 901 · No. 160 383 383 · No. 161 383 383 · No. 162 300/765 300, 765 · No. 163 994 994 · No. 164 371 371 · No. 165 902 902 · No. 166 901B 901B · No. 167 903-5 903-5 · No. 168 903-5 903-5 · No. 169 903 903 · No. 170 908 908 · No. 171 172 172 · No. 172 173 173 · No. 173 174 174 · No. 174 175 175 · No. 175 176 176 · No. 176 177 177 · No. 177 904/367 904, 367 · No. 178 903-1 903-1 · No. 179 362 +6 362, 907, 307, 361, 909, 906B, 906-1 · No. 180

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to AXOD in the Go4Trans marketplace.
Sell AXOD parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

15 applications · 3 makes · 1986–2003 Ford 8 · Mercury 4 · Lincoln 3

Make Model Year Drive Engine
Ford Taurus 1999-2003 V6 3.0, 3.2, 3.8L
Ford Taurus 1991-1998 L4, V6 2.5, 3.0, 3.2L
Ford Taurus 1986-1990 L4, V6 2.5, 3.0, 3.8L
Ford Taurus 1986-1990 4 Spd FWD V6 3.0L/3.8L
Ford Taurus 1986-1990 2.5, 3.0, 3.8
Ford Taurus - 1986-1992 4 Spd RWD 6 cyl
Ford Windstar 1999-2003 V6 3.0, 3.8L
Ford Windstar 1995-1998 V6 3.0, 3.8L
Lincoln Continental 1991-1994 V6 3.8L
Lincoln Continental 1988-1990 V6 3.8L
Lincoln Continental 1988-1990 3.8
Mercury Sable 1999-2003 V6 3.0, 3.8L
Mercury Sable 1991-1998 V6 3.0, 3.2, 3.8L
Mercury Sable 1986-1990 L4, V6 2.5,3.0,3.8L
Mercury Sable 1986-1990 2.5, 3.0, 3.8

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

AX0D
AXOD
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

?
1-2 Gear Shift Problems
Transmission exhibits frequent shifting issues between 1st and 2nd gear, a known chronic problem in AXOD/AX4S family.
!
Torque Converter Design Flaw
Inadequate torque converter design causes harsh operating conditions, elevated ATF temperature and accelerated contamina
!
ATF Overheating and Contamination
Transmission operates under harsh thermal conditions leading to burnt ATF, requiring frequent fluid and filter changes.
!
Line Pressure Loss Shaft
Oil pressure losses in the hydraulic line cause damage to the main shaft and associated bushings.
!
Direct and Forward Pack Burn
Direct and Forward clutch packs burn out due to high operational load and thermal stress from overheating ATF.
?
No Forward Gears Condition
AX4S/4F50N may present with complete loss of all forward gears, linked to clutch pack or hydraulic circuit failure.
!
Brake Bands OD and Rear Wear
O.D. and Rear brake bands require replacement on older units or vehicles presenting with burnt ATF at service intake.
?
Short Overhaul Service Life
Transmission has notably short lifespan both before and after overhaul due to fundamental design limitations.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The history of 4-speed FWD AXOD / AXOD-E / AX4S transmission started in 1986 when Crown Victoria was very popular with the engine 4.6 liters and Ford came up with the idea to produce a new bestseller for vehicles of lower class – Ford Taurus with the engine capacity equal to 3.0 liters.

This transmission can be considered as a model emulated by the whole world of automatic transmissions. The transmission identification is specified according to the shape of the oil pan and gaskets. The gasket was covered with rubber in 1999 for the AX4S, but the pan shape was the same.

Technical issues and repair guidelines

This family of automatic transmissions didn’t have a strong reputation among transmission experts. The transmission had a lot of problems with shifting gears 1-2, required frequent ATF changes, and had a short resource before and after the overhaul.

It is assumed that design solutions on the torque converter for this transmission are not good enough. All updates intended for improving the comfort of driving and its cost efficiency led to the following consequences: the transmission started operating under harsh conditions in terms of ATF temperature and its contaminanation.

The overhaul usually consists of transmission reassembly with the repair kit of gaskets and seals "Overhaul kit". “Old” vehicles (and vehicles which get in repair services with burnt oil) require replacement of brake bands O.D. and Rear (for old models). Due to the oil pressure losses in the line, problems occur in the shaft and its bushings. Spare parts of packs Direct and Forward usually get burnt because of high rate of operation. The main problem is related to the transmission design. And it is recommended to solve this problem by installing additional transmission radiator and each year change the ATF and replace the filter.
