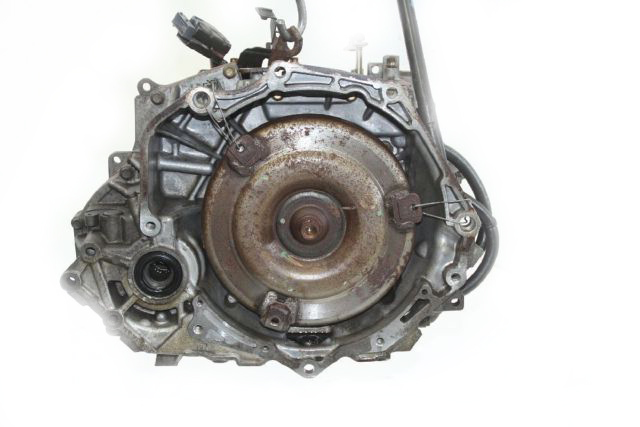

Aisin Warner / General Motors AF13 (AW6040LE) Transmission

The 4-speed automatic transmission AW60-40LE was designed by Aisin Warner in 1995 for FWD vehicles (Suzuki, Opel, Daihatsu, Fiat) equipped with engines up to 1.6 liters. After testing on Suzuki Estima, this transmission was widely installed on numerous models of different brands. According to GM classification AW6040LE is known as AF13.

Speeds 4
Type AT
Drive FWD
Max torque 180
ATF capacity (L) 7,5
ATF change (L) 3,5
ATF type Type T-IV
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
