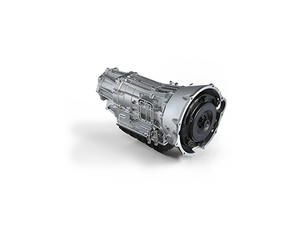

Aisin Warner AS69RC Transmission

AS69RC is a 6-speed A/T produced by Aisin and initially intended for Ram 3500 HD. This gearbox took place of AS68RC in chassis cab modifications for 2013. It transmits the drive torque equal up to 1150 Nm. In terms of design this gearbox resembles AS68RC. AS69RC is large-sized and more reliable than AS68RC and 68RFE. AS69RC has 3 planetary gear sets, 1 overrun clutch, and electronically-controllable gear switching and the converter clutch.

Speeds 6
Type AT
Drive RWD/AWD
Max torque 1150
ATF capacity (L) 13
ATF change (L) 6,8
ATF type Mopar ASRC
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
AS69RC
1.9/10
Support & Market Presence Index
Niche / hard to source

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence1.3
Documentation depth0.0
Knowledge & support2.5

Exploded diagram & parts

Full AS68RC parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

750 750 · No. 1 070 070 · No. 2 034 034 · No. 3 311 311 · No. 4 530 530 · No. 5 530 530 · No. 6 520 520 · No. 7 179/209 179, 209 · No. 8 209 209 · No. 9 310 310 · No. 10 211 211 · No. 11 554 554 · No. 12 228 228 · No. 13 334/335 334, 335 · No. 14 964 964 · No. 15 974 974 · No. 16 128/108 128, 108 · No. 17 148 148 · No. 18 231 +2 231, 232*, 876 · No. 19 233 233 · No. 20 177 177 · No. 21 047/552 047, 552 · No. 22 982 982 · No. 23 874 874 · No. 24 776 776 · No. 25 777 777 · No. 26 778 778 · No. 27 124/104 124, 104 · No. 28 144* 144* · No. 29 572 572 · No. 30 223 223 · No. 31 574 574 · No. 32 884 +2 884, 612, 698 · No. 33 235/883 235, 883 · No. 34 236 236 · No. 35 582 582 · No. 36 237 237 · No. 37 238 238 · No. 38 592 592 · No. 39 239 +2 239, 882, 602 · No. 40 126/106 126, 106 · No. 41 879/337-1 879, 337-1 · No. 42 975 975 · No. 43 965 965 · No. 44 336 336 · No. 45 555/337 555, 337 · No. 46 180 180 · No. 47 229 229 · No. 48 438A 438A · No. 49 441 441 · No. 50 996 996 · No. 51 996 996 · No. 52 783 783 · No. 53 783 783 · No. 54 760 760 · No. 55 330 330 · No. 56 960 960 · No. 57 970/862 970, 862 · No. 58 141 141 · No. 59 120/100 120, 100 · No. 60 140* 140* · No. 61 861 861 · No. 62 885 885 · No. 63 114/134 114, 134 · No. 64 155* 155* · No. 65 039 039 · No. 66 600 600 · No. 67 039 039 · No. 68 590 590 · No. 69 217 217 · No. 70 580/216 580, 216 · No. 71 216 216 · No. 72 218 218 · No. 73 219 219 · No. 74 942 942 · No. 75 941 941 · No. 76 947 947 · No. 77 946 946 · No. 78 932 932 · No. 79 931 931 · No. 80 411 411 · No. 81 411 411 · No. 82 342 342 · No. 83 342 342 · No. 84 072 072 · No. 85 995-4/995-1 995-4, 995-1 · No. 86 995-3 995-3 · No. 87 425 +2 425, 740, 428 · No. 88 991-3 991-3 · No. 89 991-4 991-4 · No. 90 991-8 991-8 · No. 91 610 610 · No. 92 246 246 · No. 93 247 247 · No. 94 058A 058A · No. 95 584 584 · No. 96 058AA 058AA · No. 97 594 594 · No. 98 254/255 254, 255 · No. 99 060 060 · No. 100 604 604 · No. 101 060 060 · No. 102 887/889 887, 889 · No. 103 285/652 285, 652 · No. 104 757/319 757, 319 · No. 105 411 411 · No. 106 423 423 · No. 107 411 411 · No. 108 411 411 · No. 109 413 413 · No. 110 413 413 · No. 111 413 413 · No. 112 410 410 · No. 113 991-2 991-2 · No. 114 072 072 · No. 115 994 994 · No. 116 991-6 991-6 · No. 117 379 379 · No. 118 010 +2 010, 765, 300 · No. 119 120 120 · No. 120 446A 446A · No. 121 256 256 · No. 122 678 678 · No. 123 690 690 · No. 124 268 268 · No. 125 847 847 · No. 126 270*/895 270*, 895 · No. 127 271 271 · No. 128 977 977 · No. 129 338 +2 338, 967, 339 · No. 130 771 771 · No. 131 306 306 · No. 132 770/305 770, 305 · No. 133 894 894 · No. 134 074 074 · No. 135 446B 446B · No. 136 436 436 · No. 137 774 774 · No. 138 841 841 · No. 139 374 374 · No. 140 798 798 · No. 141 750 750 · No. 1 070 070 · No. 2 034 034 · No. 3 311/530 311, 530 · No. 4 530 530 · No. 5 205 205 · No. 6 520 520 · No. 7 179/209 179, 209 · No. 8 211 +2 211, 310, 209 · No. 9 554 554 · No. 10 228 228 · No. 11 334/335 334, 335 · No. 12 964 964 · No. 13 974/984 974, 984 · No. 14 108/128 108, 128 · No. 15 552/233 552, 233 · No. 16 177 177 · No. 17 047 047 · No. 18 047 +2 047, 332, 333 · No. 19 972/962 972, 962 · No. 20 982 982 · No. 21 874 874 · No. 22 776 776 · No. 23 777 777 · No. 24 778 778 · No. 25 124/104 124, 104 · No. 26 144* 144* · No. 27 873 873 · No. 28 221 221 · No. 29 220/221 220, 221 · No. 30 572 572 · No. 31 223 223 · No. 32 574 574 · No. 33 234 234 · No. 34 612 612 · No. 35 883 883 · No. 36 698/884 698, 884 · No. 37 235 235 · No. 38 236 236 · No. 39 237 237 · No. 40 238 238 · No. 41 592 592 · No. 42 602 +2 602, 882, 239 · No. 43 146*/878 146*, 878 · No. 44 126/106 126, 106 · No. 45 985 985 · No. 46 975 975 · No. 47 965 965 · No. 48 336 336 · No. 49 555/337 555, 337 · No. 50 180 180 · No. 51 229 229 · No. 52 53 53 · No. 53 54 54 · No. 54 55 55 · No. 55 996 996 · No. 56 57 57 · No. 57 58 58 · No. 58 59 59 · No. 59 783 783 · No. 60 783 783 · No. 61 996 996 · No. 62 760 760 · No. 63 331/330 331, 330 · No. 64 960 960 · No. 65 970 970 · No. 66 862 862 · No. 67 141* 141* · No. 68 120/100 120, 100 · No. 69 140* 140* · No. 70 861 861 · No. 71 154 154 · No. 72 134/114 134, 114 · No. 73 155* 155* · No. 74 230 230 · No. 75 868 868 · No. 76 039 039 · No. 77 600 600 · No. 78 039 039 · No. 79 590 590 · No. 80 217 217 · No. 81 580/216 580, 216 · No. 82 216 216 · No. 83 218 218 · No. 84 219 219 · No. 85 926 926 · No. 86 927 927 · No. 87 951 951 · No. 88 952 952 · No. 89 438C 438C · No. 90 428425435 428425435 · No. 91 428425435 428425435 · No. 92 422 422 · No. 93 991-8 991-8 · No. 94 991-4 991-4 · No. 95 072 072 · No. 96 995-4/995-1 995-4, 995-1 · No. 97 995-3 995-3 · No. 98 610 610 · No. 99 246 246 · No. 100 247 247 · No. 101 248 248 · No. 102 058A 058A · No. 103 584 584 · No. 104 058AA 058AA · No. 105 594 594 · No. 106 254 254 · No. 107 255 255 · No. 108 604 604 · No. 109 889 889 · No. 110 256 256 · No. 111 690 690 · No. 112 267 267 · No. 113 678 678 · No. 114 268 268 · No. 115 757/319 757, 319 · No. 116 951 951 · No. 117 952 952 · No. 118 119 119 · No. 119 952 +2 952, 421, 740 · No. 120 121 121 · No. 121 122 122 · No. 122 410 410 · No. 123 991-2 991-2 · No. 124 072 072 · No. 125 991-3 991-3 · No. 126 994 994 · No. 127 991-6 991-6 · No. 128 129 129 · No. 129 130 130 · No. 130 379 379 · No. 131 446 446 · No. 132 794 794 · No. 133 010 010 · No. 134 270* 270* · No. 135 895 895 · No. 136 271 271 · No. 137 270* 270* · No. 138 886 886 · No. 139 977 977 · No. 140 967 967 · No. 141 338/339 338, 339 · No. 142 305 305 · No. 143 770 770 · No. 144 765/300 765, 300 · No. 145 436 436 · No. 146 344 344 · No. 147 781 781 · No. 148 149 149 · No. 149

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to AS69RC in the Go4Trans marketplace.
Sell AS69RC parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

3 applications · 1 make · 2013–2019 Dodge 3

Make Model Year Drive Engine
Dodge Truck Ram 3500 1 Ton - Pickup 2013-2019 5.7, 6.7
Dodge Truck Ram 4500HD Pickup 2013-2019 5.7, 6.7
Dodge Truck Ram 5500HD Pickup 2013-2019 5.7, 6.7

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

AS69RC
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

No symptoms recorded yet.

Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

AS69RC is a 6-speed A/T produced by Aisin and initially intended for Ram 3500 HD. This gearbox took place of AS68RC in chassis cab modifications for 2013. It transmits the drive torque equal up to 1150 Nm. In terms of design this gearbox resembles AS68RC. AS69RC is large-sized and more reliable than AS68RC and 68RFE. AS69RC has 3 planetary gear sets, 1 overrun clutch, and electronically-controllable gear switching and the converter clutch.

Technical issues and repair guidelines

Specialists assume that the following service procedures are required for this transmission: change ATF every 30 thousand miles or 2 years, replace gearbox filter every 60 thousand miles or every 4 years. Starting from 2014 the modification AS66RC appeared to replace AS69RC in Dodge Ram trucks.

Sources & Contribution

+ Contribute

This feature is in progress and will be available soon.

Every claim on this page is backed by a structured source record — including community contributions, each with its own reference.

Type
Title
Author
Link
video
Dodge Ram Aisin Seiki AS69RC Six Speed Automatic Transmission Teardown Part 1
