Home / Transmissions / Aisin Warner / AS68RC
Aisin Warner Source-verified model

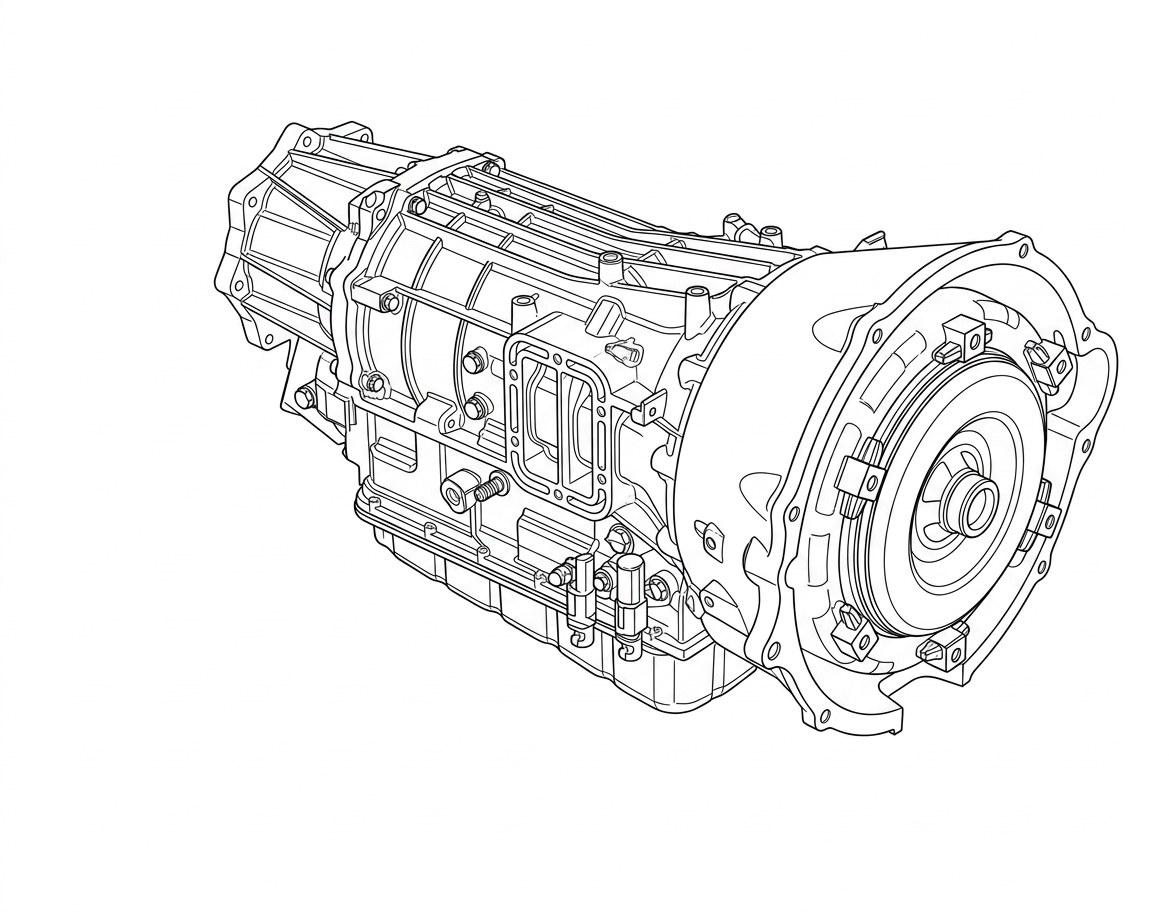

Aisin Warner AS68RC Transmission

Speeds 6
Drive RWD
ATF type MOPAR ASRC / Exxon or Mobil JWS3309
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

AS68RC
0.0/10
Support & Market Presence Index

How widely this transmission is used, documented and supported across the Go4Trans graph.

4resources
Diagram Parts Fitment Aliases Symptoms Related Sources Contribute

Exploded diagram & parts

Full AS68RC parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

750 750 · No. 1 070 070 · No. 2 034 034 · No. 3 311 311 · No. 4 530 530 · No. 5 530 530 · No. 6 520 520 · No. 7 179/209 179, 209 · No. 8 209 209 · No. 9 310 310 · No. 10 211 211 · No. 11 554 554 · No. 12 228 228 · No. 13 334/335 334, 335 · No. 14 964 964 · No. 15 974 974 · No. 16 128/108 128, 108 · No. 17 148 148 · No. 18 231 +2 231, 232*, 876 · No. 19 233 233 · No. 20 177 177 · No. 21 047/552 047, 552 · No. 22 982 982 · No. 23 874 874 · No. 24 776 776 · No. 25 777 777 · No. 26 778 778 · No. 27 124/104 124, 104 · No. 28 144* 144* · No. 29 572 572 · No. 30 223 223 · No. 31 574 574 · No. 32 884 +2 884, 612, 698 · No. 33 235/883 235, 883 · No. 34 236 236 · No. 35 582 582 · No. 36 237 237 · No. 37 238 238 · No. 38 592 592 · No. 39 239 +2 239, 882, 602 · No. 40 126/106 126, 106 · No. 41 879/337-1 879, 337-1 · No. 42 975 975 · No. 43 965 965 · No. 44 336 336 · No. 45 555/337 555, 337 · No. 46 180 180 · No. 47 229 229 · No. 48 438A 438A · No. 49 441 441 · No. 50 996 996 · No. 51 996 996 · No. 52 783 783 · No. 53 783 783 · No. 54 760 760 · No. 55 330 330 · No. 56 960 960 · No. 57 970/862 970, 862 · No. 58 141 141 · No. 59 120/100 120, 100 · No. 60 140* 140* · No. 61 861 861 · No. 62 885 885 · No. 63 114/134 114, 134 · No. 64 155* 155* · No. 65 039 039 · No. 66 600 600 · No. 67 039 039 · No. 68 590 590 · No. 69 217 217 · No. 70 580/216 580, 216 · No. 71 216 216 · No. 72 218 218 · No. 73 219 219 · No. 74 942 942 · No. 75 941 941 · No. 76 947 947 · No. 77 946 946 · No. 78 932 932 · No. 79 931 931 · No. 80 411 411 · No. 81 411 411 · No. 82 342 342 · No. 83 342 342 · No. 84 072 072 · No. 85 995-4/995-1 995-4, 995-1 · No. 86 995-3 995-3 · No. 87 425 +2 425, 740, 428 · No. 88 991-3 991-3 · No. 89 991-4 991-4 · No. 90 991-8 991-8 · No. 91 610 610 · No. 92 246 246 · No. 93 247 247 · No. 94 058A 058A · No. 95 584 584 · No. 96 058AA 058AA · No. 97 594 594 · No. 98 254/255 254, 255 · No. 99 060 060 · No. 100 604 604 · No. 101 060 060 · No. 102 887/889 887, 889 · No. 103 285/652 285, 652 · No. 104 757/319 757, 319 · No. 105 411 411 · No. 106 423 423 · No. 107 411 411 · No. 108 411 411 · No. 109 413 413 · No. 110 413 413 · No. 111 413 413 · No. 112 410 410 · No. 113 991-2 991-2 · No. 114 072 072 · No. 115 994 994 · No. 116 991-6 991-6 · No. 117 379 379 · No. 118 010 +2 010, 765, 300 · No. 119 120 120 · No. 120 446A 446A · No. 121 256 256 · No. 122 678 678 · No. 123 690 690 · No. 124 268 268 · No. 125 847 847 · No. 126 270*/895 270*, 895 · No. 127 271 271 · No. 128 977 977 · No. 129 338 +2 338, 967, 339 · No. 130 771 771 · No. 131 306 306 · No. 132 770/305 770, 305 · No. 133 894 894 · No. 134 074 074 · No. 135 446B 446B · No. 136 436 436 · No. 137 774 774 · No. 138 841 841 · No. 139 374 374 · No. 140 798 798 · No. 141 750 750 · No. 1 070 070 · No. 2 034 034 · No. 3 311/530 311, 530 · No. 4 530 530 · No. 5 205 205 · No. 6 520 520 · No. 7 179/209 179, 209 · No. 8 211 +2 211, 310, 209 · No. 9 554 554 · No. 10 228 228 · No. 11 334/335 334, 335 · No. 12 964 964 · No. 13 974/984 974, 984 · No. 14 108/128 108, 128 · No. 15 552/233 552, 233 · No. 16 177 177 · No. 17 047 047 · No. 18 047 +2 047, 332, 333 · No. 19 972/962 972, 962 · No. 20 982 982 · No. 21 874 874 · No. 22 776 776 · No. 23 777 777 · No. 24 778 778 · No. 25 124/104 124, 104 · No. 26 144* 144* · No. 27 873 873 · No. 28 221 221 · No. 29 220/221 220, 221 · No. 30 572 572 · No. 31 223 223 · No. 32 574 574 · No. 33 234 234 · No. 34 612 612 · No. 35 883 883 · No. 36 698/884 698, 884 · No. 37 235 235 · No. 38 236 236 · No. 39 237 237 · No. 40 238 238 · No. 41 592 592 · No. 42 602 +2 602, 882, 239 · No. 43 146*/878 146*, 878 · No. 44 126/106 126, 106 · No. 45 985 985 · No. 46 975 975 · No. 47 965 965 · No. 48 336 336 · No. 49 555/337 555, 337 · No. 50 180 180 · No. 51 229 229 · No. 52 53 53 · No. 53 54 54 · No. 54 55 55 · No. 55 996 996 · No. 56 57 57 · No. 57 58 58 · No. 58 59 59 · No. 59 783 783 · No. 60 783 783 · No. 61 996 996 · No. 62 760 760 · No. 63 331/330 331, 330 · No. 64 960 960 · No. 65 970 970 · No. 66 862 862 · No. 67 141* 141* · No. 68 120/100 120, 100 · No. 69 140* 140* · No. 70 861 861 · No. 71 154 154 · No. 72 134/114 134, 114 · No. 73 155* 155* · No. 74 230 230 · No. 75 868 868 · No. 76 039 039 · No. 77 600 600 · No. 78 039 039 · No. 79 590 590 · No. 80 217 217 · No. 81 580/216 580, 216 · No. 82 216 216 · No. 83 218 218 · No. 84 219 219 · No. 85 926 926 · No. 86 927 927 · No. 87 951 951 · No. 88 952 952 · No. 89 438C 438C · No. 90 428425435 428425435 · No. 91 428425435 428425435 · No. 92 422 422 · No. 93 991-8 991-8 · No. 94 991-4 991-4 · No. 95 072 072 · No. 96 995-4/995-1 995-4, 995-1 · No. 97 995-3 995-3 · No. 98 610 610 · No. 99 246 246 · No. 100 247 247 · No. 101 248 248 · No. 102 058A 058A · No. 103 584 584 · No. 104 058AA 058AA · No. 105 594 594 · No. 106 254 254 · No. 107 255 255 · No. 108 604 604 · No. 109 889 889 · No. 110 256 256 · No. 111 690 690 · No. 112 267 267 · No. 113 678 678 · No. 114 268 268 · No. 115 757/319 757, 319 · No. 116 951 951 · No. 117 952 952 · No. 118 119 119 · No. 119 952 +2 952, 421, 740 · No. 120 121 121 · No. 121 122 122 · No. 122 410 410 · No. 123 991-2 991-2 · No. 124 072 072 · No. 125 991-3 991-3 · No. 126 994 994 · No. 127 991-6 991-6 · No. 128 129 129 · No. 129 130 130 · No. 130 379 379 · No. 131 446 446 · No. 132 794 794 · No. 133 010 010 · No. 134 270* 270* · No. 135 895 895 · No. 136 271 271 · No. 137 270* 270* · No. 138 886 886 · No. 139 977 977 · No. 140 967 967 · No. 141 338/339 338, 339 · No. 142 305 305 · No. 143 770 770 · No. 144 765/300 765, 300 · No. 145 436 436 · No. 146 344 344 · No. 147 781 781 · No. 148 149 149 · No. 149

Parts categories

View all parts →
Kits
Kits
28 parts
Valve body & solenoids
Valve body & solenoids
9 parts
Electrical
Electrical
11 parts
Filters & pans
Filters & pans
5 parts
Seals & gaskets
Seals & gaskets
15 parts
Bushings, bearings & thrust
Bushings, bearings & thrust
40 parts
Pump
Pump
7 parts
Friction & steel
Friction & steel
59 parts
Planetary & hard parts
Planetary & hard parts
40 parts
Hardware & other
Hardware & other
48 parts
Sell AS68RC parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

10 applications · 4 makes · 2005–2015 Dodge 4 · GMC 3 · Isuzu 2 · Mitsubishi 1

Make Model Year Drive Engine
Dodge Truck Ram 3500 1 Ton - Pickup 2007-2010 6.7
Dodge Truck Ram 3500HD 1 Ton - Pickup 2007-2015 6.7
Dodge Truck Ram 4500HD Pickup 2008-2012 6.7
Dodge Truck Ram 5500HD Pickup 2007-2012 6.7
GMC Truck W3500 1 Ton Tilt Cab 2006-2011 5.2
GMC Truck W4500 1 1/2 Ton Tilt Cab 2006-2011 5.2
GMC Truck W5500 2 Ton Tilt Cab 2006-2011 5.2
Isuzu NPR / HD / NQR / NRR Tilt Cab 2006-2015 3.0, 5.2
Isuzu Reach Van 2011-2015 2.0, 3.0
Mitsubishi Fuso FE 2005-2011 2.0, 4.9

Other and alternative codes of this transmission

＋ Contribute

This feature is in progress and will be available soon.

No aliases recorded yet — be the first to contribute one. Contribute →

verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

?
Burnt clutches from engine tuning
Aftermarket diesel power upgrades can exceed the transmission's torque capacity, freezing the shift adapts and repeatedly burning up the clutches.
!
Valve body seizure / crossleak
Accumulators and plungers in the valve body seize or crossleak over time, and blown valve body gaskets are a frequent cause of pressure-switch fault codes.
!
Internal wiring harness insulation cracking
The internal TCM-to-transmission wiring harness is prone to brittle, cracking insulation ('paperclip effect'), causing erratic PIDs and repeated, seemingly random trouble codes.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

Sources & Contribution

＋ Contribute

This feature is in progress and will be available soon.

Every claim on this page is backed by a structured source record — including community contributions, each with its own reference.

Type
Title
Author
Link
manual
AS68RC TechGuide_Download - ATSG Bookstore
—
View →
manual
ATSG Tech Manual AS68RC AS69RC A460 A465 M036A6 6 Speed
—
View →
other
Conquering the Ghosts of an AS68RC (GEARS Magazine)
—
View →
link
Aisin Seiki AS68RC Valve Body Layout (Sonnax)
—
View →
