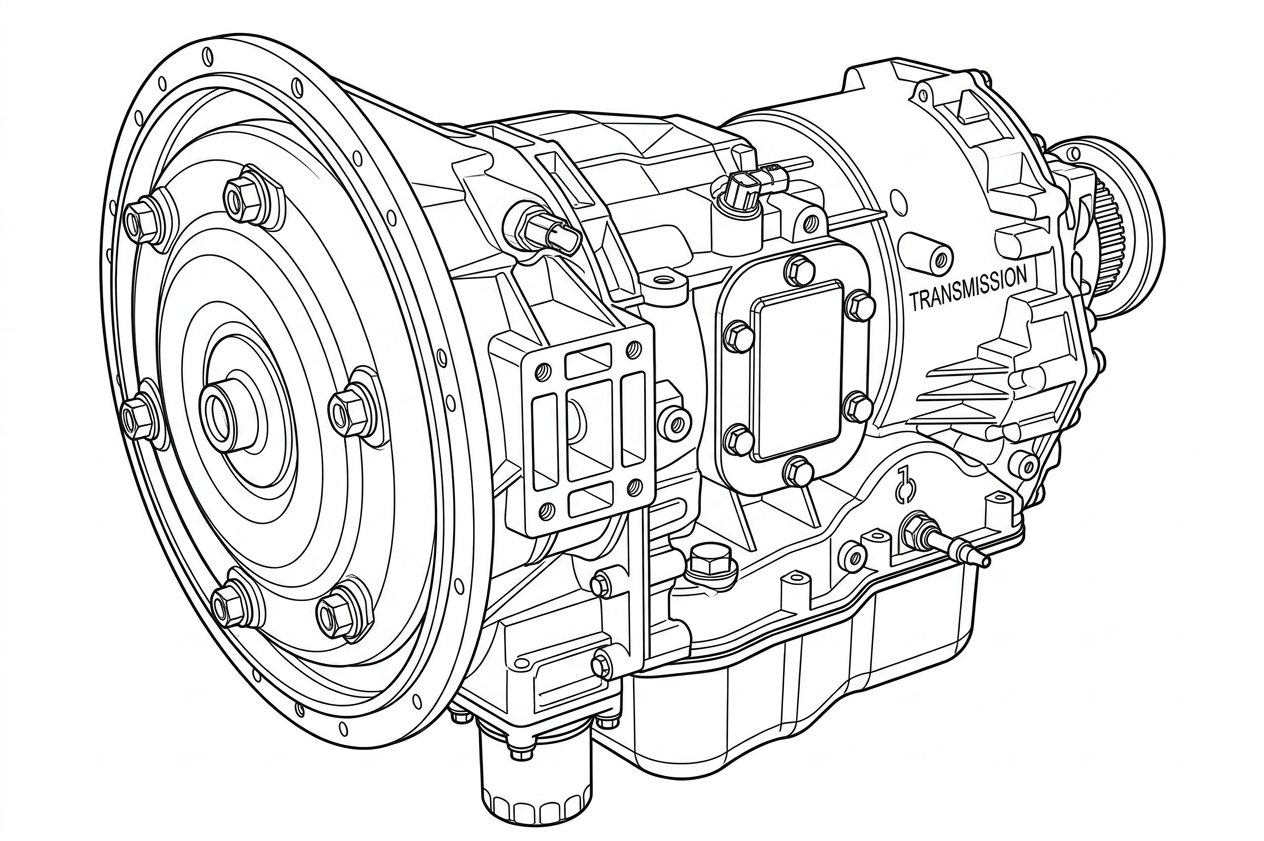

Allison Transmission Allison 2000 Transmission

The Allison 2000 series includes modifications 2100, 2200 and 2300. This type of transmission was designed for light commercial vehicles operating in sectors of transportation and public transport. These transmissions are equipped with a turbine-driven power take-off mechanism with the N-locking option, and with a parking brake. Transmissions of 2000 series may have up to 6 gears, including overdrive, and be equipped with an advanced electronic control system of the 5-th generation, which provides more efficient operation and more diagnostic capabilities. These transmissions are reliable and…

Speeds 5
Type AT
Max torque 841
ATF capacity (L) 14
ATF change (L) 10
ATF type Allison TES 295
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
Allison 2000
7.9/10
Support & Market Presence Index
Well covered

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence8.5
Documentation depth10.0
Knowledge & support4.0

Exploded diagram & parts

Full 1000 parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

777 777 · No. 1 309 309 · No. 2 750 750 · No. 3 311 311 · No. 4 070 070 · No. 5 034 034 · No. 6 530 530 · No. 7 530 530 · No. 8 544 544 · No. 9 318 318 · No. 10 764 764 · No. 11 324 324 · No. 12 036 036 · No. 13 178 178 · No. 14 178 178 · No. 15 16 16 · No. 16 179 179 · No. 17 778 778 · No. 18 209 209 · No. 19 211 211 · No. 20 670 670 · No. 21 047 047 · No. 22 048 048 · No. 23 554 554 · No. 24 880 880 · No. 25 330/331 330, 331 · No. 26 960 960 · No. 27 333 333 · No. 28 970 970 · No. 29 839 839 · No. 30 013 013 · No. 31 960B 960B · No. 32 332 332 · No. 33 963 963 · No. 34 862 862 · No. 35 861 861 · No. 36 335 335 · No. 37 964 964 · No. 38 334 334 · No. 39 974 974 · No. 40 877 877 · No. 41 964B 964B · No. 42 875 875 · No. 43 128/108 128, 108 · No. 44 148* 148* · No. 45 876 876 · No. 46 879 879 · No. 47 232 232 · No. 48 574 574 · No. 49 235 235 · No. 50 120/100 120, 100 · No. 51 570 570 · No. 52 220 220 · No. 53 610 610 · No. 54 216 216 · No. 55 861 861 · No. 56 140 140 · No. 57 861 861 · No. 58 878 878 · No. 59 147 147 · No. 60 126/106 126, 106 · No. 61 972 972 · No. 62 972 972 · No. 63 127 127 · No. 64 962 962 · No. 65 972 972 · No. 66 319/757 319, 757 · No. 67 760 760 · No. 68 962 962 · No. 69 125 125 · No. 70 972 972 · No. 71 972 972 · No. 72 124/104 124, 104 · No. 73 144 144 · No. 74 873 873 · No. 75 892 892 · No. 76 154 154 · No. 77 134*/114 134*, 114 · No. 78 976 976 · No. 79 590 590 · No. 80 217 217 · No. 81 580 580 · No. 82 882 882 · No. 83 244/592 244, 592 · No. 84 582 582 · No. 85 889 889 · No. 86 594 594 · No. 87 238 238 · No. 88 674 674 · No. 89 972 972 · No. 90 319/757 319, 757 · No. 91 842 842 · No. 92 419 419 · No. 93 370 370 · No. 94 842 842 · No. 95 438 438 · No. 96 370 370 · No. 97 842 842 · No. 98 436 436 · No. 99 370 370 · No. 100 101 101 · No. 101 740 740 · No. 102 422 422 · No. 103 423 423 · No. 104 431 431 · No. 105 435 435 · No. 106 494 494 · No. 107 379 379 · No. 108 741-1 741-1 · No. 109 927 927 · No. 110 111 111 · No. 111 843 843 · No. 112 425/843 425, 843 · No. 113 843 843 · No. 114 421 421 · No. 115 843 843 · No. 116 612 612 · No. 117 619 619 · No. 118 614 614 · No. 119 247 247 · No. 120 062 062 · No. 121 678 678 · No. 122 584 584 · No. 123 893 893 · No. 124 845 +2 845, 268, 255* · No. 125 338/339 338, 339 · No. 126 966 966 · No. 127 770/305 770, 305 · No. 128 M301317B M301317B · No. 129 839 839 · No. 130 010 010 · No. 131 926 926 · No. 132 929 929 · No. 133 134 134 · No. 134 799/991-3 799, 991-3 · No. 135 371 371 · No. 136 300/765 300, 765 · No. 137 442 442 · No. 138 999 999 · No. 139 410 410 · No. 140 072 072 · No. 141 991-4 991-4 · No. 142 991-2 991-2 · No. 143 991-6 991-6 · No. 144 995-1 995-1 · No. 145 995-2 995-2 · No. 146 995-3 995-3 · No. 147 272 272 · No. 148 895 895 · No. 149 798 798 · No. 150 074 074 · No. 151 841 841 · No. 152 287 287 · No. 153 798 798 · No. 154 779 779 · No. 155

Parts categories

View all parts →
Sell Allison 2000 parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

81 applications · 4 makes · 1997–2015 Chevrolet 39 · GMC 33 · Isuzu 7 · Mitsubishi 2

Make Model Year Drive Engine
Chevrolet Truck C4500 1 1/2 Ton Truck 2009-2015 6.6, 8.1
Chevrolet Truck C4500 1 1/2 Ton Truck 2006-2009 6.6, 8.1
Chevrolet Truck C4500 1 1/2 Ton Truck 2003-2005 6.6, 8.1
Chevrolet Truck C5500 2 Ton Truck 2009-2015 6.0, 6.6, 7.0, 7.4, 8.1
Chevrolet Truck C5500 2 Ton Truck 2006-2009 6.0, 6.6, 7.0, 7.4, 8.1
Chevrolet Truck C5500 2 Ton Truck 2001-2005 6.0, 6.6, 7.0, 7.4, 8.1
Chevrolet Truck C6500 2009-2015 7.2, 7.8, 8.1
Chevrolet Truck C6500 2006-2009 7.2, 7.8, 8.1
Chevrolet Truck C6500 1997-2005 6.0, 6.6, 7.0, 7.2, 7.4, 7.8, 8.1
Chevrolet Truck C7500 2009-2015 7.2, 7.8, 8.1
Chevrolet Truck C7500 2006-2009 7.2, 7.8, 8.1
Chevrolet Truck C7500 1997-2005 6.0, 6.6, 7.0, 7.2, 7.4, 7.8, 8.1
Chevrolet Truck C8500 2009-2015 7.2, 7.8, 8.1
Chevrolet Truck C8500 2006-2009 7.2, 7.8, 8.1
Chevrolet Truck C8500 2003-2005 7.2, 7.8, 8.1
Chevrolet Truck Express G2500 3/4 Ton - Van 2007-2010 4.8, 6.0, 6.6
Chevrolet Truck Express G3500 1 Ton - Van 2007-2010 4.8, 6.0, 6.6
Chevrolet Truck Kodiak 2006-2009 6.6, 8.1
Chevrolet Truck Silverado 1500 1/2 Ton 4WD - Pickup 2006-2011 6.6
Chevrolet Truck Silverado 2500HD 3/4 Ton - Pickup 2007-2015 6.6
Chevrolet Truck Silverado 2500HD 3/4 Ton - Pickup 2001-2005 6.6, 8.1
Chevrolet Truck Silverado 2500HD Classic 3/4 Ton - Pickup 2007 6.0, 6.6, 8.1
Chevrolet Truck Silverado 3500 1 Ton - Pickup 2006-2011 6.6
Chevrolet Truck Silverado 3500 1 Ton - Pickup 2001-2006 8.1
Chevrolet Truck Silverado 3500HD 1 Ton - Pickup 2007-2015 6.6
Chevrolet Truck Silverado 3500HD 1 Ton - Pickup 2007-2009 6.0, 6.6, 8.1
Chevrolet Truck T6500 Tilt Cab 2006-2009 7.8
Chevrolet Truck T6500 Tilt Cab 2002-2005 6.0, 6.6, 7.2, 7.4, 7.8
Chevrolet Truck T7500 Tilt Cab 2006-2009 7.8
Chevrolet Truck T7500 Tilt Cab 2002-2005 6.0, 6.6, 7.2, 7.4, 7.8
Chevrolet Truck T8500 Tilt Cab 2006-2009 7.8
Chevrolet Truck T8500 Tilt Cab 2002-2005 6.0, 6.6, 7.2, 7.4, 7.8
Chevrolet Truck W3500 1 Ton Tilt Cab 2006-2009 4.8, 5.2, 5.7, 6.0
Chevrolet Truck W3500 1 Ton Tilt Cab 2002-2005 4.8, 5.2, 5.7, 6.0
Chevrolet Truck W4500 1 1/2 Ton Tilt Cab 2006-2009 5.2, 6.0
Chevrolet Truck W4500 1 1/2 Ton Tilt Cab 2002-2005 4.8, 5.2, 5.7, 6.0
Chevrolet Truck W5500 2 Ton Tilt Cab 2006-2009 5.2
Chevrolet Truck W5500 2 Ton Tilt Cab 2002-2005 4.8, 5.2, 7.1, 7.8
Chevrolet Truck W5500HD 2 Ton Tilt Cab 2006-2007 5.2
GMC Truck C4500 1 1/2 Ton Truck 2005-2009 6.6, 8.1
GMC Truck C5500 2 Ton Truck 2006-2009 6.6, 8.1
GMC Truck C5500 2 Ton Truck 2002-2005 6.6, 8.1
GMC Truck C6500 2006-2009 7.2, 7.8, 8.1
GMC Truck C6500 2002-2005 7.2, 7.8, 8.1
GMC Truck C7500 2006-2009 7.2, 7.8, 8.1
GMC Truck C7500 2002-2005 6.0, 7.0, 7.2, 7.4, 7.8, 8.1
GMC Truck C8500 2006-2009 7.2, 7.8, 8.1
GMC Truck Savana G3500 1 Ton - Van 2006-2009 4.8, 6.0
GMC Truck Savana G3500 1 Ton - Van 2002-2005 4.3, 4.8, 5.7, 6.0, 6.5, 7.4, 8.1
GMC Truck Sierra 2500 3/4 Ton 2WD - Pickup 2006-2011 6.6
GMC Truck Sierra 2500HD 3/4 Ton - Pickup 2007-2015 6.6
GMC Truck Sierra 2500HD 3/4 Ton - Pickup 2006-2009 6.0, 6.6, 8.1
GMC Truck Sierra 2500HD 3/4 Ton - Pickup 2001-2005 6.0, 6.6, 8.1
GMC Truck Sierra 3500 1 Ton - Pickup 2006-2011 6.6
GMC Truck Sierra 3500HD 1 Ton - Pickup 2007-2015 6.6
GMC Truck Sierra 3500HD 1 Ton - Pickup 2007-2009 6.0, 6.6
GMC Truck T6500 Tilt Cab 2006-2009 7.8
GMC Truck T6500 Tilt Cab 2002-2005 6.0, 6.6, 7.2, 7.8
GMC Truck T7500 Tilt Cab 2006-2009 7.8
GMC Truck T7500 Tilt Cab 2002-2005 7.8
GMC Truck T8500 Tilt Cab 2006-2009 7.8
GMC Truck T8500 Tilt Cab 2002-2005 7.8
GMC Truck Topkick 2006-2009 6.6, 8.1
GMC Truck W3500 1 Ton Tilt Cab 2006-2009 5.2, 6.0
GMC Truck W3500 1 Ton Tilt Cab 2002-2005 5.2, 6.0
GMC Truck W4500 1 1/2 Ton Tilt Cab 2006-2009 5.2, 6.0
GMC Truck W4500 1 1/2 Ton Tilt Cab 2002-2005 5.7, 4.8, 3.0, 5.2, 6.0
GMC Truck W5500 2 Ton Tilt Cab 2006-2009 5.2
GMC Truck W5500 2 Ton Tilt Cab 2002-2005 5.2
GMC Truck W5500HD 2 Ton Tilt Cab 2005-2009 5.2
GMC Truck Yukon XL 3/4 Ton 2006-2009 6.0, 8.1
GMC Truck Yukon XL 3/4 Ton 2003-2005 6.0, 8.1
Isuzu FTR / FVR Tilt Cab 2006-2010 7.8
Isuzu FTR / FVR Tilt Cab 2002-2005 7.8
Isuzu FXR 2006-2010 7.8
Isuzu FXR 2005-2010 7.8
Isuzu HTR 2005-2008 7.8
Isuzu HVR 2005-2008 7.8
Isuzu HVR / HXR 2005-2008 7.8
Mitsubishi Fuso FK 2005-2011 7.5
Mitsubishi Fuso FM 2005-2007 7.5

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

2000
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
E-shift Valve Sticking
Valve sticks in valve body; TCM detects no pressure sensor status change, triggers failsafe mode.
?
Trouble Code P0872 Set
TCM sets P0872 when E-shift valve sticks and pressure sensor fails to change state.
!
F-trim Valve Sleeve Wear
Inner diameter of F-trim sleeve wears out, causing torque converter clutch surge and slippage.
?
Trouble Code P0741 Set
P0741 indicates torque converter clutch slipping due to worn F-trim valve sleeve inside diameter.
?
Torque Converter Overheating ATF
When lock-up fails and P0741 sets, torque converter overheats ATF causing converter damage and fluid deterioration.
!
Heat Exchanger Cooling Failure
Cooling system and heat exchanger identified as primary failure source; designers reportedly limited transmission lifesp
!
Warped Valve Body Castings
No separator plate gaskets; warped castings cause cross-leakage between valve body halves.
!
Power Take-off Equipment Failure
Auxiliary PTO equipment and torque dividers are among the main reported repair problems on Allison 2000 series.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The Allison 2000 series includes modifications 2100, 2200 and 2300. This type of transmission was designed for light commercial vehicles operating in sectors of transportation and public transport. These transmissions are equipped with a turbine-driven power take-off mechanism with the N-locking option, and with a parking brake. Transmissions of 2000 series may have up to 6 gears, including overdrive, and be equipped with an advanced electronic control system of the 5-th generation, which provides more efficient operation and more diagnostic capabilities. These transmissions are reliable and highly efficient and can transmit power equal up to 224 kW ( 300 HP) in modifications with narrow or wide ratio coverage. As a rule these transmissions are used for commercial vans, drop-side trucks with a manipulator and all kinds of special equipment with a load capacity up to 13.6 tons ( 3000 lb). These transmissions are installed on almost all brands of trucks, buses produced in Europe (except MAN), Korea, and China. The instantaneous connection between the engine and the gearbox ensure precise modes of operation regardless of the cargo condition and the road quality.

Accurate gear shifting without interruptions of power ensures the best speed characteristics and fuel economy. Fully automatic transmission allows the driver to pay more attention the driving process that is more important in difficult and tedious road conditions. The transmission electronics can be programmed to prohibit the vehicle movement when the auxiliary equipment is used. Consequently, the auxiliary equipment will be inaccessible when the vehicle moves. This feature provides additional security in operation.

Technical issues and repair guidelines

The main repair problems are related to the auxiliary power take-off equipment, torque dividers, and the main one – the cooling process or heat exchanger. Designers of these transmissions quite consciously reduced the transmission resource by means of cooling.

There are 3 main problems related to valve bodies of Allison 1000/2000/2400:

1.Sticking E-shift. When the valve sticks TCM detects that the pressure sensor doesn’t change the status and sets the trouble code P0872- after that the gearbox switches to the failsafe mode.

2.F-trim valve sleeve. The inside diameter of the sleeve wears out, leading to the torque converter clutch surge and trouble code P0741 – indicating the torque converter clutch slipping. . When lock-up stops operating and the P0741 code sets, the torque converter can overheat the ATF, causing damage to the torque converter and rapid deterioration of the ATF.

3. Warped castings. Valve bodies for these transmissions do not have separator plate gaskets, therefore it is required that two halves of the valve body should be flat sanded for protection from cross leakages. In this case locating pins should be removed to flat sand the valve body.
