Toyota AB60F Transmission

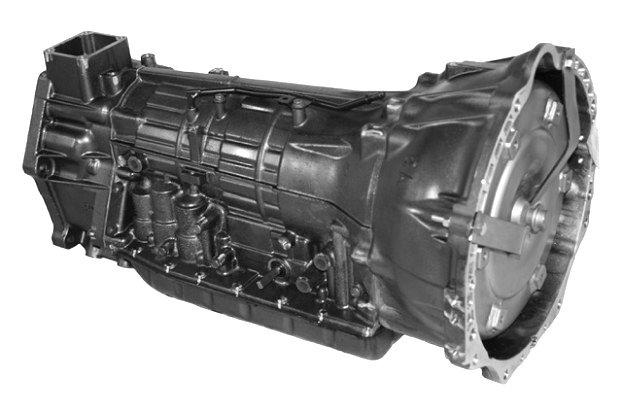

The 6-speed automatic transmission AB60F (-E – for rear drive) or AS68RC for Dodge RAM of the class extra heavy duty, Aisin name TB-68LS. This transmission was produced by Aisin Co since October of 2007 and paired with the engine V8 (5.7 liters) for 4WD SUVs such as Land Cruiser, Tundra, Sequoia, Lexus LX570.

Speeds 6
Type AT
Drive RWD/AWD
Max torque 680
ATF capacity (L) 11,8
ATF change (L) 4,6
ATF type Toyota WS
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
AB60F
5.2/10
Support & Market Presence Index
Limited presence

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence1.8
Documentation depth10.0
Knowledge & support6.5

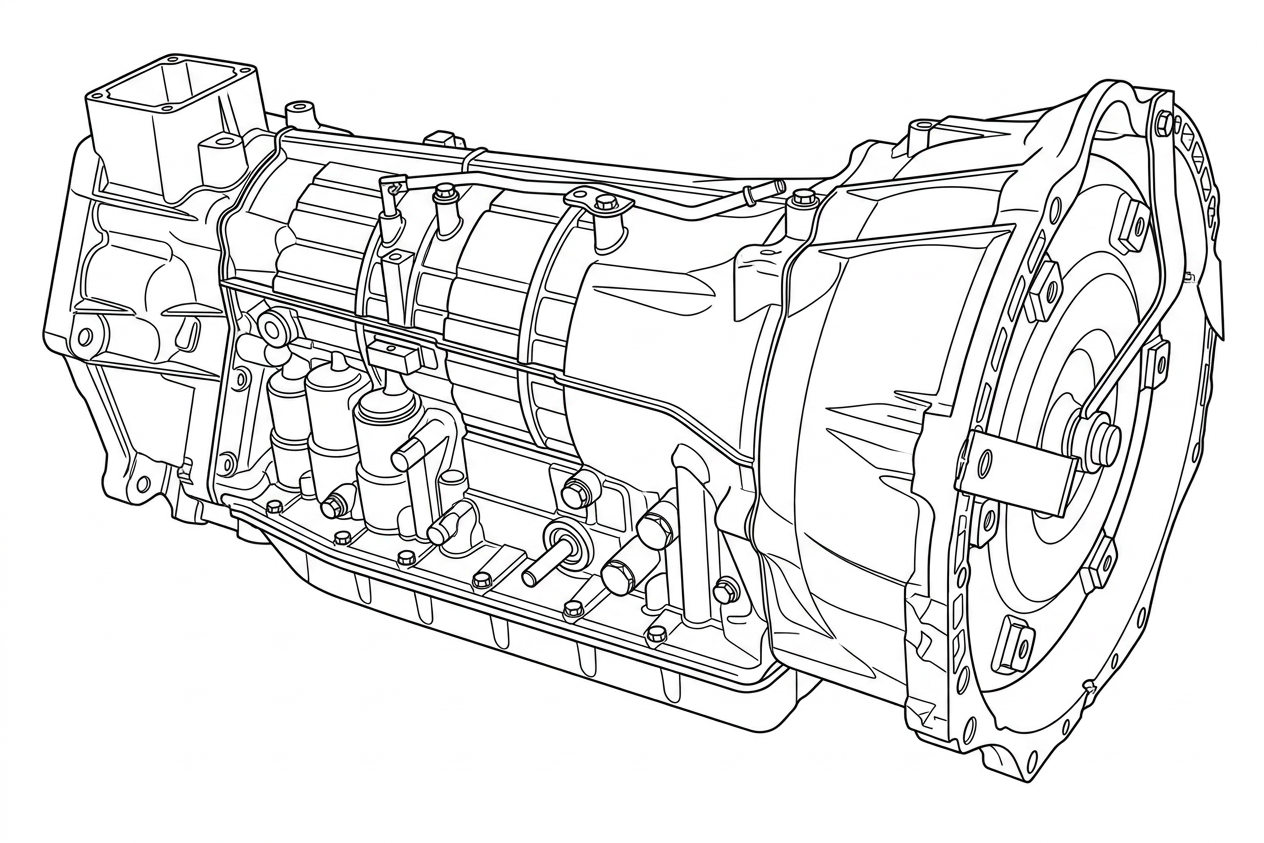

Exploded diagram & parts

Full AB60E parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

776 776 · No. 1 179 179 · No. 2 177 177 · No. 3 750 750 · No. 4 070 070 · No. 5 034 034 · No. 6 311 311 · No. 7 530 530 · No. 8 530 530 · No. 9 520 520 · No. 10 310 310 · No. 11 210 210 · No. 12 211 211 · No. 13 893 893 · No. 14 957 957 · No. 15 976 976 · No. 16 339-1 339-1 · No. 17 966 966 · No. 18 339 339 · No. 19 219 219 · No. 20 338 338 · No. 21 555 555 · No. 22 336 336 · No. 23 965 965 · No. 24 975 975 · No. 25 985 985 · No. 26 879 879 · No. 27 126/106 126, 106 · No. 28 146 146 · No. 29 878 878 · No. 30 878 878 · No. 31 228 228 · No. 32 229 229 · No. 33 554 554 · No. 34 048 048 · No. 35 777 777 · No. 36 778 778 · No. 37 559 559 · No. 38 964 964 · No. 39 974 974 · No. 40 335-1 335-1 · No. 41 984 984 · No. 42 877 877 · No. 43 122/102 122, 102 · No. 44 142 142 · No. 45 864 864 · No. 46 129 129 · No. 47 128/108 128, 108 · No. 48 148 148 · No. 49 876 876 · No. 50 232 232 · No. 51 233 233 · No. 52 571 571 · No. 53 283 283 · No. 54 886 886 · No. 55 650-1 650-1 · No. 56 650 650 · No. 57 650-1 650-1 · No. 58 886 886 · No. 59 661 661 · No. 60 234 234 · No. 61 235 235 · No. 62 051 051 · No. 63 575 575 · No. 64 051 051 · No. 65 244 244 · No. 66 052 052 · No. 67 576 576 · No. 68 052-1 052-1 · No. 69 130 +2 130, 110, 150 · No. 70 854 854 · No. 71 549 549 · No. 72 891 891 · No. 73 245 245 · No. 74 285 285 · No. 75 663 663 · No. 76 652-1 652-1 · No. 77 652 652 · No. 78 652-1 652-1 · No. 79 652-1/888 652-1, 888 · No. 80 998 998 · No. 81 247 247 · No. 82 872 872 · No. 83 144 144 · No. 84 124/104 124, 104 · No. 85 145 145 · No. 86 873 873 · No. 87 883 883 · No. 88 972 972 · No. 89 332/962 332, 962 · No. 90 333/632 333, 632 · No. 91 887 887 · No. 92 665 665 · No. 93 654-1 654-1 · No. 94 654 654 · No. 95 654-1 654-1 · No. 96 887 887 · No. 97 249 249 · No. 98 998-1 998-1 · No. 99 438 438 · No. 100 490 490 · No. 101 884 884 · No. 102 977 977 · No. 103 967 967 · No. 104 328 +2 328, 329-1, 329 · No. 105 262 262 · No. 106 760 760 · No. 107 263 263 · No. 108 264 264 · No. 109 265 265 · No. 110 897 897 · No. 111 698/897 698, 897 · No. 112 770 770 · No. 113 770-1 770-1 · No. 114 066 066 · No. 115 074 074 · No. 116 579 579 · No. 117 053 053 · No. 118 582 582 · No. 119 612 612 · No. 120 238 238 · No. 121 240 240 · No. 122 241 241 · No. 123 867/592 867, 592 · No. 124 602 602 · No. 125 050 050 · No. 126 590 590 · No. 127 215/868 215, 868 · No. 128 216 216 · No. 129 580 580 · No. 130 610 610 · No. 131 112 +2 112, 132, 152 · No. 132 871/979 871, 979 · No. 133 340/969 340, 969 · No. 134 135 135 · No. 135 136 136 · No. 136 137 137 · No. 137 138 138 · No. 138 446 446 · No. 139 140 140 · No. 140 141 141 · No. 141 142 142 · No. 142 143 143 · No. 143 144 144 · No. 144 145 145 · No. 145 146 146 · No. 146 147 147 · No. 147 148 148 · No. 148 149 149 · No. 149 150 150 · No. 150 446-1 446-1 · No. 151 072 072 · No. 152 410 410 · No. 153 207 207 · No. 154 797-1 797-1 · No. 155 992 992 · No. 156 797 797 · No. 157 341 341 · No. 158 547 547 · No. 159 861 861 · No. 160 140 140 · No. 161 120/100 120, 100 · No. 162 970 970 · No. 163 330 330 · No. 164 960 960 · No. 165 331 331 · No. 166 545 545 · No. 167 890 890 · No. 168 885 885 · No. 169 669 669 · No. 170 658-1 658-1 · No. 171 658 658 · No. 172 658-1 658-1 · No. 173 284 284 · No. 174 668 668 · No. 175 761P 761P · No. 176 072 072 · No. 177 991-3 991-3 · No. 178 991-8 991-8 · No. 179 991-4 991-4 · No. 180 994 994 · No. 181 995-1 995-1 · No. 182 995-6 995-6 · No. 183 995-3 995-3 · No. 184 995-4 995-4 · No. 185 638 638 · No. 186 187 187 · No. 187 188 188 · No. 188 927 927 · No. 189 428 428 · No. 190 453 453 · No. 191 421/426 421, 426 · No. 192 421 421 · No. 193 440 440 · No. 194 422 422 · No. 195 423 423 · No. 196 379 379 · No. 197 010 010 · No. 198 889 889 · No. 199 252 252 · No. 200 604 604 · No. 201 252 252 · No. 202 594 594 · No. 203 154 154 · No. 204 134/114 134, 114 · No. 205 135 135 · No. 206 253 253 · No. 207 254 254 · No. 208 255 255 · No. 209 674 674 · No. 210 248 248 · No. 211 248-1 248-1 · No. 212 058 058 · No. 213 584 584 · No. 214 250 250 · No. 215 251 251 · No. 216 782 782 · No. 217 741M 741M · No. 218 991-7 991-7 · No. 219 740 740 · No. 220 450 450 · No. 221 425 425 · No. 222 765/300 765, 300 · No. 223 991-2 991-2 · No. 224 799 799 · No. 225 991-2 991-2 · No. 226 779 779 · No. 227

Parts categories

View all parts →
Sell AB60F parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

6 applications · 2 makes · 2006–2017 Toyota 5 · Lexus 1

Make Model Year Drive Engine
Lexus LX 570 2007-2017 5.7
Toyota Land Cruiser 2008-2015 5.7
Toyota Sequoia 2008-2017 5.7
Toyota Tundra 2007-2017 5.7
Toyota Tundra 2007 6 Spd 4x4 V8 4.7L
Toyota Tundra 2006-2016 6 Spd R/AWD V6 4.0L V8 5.7L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

AB60F
AB60-F
AB60 F
AB60E/F
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Forward Clutch Drum C1 Burnout
C1 clutch drum (gears 1-2-3-4) burns first due to low pressure from mud accumulation and worn rings.
!
Linear Pressure Solenoid Wear
Channels of linear pressure solenoids SLU, SLT, SL2 wear out due to dirty ATF in valve body.
!
Valve Body Mud Contamination
Dirt and mud accumulation in valve body damages solenoids and reduces Forward drum clutch pressure.
!
Torque Converter Lockup Clutch Failure
Lockup clutch burns and requires replacement; all AB60F overhauls include torque converter repair.
?
Premature Friction Disk Burning
Forward-C1 frictions and steel disks burn prematurely due to reduced clutch pressure from contamination.
!
Worn Rings and Bushings
Worn sealing rings and bushings cause pressure drop in Forward drum leading to premature friction burnout.
?
Shifting Problems ECM Related
Incorrect shift behavior may result from outdated ECM software; monitor for manufacturer software updates.
!
ATF Fluid Degradation Damage
Electrical components extremely sensitive to ATF condition; neglected fluid changes accelerate solenoid and valve body f
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 6-speed automatic transmission AB60F (-E – for rear drive) or AS68RC for Dodge RAM of the class extra heavy duty, Aisin name TB-68LS. This transmission was produced by Aisin Co since October of 2007 and paired with the engine V8 (5.7 liters) for 4WD SUVs such as Land Cruiser, Tundra, Sequoia, Lexus LX570.

This reliable 6-speed transmission with "invincible" design tested on rear-driven predecessors A760-960 and on 8-speed AA80E released the year before (2006). The main competitive product of this transmission is ZF6HP32.

Technical issues and repair guidelines

Electrical components in this transmission is extremely sensitive to the transmission fluid status. The oil change requires specific knowledge and experience.

During the overhaul the following parts are ordered for reassembly:the kit of gaskets and seals as well as kit of frictions.Friction components in this transmission are not complex and serve reliably till the end of the transmission resource. Frictions are usually changed as a result of operation with worn-out rings, bushings and sealing. First of all the, clutch drum Forward (C1 gears 1-2-3-4) gets burnt. All overhauls of the AB60F unit still involve the torque converter repair with replacement of the lockup clutch, replacement of burnt clutch, replacement of the filter and full spare parts kit: seals and gaskets made of rubber and paper.

The valve body design is similar to the valve body of the A960E transmission and it should be expected that typical problems with electrical components may be the same (after the mileage higher than 200 thousand kilometers without timely change of the fluid and filter replacement) wear-out of channels of linear pressure solenoids. Aisin 6-speed transmissions also have the mode of regulated torque converter lockup slippery, but in contrast to 6HP26-32, here the lock device turns on much later (starting from the 3-rd gear) and have reduced impact on the friction.

Almost all solenoids (in comparison with the valve body in A960) functionally remained unchanged, except for linear solenoids SLU, SLT, SL2 in some modifications. Dirt in ATF damages the valve body and solenoids, therefore cleaning of these components is usually planned as the first stage of the transmission maintenance. During the first years after the transmission release automakers usually modify valve bodies, replace solenoids and change settings of ECM program. Therefore, it is recommended to monitor software changes, which may solve some problems in shifting.Mud accumulation in the valve body and solenoids as well as wear-out of rings lead to lower pressure in the Forward drum that results in premature burning of frictions with steel disks (Forward-C1) and corresponding Forward pistons.
