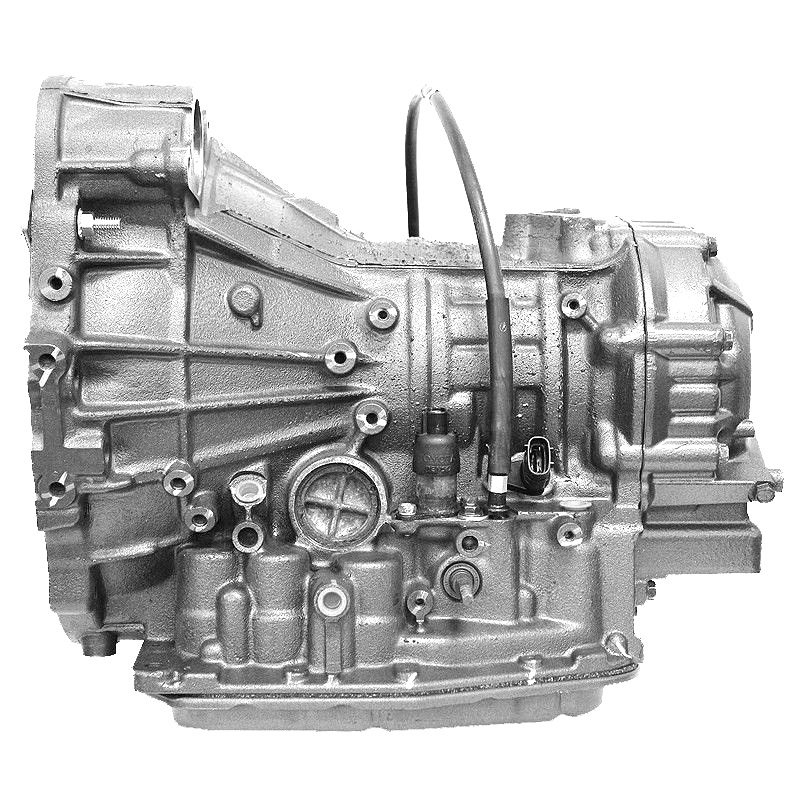

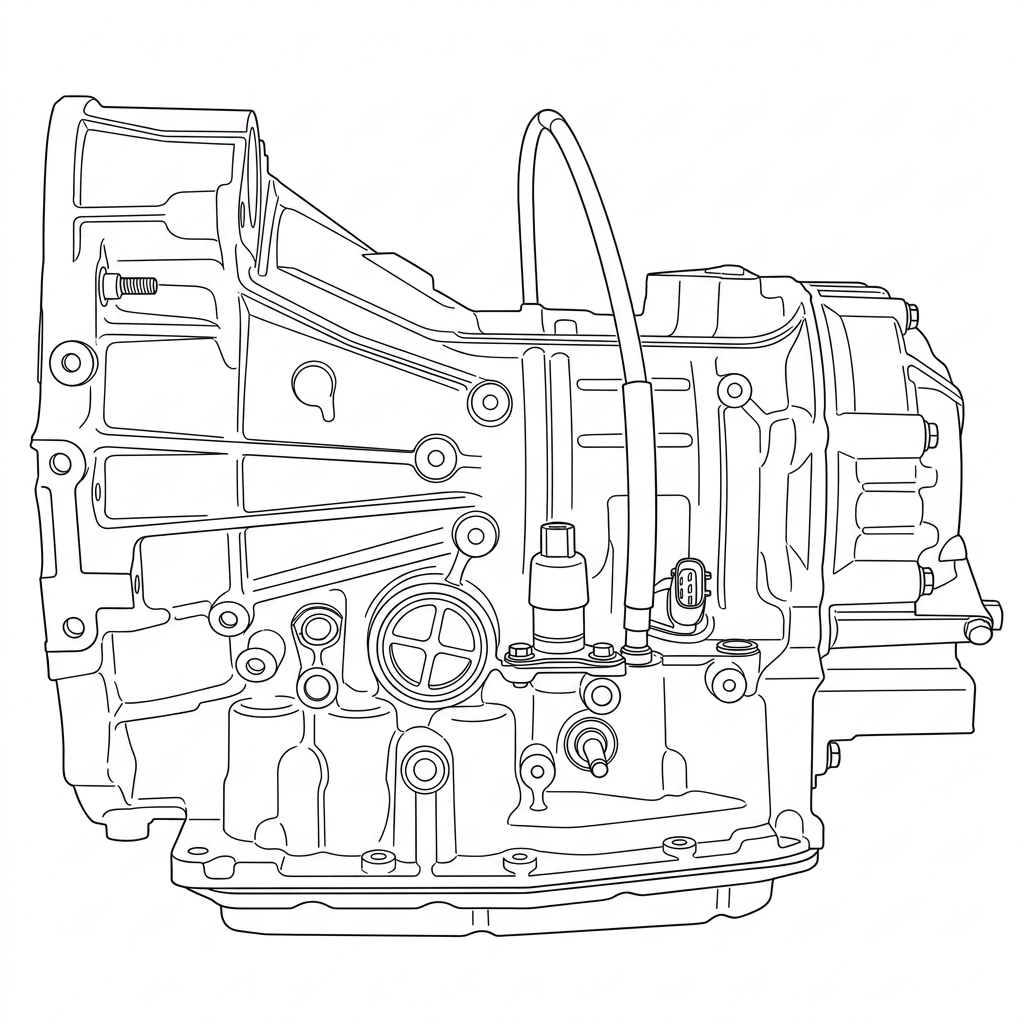

Toyota A130 Transmission

In terms of design, the 3-speed automatic transmission A131L with hydraulic control belongs to the family of FWD transmissions (A140 -\240-\540). Almost all hardware and spare parts are interchangeable.

Speeds 3
Type AT
Drive FWD
Max torque 150
ATF capacity (L) 6,3
ATF change (L) 2,4
ATF type Dexron VI
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
A130
4.1/10
Support & Market Presence Index
Limited presence

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence0.6
Documentation depth10.0
Knowledge & support2.5

Exploded diagram & parts

Full A131 parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

1 1 · No. 1 034 034 · No. 2 3 3 · No. 3 4 4 · No. 4 5 5 · No. 5 6 6 · No. 6 7 7 · No. 7 8 8 · No. 8 9 9 · No. 9 10 10 · No. 10 11 11 · No. 11 12 12 · No. 12 13 13 · No. 13 336 336 · No. 14 337 337 · No. 15 16 16 · No. 16 17 17 · No. 17 18 18 · No. 18 122/106 122, 106 · No. 19 20 20 · No. 20 21 21 · No. 21 22 22 · No. 22 225 225 · No. 23 24 24 · No. 24 25 25 · No. 25 554 554 · No. 26 27 27 · No. 27 28 28 · No. 28 29 29 · No. 29 30 30 · No. 30 31 31 · No. 31 122/106 122, 106 · No. 32 33 33 · No. 33 231 231 · No. 34 35 35 · No. 35 36 36 · No. 36 37 37 · No. 37 38 38 · No. 38 39 39 · No. 39 40 40 · No. 40 41 41 · No. 41 777 777 · No. 42 778 778 · No. 43 234 234 · No. 44 235 235 · No. 45 236 236 · No. 46 582 582 · No. 47 237 237 · No. 48 238 238 · No. 49 052 052 · No. 50 612 612 · No. 51 052 052 · No. 52 622 622 · No. 53 884 884 · No. 54 244 244 · No. 55 245 245 · No. 56 652 652 · No. 57 652 652 · No. 58 652 652 · No. 59 662 662 · No. 60 241 241 · No. 61 883 883 · No. 62 956 956 · No. 63 962 962 · No. 64 972 972 · No. 65 332 332 · No. 66 333 333 · No. 67 120/100 120, 100 · No. 68 144 144 · No. 69 873 873 · No. 70 665 665 · No. 71 888 888 · No. 72 654 654 · No. 73 74 74 · No. 74 75 75 · No. 75 654 654 · No. 76 654 654 · No. 77 78 78 · No. 78 888 888 · No. 79 584 584 · No. 80 241 241 · No. 81 246 246 · No. 82 247 247 · No. 83 248 248 · No. 84 594 594 · No. 85 604 604 · No. 86 889 889 · No. 87 892 892 · No. 88 150 150 · No. 89 90 90 · No. 90 265 265 · No. 91 686/345 686, 345 · No. 92 687 687 · No. 93 894 894 · No. 94 263 263 · No. 95 710 710 · No. 96 271 271 · No. 97 680 +2 680, 266, 689 · No. 98 759/304 759, 304 · No. 99 130/100 130, 100 · No. 100 150 150 · No. 101 893 893 · No. 102 976 976 · No. 103 966 966 · No. 104 338 338 · No. 105 339 339 · No. 106 760 +3 760, 303, 685, 758 · No. 107 736 736 · No. 108 730 730 · No. 109 274 274 · No. 110 273 273 · No. 111 735 735 · No. 112 075 075 · No. 113 075 075 · No. 114 399 399 · No. 115 683 683 · No. 116 696 696 · No. 117 895 895 · No. 118 699 699 · No. 119 280 280 · No. 120 281 281 · No. 121 712 712 · No. 122 796 796 · No. 123 780 780 · No. 124 996 996 · No. 125 726 726 · No. 126 793 793 · No. 127 128 128 · No. 128 076 076 · No. 129 293 293 · No. 130 291 291 · No. 131 292 292 · No. 132 847 847 · No. 133 716 716 · No. 134 135 135 · No. 135 289 289 · No. 136 288 288 · No. 137 290 290 · No. 138 725 725 · No. 139 076 076 · No. 140 141 141 · No. 141 142 142 · No. 142 994 994 · No. 143 144 144 · No. 144 907 907 · No. 145 906B 906B · No. 146 908-1 908-1 · No. 147 906 906 · No. 148 908 908 · No. 149 150 150 · No. 150 151 151 · No. 151 152 152 · No. 152 153 153 · No. 153 154 154 · No. 154 155 155 · No. 155 156 156 · No. 156 157 157 · No. 157 158 158 · No. 158 159 159 · No. 159 160 160 · No. 160 161 161 · No. 161 740 740 · No. 162 010 010 · No. 163 326 326 · No. 164 410 410 · No. 165 072 072 · No. 166 896 896 · No. 167 362 362 · No. 168 362/909 362, 909 · No. 169 195 195 · No. 170 171 171 · No. 171 172 172 · No. 172 173 173 · No. 173 174 174 · No. 174 999-4 999-4 · No. 175 176 176 · No. 176 300/765 300, 765 · No. 177 178 178 · No. 178 179 179 · No. 179 180 180 · No. 180 181 181 · No. 181 182 182 · No. 182

Parts categories

View all parts →
Sell A130 parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

2 applications · 1 make · 1984–2002 Toyota 2

Make Model Year Drive Engine
Toyota Corolla 1984-2002 1.6,1.8
Toyota Corolla 1984 3 Spd FWD 1.3L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

A130-L
A130 L
A130
A130L
A130 Series 3 Speed
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Torque Converter Wear
Torque converter requires repair at high mileage overhaul intervals, most common major component failure.
!
Seals and Gaskets Degradation
Seals and gaskets harden and fail over time; most frequently replaced components during overhaul.
!
Direct Friction Element Damage
Direct friction clutch elements wear out; less frequent than seal failures but common overhaul item.
!
Forward Friction Element Damage
Forward friction clutch elements subject to wear; typically replaced during major overhaul service.
!
Weakening Return Springs
Internal springs lose tension over time, listed among most common worn spare parts in A131L.
!
Rubber Element Hardening
Rubber sealing elements harden with age and heat cycles, causing leaks and pressure loss.
!
Brake Band Wear
Brake bands wear out but less frequently than friction elements; replaced during full overhaul.
!
Transmission Filter Clogging
Filter clogs with use; A140 filter compatible as replacement. 1990 narrow-slot scoop design introduced.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

In terms of design, the 3-speed automatic transmission A131L with hydraulic control belongs to the family of FWD transmissions (A140 -\240-\540). Almost all hardware and spare parts are interchangeable.

This automatic gearbox is a very rare “guest” in repair shops. This is partly thanks to the fact that this transmission is maintenance friendly, simple, trouble-free in operation and its service life is much longer than the lifespan of the most reliable car. Usually this transmission is installed on American Corollas.

Technical issues and repair guidelines

Simple and robust design of the A130 unit with two “invincible” planetary gears and without solenoids gives no reason for visits to repair services.The overhaul of this gearbox takes place after impressive mileages and frequently involves the torque converter repair, replacement of seals and gaskets, and less frequently replacement of worn-out friction components and even less often – brake bands.

Car owners prefer to change the filter (possible to use a A140 filter) than cleaning it, therefore statistics related to selling of spare parts for this transmission is unimpressive. A new filter with a narrow slot scoop produced in 1990 was supposed to force auto owners to change filters.The most common spare parts that wear out in these gearboxes are the following: seals, gaskets, rubber elements that become hard, weakening spring, damaged Direct and Forward friction elements, worn-out brake band.

Sources & Contribution

+ Contribute

This feature is in progress and will be available soon.

Every claim on this page is backed by a structured source record — including community contributions, each with its own reference.

Type
Title
Author
Link
video
Toyota Corolla Automatic Transmission Service A131L
Alex's Bikes and Motors
