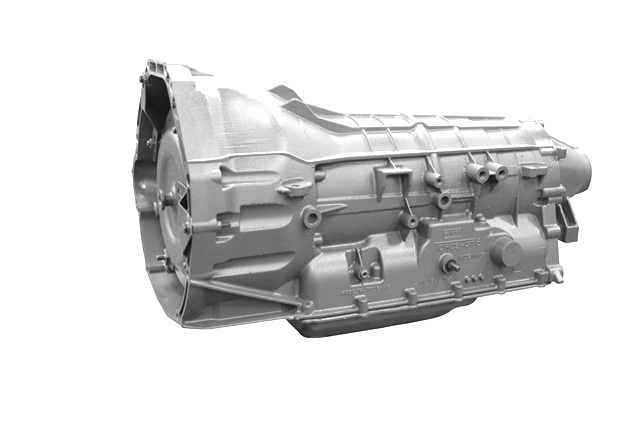

Ford 6R140 Transmission

6R140 is one of the most reliable automatic transmissions created by Ford. Repair specialists of the company introduced a durable single-piece bell shaped construction for 6R140. This construction is notable for its stiffness. The gearbox has a deep first gear with a double overdrive.

Speeds 6
Type AT
Drive AWD
ATF capacity (L) 16,5
ATF change (L) 8,5
ATF type Mercon LV
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
6R140
3.4/10
Support & Market Presence Index
Niche / hard to source

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence3.0
Documentation depth0.0
Knowledge & support7.0

Exploded diagram & parts

Full 6R140 parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

070 070 · No. 1 311 311 · No. 2 530 530 · No. 3 530/381 530, 381 · No. 4 520 520 · No. 5 210/544 210, 544 · No. 6 176 176 · No. 7 800 +2 800, 277, 316 · No. 8 312 312 · No. 9 190 190 · No. 10 529 529 · No. 11 181 181 · No. 12 037 037 · No. 13 048 048 · No. 14 554 554 · No. 15 048B 048B · No. 16 965/337 965, 337 · No. 17 975 975 · No. 18 985/336 985, 336 · No. 19 20 20 · No. 20 964/335 964, 335 · No. 21 974 974 · No. 22 984 +2 984, 334, 335B · No. 23 24 24 · No. 24 129 129 · No. 25 108/128 108, 128 · No. 26 148 148 · No. 27 876* 876* · No. 28 548 548 · No. 29 229 229 · No. 30 127 127 · No. 31 106/126 106, 126 · No. 32 146 146 · No. 33 878* 878* · No. 34 211* 211* · No. 35 612 612 · No. 36 582 582 · No. 37 882 882 · No. 38 238* 238* · No. 39 178 178 · No. 40 550 550 · No. 41 177 177 · No. 42 038 038 · No. 43 960 960 · No. 44 970 970 · No. 45 980 980 · No. 46 100/120 100, 120 · No. 47 861*/140 861*, 140 · No. 48 214 214 · No. 49 378 378 · No. 50 570 570 · No. 51 223 223 · No. 52 049 049 · No. 53 574 574 · No. 54 046 046 · No. 55 56 56 · No. 56 049 049 · No. 57 235 235 · No. 58 046 046 · No. 59 883/873* 883, 873* · No. 60 144 144 · No. 61 124/104 124, 104 · No. 62 957 957 · No. 63 760/263 760, 263 · No. 64 263 263 · No. 65 271 271 · No. 66 272 272 · No. 67 074 074 · No. 68 074-1 074-1 · No. 69 074-1/374 074-1, 374 · No. 70 795 795 · No. 71 410 410 · No. 72 991-2 991-2 · No. 73 125 125 · No. 74 874 874 · No. 75 972 972 · No. 76 332 +2 332, 962, 333 · No. 77 225 225 · No. 78 632 632 · No. 79 226 226 · No. 80 247 +2 247, 248, 614 · No. 81 610 610 · No. 82 222 222 · No. 83 884 884 · No. 84 285 285 · No. 85 286 286 · No. 86 580 580 · No. 87 385 385 · No. 88 386 386 · No. 89 386-1 386-1 · No. 90 072 072 · No. 91 386-1 386-1 · No. 92 385-1 385-1 · No. 93 992 992 · No. 94 991-4 991-4 · No. 95 995-1 995-1 · No. 96 995-2 995-2 · No. 97 794 794 · No. 98 698 698 · No. 99 382 382 · No. 100 383 383 · No. 101 639-1 639-1 · No. 102 103 103 · No. 103 384-1 384-1 · No. 104 790 790 · No. 105 797 797 · No. 106 991-6 991-6 · No. 107 382 382 · No. 108 999-8 999-8 · No. 109 999 999 · No. 110 994 994 · No. 111 665 665 · No. 112 217 217 · No. 113 134/114 134, 114 · No. 114 155 155 · No. 115 062 062 · No. 116 678 678 · No. 117 270 270 · No. 118 885 885 · No. 119 977 977 · No. 120 967 967 · No. 121 338 +2 338, 339B, 339 · No. 122 740 740 · No. 123 459 459 · No. 124 428 +6 428, 430, 425, 422, 421, 423, 427 · No. 125 438 438 · No. 126 436 436 · No. 127 379 379 · No. 128 437 437 · No. 129 782 782 · No. 130 446 446 · No. 131 492 492 · No. 132 010 010 · No. 133

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to 6R140 in the Go4Trans marketplace.
Sell 6R140 parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

8 applications · 2 makes · 2010–2017 Ford 7 · Lincoln 1

Make Model Year Drive Engine
Ford F150 2012-2014 6 Spd RWD/4X4 V8 6.2L
Ford F250/F350 SUPERDUTY 2010-2016 6 Spd RWD/4X4 V8 6.2L 6.7L
Ford F350/450/550 CAB CH 2016 6 Spd R/4WD V10 6.8L V8 6.2/6.7L
Ford Truck F250 Super Duty 3/4 Ton - Pickup 2011-2017 6.2, 6.7
Ford Truck F350 Super Duty 1 Ton - Pickup 2011-2017 6.2, 6.7
Ford Truck F450 Super Duty 1 1/2 Ton Truck 2011-2017 6.2, 6.7
Ford Truck F550 Super Duty 2011-2017 6.2, 6.7
Lincoln Navigator 6 Spd RWD/4X4 V8 5.0L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

6R140
6R 140
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

No symptoms recorded yet.

Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

6R140 is one of the most reliable automatic transmissions created by Ford. Repair specialists of the company introduced a durable single-piece bell shaped construction for 6R140. This construction is notable for its stiffness. The gearbox has a deep first gear with a double overdrive.

Technical issues and repair guidelines

The Lepelletier toothed gearing solves the problem of matching gearboxes’ gear sets and clutches. So this gearbox employs just 5-clutch sets to get 6 forward gears. 6R140 is reinforced by the usage of a metallic powder carrier within the compounded gear set. The carrier consists of four compressed elements, which are forced together to form a hard composition. 6R140 has a new torque converter which contributes to longer operability and a high-powered turbine damping mechanism introduced to smooth the force from the engine.

Sources & Contribution

+ Contribute

This feature is in progress and will be available soon.

Every claim on this page is backed by a structured source record — including community contributions, each with its own reference.

Type
Title
Author
Link
video
Ford 6R140 TorqShift Transmission Disassembly and Identification
revmaxtqconverters
video
6R80 Teardown
Gary Ferraro
video
2011-2017 Ford Superduty 6R140 Torqshift6 Transmission: Fluid and Filter Replacement
FordTechMakuloco
video
6R140W Intro
SealAftermarket
manual
Sonnax — Critical Wear Areas & Vacuum Test Locations (6R140)
—
