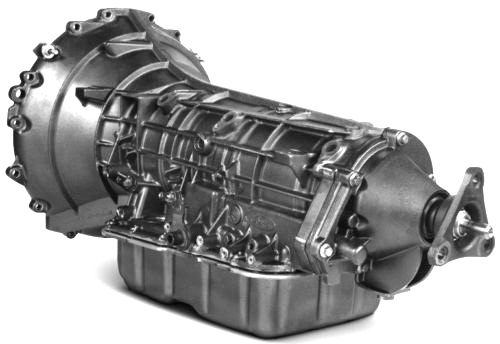

Ford 5R55N Transmission

The 5-speed automatic transmission 5R55N (5R55W, 5R55S) was released in 2000 and found application in Ford Explorer and THUNDERBIRD. Besides Ford and Lincoln, it was installed on Mazda pickup trucks in Asia and on Jaguar S-type (for 2 years). In 2002, the problematic 5R55N was replaced by a new sub-modification 5R55W, and in 2003 the 5R55S was released with some updates. This transmission is installed on RWD and 4WD vehicles with quite powerful engines (from 3 up to 5 liters). In terms of design, this transmission belongs to the 4R44 - 4R55E family .

Speeds 5
Type AT
Drive RWD/AWD
ATF capacity (L) 11,5
ATF change (L) 5
ATF type MerconV
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
5R55N
6.7/10
Support & Market Presence Index
Well covered

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence3.8
Documentation depth10.0
Knowledge & support10.0

Exploded diagram & parts

Full 5R55S parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

1 1 · No. 1 070 070 · No. 2 034 034 · No. 3 510 510 · No. 4 544 544 · No. 5 310 310 · No. 6 311 311 · No. 7 313 313 · No. 8 530 530 · No. 9 036 036 · No. 10 178 178 · No. 11 530 530 · No. 12 179 179 · No. 13 037 037 · No. 14 211* 211* · No. 15 16 16 · No. 16 046 046 · No. 17 550 550 · No. 18 337 337 · No. 19 336 336 · No. 20 961 961 · No. 21 981 981 · No. 22 862 862 · No. 23 120/100 120, 100 · No. 24 140 140 · No. 25 861* 861* · No. 26 214 214 · No. 27 040 040 · No. 28 610 610 · No. 29 215 215 · No. 30 218/580 218, 580 · No. 31 217 217 · No. 32 776 776 · No. 33 309 309 · No. 34 179 179 · No. 35 181 181 · No. 36 590 590 · No. 37 650 650 · No. 38 674 674 · No. 39 868 868 · No. 40 223 223 · No. 41 883 883 · No. 42 630 630 · No. 43 211* 211* · No. 44 022 022 · No. 45 555 555 · No. 46 336 336 · No. 47 337 337 · No. 48 961 961 · No. 49 971 971 · No. 50 985 985 · No. 51 879 879 · No. 52 126/106 126, 106 · No. 53 146 146 · No. 54 861* 861* · No. 55 229 229 · No. 56 554 554 · No. 57 964 964 · No. 58 974 974 · No. 59 877 877 · No. 60 783 783 · No. 61 853 853 · No. 62 128/108 128, 108 · No. 63 148 148 · No. 64 876 876 · No. 65 232 232 · No. 66 231 231 · No. 67 882 882 · No. 68 602 602 · No. 69 592 592 · No. 70 235 235 · No. 71 582 582 · No. 72 239 239 · No. 73 74 74 · No. 74 285 +2 285, 663, 864 · No. 75 285/652 285, 652 · No. 76 77 77 · No. 77 963 963 · No. 78 79 79 · No. 79 124/104 124, 104 · No. 80 552 552 · No. 81 243 243 · No. 82 890 890 · No. 83 244 244 · No. 84 584 584 · No. 85 251 251 · No. 86 698 698 · No. 87 894 894 · No. 88 594 594 · No. 89 367 +2 367, 904, 902 · No. 90 896 896 · No. 91 362 +2 362, 909, 907 · No. 92 896 896 · No. 93 378 378 · No. 94 996 996 · No. 95 604 604 · No. 96 184 184 · No. 97 889254 889254 · No. 98 889254 889254 · No. 99 024 024 · No. 100 556 556 · No. 101 261 261 · No. 102 654 654 · No. 103 664 664 · No. 104 760 760 · No. 105 264 264 · No. 106 263 263 · No. 107 847 847 · No. 108 690 690 · No. 109 268 268 · No. 110 678 678 · No. 111 770 +2 770, 305, M368317E · No. 112 266 266 · No. 113 074 074 · No. 114 841 841 · No. 115 917 917 · No. 116 839 839 · No. 117 917 917 · No. 118 379 379 · No. 119 010 010 · No. 120 913 913 · No. 121 410 410 · No. 122 072 072 · No. 123 765/300 765, 300 · No. 124 321 +3 321, 740, 747, 320 · No. 125 912 912 · No. 126 911 911 · No. 127 919 919 · No. 128 916-3 916-3 · No. 129 916-2 916-2 · No. 130 919 919 · No. 131 916-3 916-3 · No. 132 916-2 916-2 · No. 133 992 992 · No. 134 991-4 991-4 · No. 135 799 799 · No. 136 991-3 991-3 · No. 137 994 994 · No. 138 995-1 995-1 · No. 139 995-2 995-2 · No. 140 995-3 995-3 · No. 141 494 494 · No. 142 420 +2 420, 322, 746 · No. 143 414 414 · No. 144 914 914 · No. 145 363 363 · No. 146 922 922 · No. 147 922 922 · No. 148 149 149 · No. 149 991-2 991-2 · No. 150

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to 5R55N in the Go4Trans marketplace.
Sell 5R55N parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

21 applications · 4 makes · 1999–2011 Ford 7 · Jaguar 7 · Lincoln 6 · Mercury 1

Make Model Year Drive Engine
Ford Explorer 2002-2010 V6,V8 4L
Ford Explorer Sport Trac 2005-2010 V6,V8 4L
Ford Mustang 2005-2010 V6, V8 4.0, 4.6, 5.4L
Ford Thunderbird 2003-2005 V8 3.9L
Ford Thunderbird 2002 5 Spd RWD V8 3.9L
Ford Thunderbird 2002 V8 3.9L
Ford Thunderbird 2002 3.9
Jaguar S Type 2000-2002 5 Spd RWD V6 3.0L V8 4.0L
Jaguar S Type 2000-2002 3.0, 4.0
Jaguar S Type 1999-2002 5 Spd RWD V6 3.0L; V8 4.0L
Jaguar XK8 2001-2002 5 Spd RWD V8 4.0L
Jaguar XK8 2001-2002 4.0
Jaguar XKR 2000-2002 4.0
Jaguar XKR, XKR 100 2001-2002 5 Spd RWD V8 4.0L
Lincoln Aviator 2003-2005 V8 4.6L
Lincoln LS 2003-2006 V6, V8 3.0, 3.9L
Lincoln LS 2000-2002 5 Spd RWD V6 3.0L; V8 3.9L
Lincoln LS 2000-2002 V6, V8 3.0, 3.9L
Lincoln LS 2000-2002 5 Spd RWD V6 3.0L V8 3.9L
Lincoln LS 2000-2002 3.0, 3.9
Mercury Mountaineer 2002-2011 V6, V8 4.0,4.6 (5 speed)L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

5R55-N
5R55N
5R55 N
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Torque Converter Contamination
Torque converter clogs valve body rapidly, causing solenoid failure and ATF contamination.
!
Valve Body Solenoid Failure
Valve body contaminated by torque converter debris; solenoids fail due to dirty ATF.
!
Pump Valve Sticking
Pump valve sticking causes delayed gear shifts or loss of drive at increasing engine RPM.
!
Forward Package Friction Burnout
Friction discs in Forward clutch package burn out; full kit including steel and bearing discs replaced.
?
Delayed or Missing Gear Engagement
Sticking pump valve causes shift delays or no drive response under rising engine revs.
!
Band Locking Plate Failure
Band locking plate fails due to sidesway and vibrations; replaced together with servo piston.
!
Speed Sensor Failure VSS ISS
Output and input shaft speed sensors (VSS/ISS) commonly fail and require replacement.
?
Early Torque Converter Lock Slippage
Torque converter locks up too early causing strong slippage, worsened by aggressive driving and infrequent ATF changes.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 5-speed automatic transmission 5R55N (5R55W, 5R55S) was released in 2000 and found application in Ford Explorer and THUNDERBIRD. Besides Ford and Lincoln, it was installed on Mazda pickup trucks in Asia and on Jaguar S-type (for 2 years). In 2002, the problematic 5R55N was replaced by a new sub-modification 5R55W, and in 2003 the 5R55S was released with some updates. This transmission is installed on RWD and 4WD vehicles with quite powerful engines (from 3 up to 5 liters). In terms of design, this transmission belongs to the 4R44 - 4R55E family .

Technical issues and repair guidelines

The design of this transmission includes a forced electronic control of the torque converter lock-up. It complicates the system operation and makes it dependable on the ATF quality. The torque converter of the automatic transmission clogs the valve body quite rapidly and turns out to be the main reason of the valve body contamination and failure of the solenoids.

During the first years of operation, it is required to monitor possible leakages (quantity and quality of oil MerconV - 11.5 liters) and the filter condition. The 5R55N is very sensitive to contaminated ATF and the torque converter repair is the first in the list of rebuilding procedures.

The most common repair procedure is replacement of the filter and the pan gasket. There are 3 modifications of filters depending on the pan dimensions and year of manufacture.In addition to spare parts, it is frequently required to replace brake bands (Intermediate - O.Drive). One more constructive problem is the failure of the band locking plate caused by sidesway and vibrations. They are replaced together with the servo piston.In many cases, sensors of the output\input shaft speed (VSS\ISS) also get replaced.

In most cases, friction components of the Forward package get burnt, but specialists replace not only a full kit of friction discs, but also steel discs and the bearing disc of this package.The pump valve is the most vulnerable element in the pump. Sticking of the valve leads to delays in gear shifting or even to the lack of the pull-rod at growing engine revs.

The valve body is repaired quite often, therefore Sonnax released many repair kits for rebuilding of these transmissions. This problem is common for all valve bodies produced in the early 2000s, in which the torque converter locking was performed too early and accompanied by strong slippage. It is complicated by the fact that drivers in these situations too often use aggressive accelerations and too rarely changed ATF and the torque converter friction elements.

It is recommended to install additional cooling radiator on “old” cars, which went through the ATF overheating and burning of friction elements.
