General Motors
Source-verified model

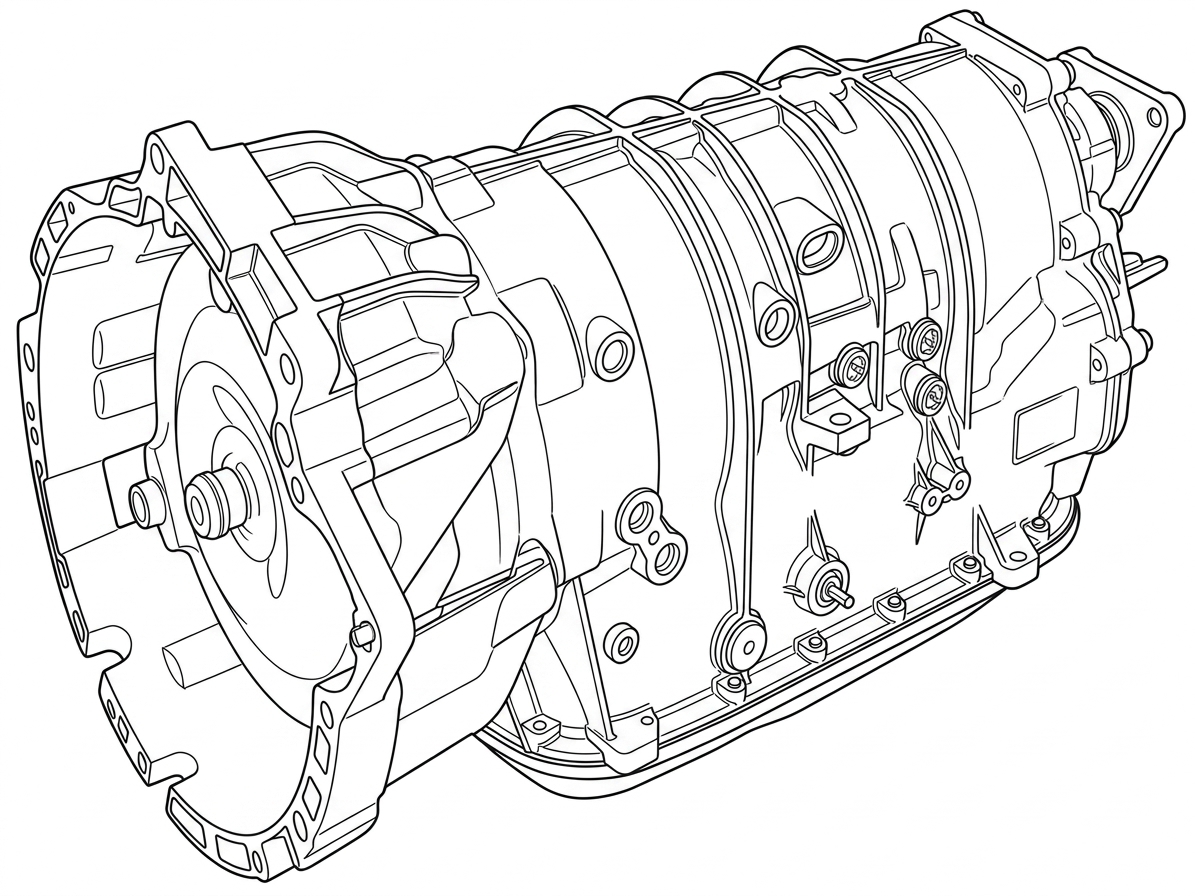

General Motors 5L50 Transmission
Speeds
5
Drive
RWD/AWD
Type
Automatic
Max torque
422 Nm
Layout
Longitudinal
Browse parts → Find transmission shops
Contribute info
This feature is in progress and will be available soon.
0.0/10
Support & Market Presence Index
How widely this transmission is used, documented and supported across the Go4Trans graph.
Exploded diagram & parts
Parts categories
Sell 5L50 parts on Go4TransStart selling →
Vehicle fitment explorer
Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.
12 applications · 3 makes · 2003–2010 Cadillac 9 · Pontiac 2 · Buick 1
| Make | Model | Year | Drive | Engine |
|---|---|---|---|---|
| Buick | STS, SRX, XLR | 2004-2005 | 5 Spd RWD/AWD | V6 3.6L; V8 4.6L |
| Cadillac | CTS | 2003-2007 | V6, V8 2.8, 3.2, 3.6, 4.4, 4.6L | |
| Cadillac | SRX | 2004-2009 | V6, V8 2.8, 3.6, 4.4L | |
| Cadillac | SRX | 2003-2010 | 5 Spd RWD/AWD | V6 3.6L V8 4.6L |
| Cadillac | STS | 2005-2006 | 5 Spd RWD/AWD | V8 4.6L |
| Cadillac | STS | 2004-2009 | 5 Spd RWD/AWD | V6 2.8L V8 4.6L |
| Cadillac | STS | 2004-2007 | V6 2.8, 3.6, 4.6L | |
| Cadillac | XLR | 2005-2009 | 5 Spd RWD | V8 4.6L |
| Cadillac | XLR | 2004-2009 | V6, V8 2.8, 3.6, 4.6L | |
| Cadillac | XLR | 2004-2006 | 5 Spd RWD | V8 4.6L |
| Pontiac | G8 | 2008-2010 | V6 3.0, 3.6L | |
| Pontiac | Solstice | 2006-2010 | L4 2.0,2.4L |
Other and alternative codes of this transmission
＋ Contribute
This feature is in progress and will be available soon.
No aliases recorded yet — be the first to contribute one. Contribute →
verified naming
OEM designation
source name
Common problems & symptoms
Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.
!
Reverse lockout valve sticking
Wear and cross-leakage in the valve body partially strokes the reverse lockout and TCC-enable valves, restricting or losing reverse.
!
Filter-induced reverse stick
The filter can crack from contact with a valve, and fragments migrate to the reverse lock-out bore, causing the valve to stick and reverse to be lost at low pressure.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom
This feature is in progress and will be available soon.
Related transmissions
＋ Contribute
This feature is in progress and will be available soon.
Transmissions that share architecture, manufacturer lineage or vehicle platforms — useful for alternative fitment, spec comparison and cross-referencing parts.
