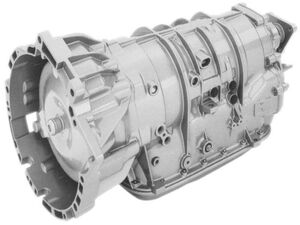

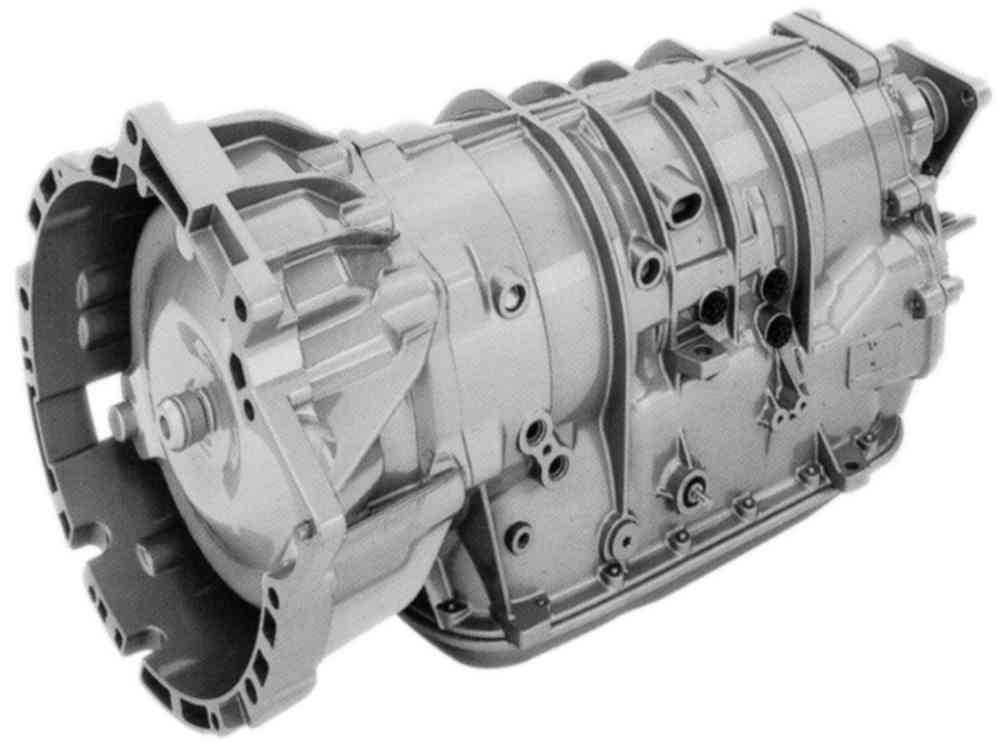

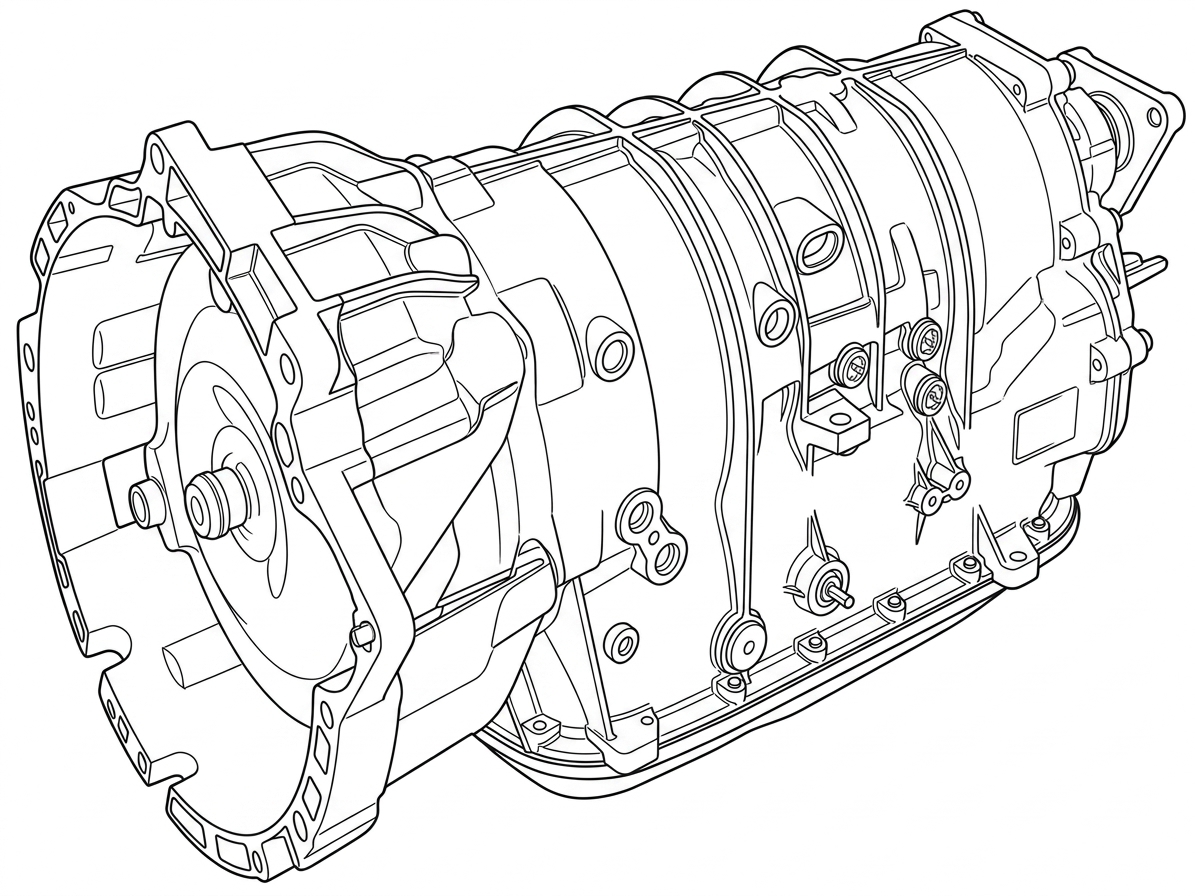

General Motors 5L40E Transmission

The 5-speed automatic transmission 5L40E was designed in 1999 jointly with the 4-speed 4L40E. It became widely used on RWD vehicles of GM and BMW with engines from 2.0 up to 3.6 liters (340 Nm) since 2000. This transmission was especially preferred by BMW (from BMW 3 (4L40E) to BMW 5 and X5 (5L40E). Then these transmissions were commonly used across the globe: the USA (BMW, Opel, ...), China and Australia (Saturn, Cadillac etc.) and for Land Rover and Cadillac in the UK. The 5L40E transmission is designed on structural basis of 4L60E tested on American roads and produced on GM plant in…

Speeds 5
Type AT
Drive RWD/AWD
Max torque 420
ATF capacity (L) 9
ATF change (L) 6
ATF type Texaco ETL-7045 E / Dexron VI
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
5L40E
8.3/10
Support & Market Presence Index
Widely supported

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence8.2
Documentation depth10.0
Knowledge & support7.5

Exploded diagram & parts

Full 5L40E parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

070 070 · No. 1 034 034 · No. 2 750 750 · No. 3 540 540 · No. 4 176 176 · No. 5 535 535 · No. 6 313 313 · No. 7 534 534 · No. 8 538 538 · No. 9 539 539 · No. 10 532/533 532, 533 · No. 11 12 12 · No. 12 538 538 · No. 13 311 311 · No. 14 036 036 · No. 15 520 520 · No. 16 179 179 · No. 17 209 209 · No. 18 211* 211* · No. 19 046 046 · No. 20 556 556 · No. 21 338 338 · No. 22 966 966 · No. 23 965 965 · No. 24 975 975 · No. 25 985 985 · No. 26 879 879 · No. 27 127 127 · No. 28 126/106 126, 106 · No. 29 146 146 · No. 30 878* 878* · No. 31 151 151 · No. 32 131 131 · No. 33 130/110 130, 110 · No. 34 150 150 · No. 35 892* 892* · No. 36 776 776 · No. 37 536 536 · No. 38 310 310 · No. 39 778 778 · No. 40 177 177 · No. 41 554 554 · No. 42 048 048 · No. 43 964 964 · No. 44 969 969 · No. 45 979 979 · No. 46 871 871 · No. 47 153* 153* · No. 48 133 133 · No. 49 132/112 132, 112 · No. 50 152 152 · No. 51 559 559 · No. 52 129 129 · No. 53 128/108 128, 108 · No. 54 148 148 · No. 55 876* 876* · No. 56 232 232 · No. 57 668 668 · No. 58 234 234 · No. 59 658 658 · No. 60 235 235 · No. 61 669 669 · No. 62 674 674 · No. 63 236 236 · No. 64 049 049 · No. 65 575 575 · No. 66 049 049 · No. 67 230 230 · No. 68 570 570 · No. 69 213 213 · No. 70 216 216 · No. 71 652 652 · No. 72 216 216 · No. 73 213 213 · No. 74 663 663 · No. 75 217 217 · No. 76 695 695 · No. 77 861* 861* · No. 78 140 140 · No. 79 120/100 120, 100 · No. 80 546 546 · No. 81 862 862 · No. 82 970 970 · No. 83 960 960 · No. 84 873* 873* · No. 85 144 144 · No. 86 124/104 124, 104 · No. 87 125 125 · No. 88 860 860 · No. 89 550 550 · No. 90 972 972 · No. 91 962 962 · No. 92 962B 962B · No. 93 874 874 · No. 94 694 694 · No. 95 285 285 · No. 96 665 665 · No. 97 286 286 · No. 98 654 654 · No. 99 286 286 · No. 100 285 285 · No. 101 577 577 · No. 102 257 257 · No. 103 885* 885* · No. 104 154 154 · No. 105 134/114 134, 114 · No. 106 135 135 · No. 107 893 893 · No. 108 977 977 · No. 109 967 967 · No. 110 632 632 · No. 111 226 226 · No. 112 963 963 · No. 113 973 973 · No. 114 883 883 · No. 115 547 547 · No. 116 136/116 136, 116 · No. 117 760 760 · No. 118 271 271 · No. 119 770/305 770, 305 · No. 120 272 272 · No. 121 074 074 · No. 122 895 895 · No. 123 841 841 · No. 124 374 374 · No. 125 287 287 · No. 126 798 798 · No. 127 156 156 · No. 128 863* 863* · No. 129 968 968 · No. 130 978 978 · No. 131 988 988 · No. 132 865 865 · No. 133 123 123 · No. 134 122/102 122, 102 · No. 135 142 142 · No. 136 864* 864* · No. 137 884 884 · No. 138 250 250 · No. 139 282 282 · No. 140 694B 694B · No. 141 283 283 · No. 142 284 284 · No. 143 656 656 · No. 144 284 284 · No. 145 667 667 · No. 146 283 283 · No. 147 438 438 · No. 148 410 410 · No. 149 991-3 991-3 · No. 150 991-2 991-2 · No. 151 378 378 · No. 152 495 495 · No. 153 436 436 · No. 154 446 446 · No. 155 843 843 · No. 156 157 157 · No. 157 158 158 · No. 158 159 159 · No. 159 160 160 · No. 160 161 161 · No. 161 162 162 · No. 162 163 163 · No. 163 164 164 · No. 164 165 165 · No. 165 166 166 · No. 166 167 167 · No. 167 168 168 · No. 168 169 169 · No. 169 170 170 · No. 170 171 171 · No. 171 172 172 · No. 172 173 173 · No. 173 174 174 · No. 174 175 175 · No. 175 992 992 · No. 176 072 072 · No. 177 991-4 991-4 · No. 178 010 010 · No. 179 995-1 995-1 · No. 180 995-3 995-3 · No. 181 991-5 991-5 · No. 182 995-2 995-2 · No. 183 991-6 991-6 · No. 184 342 342 · No. 185 186 186 · No. 186 342 342 · No. 187 579 579 · No. 188 051 051 · No. 189 251 251 · No. 190 058 058 · No. 191 058 058 · No. 192 584 584 · No. 193 252 252 · No. 194 268 268 · No. 195 594B 594B · No. 196 594 594 · No. 197 062 062 · No. 198 678 678 · No. 199 894 894 · No. 200 270* 270* · No. 201 269 269 · No. 202 765/300 765, 300 · No. 203 425 425 · No. 204 428 428 · No. 205 206 206 · No. 206 207 207 · No. 207 440 440 · No. 208 209 209 · No. 209 210 210 · No. 210 421 421 · No. 211 422 422 · No. 212 779 779 · No. 213

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to 5L40E in the Go4Trans marketplace.
Sell 5L40E parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

67 applications · 8 makes · 1994–2011 BMW 31 · Cadillac 15 · Pontiac 8 · Land Rover 3 · Opel 3

Make Model Year Drive Engine
BMW 323ci 2000-2006 2.5
BMW 325i 5 Spd RWD/AWD M54 engine
BMW 325i/xi 2001-2006 2.5, 3.0
BMW 325xi/xiT 2001-2005 5 Spd RWD E46
BMW 328i/ci 1999-2000 5 Spd RWD L6 2.8L
BMW 328i/is 1996-2000 2.8
BMW 330i,330ci 5 Spd RWD L6 3.0L
BMW 330i/ci/xi/M 2001-2007 3.0
BMW 330xi 2001-2005 5 Spd RWD E46
BMW 335i/ci/xi/d 2007-2009 3.0
BMW 525i 2001-2003 5 Spd RWD L6 2.5L 3.0L
BMW 525i 2001-2003 2.5, 3.0
BMW 528i 2000 5 Spd RWD L6 2.8L
BMW 528i/it 1999-2000 2.8
BMW 530i 2001-2003 5 Spd RWD L6 2.5L 3.0L
BMW 530i 2001-2003 2.5, 3.0
BMW SÉRIE 3 2001-2007 5 Spd RWD L4 1.8L/1.9/2.0L
BMW SÉRIE 5 2000-2011 5 Spd RWD L6 2.2/2.5/2.8/2.9/3.0L
BMW SÉRIE 5 2000-2011 5 Spd RWD V8 4.4L
BMW X3 2004-2007 5 Spd AWD L6 2.5L/2.9L/3.0L
BMW X3 2004-2007 2.5, 2.9, 3.0
BMW X3 2004-2006 5 Spd RWD/AWD L6 2.5L 3.0L
BMW X5 2004-2005 5 Spd RWD/AWD L6 3.0L
BMW X5 2000-2008 2.5, 3.0, 4.4, 4.6, 4.8
BMW X5 2000-2006 5 Spd R/4WD L6 2.9/3.0L
BMW X5 2000-2003 5 Spd RWD/AWD L6 3.0L
BMW X5 2000-2003 5 Spd AWD L6 3.0L
BMW Z3 ROADSTER 2000-2002 5 Spd R/AWD L6 2.5L/2.8/3.0/3.2L
BMW Z3, Z3 Roadster 2001-2002 5 Spd RWD L6 2.5L/3.0L
BMW Z4 2001-2006 2.5, 3.0, 3.2
BMW Z4 Roadster 2003-2006 5 Spd RWD L6 2.5L/3.0L
Buick Park Avenue 2007-2009 5 Spd R/AWD V6 2.8L/3.6L
Buick ROYAUM 2005-2006 5 Spd R/AWD V6 2.8L/3.6L
Cadillac CTS 2003-2007 5 Spd RWD/AWD V6 2.6L/2.8L/3.2L/3.6L
Cadillac CTS 2003-2007 V6, V8 2.8, 3.2, 3.6, 4.4, 4.6L
Cadillac CTS 2003-2007 2.8, 3.2, 3.6, 4.4, 4.6
Cadillac CTS 2001-2007 5 Spd RWD V6 2.6/2.8/3.2L
Cadillac SRX 2004-2009 V6, V8 2.8, 3.6, 4.4L
Cadillac SRX 2004-2009 5 Spd R/AWD V6 3.0L
Cadillac SRX 2004-2009 3.6, 4.6
Cadillac SRX 2004-2007 5 Spd RWD/AWD V6 3.6L
Cadillac SRX 2003-2010 5 Spd RWD/AWD V6 3.6L V8 4.6L
Cadillac STS 2005-2007 5 Spd RWD/AWD V6 3.6L
Cadillac STS 2004-2009 5 Spd RWD/AWD V6 2.8L V8 4.6L
Cadillac STS 2004-2007 V6 2.8, 3.6, 4.6L
Cadillac STS 2004-2007 3.6, 4.6
Cadillac XLR 2004-2009 V6, V8 2.8, 3.6, 4.6L
Cadillac XLR 2004-2009 4.6
Holden ADVENTRA 2004-2007 5 Spd AWD V6 3.6L
Holden COMMODORE 2004-2010 5 Spd RWD V6 3.6L
Land Rover Discovery TD6 2003 5 Spd 4x4 TD
Land Rover Range Rover 2002-2005 3.0
Land Rover Range Rover 2001-2005 5 Spd RWD/4X4 L6 2.9L
Opel GT 2006-2008 5 Spd R/AWD L4 2.4L
Opel OMEGA 2000-2003 5 Spd RWD V6 2.5L
Opel Omega-B 1994 5 Spd RWD 2.5LTD
Pontiac G8 2008-2010 V6 3.0, 3.6L
Pontiac G8 2008-2010 3.6
Pontiac G8 2008-2009 5 Spd RWD V6 3.6L
Pontiac G8 2008 5 Spd FWD V6 3.6L
Pontiac Solstice 2006-2010 L4 2.0,2.4L
Pontiac Solstice 2006-2010 2.0, 2.4
Pontiac Solstice 2006-2007 5 Spd RWD L4 2.0L/2.4L
Pontiac Solstice 2005-2009 5 Spd R/AWD L4 2.0/2.4L
Saturn Sky 2007-2009 2.0, 2.4
Saturn Sky / Sky Redline 2007 5 Spd RWD L4 2.0L/2.4L
Saturn SKY REDLINE 2007-2009 5 Spd R/AWD L4 2.0L/2.4L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

5L40 E
5L40E
5L40-E
A5S-360R
A5S 360R
A5S360R
A5S-390R
A5S 390R
A5S390R
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Torque Converter Clutch Lockup Failure
Friction lining burns from frequent forced lockup engagement, spreading debris to pump, valve body, and solenoids.
!
Direct Pack Friction Burn
Direct clutch pack frictions burn twice as often as Forward pack; cover plates replaced together with clutches.
!
PWM Solenoid Rapid Wear
PWM solenoids wear out prematurely instead of valve body channels/plungers, causing insufficient line pressure.
!
Pump Stator Channel Wear
Rotor-type oil pump stator channel wears out, reducing oil pressure; stator valve also frequently replaced.
?
ATF Overheating and Slipping
Insufficient line pressure from worn solenoids and dirty valve body causes friction slipping and ATF overheating.
!
Bushing Wear from Oil Starvation
Bushings wear rapidly after prolonged oil starvation at high speeds; bushing kit is a standard repair order.
!
Radiator Temperature Regulator Failure
Early production issue causing thermal regulation failure, leading to torque converter damage and overheating.
?
Vibration from Uneven Wear
Uneven friction wear and bush cranking cause transmission vibrations; linked to solenoid and pressure failures.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 5-speed automatic transmission 5L40E was designed in 1999 jointly with the 4-speed 4L40E. It became widely used on RWD vehicles of GM and BMW with engines from 2.0 up to 3.6 liters (340 Nm) since 2000. This transmission was especially preferred by BMW (from BMW 3 (4L40E) to BMW 5 and X5 (5L40E). Then these transmissions were commonly used across the globe: the USA (BMW, Opel, ...), China and Australia (Saturn, Cadillac etc.) and for Land Rover and Cadillac in the UK. The 5L40E transmission is designed on structural basis of 4L60E tested on American roads and produced on GM plant in Strasbourg, France.

Technical issues and repair guidelines

One of typical problems for the 5L40E during the first years of production is the radiator temperature regulator failure resulting in problems with the torque converter. The torque converter is handed in for repair during the reassembly. Experts assume that the torque converter cannot endure frequent forced switch-on of the clutch lock-up, its friction lining burns faster than other friction elements leading to dirt accumulation in the pump, valve body and solenoids and consequently all other transmission units.

Friction elements of the pack (Direct) (one-sided with internal and external teeth) burn twice as often as the Forward pack. Cover plates of the Direct pack are commonly replaced together with clutches. O.Dr.; Reverse frictions also get burnt quite often.The tight fit of rubber covered pistons is an unpleasant peculiarity of 5L40E repair, caused by features of the rotor type oil pump with its huge pressure potential.The kit of rubber-covered pistons is usually ordered for the overhaul.

PMW solenoids rapidly wear out instead of the valve body channels and plungers.Problems with solenoids which exhausted their resource and dirty valve body lead to insufficient pressure in the line that may result in ATF overheating because of slipping frictions, vibrations caused by uneven wear-out and cranking by bushes.

The kit of bushings is a typical order for repair of the 5L40E, which went through a long-time oil starvation at high speeds. One of the most common problems is the pump stator channel wear-out leading to the oil pressure decrease. The pump stator valve is also replaced quite often.

The valve body primarily suffers because of modes settings, when PWM-solenoids open the channel for ATF not immediately on full cross-section, but step-by-step opening and closing it. Movement acceleration of a hot pulp occurs in the narrowest area because of ATF and dirt. The torque converter transmits dirt to the transmission by means of worn-out clutch of the valve lock-up. Solenoids and the oil pump reach the end of their service life earlier than the valve body. It is a trigger for car owners to change oil and solenoids avoiding the valve body wear-out.

The 5L40E is considered to be a robust and reliable transmission, when preserving it from heavy oil contamination with friction dust, which wears transmission components.
