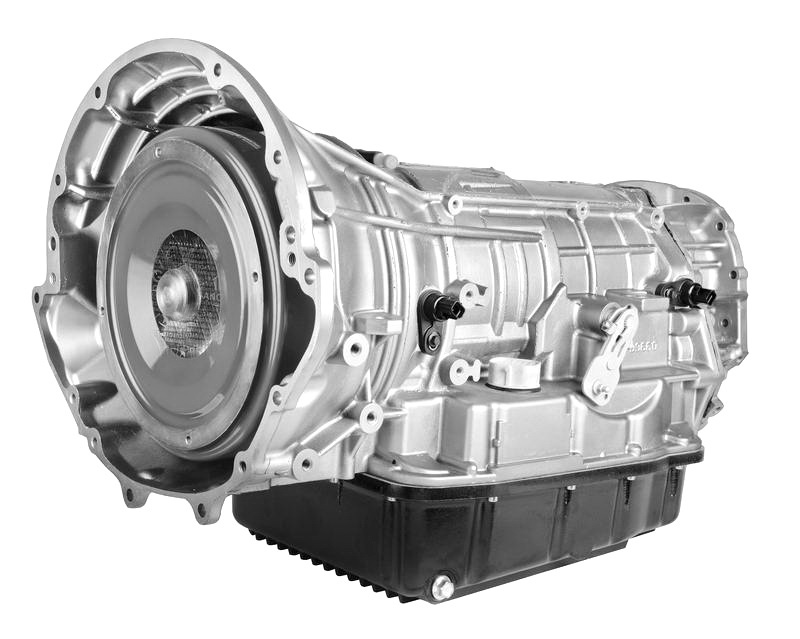

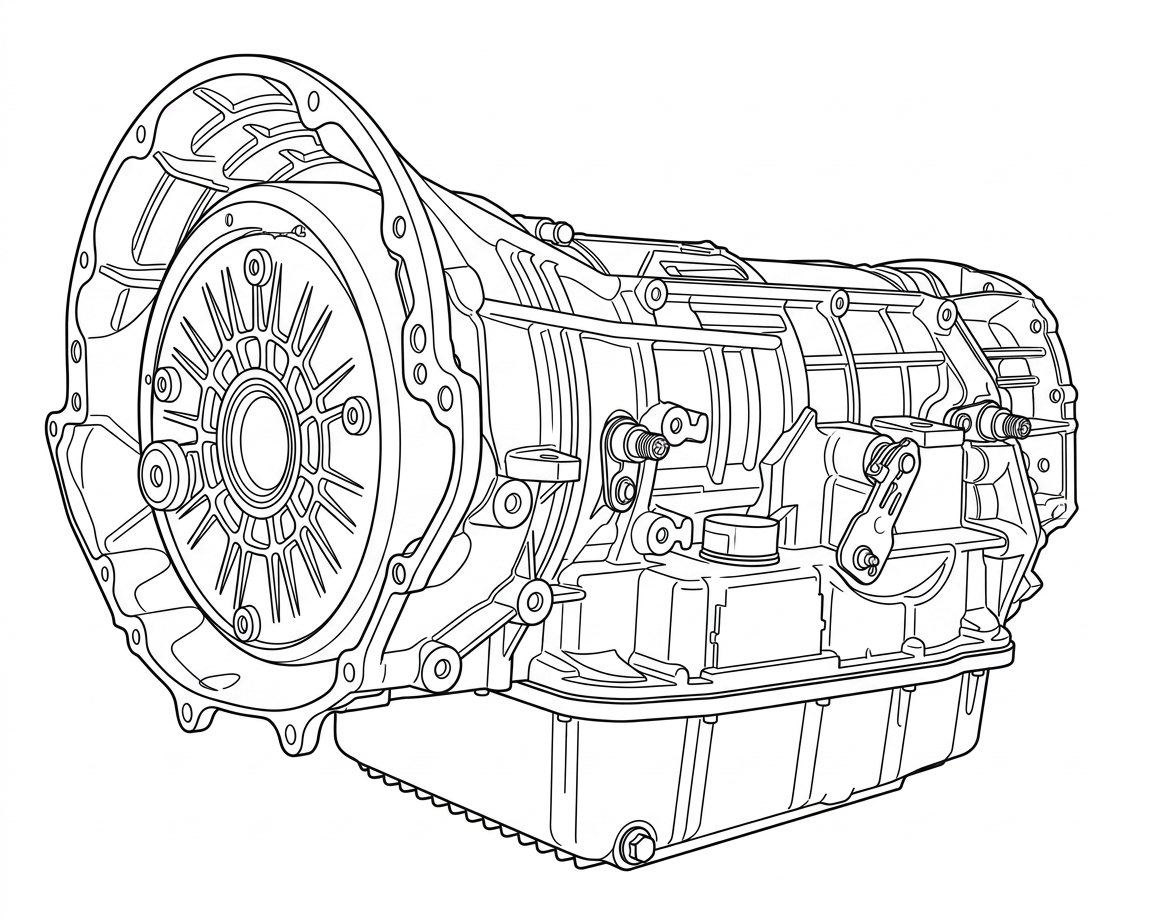

Chrysler 45RFE Transmission

The 4-speed automatic transmission 45RFE was produced in 1999 for powerful 4.7 liter engines of Jeep and pickups Dodge Dakota. Subsequently, this transmission was adjusted for diesel engines (with the capacity equal to 2.8 liters). The 5-speed modification 5-45RFE has been manufactured since 2003.

Speeds 4
Type AT
Drive RWD
ATF capacity (L) 11
ATF change (L) 5
ATF type Mopar ATF+4
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
45RFE
7.3/10
Support & Market Presence Index
Well covered

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence6.2
Documentation depth10.0
Knowledge & support7.0

Exploded diagram & parts

Full 5-45RFE parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

179 179 · No. 1 334B/334A 334B, 334A · No. 2 381 381 · No. 3 898 898 · No. 4 899 899 · No. 5 311 311 · No. 6 070 070 · No. 7 519 519 · No. 8 510 510 · No. 9 10 10 · No. 10 530 530 · No. 11 544 544 · No. 12 528 528 · No. 13 036 036 · No. 14 520 520 · No. 15 037 037 · No. 16 211 211 · No. 17 670 670 · No. 18 480 480 · No. 19 047 047 · No. 20 050 050 · No. 21 574 574 · No. 22 337 337 · No. 23 880 880 · No. 24 862 862 · No. 25 971 971 · No. 26 961 961 · No. 27 554 554 · No. 28 875 875 · No. 29 980 980 · No. 30 970 970 · No. 31 960 960 · No. 32 877 877 · No. 33 482 482 · No. 34 482 482 · No. 35 122/102 122, 102 · No. 36 876 876 · No. 37 142* 142* · No. 38 860 860 · No. 39 120/100 120, 100 · No. 40 861 861 · No. 41 140 140 · No. 42 891 891 · No. 43 130/110 130, 110 · No. 44 150 150 · No. 45 892* 892* · No. 46 232 232 · No. 47 571 571 · No. 48 220 220 · No. 49 052 052 · No. 50 052 052 · No. 51 570 570 · No. 52 214 214 · No. 53 576 576 · No. 54 234 234 · No. 55 883 883 · No. 56 558 558 · No. 57 331 331 · No. 58 884 884 · No. 59 968 968 · No. 60 978 978 · No. 61 865 865 · No. 62 121/101 121, 101 · No. 63 141 141 · No. 64 863* 863* · No. 65 333 333 · No. 66 962 962 · No. 67 852 852 · No. 68 874 874 · No. 69 124/104 124, 104 · No. 70 144* 144* · No. 71 226 226 · No. 72 227* 227* · No. 73 054 054 · No. 74 054 054 · No. 75 596 596 · No. 76 235* 235* · No. 77 616 616 · No. 78 053 053 · No. 79 586 586 · No. 80 238 238 · No. 81 584 584 · No. 82 244 244 · No. 83 612 612 · No. 84 247 247 · No. 85 058 058 · No. 86 582 582 · No. 87 251 251 · No. 88 592 592 · No. 89 996 996 · No. 90 996 996 · No. 91 886 886 · No. 92 888 888 · No. 93 887 887 · No. 94 285 285 · No. 95 577 577 · No. 96 654 654 · No. 97 664 664 · No. 98 885* 885* · No. 99 154 154 · No. 100 134/114 134, 114 · No. 101 760 760 · No. 102 897 897 · No. 103 271 271 · No. 104 770 770 · No. 105 074 074 · No. 106 781 781 · No. 107 108 108 · No. 108 494 494 · No. 109 493 493 · No. 110 846 846 · No. 111 438 438 · No. 112 013 013 · No. 113 540 540 · No. 114 436 436 · No. 115 371 371 · No. 116 893 893 · No. 117 987 987 · No. 118 977 977 · No. 119 967 967 · No. 120 338 338 · No. 121 339 339 · No. 122 061 061 · No. 123 061 061 · No. 124 557 557 · No. 125 690 690 · No. 126 895 895 · No. 127 072 072 · No. 128 995-2 995-2 · No. 129 761-4 761-4 · No. 130 995-3 995-3 · No. 131 995-1 995-1 · No. 132 347 347 · No. 133 420 420 · No. 134 135 135 · No. 135 136 136 · No. 136 137 137 · No. 137 138 138 · No. 138 342 342 · No. 139 140 140 · No. 140 141 141 · No. 141 142 142 · No. 142 143 143 · No. 143 144 144 · No. 144 145 145 · No. 145 146 146 · No. 146 147 147 · No. 147 950 950 · No. 148 149 149 · No. 149 150 150 · No. 150 151 151 · No. 151 152 152 · No. 152 926 926 · No. 153 352/927 352, 927 · No. 154 352 352 · No. 155 010 010 · No. 156 991-4 991-4 · No. 157 994 994 · No. 158 991-6 991-6 · No. 159 016 016 · No. 160 740 740 · No. 161 300/765 300, 765 · No. 162 779 779 · No. 163 782 782 · No. 164

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to 45RFE in the Go4Trans marketplace.
Sell 45RFE parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

34 applications · 5 makes · 1999–2012 Dodge 16 · Jeep 11 · Chrysler 3 · Eagle 2 · Plymouth 2

Make Model Year Drive Engine
Chrysler Aspen 2007-2009 V8 4.7, 5.7L
Chrysler DURANGO 2000-2002 4 Spd RWD/4X4 V8 4.7L
Chrysler PICKUP/RAM 1500 2002 4 Spd RWD/4X4 V6 3.7L V8 4.7L
Dodge Dakota 2004-2011 V8 4.7, 5.7L
Dodge Dakota 2000-2003 V8 4.7L
Dodge Durango 2004-2011 V8 4.7, 5.7L
Dodge Durango 2000-2003 V8 4.7L
Dodge DURANGO 2000-2002 4 Spd RWD/4X4 V8 4.7L
Dodge Pickup/Ram 1500 2002 4 Spd RWD/4X4 V6 3.7L V8 4.7L
Dodge Ram 1500 2004-2011 V6, V8 4.7, 5.7L
Dodge Ram 1500 2002-2003 V6, V8 4.7, 5.7L
Dodge Ram 1500 Mega Cab Pickup 2006-2008 V8 5.7L
Dodge Ram 2500 Mega Cab - Pickup 2006-2009 V8 5.7L
Dodge Ram 2500HD - Pickup 2003-2009 V8 5.7L
Dodge Ram 3500HD - Pickup 2003-2009 V8, V10 5.7, 8.0L
Dodge Truck Dakota 2000-2003 4.7
Dodge Truck Durango 2000-2003 4.7
Dodge Truck Durango 2000-2002 4 Spd RWD/4X4 V8 4.7L
Dodge Truck Ram 1500 1/2 Ton - Pickup 2002-2012 4.7, 5.7
Eagle DURANGO 2000-2002 4 Spd RWD/4X4 V8 4.7L
Eagle PICKUP/RAM 1500 2002 4 Spd RWD/4X4 V6 3.7L V8 4.7L
Jeep Commander 2006-2009 V6, V8 3.7, 4.7, 5.7L
Jeep Grand Cherokee 2004-2010 V6, V8 3.7, 4.7, 5.7L
Jeep Grand Cherokee 1999-2003 V8 4.7L
Jeep Grand Cherokee 1999-2003 4.7
Jeep Grand Cherokee 1999-2001 4 Spd RWD/4X4 V8 4.7L
Jeep Grand Cherokee, Laredo 1999-2000 4 Spd RWD/4X4 V8 4.7L
Jeep Liberty 2004-2006 L4, V6 2.8, 3.7L
Jeep Liberty 2002-2003 V6 3.7L
Jeep Liberty 2002-2003 3.7
Jeep Liberty 2002 4 Spd RWD/4X4 L4 2.4L; V6 3.7L
Jeep Liberty 2002 4 Spd RWD/4X4 V6 3.7L
Plymouth DURANGO 2000-2002 4 Spd RWD/4X4 V8 4.7L
Plymouth PICKUP/RAM 1500 2002 4 Spd RWD/4X4 V6 3.7L V8 4.7L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

DG4
45RFE
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Valve Body ATF Starvation
Valve body provides insufficient ATF quantity, leading to solenoid wear and internal clogging.
!
Solenoid Block Exhaustion
Solenoids exhaust limited service life; valve body clogs and wears out over extended use.
!
Pump Surface Wear
Pump gear operating surfaces wear due to prolonged operation with contaminated ATF oil.
!
Overdrive Underdrive Friction Burn
Friction components and steel discs in Overdrive and Underdrive packages are first to burn out.
?
Valve Body Overheating Chain
Burnt frictions cause cascading overheating of valve body and solenoid electronics block.
!
Pump Cover Seal Damage
Rubber-coated pump cover damaged by vibrations from worn torque converter lock-up clutch.
!
Worn Transmission Bushings
Internal bushings including pump bushing wear frequently and require replacement during overhaul.
!
Rubber Piston Overheating Damage
Rubber-covered pistons degrade due to transmission overheating; replacement kit required separately.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 4-speed automatic transmission 45RFE was produced in 1999 for powerful 4.7 liter engines of Jeep and pickups Dodge Dakota. Subsequently, this transmission was adjusted for diesel engines (with the capacity equal to 2.8 liters). The 5-speed modification 5-45RFE has been manufactured since 2003.

Technical issues and repair guidelines

These comparatively “invincible” transmissions in most cases come to repair shops for change of the oil and filters, which are replaced with dismounting of the pan. AWD modifications of this transmission have different oil filter and pan depth.

Scheduled overhaul includes the following spare parts in repair kits:

- Kit of gaskets and seals is replaced because of worn-out rings and valve body spare parts.

- Kit of friction components

- Kit of steel discs

These 3 kits compose the Master Kit. The kit of rubber-covered pistons is also ordered in case of the transmission overheating. Worn-out bushings also get replaced quite frequently.

Problems of these automatic transmissions occur when the valve body provides insufficient quantity of ATF. Solenoids also exhaust their limited service resource, the valve body gets clogged and wears out.The pump has 3 gears which are tested for wear and damages of operating surfaces. The pump bushing is also checked for wear. The pump has some issues with the wear-out of surfaces. The reason lies in a long-term operation with contaminated oil.The rubber-coated pump cover performs functions of the pump seal. This cover gets damaged by vibrations from the worn-out torque converter lock-up. There are several modifications of this cover.

Friction components with steel discs are the first to get burnt in Overdrive and Underdrive packages.This overheating of frictions in chain order leads to overheating of the valve body itself and electronics in the block of solenoids.

Sources & Contribution

+ Contribute

This feature is in progress and will be available soon.

Every claim on this page is backed by a structured source record — including community contributions, each with its own reference.

Type
Title
Author
Link
video
45RFE Transmission Teardown Inspection - Transmission Repair
Automatic Transmission
video
545RFE Teardown
Gary Ferraro
video
45RFE Valvebody Overhaul
Gary Ferraro
