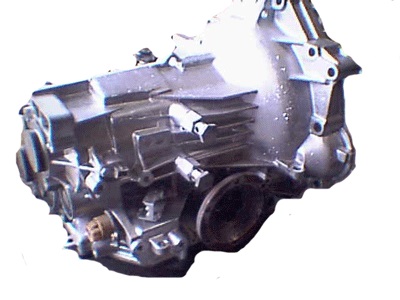

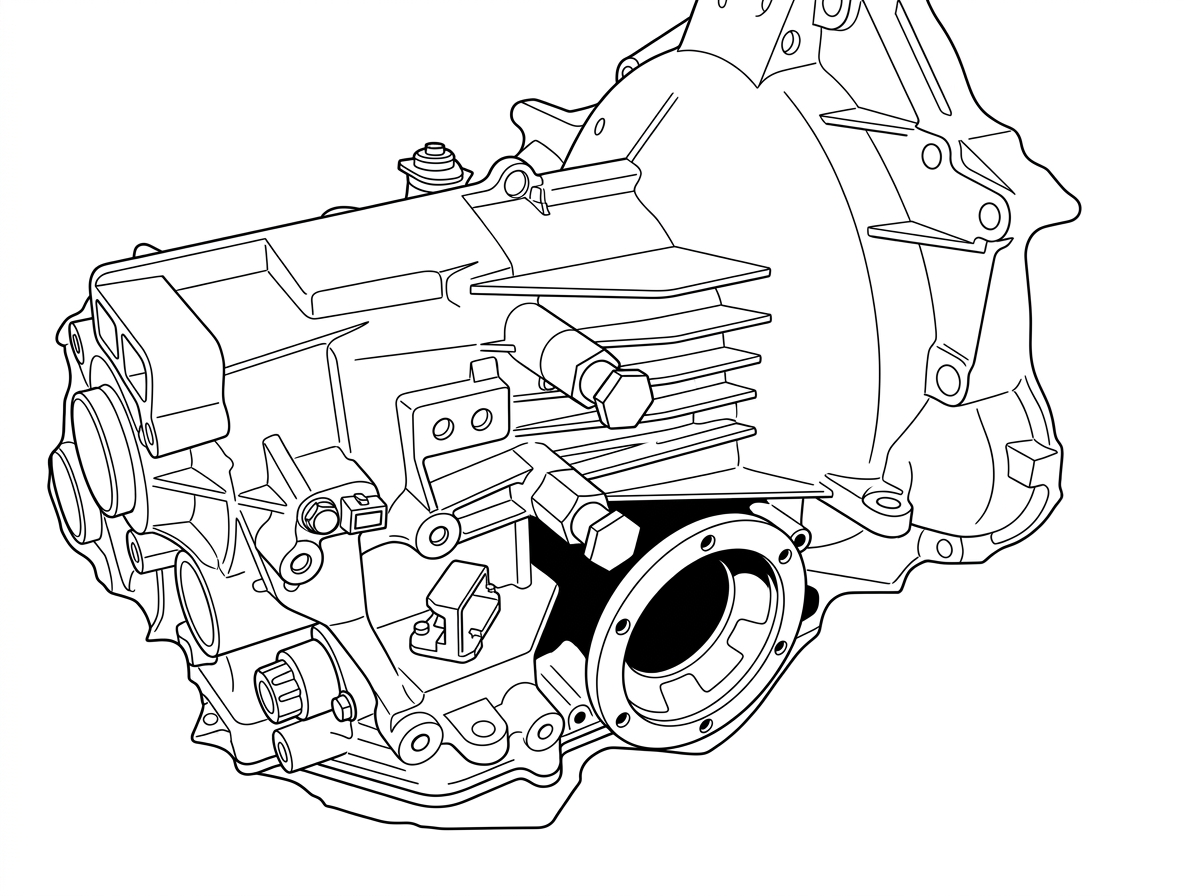

Volkswagen AG 01N Transmission

In 1991, the 4-speed automatic transmission (A/T) 01N (097) successfully replaced another popular transmission solution named as 090. It was designed for FWD Audi cars (A4, A6, etc.) equipped with engines from 1.6l to 2.6l. It was also installed on some VW Passats with different longitudinally positioned engines with the capacity up to 1.9 liters.The transmission, manufactured from 1991 to 2004, has three modifications corresponding to their production years: 1991-95; 1996-1998; 1999-04. Thus, these versions have some differences in the design of transmission components.VW have similar…

Speeds 4
Type AT
Drive FWD
Max torque 280
ATF capacity (L) 6
ATF change (L) 3,8
ATF type LT 71141
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
01N
4.7/10
Support & Market Presence Index
Limited presence

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence1.3
Documentation depth10.0
Knowledge & support4.0

Exploded diagram & parts

Full 097 parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

070 070 · No. 1 034 034 · No. 2 3 3 · No. 3 530 530 · No. 4 035 035 · No. 5 520 520 · No. 6 179 179 · No. 7 181 181 · No. 8 311 311 · No. 9 310 310 · No. 10 211 211 · No. 11 962 962 · No. 12 852 852 · No. 13 144 144 · No. 14 15 15 · No. 15 972 972 · No. 16 17 17 · No. 17 124/104 124, 104 · No. 18 145 145 · No. 19 445 445 · No. 20 076/275 076, 275 · No. 21 778 778 · No. 22 992-1 992-1 · No. 23 072 072 · No. 24 25 25 · No. 25 26 26 · No. 26 27 27 · No. 27 677 677 · No. 28 958 958 · No. 29 556 556 · No. 30 046 046 · No. 31 966 966 · No. 32 986 986 · No. 33 976 976 · No. 34 893 893 · No. 35 131 131 · No. 36 130/110 130, 110 · No. 37 150 150 · No. 38 892 892 · No. 39 229* 229* · No. 40 229* 229* · No. 41 037 037 · No. 42 048 048 · No. 43 178 178 · No. 44 554 554 · No. 45 048B 048B · No. 46 760 760 · No. 47 267 267 · No. 48 268 268 · No. 49 269 269 · No. 50 270 270 · No. 51 798 798 · No. 52 483 483 · No. 53 730 730 · No. 54 274 274 · No. 55 273 273 · No. 56 277* 277* · No. 57 964 964 · No. 58 974 974 · No. 59 877 877 · No. 60 284 284 · No. 61 285 285 · No. 62 285 285 · No. 63 984 984 · No. 64 875 875 · No. 65 149 149 · No. 66 128/108 128, 108 · No. 67 148 148 · No. 68 574 574 · No. 69 876 876 · No. 70 050 050 · No. 71 231 231 · No. 72 232 232 · No. 73 233 233 · No. 74 720 720 · No. 75 698B 698B · No. 76 696 696 · No. 77 075 075 · No. 78 690 690 · No. 79 698 698 · No. 80 712 712 · No. 81 348 348 · No. 82 550 550 · No. 83 960 960 · No. 84 970 970 · No. 85 860 860 · No. 86 980 980 · No. 87 971 971 · No. 88 981 981 · No. 89 862 862 · No. 90 863 863 · No. 91 141 141 · No. 92 120/100 120, 100 · No. 93 140 140 · No. 94 861 861 · No. 95 214 214 · No. 96 039 039 · No. 97 570 570 · No. 98 716 +6 716, 289, 288, 290, 292, 291, 698C · No. 99 759 759 · No. 100 280 280 · No. 101 281 281 · No. 102 282 282 · No. 103 796 796 · No. 104 483B 483B · No. 105 218 218 · No. 106 217 217 · No. 107 624 624 · No. 108 235 235 · No. 109 236 236 · No. 110 622 622 · No. 111 883 883 · No. 112 654 654 · No. 113 630 630 · No. 114 967 967 · No. 115 977 977 · No. 116 885 885 · No. 117 154 154 · No. 118 134/114 134, 114 · No. 119 326 326 · No. 120 740 740 · No. 121 420 420 · No. 122 436 +5 436, 077, 758, 677, 343, 895 · No. 123 010 010 · No. 124 857 857 · No. 125 241 241 · No. 126 242 242 · No. 127 614 614 · No. 128 584 584 · No. 129 250 250 · No. 130 251 251 · No. 131 252 252 · No. 132 710 710 · No. 133 254 254 · No. 134 255 255 · No. 135 300/765 300, 765 · No. 136

Parts categories

View all parts →
Sell 01N parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

5 applications · 2 makes · 1995–2000 Volkswagen 3 · Audi 2

Make Model Year Drive Engine
Audi A4 1995-1996 4 Spd FWD L4 1.6L 1.8L 1.9L
Audi A6, Avant 1995-1998 4 Spd FWD L4 1.9L 2.0L; V6 2.6L
Volkswagen Cabriolet 1999-2000 4 Spd FWD L4 1.8L V6 2.6/2.8L
Volkswagen Cabriolet 1995-1998 4 Spd FWD L4 1.6L 1.8L 1.9L
Volkswagen Cabriolet 1995-1998 4 Spd FWD V6 2.8L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

01N
DMX
EPU
DMV
EPV
EPT
DMU
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
3-4 Clutch Pack Burnout
K3 friction pack burns out, commonly replaced during major rebuild.
!
Forward-Reverse Clutch Pack
Forward-Rev clutch pack fails and is routinely replaced alongside bearing discs.
!
Torque Converter Lockup Lining
Lock-up lining wears out and contaminates fluid, accelerating solenoid and valve body wear.
!
Solenoid Wear From Contamination
Solenoids degrade faster when torque converter lining debris circulates through valve body.
!
Valve Body Unit Failure
Valve body suffers wear driven by torque converter lining contamination in hydraulic fluid.
!
Transmission Pump Seal Failure
Pump and seals fail over time, included in standard overhaul kit replacement.
!
Electric Component Faults

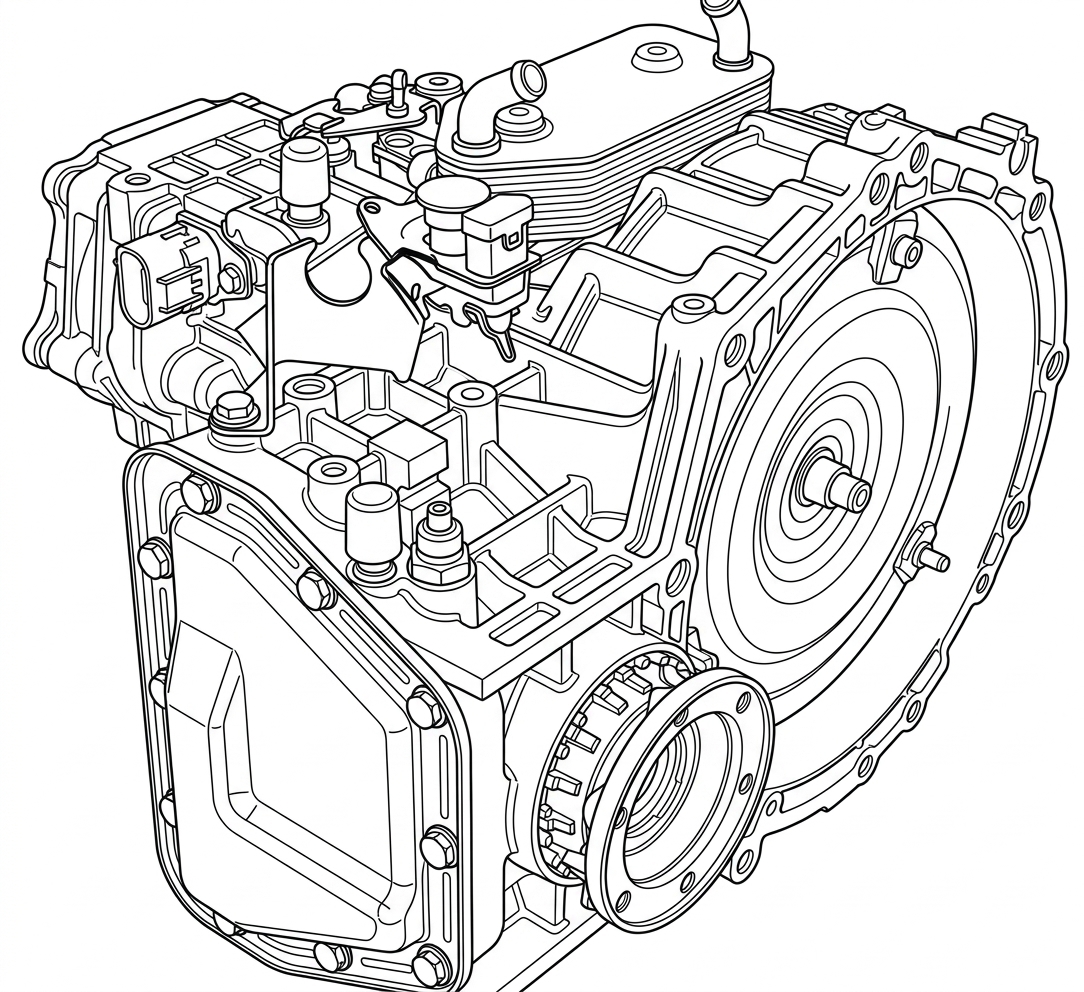

Electrical components share same failure patterns as the related 01M transmission.
!
Plastic Bearing Degradation
Separate plastic bearings wear out and require replacement during major overhaul.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

In 1991, the 4-speed automatic transmission (A/T) 01N (097) successfully replaced another popular transmission solution named as 090. It was designed for FWD Audi cars (A4, A6, etc.) equipped with engines from 1.6l to 2.6l. It was also installed on some VW Passats with different longitudinally positioned engines with the capacity up to 1.9 liters.The transmission, manufactured from 1991 to 2004, has three modifications corresponding to their production years: 1991-95; 1996-1998; 1999-04. Thus, these versions have some differences in the design of transmission components.VW have similar modifications of this family: 098/01P – the engine is located transversely in minibuses and MPVs. VW Sharan, VW T2/T4, VW Eurovan, Ford Galaxy; 095/096/01M – the engine is located transversally for VW and SCODA cars.These automatic transmissions differ in housings and differentials.

Technical issues and repair guidelines

The 01N (together with 098/01P and 095/096/01M) - the leader among Audi-VW transmissions in repair frequency. The 01N steadily holds the third place in demand, behind only a younger family U140-240 and the unconditional leader 5HP19(FL).This transmission is very reliable, maintainable, simple, and some problems usually occur only after large mileages.

Often transmission specialists change only the burned-out 3-4 (K3) packs and Forward-Rev together with bearing discs, separate plastic bearings, gaskets, pump and seals. Electric components and the valve body units usually have tha same issues as in the 01M transmission. The torque converter is the main source of faulty operation of the valve body. The sooner the torque converter lock-up lining is replaced, the less is the wear-out of solenoids and the valve body.

The standard order for reassembly of the old 01N transmission includes filter and complete kits: Overhaul kit, Frictions, Pistons.

Ordered Kits:

-Kit of gaskets and seals;

-Kit of friction components, usually ordered with the kit of steel discs;

-Kit of pistons is the same for 01M-N-P, and it is ordered for most major repairs.
