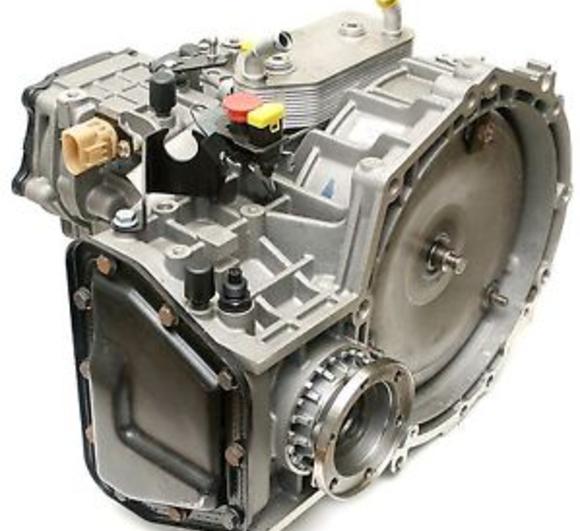

Volkswagen AG 01M Transmission

The legendary 4-speed automatic transmission 01M of Audi-Volswagen own manufacture (preceded by 095 / 096 models) has been produced for 20+ years, from 1995, for all popular FWD VW, Seat and Skoda (as well as Audi A3) vehicles with engines from 1.6l to 2.0l positioned transversally.

Speeds 4
Type AT
Drive FWD
Max torque 200
ATF capacity (L) 6,5
ATF change (L) 3,8
ATF type LT 71141, 75W90 GL4
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
01M
6.7/10
Support & Market Presence Index
Well covered

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence4.6
Documentation depth10.0
Knowledge & support7.9

Exploded diagram & parts

Full 01M parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

070 070 · No. 1 034 034 · No. 2 3 3 · No. 3 530 530 · No. 4 035 035 · No. 5 520 520 · No. 6 179 179 · No. 7 181 181 · No. 8 311 311 · No. 9 310 310 · No. 10 211 211 · No. 11 962 962 · No. 12 852 852 · No. 13 144 144 · No. 14 972 972 · No. 15 16 16 · No. 16 17 17 · No. 17 124/104 124, 104 · No. 18 145 145 · No. 19 958 958 · No. 20 556 556 · No. 21 046 046 · No. 22 966 966 · No. 23 986 986 · No. 24 976 976 · No. 25 26 26 · No. 26 893 893 · No. 27 131 131 · No. 28 130/110 130, 110 · No. 29 150 150 · No. 30 892 892 · No. 31 229* 229* · No. 32 229* 229* · No. 33 037 037 · No. 34 048 048 · No. 35 178 178 · No. 36 554 554 · No. 37 048B 048B · No. 38 777 777 · No. 39 778 778 · No. 40 964 964 · No. 41 974 974 · No. 42 877 877 · No. 43 284 284 · No. 44 285 285 · No. 45 285 285 · No. 46 984 984 · No. 47 875 875 · No. 48 149 149 · No. 49 128/108 128, 108 · No. 50 148 148 · No. 51 574 574 · No. 52 876 876 · No. 53 050 050 · No. 54 55 55 · No. 55 56 56 · No. 56 231 231 · No. 57 232 232 · No. 58 233 233 · No. 59 550 550 · No. 60 960 960 · No. 61 970 970 · No. 62 860 860 · No. 63 980 980 · No. 64 971 971 · No. 65 981 981 · No. 66 862 862 · No. 67 863 863 · No. 68 141 141 · No. 69 120/100 120, 100 · No. 70 140 140 · No. 71 861 861 · No. 72 214 214 · No. 73 039 039 · No. 74 570 570 · No. 75 218 218 · No. 76 217 217 · No. 77 624 624 · No. 78 235 235 · No. 79 236 236 · No. 80 622 622 · No. 81 883 883 · No. 82 654 654 · No. 83 630 630 · No. 84 967 967 · No. 85 977 977 · No. 86 885 885 · No. 87 154 154 · No. 88 134/114 134, 114 · No. 89 857 857 · No. 90 241 241 · No. 91 242 242 · No. 92 614 614 · No. 93 584 584 · No. 94 250 250 · No. 95 251 251 · No. 96 252 252 · No. 97 710 710 · No. 98 254 254 · No. 99 255 255 · No. 100 848 848 · No. 101 438 438 · No. 102 774 774 · No. 103 436 436 · No. 104 785 785 · No. 105 842 842 · No. 106 410 410 · No. 107 838 838 · No. 108 979 979 · No. 109 989 989 · No. 110 275 275 · No. 111 887 887 · No. 112 076 076 · No. 113 724 724 · No. 114 343 343 · No. 115 292 292 · No. 116 292 292 · No. 117 716 716 · No. 118 119 119 · No. 119 289 289 · No. 120 288 288 · No. 121 343 343 · No. 122 725 725 · No. 123 076 076 · No. 124 887 887 · No. 125 275 275 · No. 126 989 989 · No. 127 979 979 · No. 128 838 838 · No. 129 758/760 758, 760 · No. 130 730 730 · No. 131 274 274 · No. 132 273 273 · No. 133 276 276 · No. 134 735 735 · No. 135 075 075 · No. 136 690 690 · No. 137 713 713 · No. 138 280 280 · No. 139 281 281 · No. 140 712 712 · No. 141 283 283 · No. 142 796 796 · No. 143 759 759 · No. 144 780 780 · No. 145 255 255 · No. 146 254 254 · No. 147 260 260 · No. 148 261 261 · No. 149 272 272 · No. 150 262 262 · No. 151 264 264 · No. 152 153 153 · No. 153 154 154 · No. 154 740 740 · No. 155 431 431 · No. 156 434 434 · No. 157 426 +2 426, 423, 427 · No. 158 326 326 · No. 159 010 010 · No. 160 765/300 765, 300 · No. 161 446 446 · No. 162 163 163 · No. 163 164 164 · No. 164 165 165 · No. 165 166 166 · No. 166 167 167 · No. 167 992 992 · No. 168 421/422 421, 422 · No. 169 170 170 · No. 170
