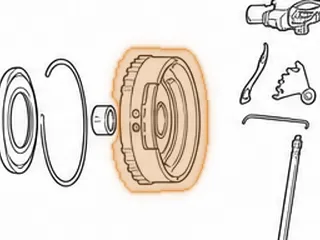

Support, AXOD Differential (2 Bushing Type) 1986
Part # 86724
Type:
Bushing, support
Years:
1986
Data as of:
2026-10-17
Offers
No offers for this part yet.
Cross-reference numbers
| Number | System | Status |
|---|---|---|
| E6DZ-7A130-A | OEM | ✓✓ confirmed by 2 sources |
| 86724 | WIT | ✓ catalog |
| 96729 | DACCO | ? unverified |
Where it fits
| Diagram | Position | Transmission page |
|---|---|---|
| 4F50N | 724 | 4F50N |
| AX4S | 724 | — |
Other parts in 4F50N position 724:
- 86724A Support, AXOD/AXODE Differential (1 Bushing Type) No Seal 1986-92
- 86724B Support, AXODE/AX4S Differential (1 Bushing Type) With Seal (Cast # RFE9) (No Notch For Speed Sensor) With Seal 1993-99
- 86724BA Support, AX4S Differential (1 Bushing Type) (Cast # RFYF2P or RFE9) With Notch For A Speed Sensor 2000-Up
- 86724H Support, AX4N Differential (Low/Intermediate Clutch Housing) (1.950” Tall) 1995
- 86724HA Support, AX4N Differential (Low/Intermediate Clutch Housing) (1.850” Tall) (Cast # RFF6) 1996-98
- 86724HB Support, AX4N Differential (Low/Intermediate Clutch Housing) (1.850” Tall) (Cast # RFX3P) 1999-2000
- 86724HC Support, AX4N/4F50N Differential (Low/Intermediate Clutch Housing) (1.850” Tall) (Cast # RF1F1) 2001-Up
Other parts in AX4S position 724:
- 86724A Support, AXOD/AXODE Differential (1 Bushing Type) No Seal 1986-92
- 86724B Support, AXODE/AX4S Differential (1 Bushing Type) With Seal (Cast # RFE9) (No Notch For Speed Sensor) With Seal 1993-99
- 86724BA Support, AX4S Differential (1 Bushing Type) (Cast # RFYF2P or RFE9) With Notch For A Speed Sensor 2000-Up
- 86724H Support, AX4N Differential (Low/Intermediate Clutch Housing) (1.950” Tall) 1995
- 86724HA Support, AX4N Differential (Low/Intermediate Clutch Housing) (1.850” Tall) (Cast # RFF6) 1996-98
- 86724HB Support, AX4N Differential (Low/Intermediate Clutch Housing) (1.850” Tall) (Cast # RFX3P) 1999-2000
- 86724HC Support, AX4N/4F50N Differential (Low/Intermediate Clutch Housing) (1.850” Tall) (Cast # RF1F1) 2001-Up
Before you order
Verify the number before ordering: compare it with the part you have and the transmission model.
