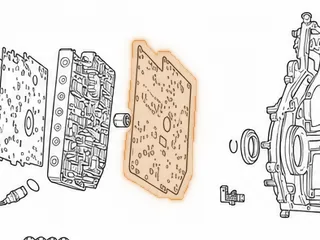

Bonded Gasket, AX4S Valve Body (Cast # 40) 1994-95 (Taurus, Sable 3.0L)
Part # 86320GA
Type:
Gasket, valve
Years:
1994-95
Data as of:
2026-10-17
Offers
No offers for this part yet.
Cross-reference numbers
| Number | System | Status |
|---|---|---|
| F5DZ-7Z490-C | OEM | ✓✓ confirmed by 2 sources |
| 86320GA | WIT | ✓ catalog |
| 96532A | DACCO | ? unverified |
| 59752 | Precision | ? unverified |
Where it fits
| Diagram | Position | Transmission page |
|---|---|---|
| 4F50N | 320 | 4F50N |
| AX4S | 320 | — |
Other parts in 4F50N position 320:
- 86320 Gasket, AXOD Valve Body Seperator Plate To Case Cover (No Stripe) 1986
- 86320B Gasket, AXOD Valve Body Seperator Plate To Cover (White Stripe) 1987
- 86320C Gasket, AXOD Valve Body Seperator Plate To Cover (Yellow Stripe) 1988-90
- 86320E Gasket, AXODE Valve Body Seperator Plate To Case Cover 1991-98
- 86320EB Gasket, AX4S Valve Body Seperator Plate To Case Cover 1999-Up (Yellow Stripe) This Replaces The Gasket On The Bonded…
- 86320F Gasket, AX4N Valve Body Seperator Plate To Case Cover 1994-97 (Yellow Stripe) This Replaces The Gasket On The Bonded…
- 86320FA Gasket, AX4N Valve Body Seperator Plate To Case Cover 1998-03 (Orange Stripe) This Replaces The Gasket On The Bonded…
- 86320GB Bonded Gasket, AX4S Valve Body (Cast # 41) 1994-95 (Taurus, Sable, Continental 3.8L)
- 86320GC Bonded Gasket, AX4S Valve Body (Cast # 53) 1994-95 (Windstar 3.0L)
- 86320GD Bonded Gasket, AX4S Valve Body (Cast # 58) 1994-95 (Windstar 3.8L)
- and 18 more
Other parts in AX4S position 320:
- 86320 Gasket, AXOD Valve Body Seperator Plate To Case Cover (No Stripe) 1986
- 86320B Gasket, AXOD Valve Body Seperator Plate To Cover (White Stripe) 1987
- 86320C Gasket, AXOD Valve Body Seperator Plate To Cover (Yellow Stripe) 1988-90
- 86320E Gasket, AXODE Valve Body Seperator Plate To Case Cover 1991-98
- 86320EB Gasket, AX4S Valve Body Seperator Plate To Case Cover 1999-Up (Yellow Stripe) This Replaces The Gasket On The Bonded…
- 86320F Gasket, AX4N Valve Body Seperator Plate To Case Cover 1994-97 (Yellow Stripe) This Replaces The Gasket On The Bonded…
- 86320FA Gasket, AX4N Valve Body Seperator Plate To Case Cover 1998-03 (Orange Stripe) This Replaces The Gasket On The Bonded…
- 86320GB Bonded Gasket, AX4S Valve Body (Cast # 41) 1994-95 (Taurus, Sable, Continental 3.8L)
- 86320GC Bonded Gasket, AX4S Valve Body (Cast # 53) 1994-95 (Windstar 3.0L)
- 86320GD Bonded Gasket, AX4S Valve Body (Cast # 58) 1994-95 (Windstar 3.8L)
- and 18 more
Before you order
Verify the number before ordering: compare it with the part you have and the transmission model.
