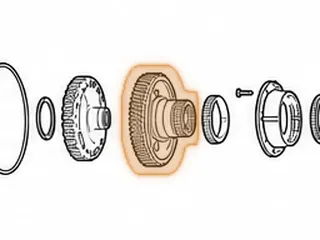

Gear, A4CF1/A4CF2 Drive Transfer (67 Teeth)(5.105”OD) 2006-Up
Part # 41710E
Type:
Gear
Years:
2006-Up
Size:
67 Teeth; 5.105”OD
Data as of:
2026-10-17
Offers
No offers for this part yet.
Cross-reference numbers
| Number | System | Status |
|---|---|---|
| 41710E | WIT | ✓ catalog |
| 45811-23000 | OEM | ✓ catalog |
Where it fits
| Diagram | Position | Transmission page |
|---|---|---|
| A4CF1 | 710 | A4CF1 |
Other parts in A4CF1 position 710:
- 41710A Gear, F4A41/42/W4A42 Drive Transfer (42 Teeth)(5.055” OD) 1996-Up
- 41710AA Gear, F4A41/F4A42/W4A42 Drive Transfer (49 Teeth(5.713”OD) 1996-Up
- 41710AB Gear, F4A41/42 Drive Transfer (67 Teeth)(4.920” OD) 1996-Up
- 41710B Gear, F4A51 Drive Transfer (70 Teeth)(5.595” OD) 1996-Up
- 41710BC Gear, W4A51(W4A5A) Drive Transfer (49 Teeth)(5.725”OD) 2001-Up
- 41710C Gear, F5A51 Drive Transfer (75 Teeth, 1 Groove)(2.495” Thick)(6.290” OD) 2001-Up
- 41710H Gear, A5HF1 Drive Transfer (75 Teeth, 2 Groove)(2.620” Thick)(6.290”OD) 2006-Up
Before you order
Verify the number before ordering: compare it with the part you have and the transmission model.
