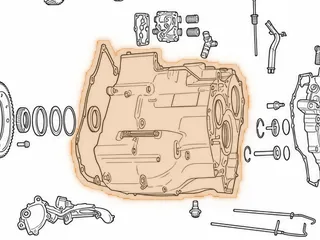

Case, B7TA/B7XA(17 Bolts To Bell) 16 Bolt Rear Cover (Cast # P7T On Back Left Of Case)…
Part # 20760GA
Type:
Case, cover
Data as of:
2026-10-17
Offers
No offers for this part yet.
Cross-reference numbers
| Number | System | Status |
|---|---|---|
| 20760GA | WIT | ✓ catalog |
| P7T | Casting # | ✓ catalog |
Where it fits
| Diagram | Position | Transmission page |
|---|---|---|
| B7XA | 760 | B7XA |
| BDGA | 760 | — |
Other parts in B7XA position 760:
- 30760BA Case, B6VA/BAXA/M6HA (16 Bolts To Bell)(Has 1 Large Port In Rear Cover Gasket, Going To The Case Vent) 2000 Only…
- 20760C Case, M7ZA (17 Bolts To Case) (16 Bolt Rear Cover) (With 2 Long Vent Ports To Rear Cover) (Cast # P7Z)…
- 20760D Case, BAYA/M7WA (Some) (17 Bolts To Bell) 16 Bolt Rear Cover…
- 20760DA Case, BGFA/BYBA/B7WA/MGFA/MGSA (17 Bolts To Bell)(16 Bolt Rear Cover)(No Bosses By The Vent Tube)…
- 20760DB Case, BYBA/B7WA (17 Bolts To Bell)(16 Bolt Rear Cover)(No Bosses By The Vent Tube) (Uses A 3.188”OD Bearing # 274)…
- 20760DC Case, BAYA/M7WA (17 Bolts To Bell)(16 Bolt Rear Cover)…
- 20760E Case, MGHA(Some) (19 Bolts To Bell)(16 Bolt Rear Cover)(Cast # PGH)
- 20760F Case, B7ZA (17 Bolts To Bell) 16 Bolt Rear Cover (With 2 Long Vent Ports To Rear Cover) Can Use 20760G No Threaded…
- 20760G Case, B7TA/B7XA/M7ZA (17 Bolts To Bell)(16 Bolt Rear Cover)(With 2 Long Vent Ports To Rear Cover)…
- 20760H Case, B7VA (17 Bolts To Bell) 16 Bolt Rear Cover (With 1 Long & 1 Short Vent Port To Rear Cover) With 2 Threaded Bosses…
- and 2 more
Other parts in BDGA position 760:
- 30760BA Case, B6VA/BAXA/M6HA (16 Bolts To Bell)(Has 1 Large Port In Rear Cover Gasket, Going To The Case Vent) 2000 Only…
- 20760C Case, M7ZA (17 Bolts To Case) (16 Bolt Rear Cover) (With 2 Long Vent Ports To Rear Cover) (Cast # P7Z)…
- 20760D Case, BAYA/M7WA (Some) (17 Bolts To Bell) 16 Bolt Rear Cover…
- 20760DA Case, BGFA/BYBA/B7WA/MGFA/MGSA (17 Bolts To Bell)(16 Bolt Rear Cover)(No Bosses By The Vent Tube)…
- 20760DB Case, BYBA/B7WA (17 Bolts To Bell)(16 Bolt Rear Cover)(No Bosses By The Vent Tube) (Uses A 3.188”OD Bearing # 274)…
- 20760DC Case, BAYA/M7WA (17 Bolts To Bell)(16 Bolt Rear Cover)…
- 20760E Case, MGHA(Some) (19 Bolts To Bell)(16 Bolt Rear Cover)(Cast # PGH)
- 20760F Case, B7ZA (17 Bolts To Bell) 16 Bolt Rear Cover (With 2 Long Vent Ports To Rear Cover) Can Use 20760G No Threaded…
- 20760G Case, B7TA/B7XA/M7ZA (17 Bolts To Bell)(16 Bolt Rear Cover)(With 2 Long Vent Ports To Rear Cover)…
- 20760H Case, B7VA (17 Bolts To Bell) 16 Bolt Rear Cover (With 1 Long & 1 Short Vent Port To Rear Cover) With 2 Threaded Bosses…
- and 2 more
Before you order
Verify the number before ordering: compare it with the part you have and the transmission model.
