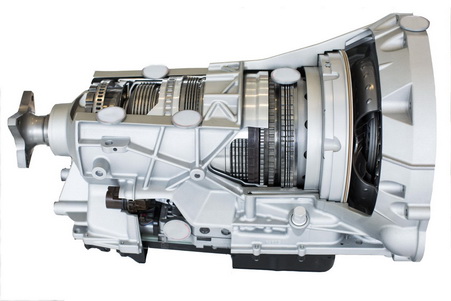

Ford 10R80 Transmission

The 10R80 is a 10-speed automatic gearbox designed thanks to fruitful cooperation between Ford and GM (10L90). Both companies pointed out the fact that while the mechanical part of the gearbox was developed collaboratively, the software part of the 10R80 will be different for each manufacturer and, as a result, their corresponding powertrain structures should not necessarily resemble each other in view of gear shifting algorithms. This transmission has 10 forward gears, three of which are overdrive ratios. It's deep 4.69 to 1 first gear ratio is the lowest in its class and it features…

Speeds 10
Type AT
Drive RWD/4WD
Max torque 800
ATF capacity (L) 12.9
ATF change (L) 8
ATF type Motorcraft ULV
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
10R80
3.6/10
Support & Market Presence Index
Niche / hard to source

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence4.1
Documentation depth0.0
Knowledge & support5.0

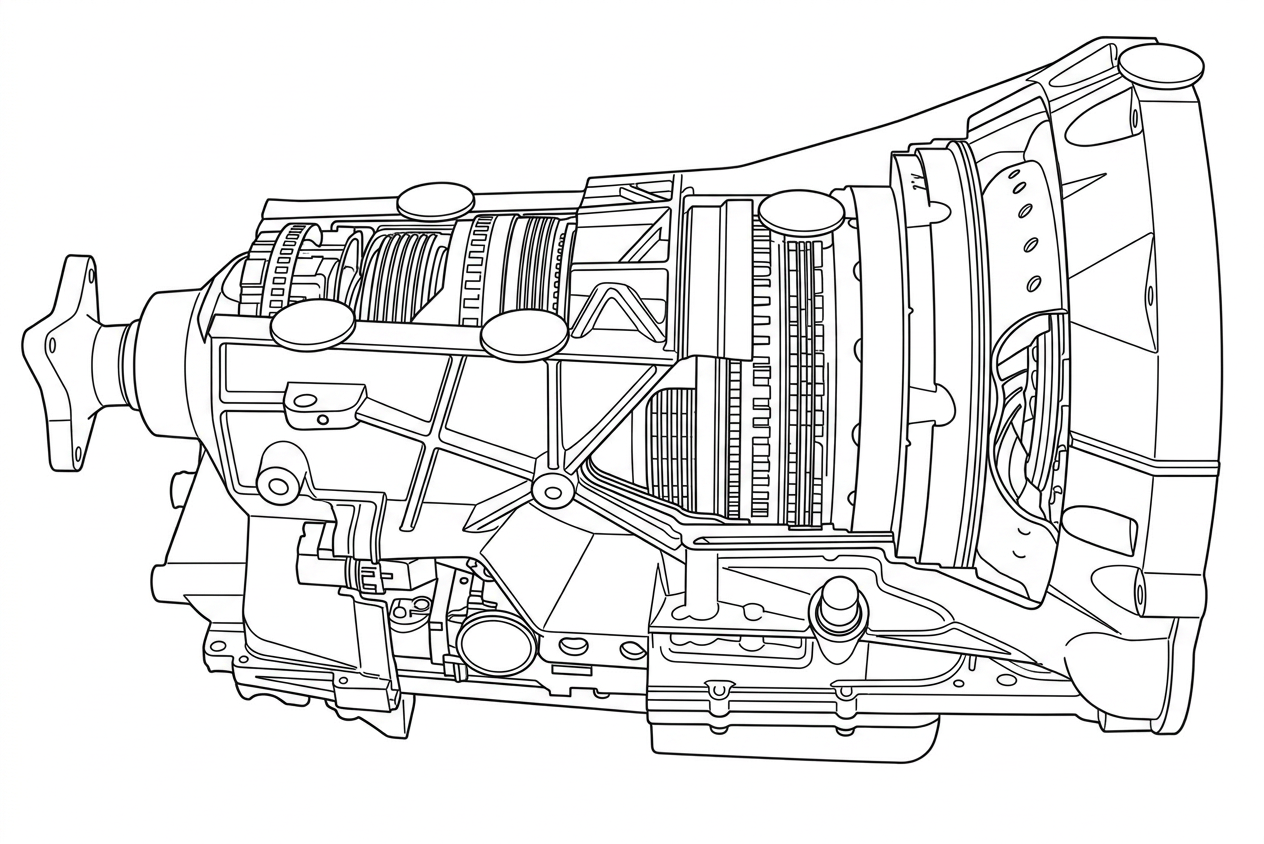

Exploded diagram & parts

Full 10L90 parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

897 897 · No. 1 070 070 · No. 2 780 780 · No. 3 899 899 · No. 4 519 519 · No. 5 525 525 · No. 6 526 526 · No. 7 206 206 · No. 8 205 205 · No. 9 181 181 · No. 10 520/310 520, 310 · No. 11 037 037 · No. 12 336/337 336, 337 · No. 13 975 +2 975, 965, 879 · No. 14 127/147 127, 147 · No. 15 126 +2 126, 973, 106 · No. 16 146* 146* · No. 17 648 648 · No. 18 966 966 · No. 19 151 151 · No. 20 130 +2 130, 110, 972 · No. 21 150 150 · No. 22 892* 892* · No. 23 886 886 · No. 24 283 283 · No. 25 232 232 · No. 26 237/592 237, 592 · No. 27 582 582 · No. 28 210 210 · No. 29 211 211 · No. 30 612 612 · No. 31 052 052 · No. 32 616 616 · No. 33 260 260 · No. 34 586 586 · No. 35 699 699 · No. 36 217 217 · No. 37 596 596 · No. 38 053 053 · No. 39 606 606 · No. 40 177 177 · No. 41 054 054 · No. 42 868 868 · No. 43 875* 875* · No. 44 148 148 · No. 45 128/108 128, 108 · No. 46 877/984 877, 984 · No. 47 335A 335A · No. 48 974 974 · No. 49 335AA +3 335AA, 964, 334AA, 334 · No. 50 039 039 · No. 51 550 550 · No. 52 038 038 · No. 53 331 331 · No. 54 330/960 330, 960 · No. 55 970 970 · No. 56 980 980 · No. 57 862 862 · No. 58 850 850 · No. 59 100 +2 100, 140, 120 · No. 60 861* 861* · No. 61 338/339 338, 339 · No. 62 338-1 338-1 · No. 63 967 967 · No. 64 339-1 339-1 · No. 65 977 977 · No. 66 67 67 · No. 67 857 857 · No. 68 114/134 114, 134 · No. 69 154 154 · No. 70 893* 893* · No. 71 896 896 · No. 72 885 885 · No. 73 891 891 · No. 74 058 058 · No. 75 580 580 · No. 76 610 610 · No. 77 216 216 · No. 78 215 215 · No. 79 889 889 · No. 80 590 590 · No. 81 889 889 · No. 82 670/880 670, 880 · No. 83 579 579 · No. 84 342 342 · No. 85 235 235 · No. 86 236 236 · No. 87 152* 152* · No. 88 132/112 132, 112 · No. 89 153 153 · No. 90 979 979 · No. 91 969 969 · No. 92 989 989 · No. 93 341 341 · No. 94 888 888 · No. 95 056 056 · No. 96 551 551 · No. 97 253 253 · No. 98 890 890 · No. 99 594 594 · No. 100 624 624 · No. 101 238 238 · No. 102 845 845 · No. 103 059 059 · No. 104 584 584 · No. 105 374 374 · No. 106 262 262 · No. 107 263 263 · No. 108 697 697 · No. 109 264B 264B · No. 110 378/760 378, 760 · No. 111 270 270 · No. 112 074 074 · No. 113 348 348 · No. 114 770 770 · No. 115 781 781 · No. 116 317 317 · No. 117 347 347 · No. 118 698 698 · No. 119 527 527 · No. 120 791 791 · No. 121 698A 698A · No. 122 778 778 · No. 123 520A 520A · No. 124 032 032 · No. 125 671/203 671, 203 · No. 126 519A 519A · No. 127 510 510 · No. 128 507-3 507-3 · No. 129 507-5 507-5 · No. 130 176 176 · No. 131 313 313 · No. 132 534 534 · No. 133 536 536 · No. 134 538 538 · No. 135 136 136 · No. 136 532 532 · No. 137 533 533 · No. 138 538 538 · No. 139 544 544 · No. 140 032A 032A · No. 141 528 528 · No. 142 446AA 446AA · No. 143 438 438 · No. 144 439 439 · No. 145 436 436 · No. 146 436A 436A · No. 147 391AA 391AA · No. 148 761 761 · No. 149 014 014 · No. 150 391 +3 391, 999-2, 326, 467 · No. 151 017 017 · No. 152 326A 326A · No. 153 769 769 · No. 154 694 694 · No. 155 446 446 · No. 156 157 157 · No. 157 425 425 · No. 158 431 431 · No. 159 434 434 · No. 160 786 786 · No. 161 459 459 · No. 162 376 376 · No. 163 950 950 · No. 164 379 379 · No. 165 010 010 · No. 166 790 790 · No. 167 991-2 991-2 · No. 168 169 169 · No. 169 170 170 · No. 170 171 171 · No. 171 782 782 · No. 172 173 173 · No. 173 740 740 · No. 174 175 175 · No. 175 423 +5 423, 422, 426, 440, 421, 424 · No. 176 300/765 300, 765 · No. 177 992 992 · No. 178 991-5 991-5 · No. 179 991-4 991-4 · No. 180 072 072 · No. 181 994/410 994, 410 · No. 182 995-7 995-7 · No. 183 994-6 994-6 · No. 184 394 394 · No. 185

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to 10R80 in the Go4Trans marketplace.
Sell 10R80 parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

16 applications · 2 makes · 2016–2022 Ford 14 · Lincoln 2

Make Model Year Drive Engine
Ford Expedition 2018-2022 L
Ford F-150 RAPTOR 2016-2022 L
Ford F150 2016 10 Spd R/4WD V6 3.5L V8 5.0L
Ford F150 - Pickup 2017-2022 L
Ford F150 SUPERCREW 2017-2018 10 Spd R/4WD V8 5.0L
Ford Mustang 2017-2022 L
Ford Mustang 2017-2019 2.3, 5.0
Ford Mustang 2016 10 Spd RWD L4 2.3L V8 5.0L
Ford Ranger 2018 10 Spd R/4WD V6 2.7L
Ford Truck Endeavour (Non-USA) 2018-2019 2.0
Ford Truck Everest (Non-USA) 2018-2019 2.0
Ford Truck Expedition 2018-2019 3.5
Ford Truck F150 1/2 Ton - Pickup 2017-2019 3.0, 3.3
Ford Truck F150 Raptor 2016-2019 3.5
Lincoln Navigator 2018-2022 L
Lincoln Navigator 2018-2019 3.5

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

10R80
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

No symptoms recorded yet.

Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 10R80 is a 10-speed automatic gearbox designed thanks to fruitful cooperation between Ford and GM (10L90). Both companies pointed out the fact that while the mechanical part of the gearbox was developed collaboratively, the software part of the 10R80 will be different for each manufacturer and, as a result, their corresponding powertrain structures should not necessarily resemble each other in view of gear shifting algorithms. This transmission has 10 forward gears, three of which are overdrive ratios. It's deep 4.69 to 1 first gear ratio is the lowest in its class and it features a relatively tall 0.63 to 1 final overdrive ratio.

A built-in electrohydraulic pump ensures that the "start-stop" feature operates with minimal delay. The 10R80 includes 3 operation modes - "Tow Haul", "Sport", and "Normal", with each mode changing the gear shifting algorithm and characteristics to compliment particular forms of driving behavior. Since the gearbox has 10 forward gears, its running characteristics and, more importantly, fuel efficiency is maximized by the transmission's capacity to get a suitable ratio for current operating conditions, such as engine speed, load, and car speed. This transmission became a standard option for the 2017 F-150 equipped with the 3.5L Eco-Boost engine.
