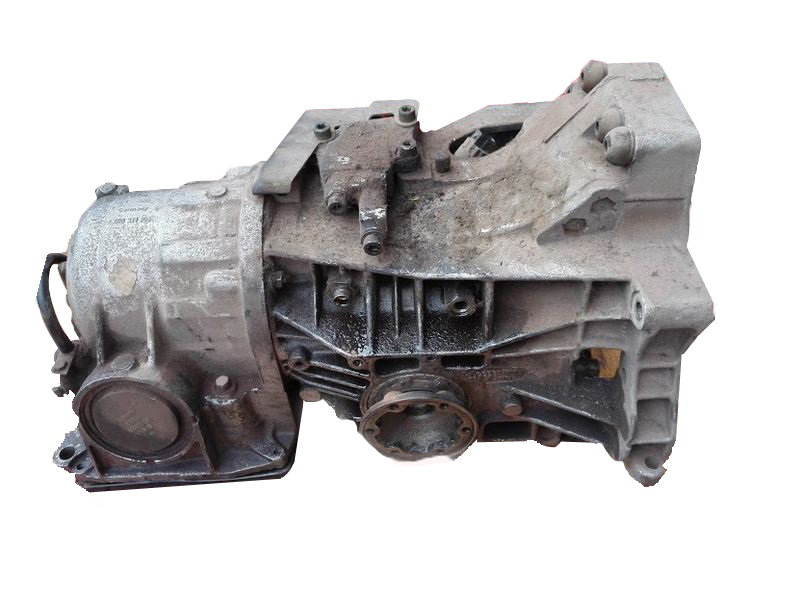

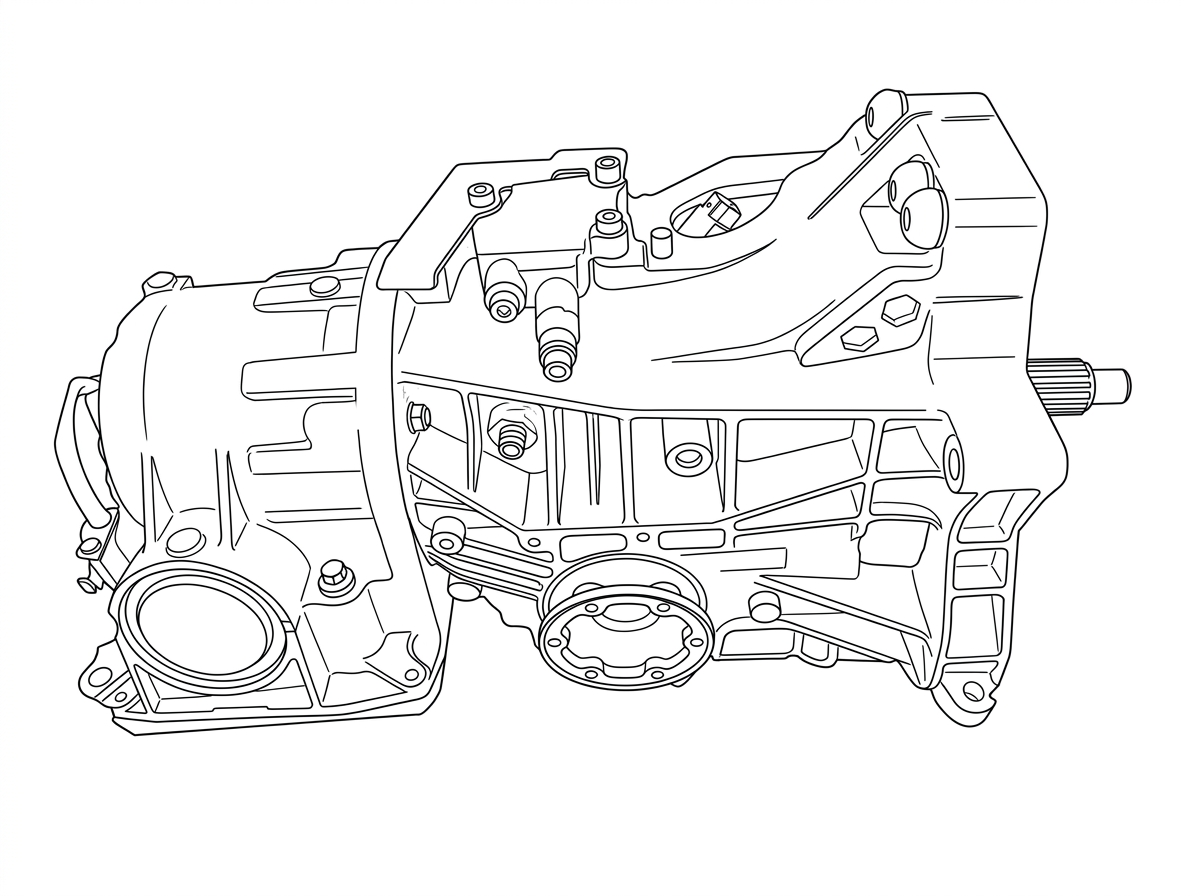

Volkswagen AG 010 Transmission

Since 1975 this 3-speed automatic transmission VAG 010 (later in 1983, it was used as a prototype for the automatic transmissions 087 and 089) has been successfully operating on many FWD models of Volkswagen (CABRIOLET, GOLF, JETTA) and Audi (80, 100, 200, ... and 4000S) with engines from 1.6 to 2.2 liters and on all Audi models starting from simple Audi 80 up to Audi 5000S. One more rare modification of this transmission for RWD vehicles - "090" (VANAGON) was released in 1978.

Speeds 3
Type AT
Drive FWD
ATF capacity (L) 6
ATF change (L) 3
ATF type Dexron III
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
010
6.1/10
Support & Market Presence Index
Well covered

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence4.1
Documentation depth10.0
Knowledge & support5.0

Exploded diagram & parts

Full 010 parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

368 368 · No. 1 774 774 · No. 2 785 785 · No. 3 070 070 · No. 4 032 032 · No. 5 529 529 · No. 6 075 075 · No. 7 281 281 · No. 8 277* 277* · No. 9 273 273 · No. 10 274 274 · No. 11 710 710 · No. 12 375 375 · No. 13 274 274 · No. 14 273 273 · No. 15 276* 276* · No. 16 848/849 848, 849 · No. 17 345 +2 345, 680, 686 · No. 18 673 673 · No. 19 177 177 · No. 20 177 177 · No. 21 305 305 · No. 22 989 989 · No. 23 305 305 · No. 24 889 889 · No. 25 604 604 · No. 26 594 594 · No. 27 247 247 · No. 28 873 873 · No. 29 665 665 · No. 30 654 654 · No. 31 693 693 · No. 32 33 33 · No. 33 374 374 · No. 34 679 679 · No. 35 274 274 · No. 36 273 273 · No. 37 714 714 · No. 38 273 273 · No. 39 274 274 · No. 40 284 284 · No. 41 763 +2 763, 301, 758 · No. 42 671 671 · No. 43 483 483 · No. 44 899 899 · No. 45 287 287 · No. 46 838 838 · No. 47 837 837 · No. 48 677 677 · No. 49 836 836 · No. 50 898 898 · No. 51 076 076 · No. 52 724 724 · No. 53 725 725 · No. 54 399 399 · No. 55 303 303 · No. 56 124/104 124, 104 · No. 57 251 251 · No. 58 584 584 · No. 59 244 244 · No. 60 243 243 · No. 61 622 622 · No. 62 886 886 · No. 63 052 052 · No. 64 612 612 · No. 65 052 052 · No. 66 582 582 · No. 67 232 232 · No. 68 592 592 · No. 69 876 876 · No. 70 146 146 · No. 71 106/126 106, 126 · No. 72 288 288 · No. 73 289 289 · No. 74 716 716 · No. 75 720 720 · No. 76 786 786 · No. 77 289 289 · No. 78 288 288 · No. 79 399 399 · No. 80 725 725 · No. 81 724 724 · No. 82 793 793 · No. 83 076 076 · No. 84 898 898 · No. 85 836 836 · No. 86 677 677 · No. 87 837 837 · No. 88 838 838 · No. 89 287 287 · No. 90 899 899 · No. 91 483 483 · No. 92 149 149 · No. 93 875 875 · No. 94 974 974 · No. 95 964 964 · No. 96 554 554 · No. 97 226 226 · No. 98 226 226 · No. 99 226 226 · No. 100 229 229 · No. 101 864 864 · No. 102 146 146 · No. 103 106/126 106, 126 · No. 104 865 865 · No. 105 985 985 · No. 106 975 975 · No. 107 975 975 · No. 108 965 965 · No. 109 046 046 · No. 110 555 555 · No. 111 368 368 · No. 112 774 774 · No. 113 114 114 · No. 114 022 022 · No. 115 211 211 · No. 116 037 037 · No. 117 181 181 · No. 118 179 179 · No. 119 777 777 · No. 120 530 530 · No. 121 035 035 · No. 122 543 543 · No. 123 544 544 · No. 124 972 972 · No. 125 958 958 · No. 126 962 962 · No. 127 907 +9 907, 362, 361, 906B, 360, 908-1, 909, 908, 906, 896 · No. 128 848/849 848, 849 · No. 129 130 130 · No. 130 131 131 · No. 131 132 132 · No. 132 133 133 · No. 133 134 134 · No. 134 135 135 · No. 135 136 136 · No. 136 137 137 · No. 137 289 +9 289, 720, 716, 763, 288, 724, 343, 076, 838, 798 · No. 138 998 998 · No. 139 926/352 926, 352 · No. 140 927 927 · No. 141 760 760 · No. 142 493 493 · No. 143 494 494 · No. 144 070 070 · No. 145 529 529 · No. 146 032 032 · No. 147 075 075 · No. 148 075 075 · No. 149 150 150 · No. 150 151 151 · No. 151 152 152 · No. 152 153 153 · No. 153 154 154 · No. 154 155 155 · No. 155 156 156 · No. 156 721 721 · No. 157 277 277 · No. 158 274 274 · No. 159 696 696 · No. 160 273 273 · No. 161 375 375 · No. 162 735 735 · No. 163 075 075 · No. 164 075 075 · No. 165 166 166 · No. 166 167 167 · No. 167 168 168 · No. 168 169 169 · No. 169 170 170 · No. 170 171 171 · No. 171 740 740 · No. 172 922 922 · No. 173 919 919 · No. 174 345 +2 345, 686, 680 · No. 175 997 997 · No. 176 992 992 · No. 177 072 072 · No. 178 179 179 · No. 179 180 180 · No. 180 181 181 · No. 181 765 765 · No. 182 326 326 · No. 183 010 010 · No. 184

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to 010 in the Go4Trans marketplace.
Sell 010 parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

19 applications · 3 makes · 1974–1995 Volkswagen 16 · Austin 2 · Fiat 1

Make Model Year Drive Engine
Austin Maestro 1983-1994 3 Spd FWD 1.6L
Austin Montego 1984-1995 3 Spd FWD 1.6L
Fiat X1/9 1974-1983 1.3, 1.5
Volkswagen Cabriolet 1985-1993 1.8
Volkswagen Cabriolet 1985-1992 3 Spd FWD L4 1.8L
Volkswagen Fox 1987-1993 1.8
Volkswagen Golf 1985-1992 3 Spd FWD L4 1.8/2.0L
Volkswagen Golf 1985-1991 1.6, 1.8, 2.0
Volkswagen Golf 3 Spd FWD L4 1.8/2.0L
Volkswagen JETTA 1980-1992 3 Spd FWD L4 1.6/1.7/1.8L
Volkswagen Jetta 1980-1991 1.6, 1.7, 1.8, 2.0
Volkswagen Jetta 3 Spd FWD 1.5L
Volkswagen Passat 1990-1991 2.0
Volkswagen Rabbit 1975-1984 1.5, 1.6, 1.7, 1.8
Volkswagen Rabbit - Pickup 1980-1983 1.5, 1.6, 1.7
Volkswagen SANTANA 3 Spd FWD L4 1.8L 2.0L
Volkswagen Scirocco 1975-1989 1.5, 1.6, 1.7, 1.8
Volkswagen Scirocco 3 Spd FWD 1.5L, 1.6L
Volkswagen Type 2, Transporter 1977-1979 2.0

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

VW010
VW 010
010
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Pump and Axle Seal Wear
Seal wear causes oil pressure loss in clutch packages and leads to friction lining burnout.
?
Vibrations from Bushing Wear
Worn bushings cause vibrations that damage seals and result in oil pressure loss in clutch packages.
?
Oil Pressure Loss in Packages
Loss of hydraulic pressure in clutch packages leads to friction lining burning and slipping.
!
Friction Lining Burnout
Friction linings burn out due to oil pressure loss, requiring replacement of full friction component kit.
!
Forward Clutch Piston Failure
Rubber-covered pistons in Forward clutch package fail and require replacement along with friction clutches.
!
Direct Clutch Piston Failure
Rubber-covered pistons in Direct clutch package degrade and require replacement with friction clutches.
!
Brake Band Complete Wear
Direct/High/Reverse brake band wears completely and must be replaced during overhaul.
!
Torque Converter Internal Failure
Torque converter requires full rebuild with spare part replacement as a recurring maintenance item.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

Since 1975 this 3-speed automatic transmission VAG 010 (later in 1983, it was used as a prototype for the automatic transmissions 087 and 089) has been successfully operating on many FWD models of Volkswagen (CABRIOLET, GOLF, JETTA) and Audi (80, 100, 200, ... and 4000S) with engines from 1.6 to 2.2 liters and on all Audi models starting from simple Audi 80 up to Audi 5000S. One more rare modification of this transmission for RWD vehicles - "090" (VANAGON) was released in 1978.

Technical issues and repair guidelines

The most popular kit of spare parts for maintenance of this “invincible” transmission, which often comes to the repair shop with half million kilometers of mileage usually consists of:

- Kit of friction components

- Kit of gaskets and seals (Overhaul Kit)

- Full kit of spare parts, which includes all gaskets, seals, frictions and steel discs (MasterKit). Sometimes, repair specialists order a separate kit of steel discs.There is some difference between repair kits of gaskets and seals for Audi 087 and 089 models.

As for the replacement frequency, then come the following spare parts:

- pump and axle seals (included in the repair kit), which are replaced with a full kit of bushings, their wear-out causes vibrations (which damage seals) and oil pressure in packages gets lost (that leads to friction linings burning);

- Rubber-covered pistons with friction clutches of packages Forward or Direct;

- Brake band (Direct, High/ Reverse) is replaced when it is completely worn;

- Rebuilding of the torque converter with replacement of spare parts.

This automatic transmission is very simple and reliable, which is used by many specialists as a guidebook for learning trasnmission repair methods.
