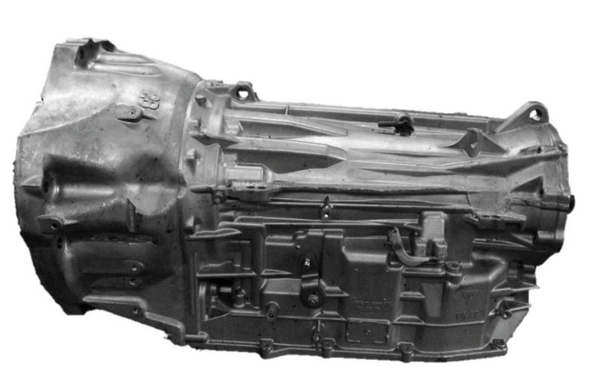

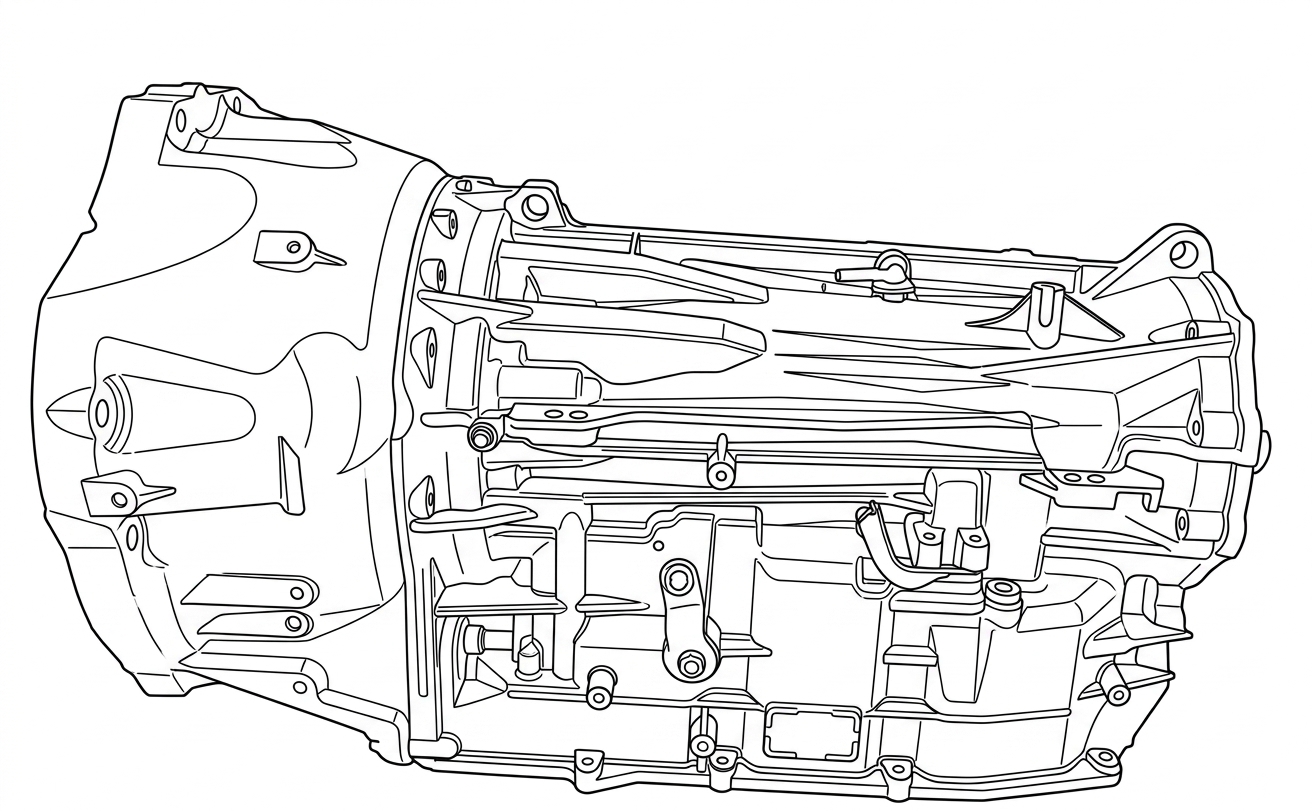

Volkswagen AG 0C8 (TR80SD) Transmission

The 8-speed 0C8 (or TR-80SD according to Aisin) is a new generation of Aisin RWD transmissions. It was designed in 2006 for VAG (Volkswagen-Audi) as an alternative to DSG, which still can not function reliably with powerful engines.

Speeds 8
Type AT
Drive RWD/AWD
Max torque 850
ATF capacity (L) 10,5
ATF change (L) 8
ATF type Toyota ATF WS
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
0C8
4.5/10
Support & Market Presence Index
Limited presence

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence1.8
Documentation depth9.5
Knowledge & support2.5

Exploded diagram & parts

Full 0C8 parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

179 179 · No. 1 070 070 · No. 2 898 898 · No. 3 295 295 · No. 4 5 5 · No. 5 530 530 · No. 6 311 311 · No. 7 520 520 · No. 8 036 036 · No. 9 381 381 · No. 10 211 211 · No. 11 333/332 333, 332 · No. 12 962 962 · No. 13 972 972 · No. 14 124/104 124, 104 · No. 15 144 144 · No. 16 873 873 · No. 17 038 038 · No. 18 550 550 · No. 19 039 039 · No. 20 330 330 · No. 21 960 960 · No. 22 970 970 · No. 23 330-1 330-1 · No. 24 980 980 · No. 25 862 862 · No. 26 338-1 338-1 · No. 27 556 556 · No. 28 339 339 · No. 29 338 338 · No. 30 777 777 · No. 31 438 438 · No. 32 638 638 · No. 33 966 966 · No. 34 976 976 · No. 35 986 986 · No. 36 893 893 · No. 37 130/110 130, 110 · No. 38 150 150 · No. 39 892 892 · No. 40 141 141 · No. 41 120/100 120, 100 · No. 42 140 140 · No. 43 861 861 · No. 44 217 217 · No. 45 610 610 · No. 46 218 218 · No. 47 177 177 · No. 48 580 580 · No. 49 177 177 · No. 50 223 223 · No. 51 590 590 · No. 52 868 868 · No. 53 224 224 · No. 54 554 554 · No. 55 048 048 · No. 56 334 334 · No. 57 335 335 · No. 58 964 964 · No. 59 974 974 · No. 60 335-1 335-1 · No. 61 984 984 · No. 62 877 877 · No. 63 108/128 108, 128 · No. 64 148 148 · No. 65 876 876 · No. 66 232 232 · No. 67 233 233 · No. 68 574 574 · No. 69 234 234 · No. 70 235 235 · No. 71 622 622 · No. 72 051 051 · No. 73 051 051 · No. 74 243 243 · No. 75 244 244 · No. 76 883 883 · No. 77 881 881 · No. 78 664 664 · No. 79 285/654 285, 654 · No. 80 884 884 · No. 81 665 665 · No. 82 639 639 · No. 83 285-1 285-1 · No. 84 885 885 · No. 85 154 154 · No. 86 134/114 134, 114 · No. 87 155 155 · No. 88 052 052 · No. 89 612 612 · No. 90 052 052 · No. 91 240 240 · No. 92 638-1 638-1 · No. 93 053-1 053-1 · No. 94 582 582 · No. 95 053 053 · No. 96 592 592 · No. 97 238 238 · No. 98 237 237 · No. 99 236 236 · No. 100 878 878 · No. 101 146 146 · No. 102 126/106 126, 106 · No. 103 879 879 · No. 104 985 985 · No. 105 337-1 337-1 · No. 106 975 975 · No. 107 965 965 · No. 108 336 336 · No. 109 341-1 341-1 · No. 110 340 340 · No. 111 263 263 · No. 112 750 750 · No. 113 264 264 · No. 114 897 897 · No. 115 074 074 · No. 116 776 776 · No. 117 760 760 · No. 118 337 337 · No. 119 555 555 · No. 120 227 227 · No. 121 228 228 · No. 122 229 229 · No. 123 894 894 · No. 124 268 268 · No. 125 678 678 · No. 126 180 180 · No. 127 271 271 · No. 128 272 272 · No. 129 886 886 · No. 130 977 977 · No. 131 967 967 · No. 132 341 341 · No. 133 790 790 · No. 134 379 379 · No. 135 425 425 · No. 136 426 426 · No. 137 430 430 · No. 138 436 436 · No. 139 072 072 · No. 140 410 410 · No. 141 207 207 · No. 142 797-1 797-1 · No. 143 010 010 · No. 144 740 740 · No. 145 991-4 991-4 · No. 146 447 447 · No. 147 347 347 · No. 148 446 446 · No. 149 150 150 · No. 150 151 151 · No. 151 152 152 · No. 152 153 153 · No. 153 765/300 765, 300 · No. 154 428 428 · No. 155 421 421 · No. 156 440 440 · No. 157 427 427 · No. 158 435 435 · No. 159 414 414 · No. 160 782 782 · No. 161 162 162 · No. 162 991-3 991-3 · No. 163 991-8 991-8 · No. 164 991-2 991-2 · No. 165 994 994 · No. 166 492 492 · No. 167 992 992 · No. 168

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to 0C8 in the Go4Trans marketplace.
Sell 0C8 parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

8 applications · 3 makes · 2003–2017 Audi 3 · Porsche 3 · Volkswagen 2

Make Model Year Drive Engine
Audi Q7 2010-2017 3.0, 4.2
Audi Q7 2009-2015 8 Spd R/AWD V6 3.0L V8 4.2L
Audi Q7 2009-2012 8 Spd R/AWD V6 3.0L V8 4.2L
Porsche Cayenne 2009-2014 3.6
Porsche Cayenne 2003-2010 8 Spd R/AWD V6 3.6L/3.8L
Porsche PANAMERA 2012-2014 8 Spd R/AWD V6 3.0L V8 4.8L
Volkswagen Touareg 2010-2017 3.0, 3.6, 4.2
Volkswagen TOUAREG 2010-2012 8 Spd AWD V6 3.0/3.6L V8 4.2L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

TR80SD
0C8
AL10008Q
TR-80SD
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Valve Body Contamination Clogging
Valve body clogs when operated with contaminated ATF over several years, impairing pressure-based gear shift regulation.
!
Torque Converter Lockup Friction Wear
Multi-disc lockup clutch frictions wear prematurely due to forced lock-up engagement in slippery mode acceleration.
!
Burned Friction Elements
Friction clutch packs burn out requiring full replacement; torque converter frictions must also be replaced if ATF is bu
?
Burned ATF Fluid
Burned ATF indicates friction element degradation; triggers mandatory replacement of both clutch pack and torque convert
!
Gasket and Seal Leaks
Jointing edge seals and rings degrade over time causing oil pressure loss and gear shift regulation issues in valve body
?
Gear Shifting Regulation Failure
Impaired oil pressure control in valve body leads to abnormal or erratic gear shifting behavior.
!
Solenoid Cycle Degradation
Aisin solenoids tolerate high open-close cycles but eventual wear can affect valve body hydraulic control performance.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 8-speed 0C8 (or TR-80SD according to Aisin) is a new generation of Aisin RWD transmissions. It was designed in 2006 for VAG (Volkswagen-Audi) as an alternative to DSG, which still can not function reliably with powerful engines.

This transmission was installed on Audi Q7 equipped with diesel engines V6-V8 from 3 liter capacity, and the torque capacity over 700 Nm. The same trasnmission design adapted for off-road Lexus cars has been used since 2007 under the name AA80E\F.

In the winter of 2010, this 8-speed transmission fully entered the foreign market, where it replaced its 6-speed predecessor TR-60SN on Porsche Cayenne (2010 - 2014) and on Tuareg (2010 - 2014) in different sub-versions for TDI diesel engines with the capacity from 3.0 up to 3.6 liters (Audi -TFSI). This transmission was used by American automakers for Cadillac CTS VSport in 2014 under the name TL-80SD. The competitive model for above mentioned gearbox is ZF 8HP70. This transmission was designed with usage of successful TR60-SN elements, but the valve body and the overall construction of transmission components and electrics were significantly modified. Most of the parts are not interchangeable with the predecessor. It is the most powerful of modern RWD Aisin transmission capable of transmitting the torque up to 800 Nm.

Technical issues and repair guidelines

This gearbox as all Aisin RWD transmissions is considered to be “invincible” and maintainable, designed to travel up to one million kilometers with minimum number of overhauls.

The repair kit of gaskets and seals is ordered for reassembly in order to restore leak resistance of jointing edges by replacement of rings and gaskets that helps to the valve body in regulation of gear shifting by the oil pressure. The whole kit of friction elements is replaced when some components get burned. At the same time, it is recommended to change the torque converter frictions in case of burned ATF.

For this transmission automakers used a new torque convertor with a multi-disc lockup clutch in order to guarantee a prolonged service life of torque converter frictions (over 200 thousand kilometers) and at the same time allow the driver to accelerate with the help of forced blocking of the torque converter lock-up clutch in "slippery mode". It significantly increases the transmission efficiency, improves acceleration characteristics, but wears out hard-working frictions of the lock-up. The valve body of this transmission differs from its predecessors TR-60 and TF-60. This valve body will get clogged if it is used with contaminated ATF for several years. Aisin solenoids in contrast to ZF solenoids can withstand much more open-close cycles.
