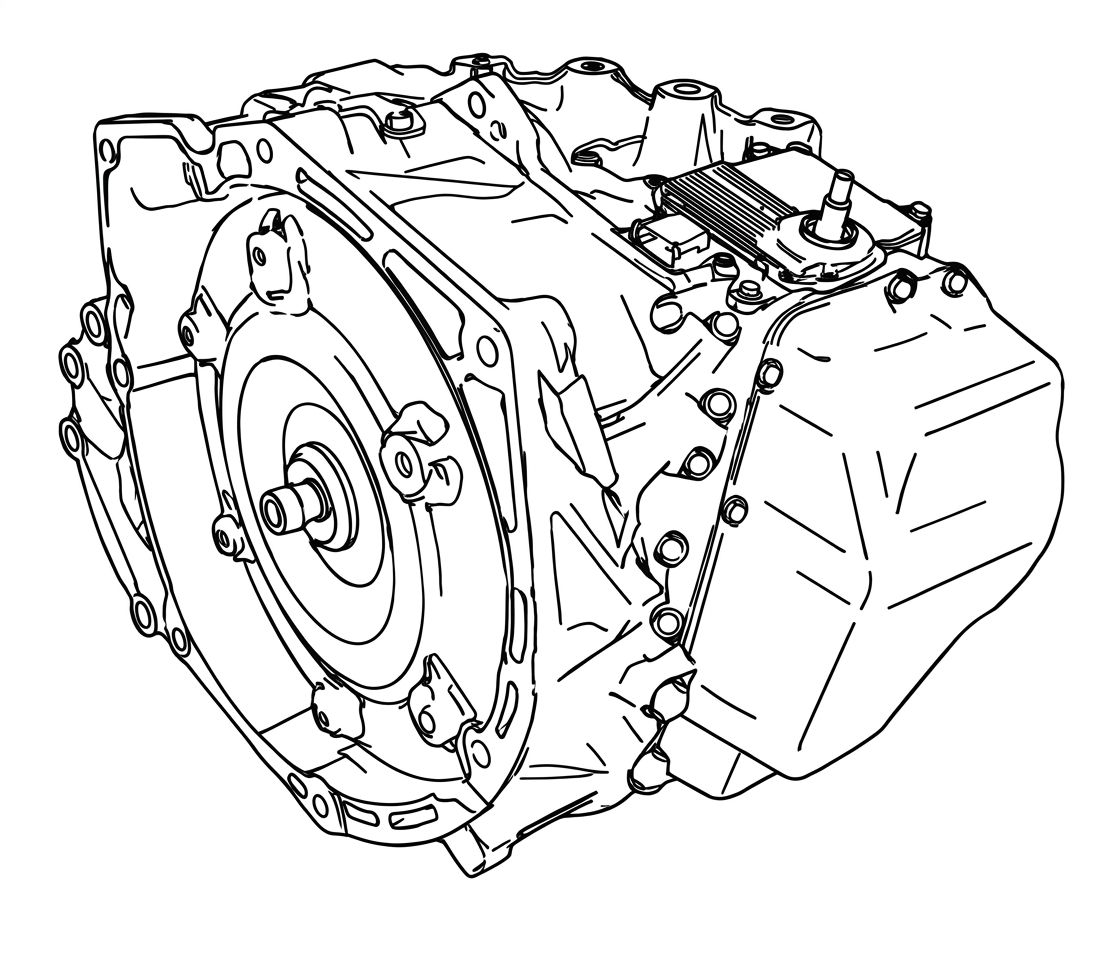

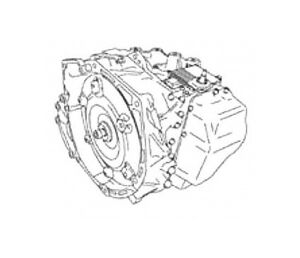

The 6-speed front drive automatic transmission AW TF80SC (AF40-6) has been available on the market since 2003 as more expensive alternative of the 4-speed AW50-40 and the 5-speed AW55-50 for 2-... 4-liter cars: Ford (as AF40-6), Mazda (as AW6A-EL), Volvo, SAAB, Opel, Fiat and all "French" automakers Peugeot-Citroen-Renault (as AM6).

Speeds 6
Type AT
Drive FWD/AWD
Max torque 450
ATF capacity (L) 7
ATF change (L) 3,8
ATF type Type T-IV
Weight 88.5 kg
Browse parts → Find transmission shops
Contribute info

This feature is in progress and will be available soon.

Report a mistake on this page
AF40-6
8.3/10
Support & Market Presence Index
Widely supported

How widely this transmission is used, documented and supported across the Go4Trans graph.

Market presence9.4
Documentation depth10.0
Knowledge & support4.0

Exploded diagram & parts

Full AF40-6 parts catalog →

Point at a part on the diagram (tap it on a phone) to see its position. Click it to see the parts.

776 776 · No. 1 2 2 · No. 2 3 3 · No. 3 4 4 · No. 4 280 280 · No. 5 281 281 · No. 6 7 7 · No. 7 8 8 · No. 8 9 9 · No. 9 273 273 · No. 10 276* 276* · No. 11 294 294 · No. 12 13 13 · No. 13 843 843 · No. 14 072 072 · No. 15 347 347 · No. 16 076 076 · No. 17 18 18 · No. 18 070 070 · No. 19 20 20 · No. 20 21 21 · No. 21 22 22 · No. 22 23 23 · No. 23 24 24 · No. 24 036 036 · No. 25 520 520 · No. 26 209 209 · No. 27 28 28 · No. 28 29 29 · No. 29 30 30 · No. 30 31 31 · No. 31 446/347-1 446, 347-1 · No. 32 010 010 · No. 33 291 291 · No. 34 698 698 · No. 35 388 388 · No. 36 292 292 · No. 37 716 716 · No. 38 388-1 388-1 · No. 39 720 720 · No. 40 786 786 · No. 41 289 289 · No. 42 288 288 · No. 43 290* 290* · No. 44 398 398 · No. 45 490 490 · No. 46 494 494 · No. 47 371 371 · No. 48 184 184 · No. 49 183 183 · No. 50 915-3 915-3 · No. 51 077 077 · No. 52 337 337 · No. 53 965 965 · No. 54 975-1 975-1 · No. 55 975 975 · No. 56 985 985 · No. 57 879 879 · No. 58 126/106 126, 106 · No. 59 146 146 · No. 60 878 878 · No. 61 230 230 · No. 62 582 582 · No. 63 238 238 · No. 64 612 612 · No. 65 241 241 · No. 66 242 242 · No. 67 592 592 · No. 68 243 243 · No. 69 244 244 · No. 70 554 554 · No. 71 231 231 · No. 72 886 886 · No. 73 977 977 · No. 74 967 967 · No. 75 338/339 338, 339 · No. 76 181 181 · No. 77 343 343 · No. 78 760 760 · No. 79 344 344 · No. 80 873 873 · No. 81 144 144 · No. 82 124/104 124, 104 · No. 83 874 874 · No. 84 982 982 · No. 85 972 972 · No. 86 972-1 972-1 · No. 87 962 962 · No. 88 332 332 · No. 89 219 219 · No. 90 552 552 · No. 91 220 220 · No. 92 221 221 · No. 93 624 624 · No. 94 632 632 · No. 95 279 279 · No. 96 278 278 · No. 97 897 897 · No. 98 741-1 741-1 · No. 99 999 999 · No. 100 425 425 · No. 101 999 999 · No. 102 911 911 · No. 103 783 783 · No. 104 991-3 991-3 · No. 105 991-2 991-2 · No. 106 427 427 · No. 107 440 440 · No. 108 740 740 · No. 109 426 426 · No. 110 423 423 · No. 111 363 363 · No. 112 912 912 · No. 113 710 710 · No. 114 278 278 · No. 115 279 279 · No. 116 898 898 · No. 117 889 889 · No. 118 604 604 · No. 119 594 594 · No. 120 277 277 · No. 121 887 887 · No. 122 654 654 · No. 123 665 665 · No. 124 058/584 058, 584 · No. 125 057 057 · No. 126 057-1 057-1 · No. 127 250 250 · No. 128 251 251 · No. 129 252 252 · No. 130 056 056 · No. 131 614 614 · No. 132 995-2 995-2 · No. 133 995-3 995-3 · No. 134 421 421 · No. 135 843-1 843-1 · No. 136 791 791 · No. 137 428 428 · No. 138 422 422 · No. 139 914 914 · No. 140 364 364 · No. 141 995-1 995-1 · No. 142 896 896 · No. 143 994-3 994-3 · No. 144 994-6 994-6 · No. 145 994-5 994-5 · No. 146 301/766 301, 766 · No. 147 438 438 · No. 148 056-1 056-1 · No. 149 246 246 · No. 150 247 247 · No. 151 248 248 · No. 152 885 885 · No. 153 154 154 · No. 154 134/114 134, 114 · No. 155 155 155 · No. 156 876 876 · No. 157 148 148 · No. 158 128/108 128, 108 · No. 159 877 877 · No. 160 984 984 · No. 161 974 974 · No. 162 974-1 974-1 · No. 163 964 964 · No. 164 334 334 · No. 165 335 335 · No. 166 436 436 · No. 167 994 994 · No. 168 169 169 · No. 169 233 233 · No. 170 254 254 · No. 171 465 465 · No. 172 492 492 · No. 173

Parts categories

View all parts →

Marketplace products

View all products →
Products listed here are sold by independent sellers approved by Go4Trans and tagged to AF40-6 in the Go4Trans marketplace.
Sell AF40-6 parts on Go4TransStart selling →

Vehicle fitment explorer

Confirmed vehicle applications. Every row is drawn from our source-verified fitment database.

151 applications · 19 makes · 1997–2017 Volvo 29 · Peugeot 25 · Opel 19 · Citroen 15 · Alfa Romeo 12

Make Model Year Drive Engine
Alfa Romeo 159 2006-2010 6 Spd F/AWD L4 1.9L/2.0L/2.4L V6 3.2L
Alfa Romeo 159 2006-2010 1.9, 2.0, 2.4, 3.2
Alfa Romeo 159 2005-2009 6 Spd FWD 1.9LTD, 2.4LTD, V6 3.2L
Alfa Romeo Brera 2010-2011 2.4, 3.2
Alfa Romeo Brera 2005-2011 6 Spd F/AWD L5 2.4L V6 3.2L
Alfa Romeo Brera 2005-2009 3.2
Alfa Romeo Brera 2005 6 Spd FWD/AWD 2.2L, 3.2L, 2.4JTD
Alfa Romeo Giulia 2012-2013 6 Spd F/AWD L4 2.0L
Alfa Romeo Giulia 2012-2013 2.0
Alfa Romeo Spider 2006-2010 6 Spd F/AWD V6 3.2L
Alfa Romeo Spider 2006-2010 2.4, 3.2
Alfa Romeo Spider 2006 6 Spd FWD/AWD 2.2L, 3.2L, 2.4JTD
Buick Regal 2011-2017 2.0
Buick Regal 2011-2016 6 Spd FWD L4 2.0L
Buick Regal 2011-2013 L4 2L
Buick Regal 2007 6 Spd FWD/AWD Various
Cadillac BLS 2006-2009 L4, V6 1.9, 2.8L
Cadillac BLS 2006-2009 6 Spd FWD L4 1.9L V6 2.8L
Cadillac BLS 2006-2009 1.9, 2.8
Cadillac BLS 2005-2009 6 Spd FWD/AWD VariousL
Cadillac SRX 2010-2012 V6 2.8L
Cadillac SRX 2010-2012 2.8
Cadillac SRX 2009-2012 6 Spd F/AWD V6 2.8L
Cadillac SRX 2009-2010 2.8
Cadillac SRX 2009 V6 2.8L
Chevrolet Vectra 6 Spd FWD/AWD Various
Citroen C4, C5, C6, C8 2010-2012 1.6, 2.0, 2.2, 2.7, 2.9, 3.0
Citroen C4/C4 Picasso 2006-2012 6 Spd FWD L4 1.6/2.0L
Citroen C4/C4 Picasso 2006-2009 1.6, 2.0
Citroen C5 2006-2007 6 Spd FWD 1.8L, 2.0L
Citroen C5 2006-2007 6 Spd FWD 2.2L Diesel
Citroen C5 2004-2012 6 Spd FWD L4 2.0/2.2/ V6 2.7/2.9L
Citroen C5 2004-2009 2.0, 2.2, 2.7, 2.9, 3.0
Citroen C5 2001 6 Spd FWD 3.0L V6
Citroen C6 2002-2012 6 Spd FWD V6 2.7/2.9/3.0L
Citroen C6 2002-2009 2.2, 2.7, 2.9, 3.0
Citroen C8 2005-2010 6 Spd FWD L4 2.2L V6 2.9L
Citroen C8 2005-2009 2.2, 2.9
Citroen DS4 2011-2012 6 Spd FWD L4 2.0L
Citroen DS4 2011-2012 2.0
Citroen JUMPY 2010-2016 6 Spd FWD L4 2.1L
Ford Fusion 2006-2007 6 Spd FWD/AWD V6 3.0L
Ford Mondeo 6 Spd FWD/AWD 2.0LTD, 2.3L, 2.5L Petrol
Geo Vectra 6 Spd FWD/AWD Various
GMC Vectra 6 Spd FWD/AWD Various
Jaguar X-Type 2010 2.2
Jaguar X-Type 2008-2010 6 Spd AWD L4 2.2L
Jaguar X-Type 2008-2009 2.2
Lancia Delta 2010-2012 6 Spd F/AWD L4 1.8L
Lancia Delta 2010-2012 1.8
Lancia Delta 2008 6 Spd FWD 1.8L Turbo Diesel
Lancia Phedra 2010-2012 2.2
Lancia Phedra 2008-2011 6 Spd F/AWD L4 2.2L
Lancia Phedra 2008-2009 2.2
Lancia Thesis 2010-2012 2.4
Lancia Thesis 2005-2009 6 Spd F/AWD L5 2.4L
Lancia Thesis 2005-2009 2.4
Land Rover Freelander II 2007 6 Spd AWD 1.8L, 2.5TD, V6 2.5L
Land Rover LR2 2007 6 Spd AWD L6 3.2L
Mercury Milan 2006-2009 6 Spd FWD/AWD V6 3.0L
Mercury Montego 2005-2007 6 Spd FWD V6 3.0L
Opel Antara 2012-2014 6 Spd F/AWD L4 2.2L
Opel Astra 2010-2012 1.9
Opel Astra 2006-2016 6 Spd F/AWD L4 1.9L
Opel Astra 2006-2009 2.2
Opel Astra-G & Zafira 2006 6 Spd FWD 2.0L, 2.0LTD, 2.2L
Opel Insignia 2010-2012 2.0, 2.8
Opel Insignia 2008-2012 6 Spd F/AWD L4 2.0L/2.8L
Opel Insignia 2008-2009 2.0, 2.8
Opel Insignia 6 Spd FWD/AWD 1.8L, 2.0L,2.0TD, 2.8L
Opel Signum 2010-2012 1.9, 2.8, 3.0
Opel Signum 2005-2009 1.9, 2.8, 3.0
Opel Signum 2005-2008 6 Spd F/AWD L4 1.9/2.8/3.0L
Opel Vectra 2005-2009 6 Spd F/AWD L4 1.9L V6 2.8L/3.0L
Opel Vectra 2005-2009 1.9, 2.8, 3.0
Opel Vectra-C 2006-2008 6 Spd FWD 2.2L, 2.2LTD, 3.2L
Opel Zafira 2010-2011 1.9, 2.0
Opel Zafira 2006-2010 6 Spd F/AWD L4 1.9/2.0L
Opel Zafira 2006-2009 1.9, 2.0
Opel ZAFIRA TOURER 2011-2015 6 Spd FWD L4 2.0L
Peugeot 3008 2010-2016 6 Spd F/AWD L4 2.0/2.2L
Peugeot 3008 2010-2012 2.0, 2.2
Peugeot 307 2006-2008 6 Spd FWD 1.4, 1.6, 2.0
Peugeot 307 2006-2008 6 Spd F/AWD L4 2.0L
Peugeot 307 2006-2008 2.0
Peugeot 308 2010-2012 2.0, 2.2, 2.7, 2.9, 3.0
Peugeot 308 2008-2012 6 Spd F/AWD L4 2.0L
Peugeot 308 2008-2009 2.0
Peugeot 401 2014 6 Spd FWD L3 1.2L
Peugeot 407 2010-2012 2.0, 2.2, 2.7, 2.9, 3.0
Peugeot 407 2006-2012 6 Spd F/AWD L4 2.0L V6 2.7/2.9/3.0L
Peugeot 407 2006-2009 2.0, 2.7, 2.9, 3.0
Peugeot 408 2011 6 Spd FWD L4 2.0/2.2L V6 2.9.30.L
Peugeot 5008 2010-2016 6 Spd F/AWD L4 2.0L
Peugeot 5008 2010-2012 2.0, 2.2
Peugeot 508 2011-2014 6 Spd FWD L4 2.0/2.2L V6 2.9L
Peugeot 508 2010-2012 2.0, 2.2, 2.7, 2.9, 3.0
Peugeot 607 2010-2011 2.2, 2.7, 2.9
Peugeot 607 2006 6 Spd FWD 2.2L, 2.9L
Peugeot 607 2005-2011 6 Spd F/AWD V6 2.7/2.9L
Peugeot 607 2005-2009 2.7, 2.9
Peugeot 807 2010-2011 2.2, 2.7, 2.9
Peugeot 807 2006-2009 2.2
Peugeot 807 2005-2014 6 Spd F/AWD L4 2.2L V6 2.9L
Peugeot EXPERT 2010-2016 6 Spd FWD L4 2.0L
Renault Espace 2006-2016 6 Spd F/AWD V6 3.0L
Renault Espace 2006-2009 3.0
Renault Espace 2006 6 Spd FWD 3.0L
Renault Vel Satis 2010 3.0
Renault Vel Satis 2006-2010 6 Spd F/AWD V6 3.0L
Renault Vel Satis 2006-2009 3.0
Renault Vel Satis 2006 6 Spd FWD V6 3.0L
Saab 9'3 2006-2016 6 Spd F/AWD L4 1.9/2.0L V6 2.8L
Saab 9'3 2006-2007 6 Spd FWD V6 2.8L
Saab 9'5 2010-2012 6 Spd F/AWD L4 2.0L V6 2.8L
Saab 93 2010-2012 1.9, 2.0, 2.8
Saab 93 2006-2009 1.9, 2.0, 2.8
Saab 93 2006-2007 6 Spd FWD V6 2.8L
Saab 95 2010-2012 2.8
Toyota PROACE 2013-2016 6 Spd FWD L4 2.0L
Vauxhall Astra & Zafira 2005-2007 6 Spd FWD 2.0L, 2.2L
Vauxhall Vectra C 2005-2008 6 Spd FWD 2.2L, 3.2L, 2.2L TD
Volvo 80 SERIES 2007 6 Spd FWD/AWD L6 3.2L V8 4.4L
Volvo 90 SERIES 2006-2007 6 Spd AWD L6 3.2L V8 4.4L
Volvo C30/C30 R 2010-2012 6 Spd F/AWD T5 2.4L
Volvo C70 2010-2013 2.4
Volvo S60 2006-2016 2.5, 3.0
Volvo S60 R 2006-2007 6 Spd AWD L5 2.5L
Volvo S60 R 2005-2007 2.0, 2.4, 3.0, 3.2
Volvo S60L 2006-2016 6 Spd F/4WD L5 2.0L/2.4L L6 3.0L
Volvo S80 2010-2013 3.0, 3.2, 4.4
Volvo S80 2006-2015 2.0, 2.4, 2.5, 3.0, 3.2, 4.4
Volvo S80 2006-2014 6 Spd F/AWD L4 2.0L T5 2.0/2.4/2.5L
Volvo V60 2005-2008 2.0, 2.4, 3.0, 3.2
Volvo V70 2010-2012 2.4, 2.5, 3.2
Volvo V70 2008-2009 2.4, 2.5, 3.2
Volvo V70 2007 6 Spd AWD L5 2.3L 2.4L 2.5L
Volvo V70 1997-2016 6 Spd F/AWD T5 2.4/2.5L V6 3.2L
Volvo V70 R 2006-2008 2.4, 2.5, 3.2
Volvo V70 R 2006-2007 6 Spd AWD L5 2.5L
Volvo XC60 2010-2016 3.0, 3.2
Volvo XC60 2008-2016 6 Spd F/AWD L4 2.0L T5 2.4L V6 3.0
Volvo XC60 2008-2009 2.0, 2.4, 3.0, 3.2
Volvo XC70 2010-2015 3.0, 3.2
Volvo XC70 2008-2009 2.4, 3.0, 3.2
Volvo XC70 2007-2016 6 Spd F/AWD T5 2.4L V6 3.0L/3.2L
Volvo XC70 2006 6 Spd AWD L5 2.5L
Volvo XC90 2010-2015 3.2, 4.4
Volvo XC90 2006 6 Spd AWD V8 4.4L
Volvo XC90 2005-2009 2.4, 3.2, 4.4
Volvo XC90 2004-2014 6 Spd F/AWD T5 2.4L V6 3.0L/3.2L

Other and alternative codes of this transmission

+ Contribute

This feature is in progress and will be available soon.

MXE
MDK
AF40/6
M36
AF406
AF40-6
AF40
AM 6
AM6
AM-6
AM6c
AWF21
AWF 21
AWF-21
TF-80 SC
TF80-SC
TF80SC
TF 80 SC
TF 80SC
TF-80SC
AW TF-80SC
AF6
TF-80SC (AF40/AF4)
verified naming OEM designation source name

Common problems & symptoms

Problems and symptoms reported for this transmission, compiled from repair sources. Not a complete list.

!
Torque Converter Friction Lining Wear
Carbon friction lining contaminates ATF intensively; requires cutting converter and replacing lining in almost every rep
!
Valve Body Contamination Damage
Worn torque converter friction lining debris contaminates ATF and negatively impacts valve body operation.
!
C2 Clutch Pack Burnout
Package C2 (4-5-6 gears) is typically the first clutch pack to burn; C1 (1-2-3-4) may also be affected.
!
Teflon Seal Ring Wear
Worn teflon rings cause internal oil leakage, leading to friction burning, solenoid damage, and valve body failure.
?
Torque Converter Slipping Mode
Aggressive throttle input triggers early TCC slip mode activation, accelerating friction plate wear and requiring rebuil
!
Pump Bushing Failure
Pump bushing is the most vulnerable component when torque converter parts wear out; common failure point in TF80.
!
Reverse Brake Band Degradation
Burnt ATF damages reverse brake band friction lining; replacement recommended whenever ATF burn is detected.
!
Differential Spline Failure AWD
AWD Mazda CX7/CX9 differential spline failure caused by ECU settings permitting overloading of the drivetrain.
?
Harsh D-to-R engagement clunk
Shifting directly from Drive to Reverse produces a loud metallic clunk and a violent shudder through the car; selecting Neutral first for a couple seconds reduces the harshness.
!
Torque converter one-way clutch bearing
The one-way clutch bearing inside the torque converter can fail apart, usually due to overload, especially on diesel applications with high low-end torque.
!
Overheating from infrequent fluid changes
The main source of transmission trouble, affecting the torque converter and valve body, is typically linked to overheating caused by infrequent fluid changes.
Know a symptom and its fix?
Share the symptom, how it was fixed and the part that solved it. We review every submission before publishing.
Contribute a symptom

This feature is in progress and will be available soon.

About this transmission

Transmission general data

The 6-speed front drive automatic transmission AW TF80SC (AF40-6) has been available on the market since 2003 as more expensive alternative of the 4-speed AW50-40 and the 5-speed AW55-50 for 2-... 4-liter cars: Ford (as AF40-6), Mazda (as AW6A-EL), Volvo, SAAB, Opel, Fiat and all "French" automakers Peugeot-Citroen-Renault (as AM6).

The family of AW TF80SC transmissions has two different sub-modification, for two classes of engines: "middle class" (up to 2.0 liters)- AF40-6\TF80SC and AF21\TF81SC - "heavy duty" (2.0 - 4.0liters) and has the torque capacity of up to 450 Nm.

Technical issues and repair guidelines

The torque converter intensively contaminates the ATF with dust from carbon friction lining. Almost each transmission repair includes cutting of the torque converter and replacement of the friction lining. The worn-out friction lining of the torque converter has a negative impact on the valve body. The more aggressively the driver pushes on the gas pedal, the earlier the computer switches on the slipping mode of the torque converter friction, resulting in rapid wear-out of friction plates and the necessity to rebuild the the torque converter and the valve body. This transmission is sensitive not only to contaminated oil, but also to the wear-out of teflon rings (where oil leakages may occur). The operation with worn-out spare parts leads to burning of frictions, and later to problems with solenoids and the valve body.

The whole kit of friction discs is replaced in case of burnt oil. The package C2 (4-5-6) is usually the first to burn (in some cases it may be the package 1-2-3-4 Clutch (C1)). The standard kit for reassembly includes the kit of pistons. (C2 piston+retainer, retainers C1 and C3). The kit includes the most popular pistons ordered by transmission specialists. In case of burnt ATF, it is also recommended to replace the Reverse brake band , because its friction lining is affected by burnt ATF. The problem of frictions burning are usually related to the wear-out of teflon rings.

The pump bushing turns out to be the most vulnerable part in the TF80 transmission, in case of the torque converter parts wearout. Problems may also occur in the differential (in AWD Mazda CX7, CX9). The problem lies in the spline failure. This issue is caused by the ECU settings, allowing overloading.

Generally, the TF-80SC transmission is extremely reliable and successful 6-speed unit, which causes less problems in comparison with its predecessors TF60SN and AW55-50. It may be considered as an “invincible” solution and the most maintenance-friendly 6-speed automatic transmission.
